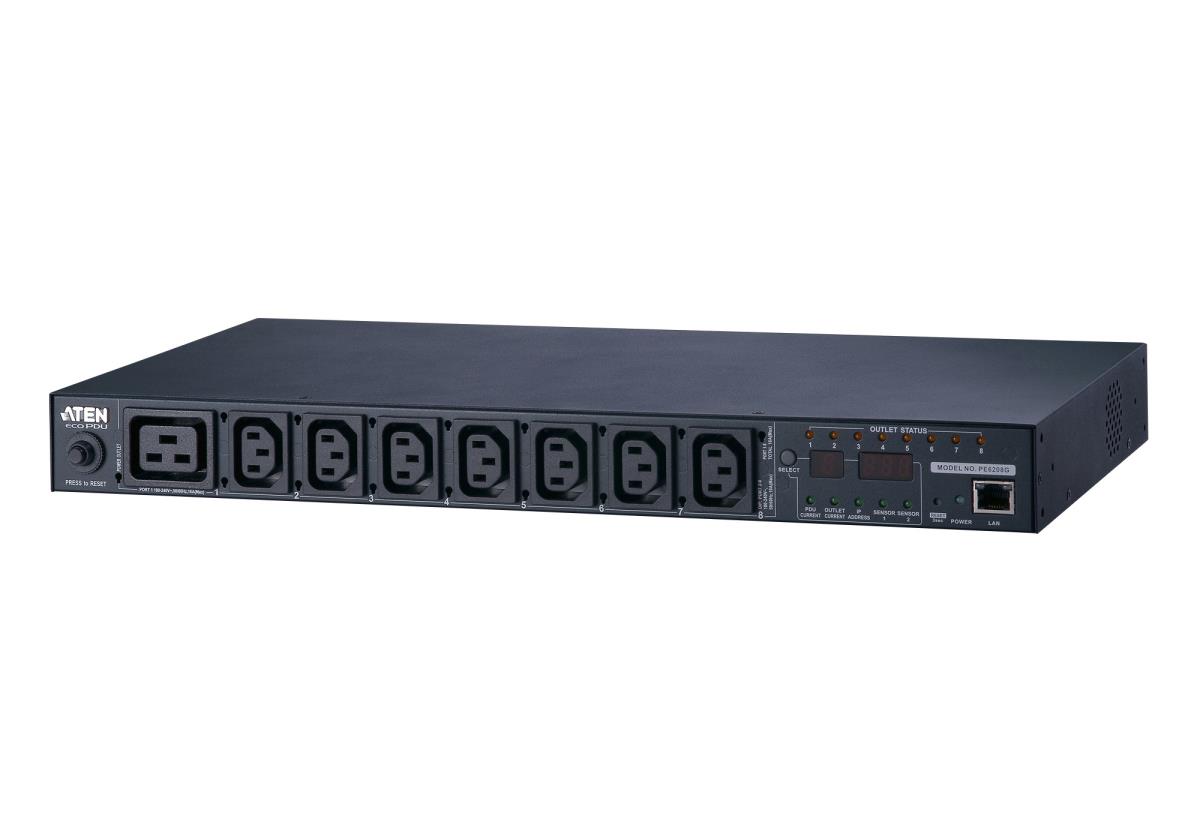

8-outlet 1u Eco Pdu Metered By Bank Switched By Outlet (16a) (7x C13 1x C19)
ITCurry #: 90314288 | Article #: PE6208G-ATA-G-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
• 8 outlets
• 20A (UL derated 16A) / 16A
• PDU Power Measurement
The PE6208 eco PDU is intelligent PDUs that contains 8 AC outlets and is available in various IEC or NEMA socket configurations. It provides secure, centralized, intelligent, power management (power on, off, cycle) of data center IT equipment (servers, storage systems, KVM switches, network devices, serial data devices, etc.), as well as the ability to monitor the center's health environment via sensors*.
The eco PDUs offer remote power control combined with real-time power measurement - allowing you to control and monitor the power status of devices attached to the PDUs at the PDU device level from practically any location via a TCP/IP connection.
The eco PDU supports any 3rd party v3 SNMP Manager Software and the eco DC (Energy Management Web GUI). The eco DC provides you with an easy method for managing multiple devices, offering an intuitive and user-friendly Graphical User Interface that allows you to configure a PDU device and monitor power status of the equipment connected to it. With the eco DC, the Sensor-enabled eco PDU also offers comprehensive power analysis reports which can separate by departments and locations, providing precise measurements of current, voltage, power and watt-hour in a real-time display.
With its advanced security features and ease of operation, the eco PDU is the most convenient, most reliable, and most cost effective way to remotely manage power access for multiple computer installations and allocate power resources in the most efficient way possible.
*Sensors are optional accessories. A sensor-enabled installation is required to generate a more complete energy-efficient data and chart. Higher sensor installation density is helpful to generate more accurate data.
| Design | |
| PDU types | Metered |
| Rack capacity | 1U |
| Product colour | Black |
| On/off switch | Yes |
| Ports & interfaces | |
| AC outlets quantity | 8 AC outlet(s) |
| Power plug | C20 coupler |
| AC outlet types | C13 coupler, C19 coupler |
| Features | |
| Cable length | 3 m |
| Certification | CE TUV-CB CE-LVD |
| Management features | |
| Monitoring | Current |
| Outlet control | Turn off, Turn on |
| Power | |
| Nominal input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current | 16 A |
| Load capacity | 380 VA |
| Maximum total current draw per phase | 16 A |
| Maximum power | 100 W |
| Weight & dimensions | |
| Width | 220.4 mm |
| Depth | 432.4 mm |
| Height | 44 mm |
| Weight | 2.79 kg |
| Packaging data | |
| Package width | 116 mm |
| Package depth | 499 mm |
| Package height | 324 mm |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 øC |
| Storage temperature (T-T) | -20 - 60 øC |
| Operating relative humidity (H-H) | 0 - 80% |
| Logistics data | |
| Master (outer) case net weight | 9.87 kg |
| Master (outer) case width | 388 mm |
| Master (outer) case length | 519 mm |
| Master (outer) case height | 348 mm |
| Master (outer) case gross weight | 13 kg |
| Warranty | |
| Base Warranty | Non Non |
