Product Information

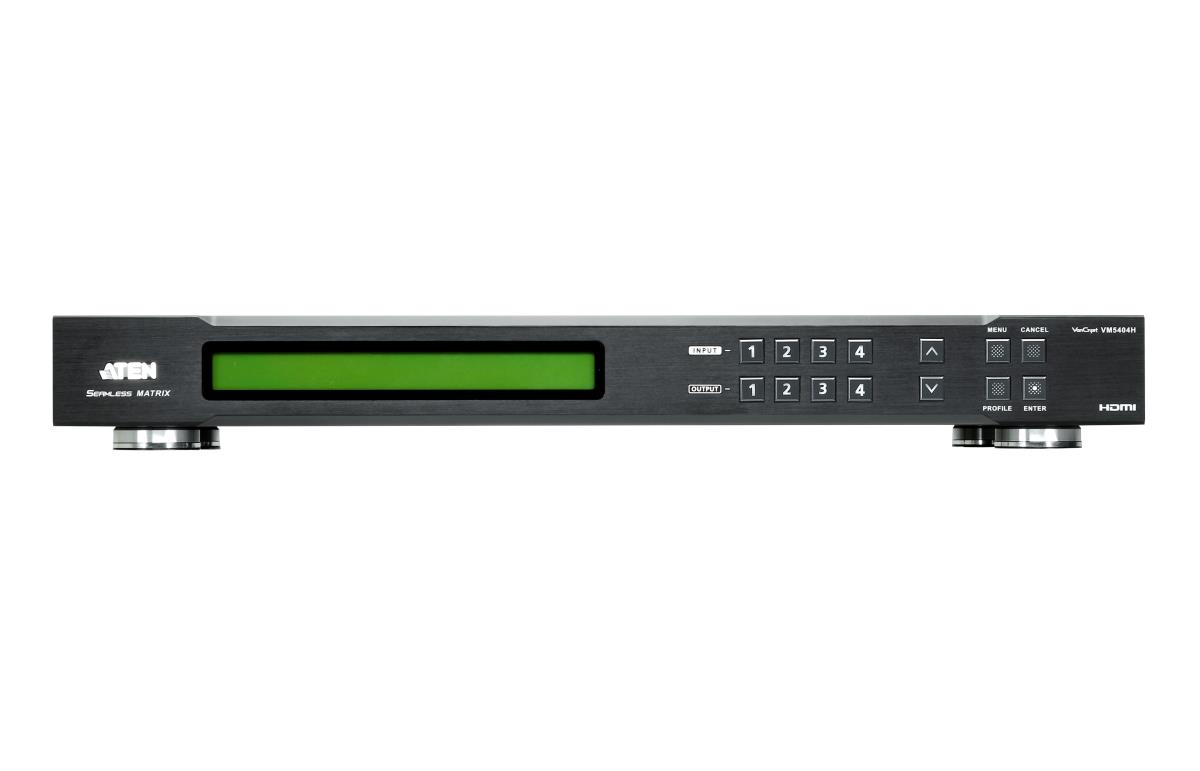

The VM5404H 4 x 4 HDMI Matrix Switch is a distinct HDMI solution that offers an easy and affordable way to route any of 4 HDMI video sources to any of 4 HDMI displays, with a quick view of all port connections via the front panel LCD.
1x VM5404H 4 x 4 HDMI Matrix Switch with Scaler
1x LIN2-418K-E12G Power Cord
1x 2XRT-0106G IR Remote Control
1x 2XRT-0003G IR Receiver
1x Mounting Kit
1x User Instructions
| Features | |
| Product type | Scaling matrix switcher |
| Data transfer rate | 6.75 Gbit/s |
| Maximum pixel clock | 225 MHz |
| HDCP | Yes |
| HDCP version | 1.4 |
| 3D | Yes |
| Extended display identification data (EDID) | Yes |
| Design | |
| Housing colour | Black |
| Housing material | Metal |
| Remote control included | Yes |
| Display | |
| Built-in display | Yes |

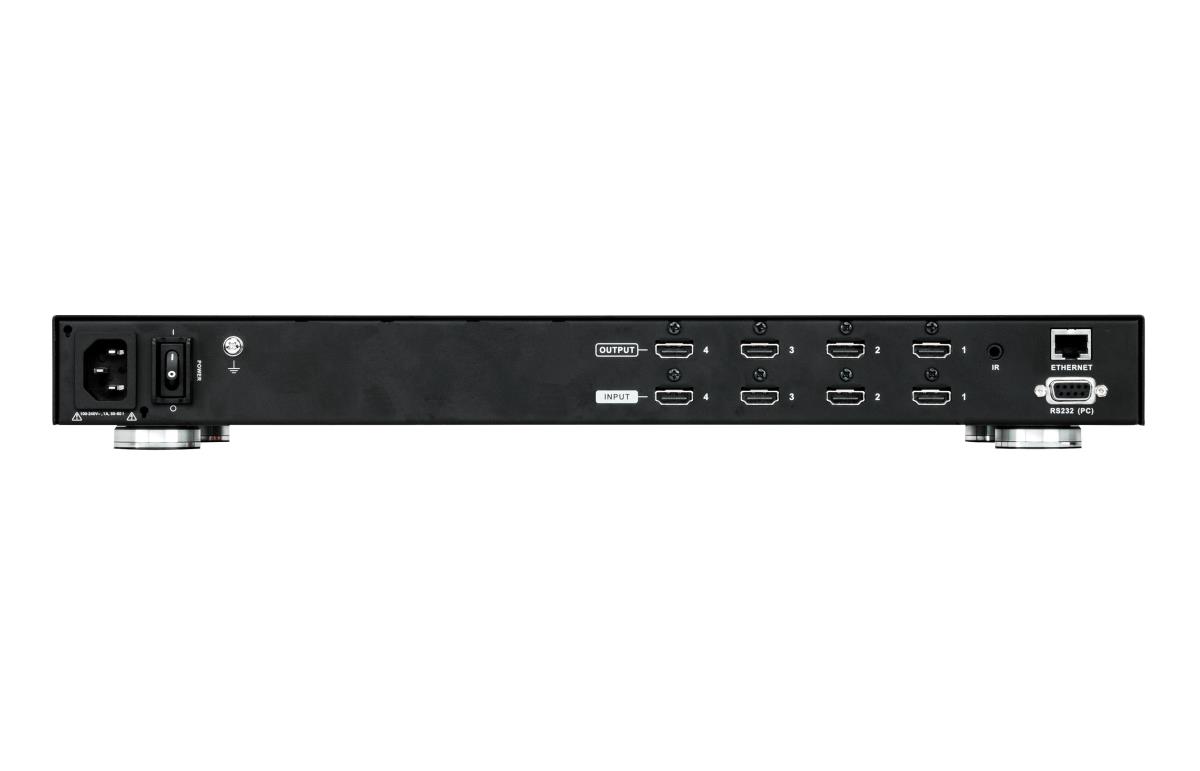

| Ports & interfaces | |
| HDMI input ports quantity | 4 |
| HDMI output ports quantity | 4 |
| RJ-45 input ports | 1 |
| RS-232 ports | 1 |
| Power | |
| Power consumption (max) | 34.4 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 1 A |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 øC |
| Storage temperature (T-T) | -20 - 60 øC |
| Operating relative humidity (H-H) | 0 - 80% |
| Logistics data | |
| Products per master (outer) case | 1 pc(s) |
| Master (outer) case gross weight | 6.04 kg |
| Master (outer) case length | 515 mm |
| Master (outer) case width | 338 mm |
| Master (outer) case height | 155 mm |
| Master (outer) case net weight | 4.32 kg |
| Harmonized System (HS) code | 85299097 |
| Weight & dimensions | |
| Width | 262.3 mm |
| Depth | 432.4 mm |
| Height | 44 mm |
| Weight | 4.32 kg |
| Package width | 338 mm |
| Package depth | 515 mm |
| Package height | 155 mm |
| Package weight | 6.04 kg |
| Packaging content | |
| Cables included | AC |
| Warranty | |
| Base Warranty | Non Non |
