4k Hdmi Vga Hdbaset Transmitter (4096 X 2160 Up To 100m: Long Reach Mode1920 X 1080 Up To 150
ITCurry #: 90314106 | Article #: VE2812AT-AT-G-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

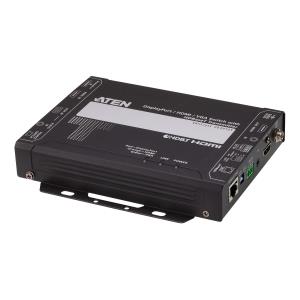

ATEN VE2812AT is a transmitter for sending VGA (with audio) and HDMI signals up to 100 m over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable. Featuring built-in PoH (Power over HDBaseT) function, the VE2812AT receives power supply from the HDBaseT output port on the connected device. This eliminates the need for a power adapter and reduces the hassle of power line deployment behind the wall. The VE2812AT guarantees reliable transmission of HDMI signals, supporting 3D, Deep Color, and embedded HD lossless audio formats. It also ensures transmission of VGA (with audio) at distance up to 100 m. In addition, it supports Long Reach Mode up to 150 m via a single Cat 5e/6 cable at resolutions up to 1080p.
1 x VE2812AT Transmitter
1 x RS-232 Terminal Block
4 x Foot Pads
1 x 0AD8-1F05-26M1 Power Adapter
1 x User Instructions
| Features | |
| Type | AV transmitter |
| Maximum resolution | 4096 x 2160 pixels |
| Maximum transfer distance | 100 m |
| Bandwidth | 10.2 Gbit/s |
| Bandwidth | 340 MHz |
| HDCP | Yes |
| Material | Metal |
| 3D | Yes |
| Consumer Electronics Control (CEC) support | Yes |
| HDCP version | 2.2 |
| Product colour | Black |
| Ports & interfaces | |
| Connectivity technology | Wired |
| RJ-45 output ports | 1 |
| HDBaseT port | Yes |
| VGA (D-Sub) input ports | 1 |
| HDMI in | 1 |
| Audio input | 1 |
| Remote (IR) output | 1 |
| DC-in jack | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Storage temperature (T-T) | -20 - 60 øC |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width | 123 mm |
| Depth | 143.2 mm |
| Height | 30 mm |
| Weight | 640 g |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width | 59 mm |
| Package depth | 239 mm |
| Package height | 160 mm |
| Package weight | 765 g |
| Logistics data | |
| Master (outer) case width | 250 mm |
| Master (outer) case length | 325 mm |
| Master (outer) case height | 175 mm |
| Master (outer) case gross weight | 4.4 kg |
| Master (outer) case net weight | 3.2 kg |
| Products per master (outer) case | 5 pc(s) |
| Warranty | |
| Base Warranty | Non Non |
