4-port 4k 10g Optical Input Board (4096 X 2160 Up To 300m Mm) With Ir / Rs-232 Pass-through
ITCurry #: 90314029 | Article #: VM7584K1-AT-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

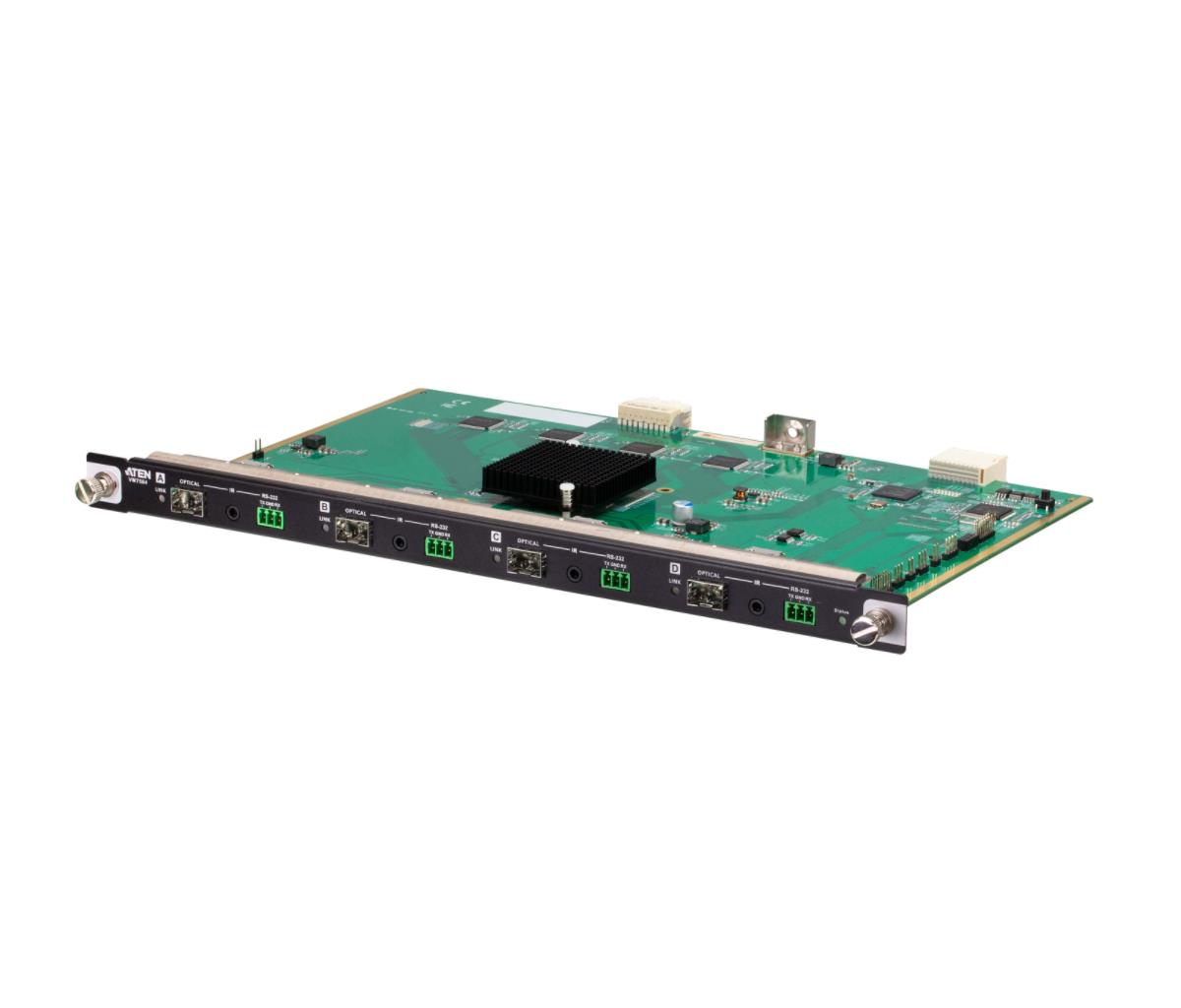

The VM7584 4-Port 10G Optical Input Board offers an easy way to route 4 HDMI sources to HDMI displays through optical extenders, and up to 16/32 input and 16/32 output connections on an ATEN Modular Matrix Switch through various AV interfaces. Designed with fiber optics technology for long-distance transmission, the VM7584 along with its SFP+ modules extends uncompressed 4K signal up to 300 m (using VM7584K1) or 10 km (using VM7584K2) over duplex fiber optic cables. The optical fiber simplifies cabling by guaranteeing an interference-free long-haul transmission of audio, video, IR, and RS-232 control signals over one single set of duplex cables that easily connects to the SFP+ slot. Moreover, the VM7584 supports a high data rate of 10.2 Gbps and meets HDMI Specifications that include 3D, Deep Color, and 4K to ensure superior video quality.
1x VM7584 4-Port 10G Optical Input Board

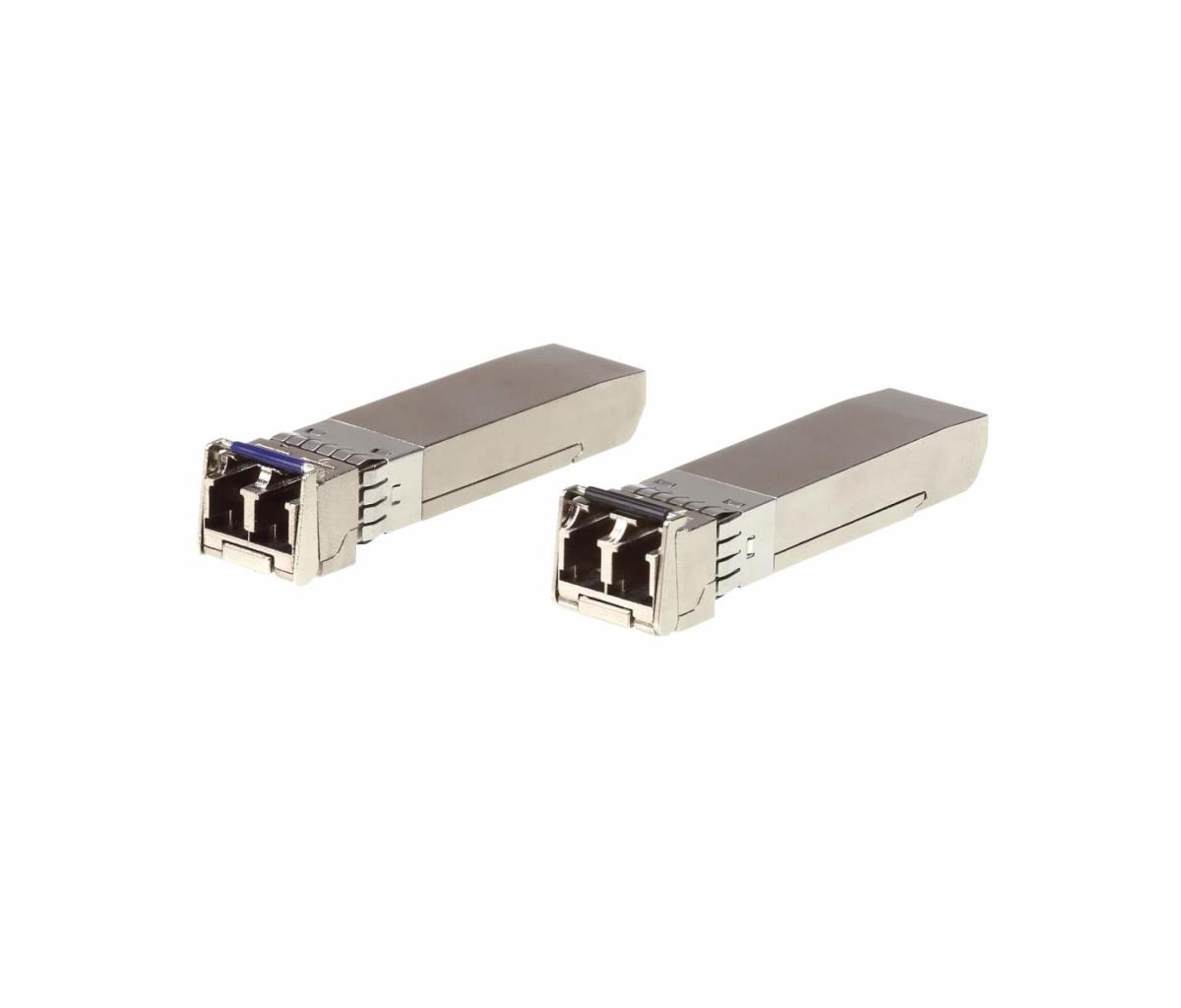

4x SFP+ Modules
4x 3-Pole Terminal Blocks
1x IR Receiver
1x IR Emitter
1x User Instructions
| Design | |
| Product type | Input board |
| Product colour | Black |
| Material | Metal |
| LED indicators | Yes |
| Compatibility | Aten VM3250 / VM3200 / VM1600A |
| Power | |
| Power consumption (typical) | 10.54 W |
| Weight & dimensions | |
| Width | 352 mm |
| Depth | 238 mm |
| Height | 23.3 mm |
| Weight | 720 g |
| Packaging data | |
| Package width | 285 mm |
| Package depth | 426 mm |
| Package height | 57 mm |
| Package weight | 1.07 kg |
| Packaging content | |
| Quick start guide | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage temperature (T-T) | -20 - 60 øC |
| Storage relative humidity (H-H) | 0 - 80% |
| Logistics data | |
| Products per master (outer) case | 2 pc(s) |
| Master (outer) case gross weight | 2.59 kg |
| Master (outer) case length | 440 mm |
| Master (outer) case width | 300 mm |
| Master (outer) case height | 138 mm |
| Master (outer) case net weight | 1.44 kg |
| Warranty | |
| Base Warranty | Non Non |
