Product Information

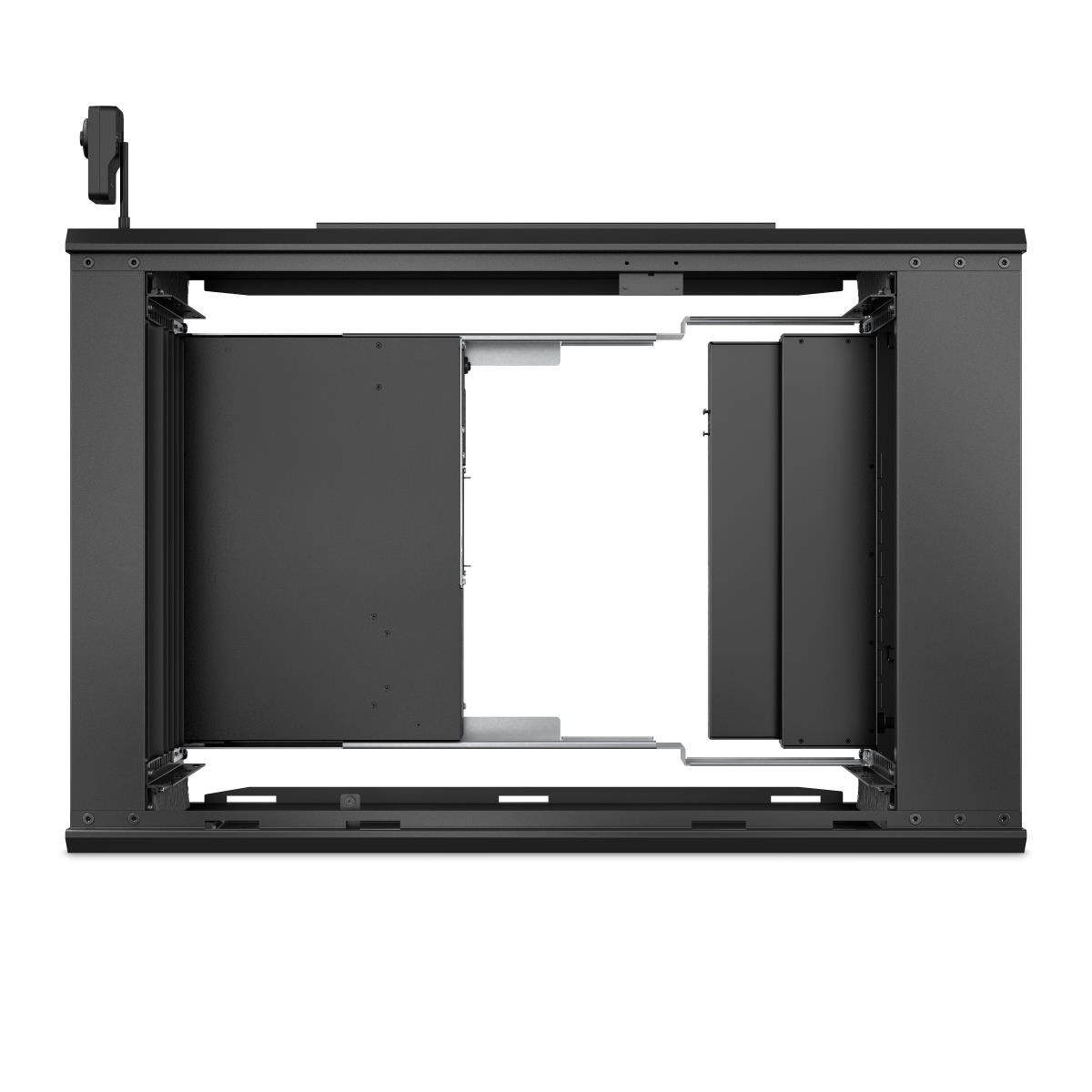

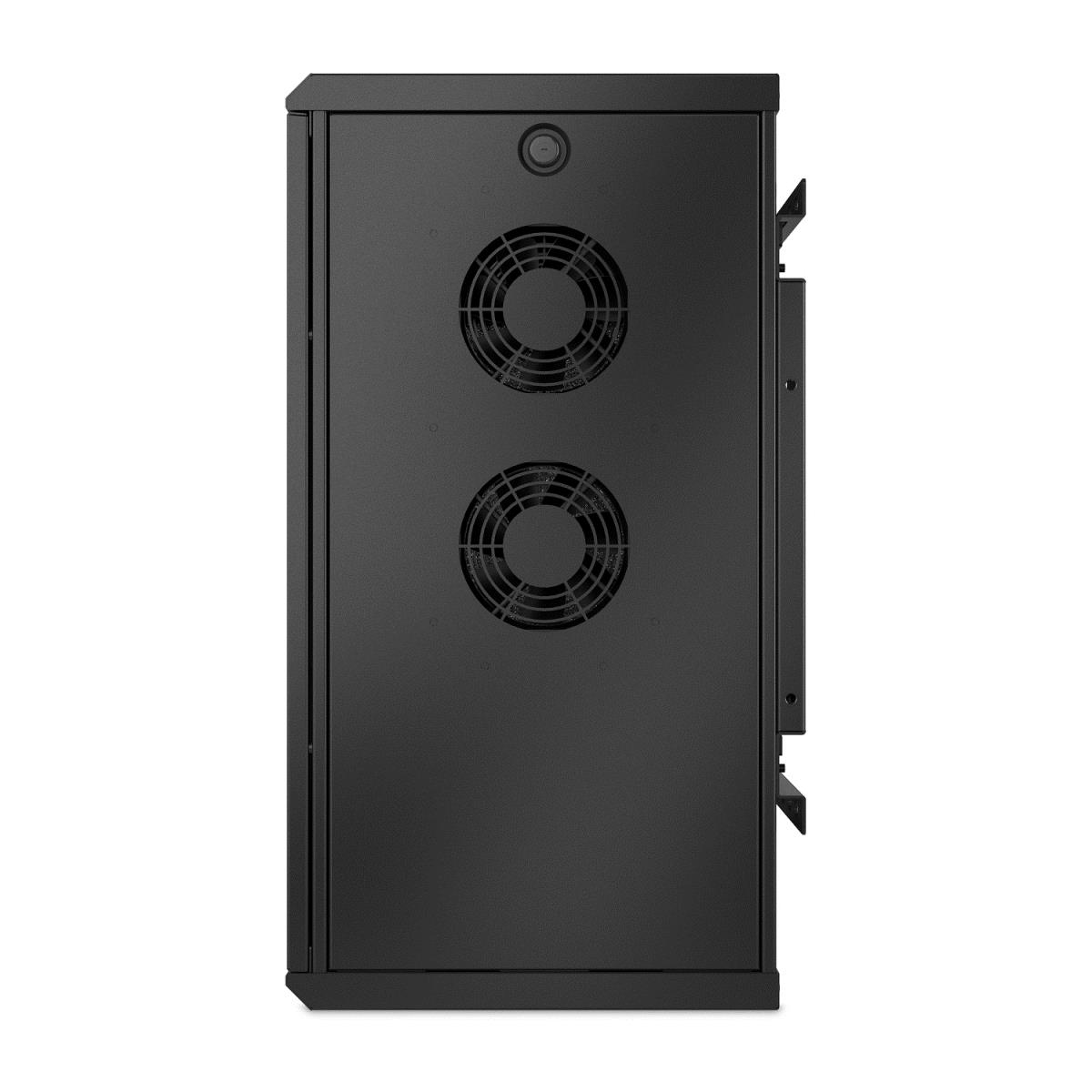

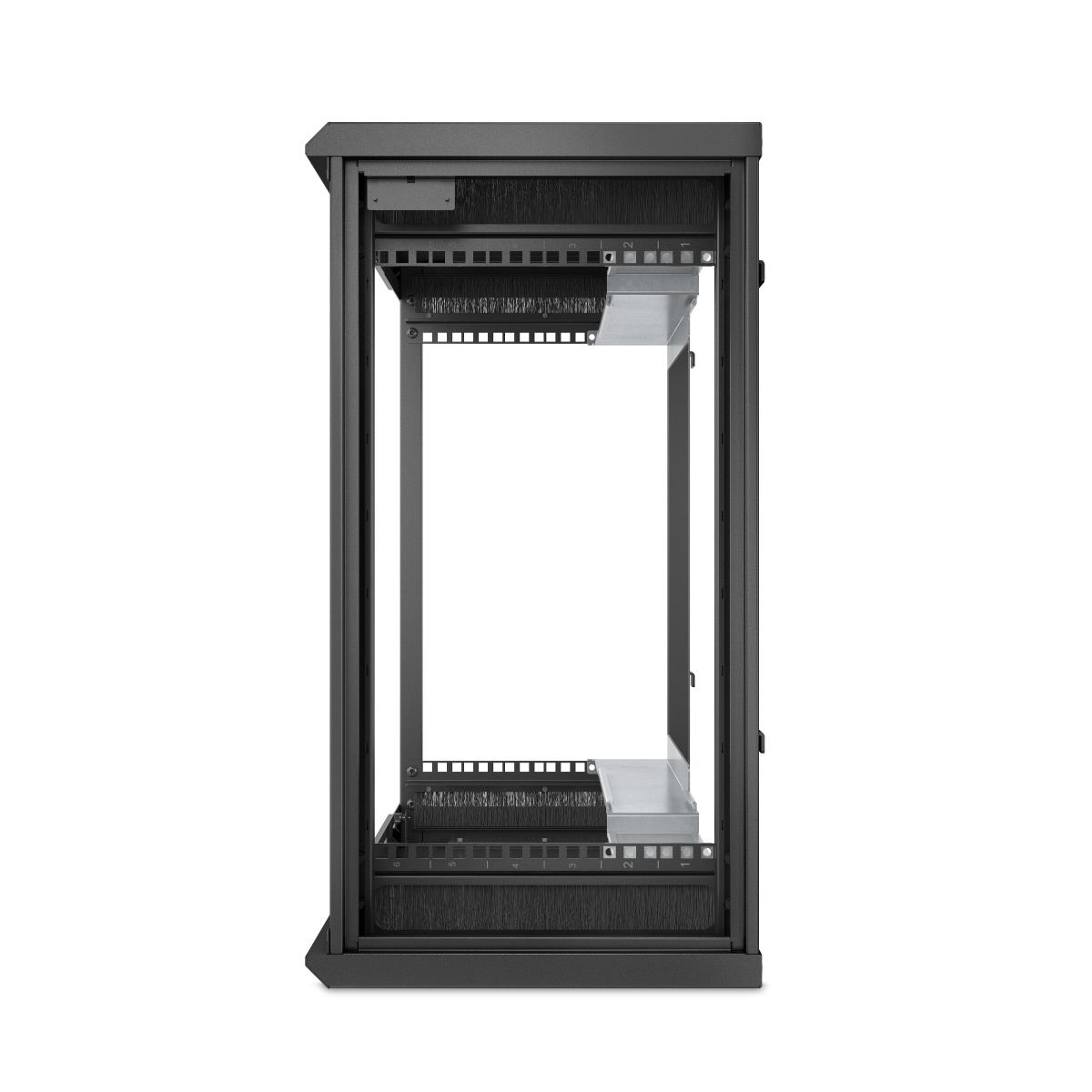

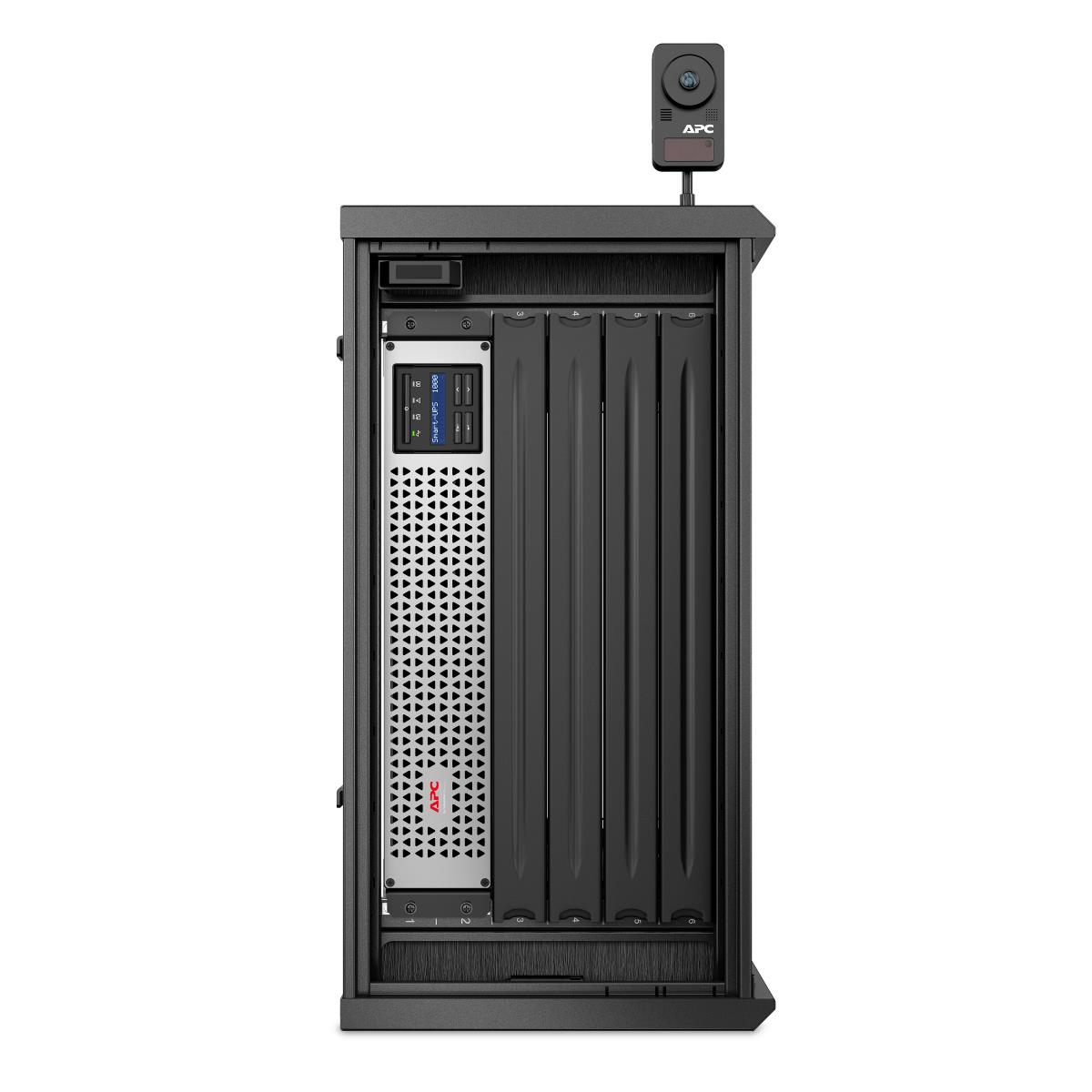

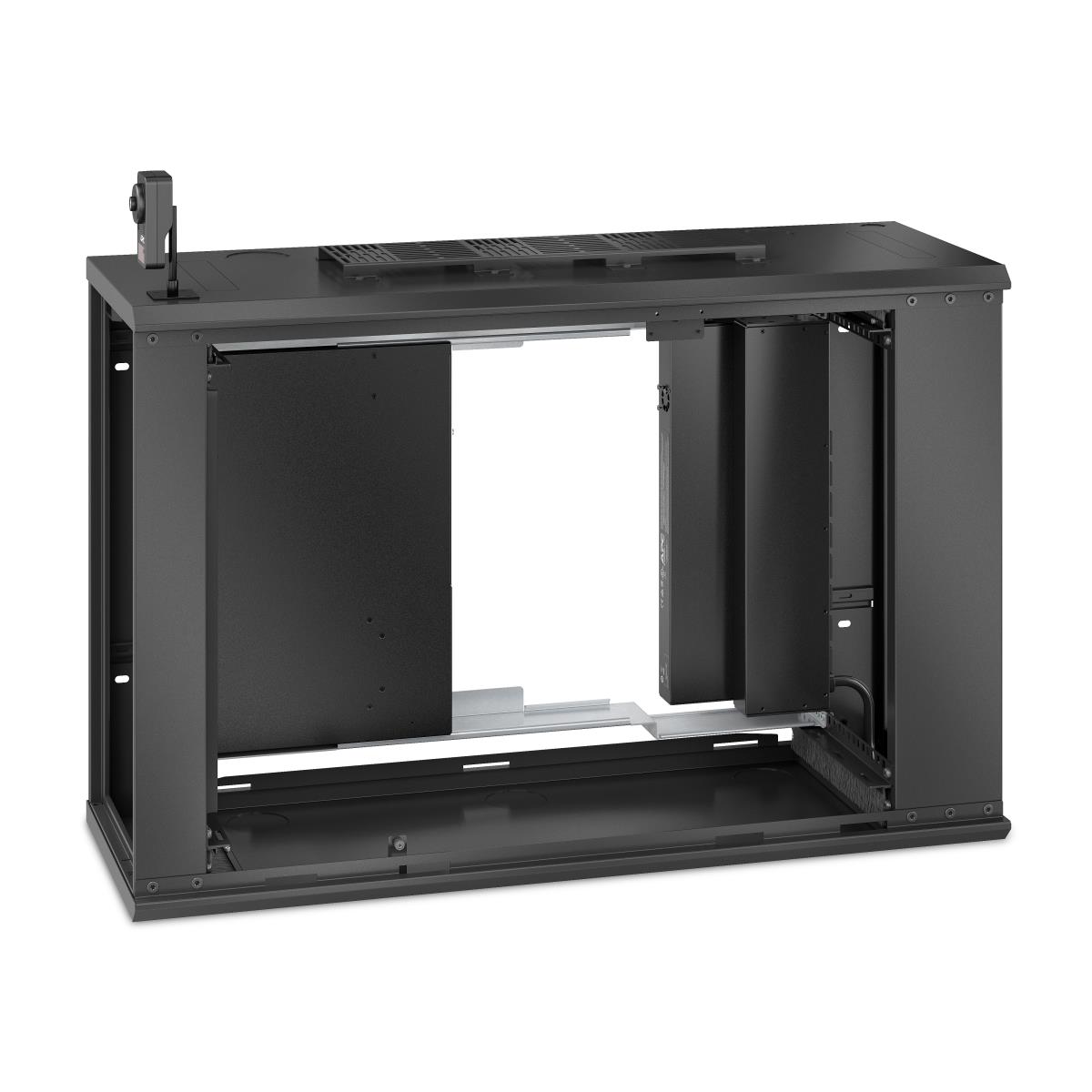

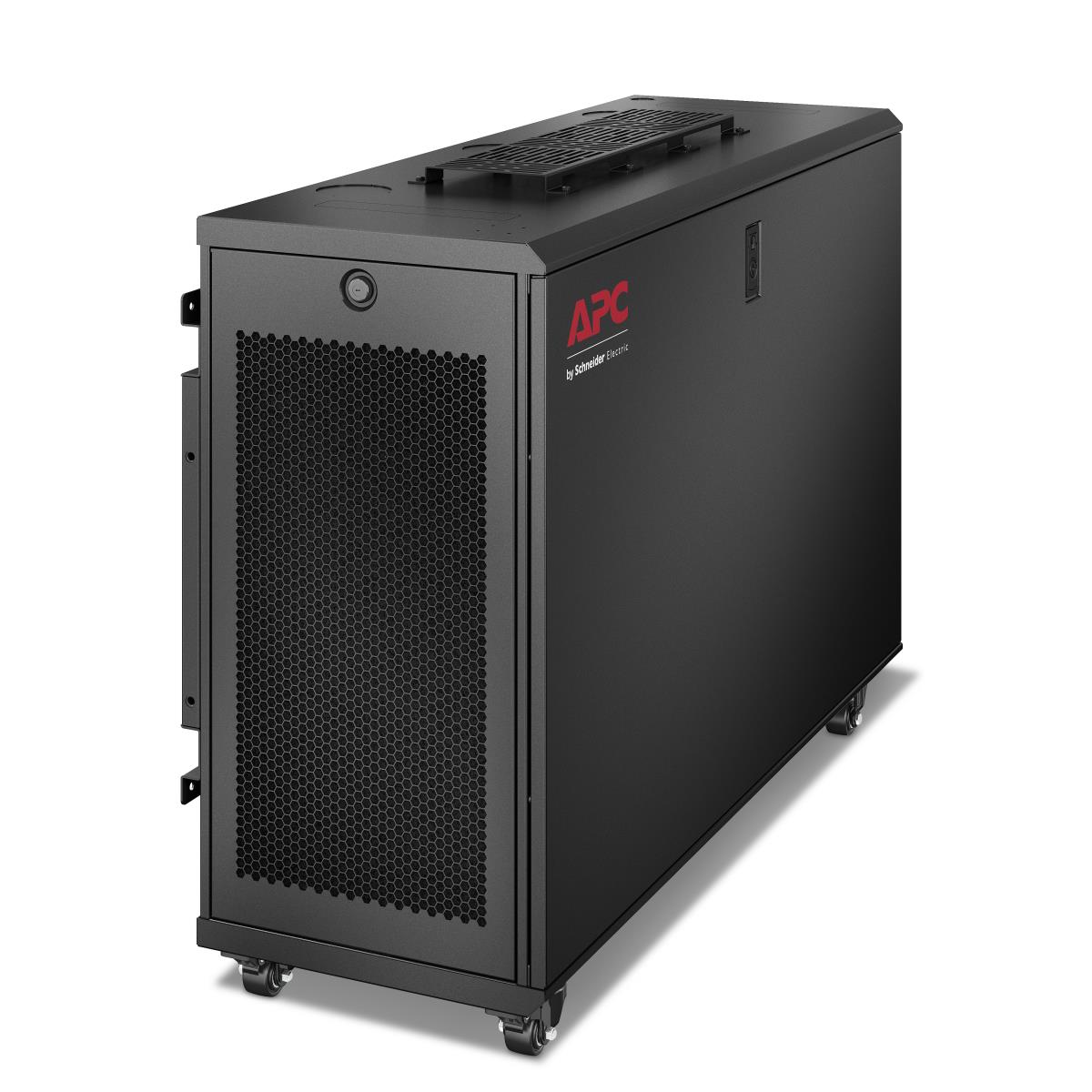

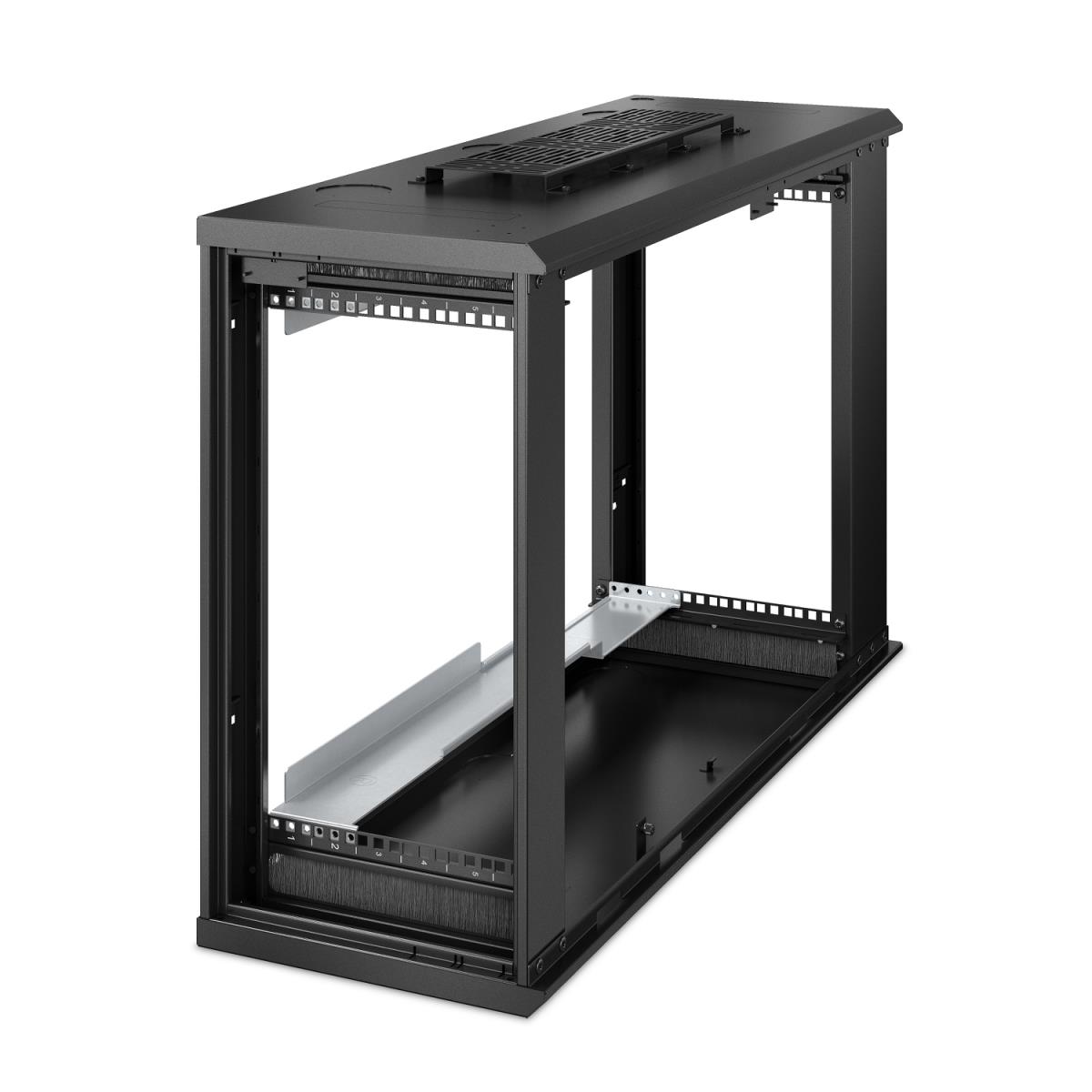

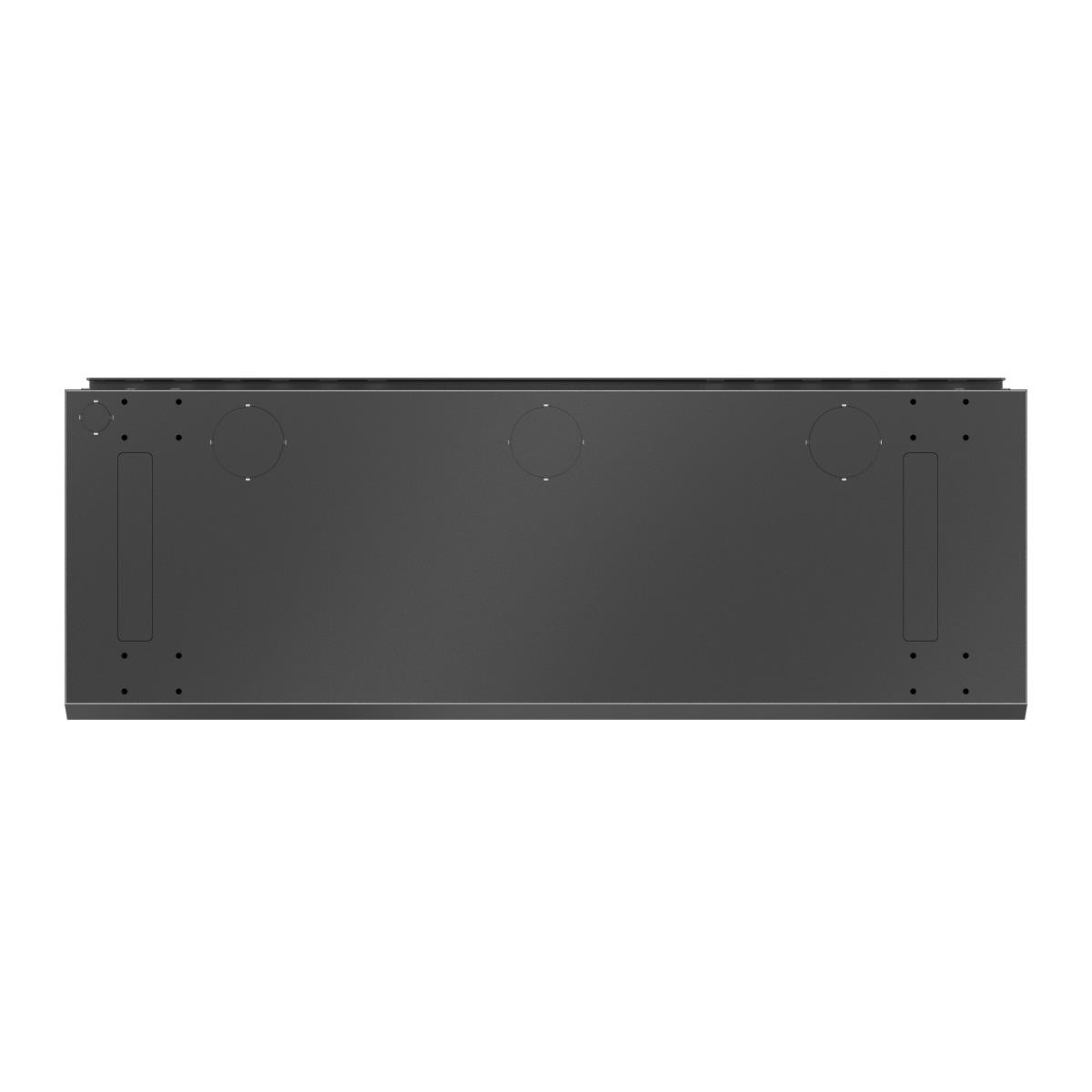

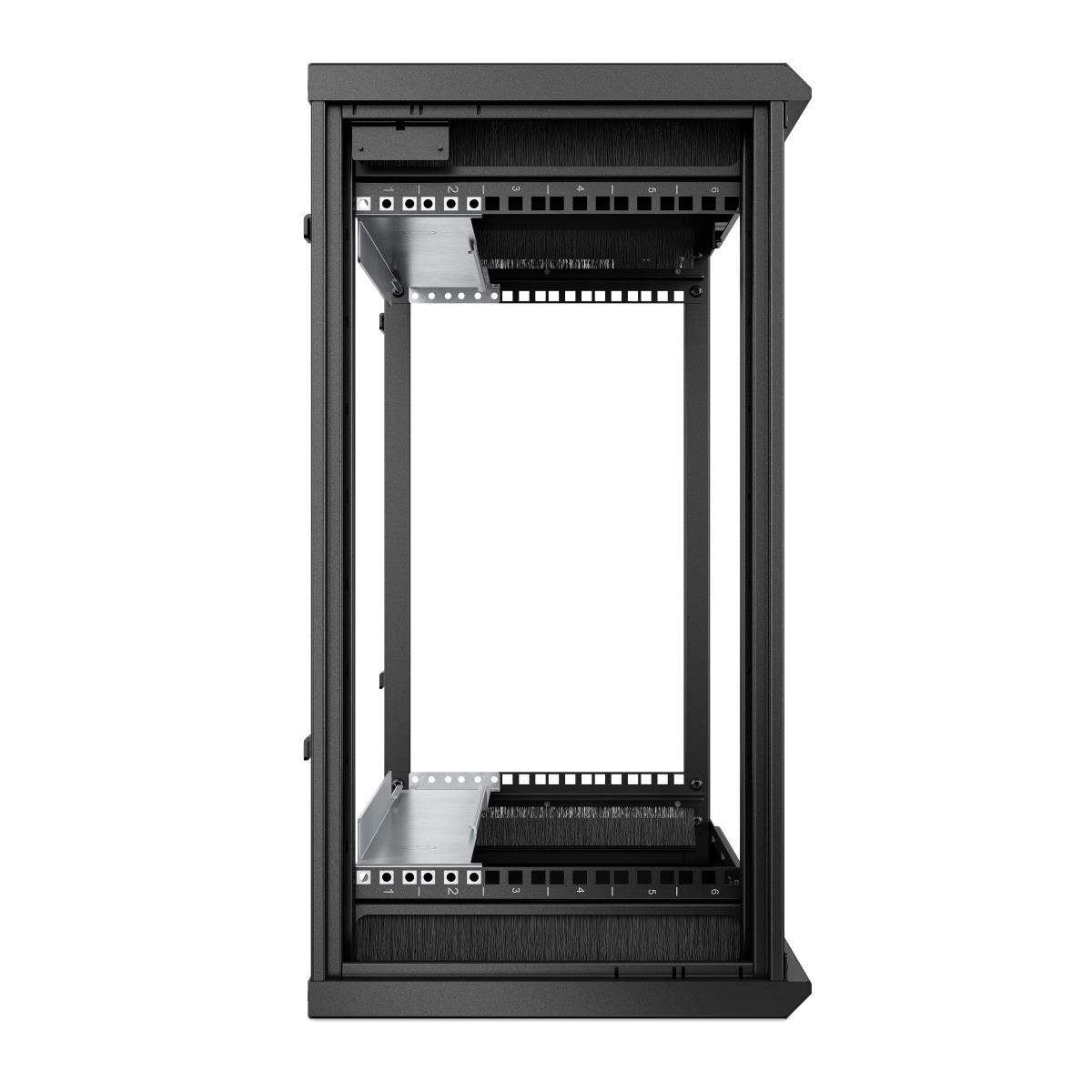

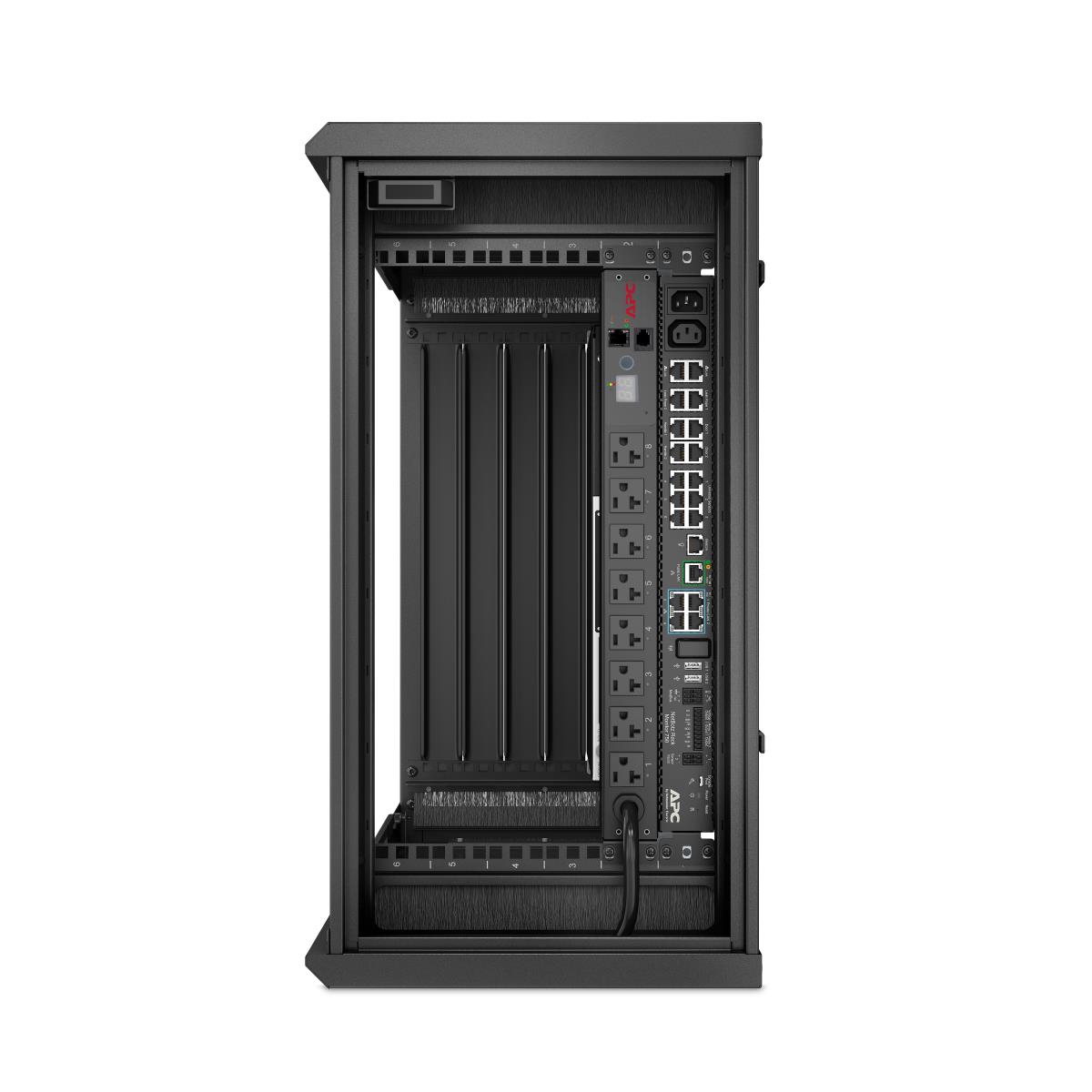

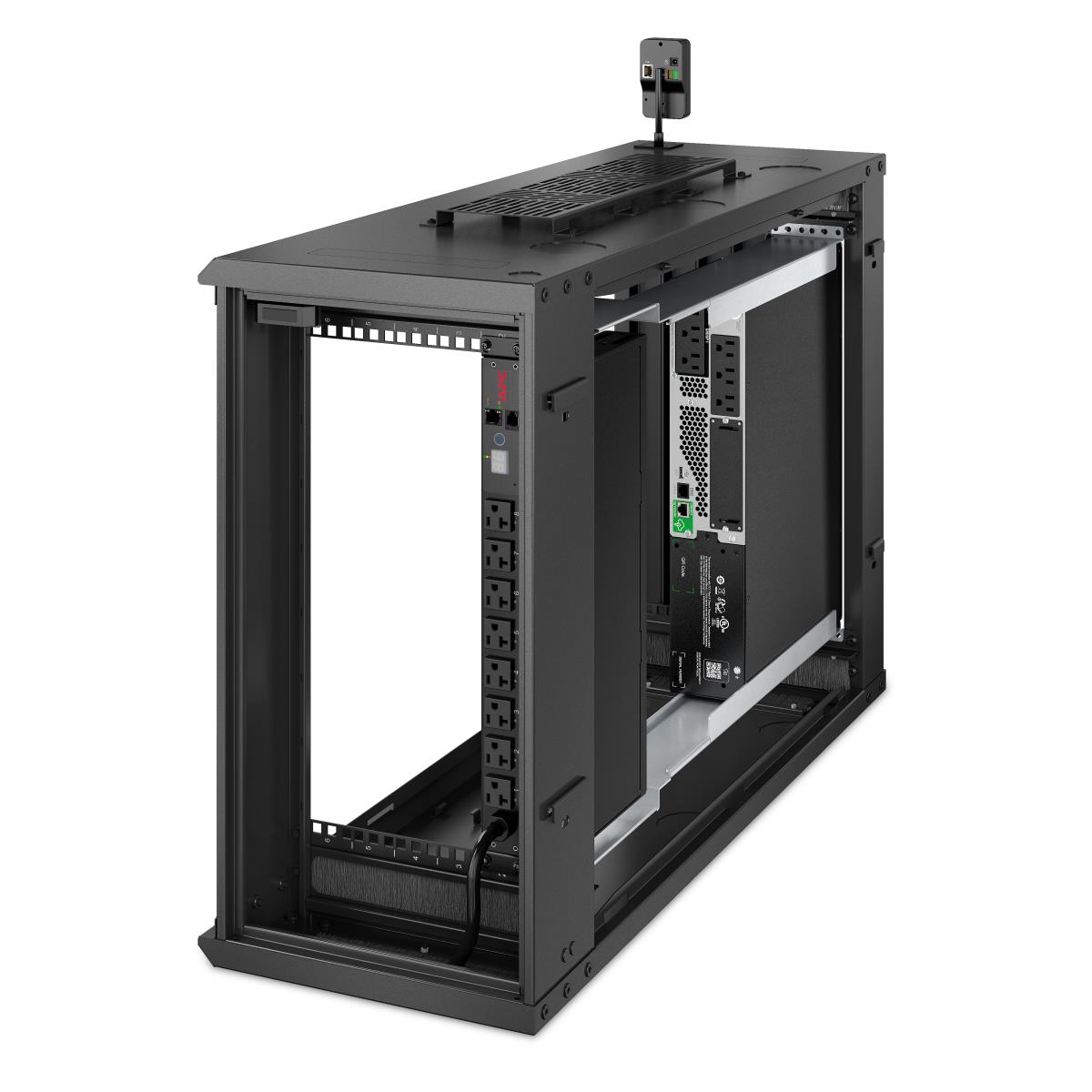

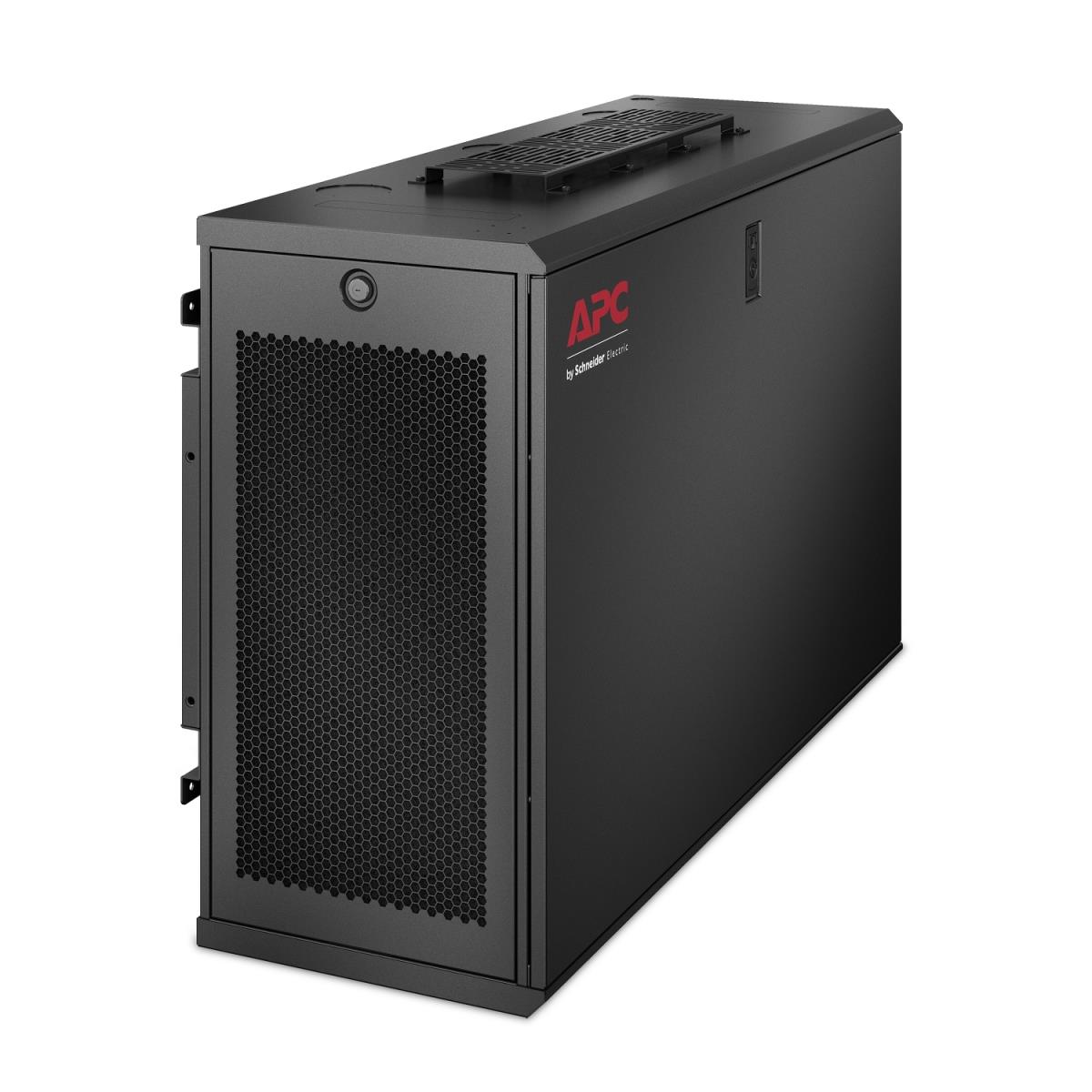

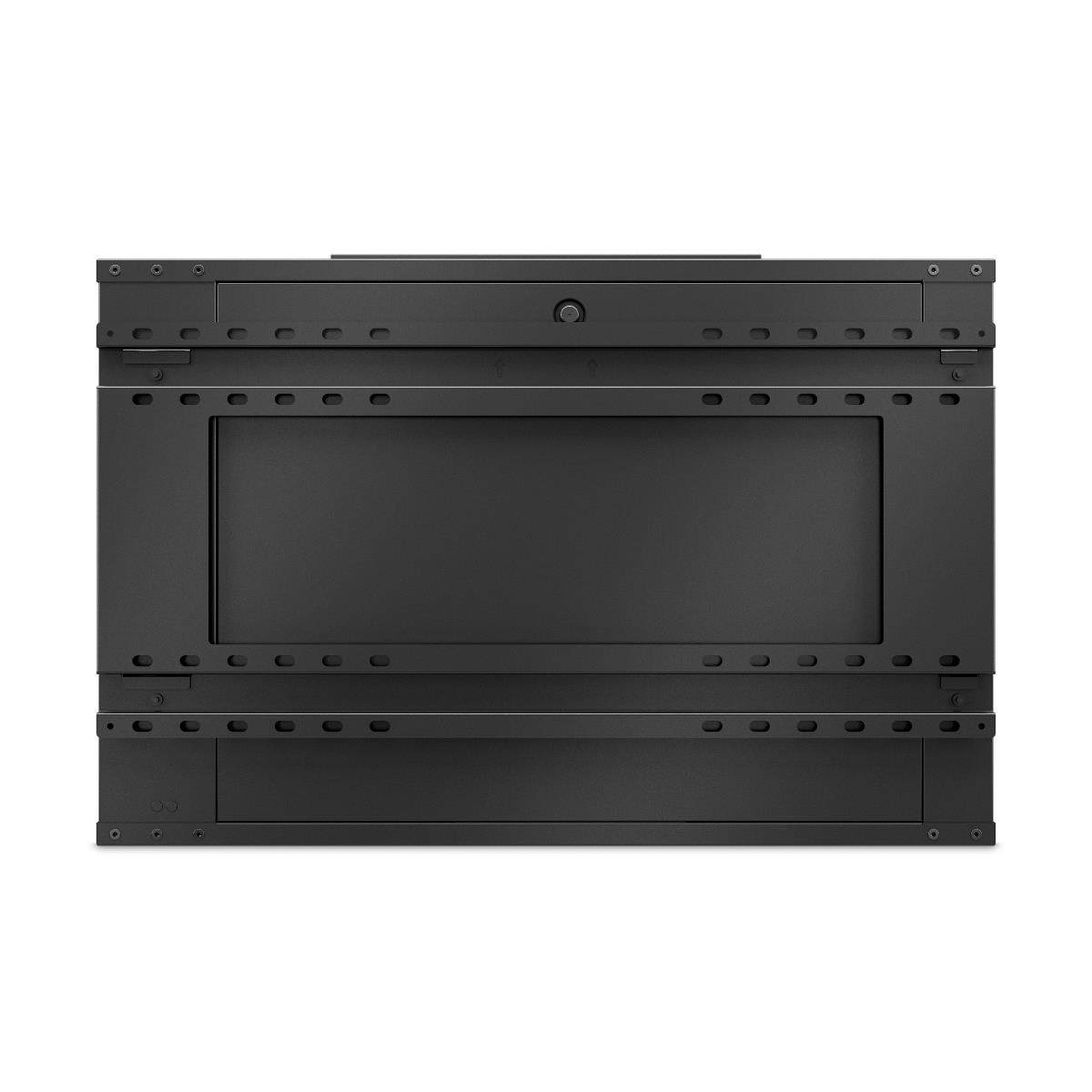

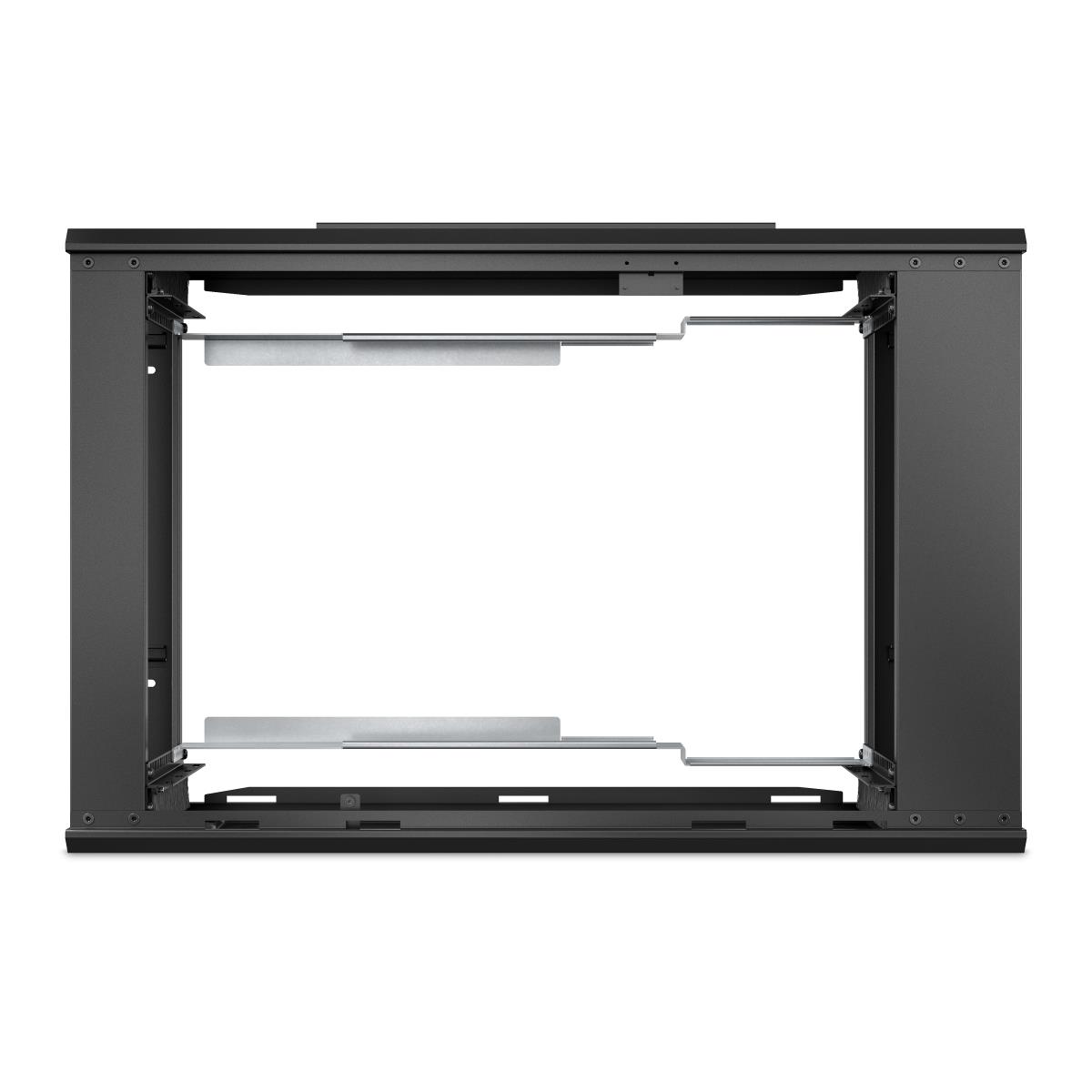

APC By Schneider Electric 6U Wall Mount is an innovative new way to deploy server and networking equipment at the Edge The unique low-profile design enables large depth devices to be wall mounted in a compact and less intrusive form factor than traditional wall mount cabinets It can ship pre-integrated with APC Smart UPS battery backup, NetBotz Physical and Environmental Security, and EcoStruxure IT, our cloud-based remote monitoring platform to stay connected at the Edge!
Features | |
Rack capacity | 6U |
Type | Wall mounted rack |
Maximum weight capacity | 113 kg |
Product colour | Black |
Material | Steel |

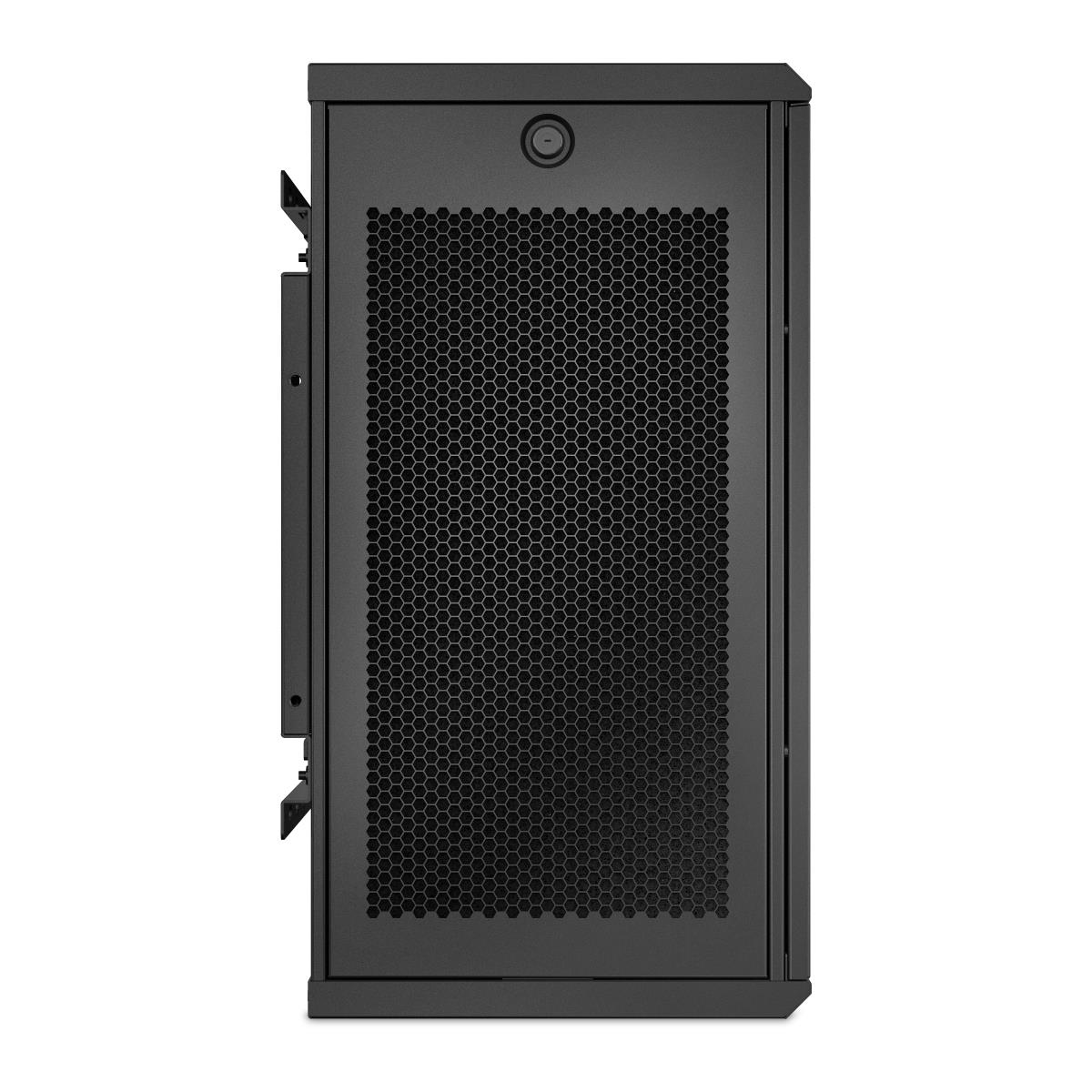

Front door construction | Perforated |
Key lock | Yes |
Cooling type | Active |
Number of fans | 2 fan(s) |
Preassembled | Yes |
Power | |
AC input voltage | 230 V |
AC input frequency | 50 Hz |
Weight & dimensions | |
Size (imperial) | 48.3 cm (19") |
Width | 353 mm |
Depth | 968 mm |
Height | 648 mm |
Weight | 36.3 kg |
Mounting depth (min) | 76.2 cm |
Mounting depth (max) | 76.2 cm |
Packaging data | |
Package width | 1064 mm |
Package depth | 734 mm |
Package height | 427 mm |
Package weight | 44.9 kg |
Technical details | |
Compliance certificates | RoHS |
Logistics data | |
Harmonized System (HS) code | 85381000 |
Warranty | |
Base Warranty | Non Non |
