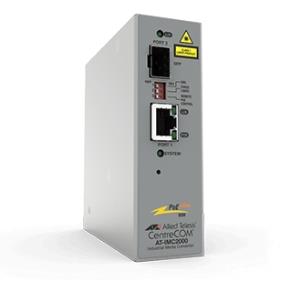

TAA - 10/100/1000T to 1000SX/SC Industrial Temp Gigabit Media Converter
ITCurry #: 13526024 | Article #: AT-IMC2000T/SC-980-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Powering remote devices
Allied Telesis IMC200/2000 Series Industrial Media Converters (IMCs) are ideal for powering remote devices, such as IP phones, video cameras and wireless Access Points (APs), which are more than 100m from a Power over Ethernet (PoE) switch. Each IMC can provide up to 70W of PoE.
The 2000T/SP and the 2000TP/SP each feature a 10/100/1000T twisted-pair port, and an SFP port which supports and auto detects 100X and 1000X optics. No switch configuration is needed. Allied Telesis offers a wide variety of SFPs featuring multimode, single mode and BiDi optics.
Models with a fixed fiber-optic port are available with SC or LC connectors. With these, you can achieve distances up to 2 km (100Mps) or 550 m (1000Mps). With the SFP model, you can achieve greater distances using a long-range SFP.
In addition to transmitting data, the twisted-pair port also injects power down the cable, allowing a remote PoE powered device to operate without any additional power source. All PoE+ devices (IEEE802.3at compliant) are supported. All PoE+ devices support 802.3at, PoE+, LTPoE++ and 4-pair. The PC200x PoE+ Series can deliver up to 70W of power to the remote device.
Remote Power Cycle
The IMC200/2000 Series supports the Remote Power Cycle feature. This allows a remote administrator to log in to the host switch device and disable the switch port to which the IMC is attached, causing the PoE+ device to lose power. This allows administrators to reset remote devices without physically going to the location.
Jumbo frame support
Many backbone switch products support the industry-standard IEEE 802.1Q specification for Virtual LANs (VLANs) which sends extra-long data packets on the network. The IMC200/2000 Series are fully compatible with these long packets, enabling them to be used in modern networks.
Smart MissingLink™ (SML)
The SML feature monitors network connections and provides a notification when a link fails, allowing administrators to quickly identify the source and location of failed links, and thus minimize downtime.
| Network | |
| Maximum data transfer rate | 1000 Mbit/s |
| Converter input interface | 10Base-T, 100Base-TX, 1000Base-T |
| Converter output interface | 1000Base-SX |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Packet forwarding rate (10 Mbps) | 14880 pps |
| Packet forwarding rate (100 Mbps) | 148880 pps |
| Packet forwarding rate (1 Gbps) | 1488000 pps |
| Auto MDI/MDI-X | Yes |
| Store-and-forward | Yes |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SC |
| Performance | |
| Maximum transfer distance | 550 m |
| Wavelength | 850 nm |
| Fiber mode structure | Multi-mode |
| Tx power (min) | -9.5 dBmW |
| Tx power (max) | -4 dBmW |
| Rx power (min) | -17 dBmW |
| Rx power (max) | -3 dBmW |
| Design | |
| Internal | No |
| LED indicators | Yes |
| Product colour | Grey |
| International Protection (IP) code | IP30 |
| Safety | UL 62368-1, EN 62368-1, UL 60950-1 (UL), CAN/CSA C22.2 No. 60950-1 (cUL), EN 60950-1 (TUV) |
| Certification | TAA FCC A, EN55024, EN55032, EN55035, VCCI A |
| Weight & dimensions | |
| Width | 111 mm |
| Depth | 96 mm |
| Height | 35 mm |
| Weight | 748 g |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 75 øC |
| Storage temperature (T-T) | -40 - 85 øC |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
| Technical details | |
| Sustainability certificates | RoHS |
| Compliance certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Warranty | |
| Base Warranty | Non Non |
