USB-c Or USB-a Dual Monitor Docking Station
ITCurry #: T4056333 | Article #: AC7049-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

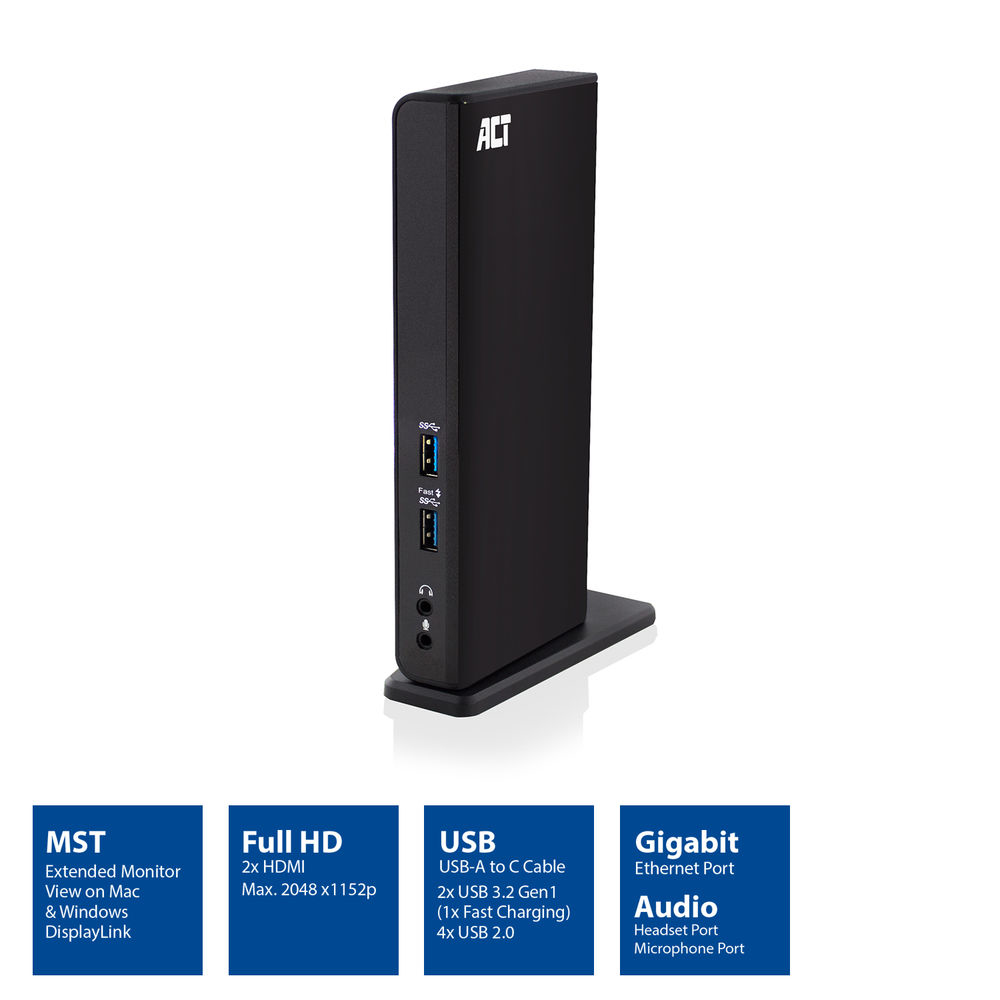

The AC7049 Dual Monitor Docking Station turns your laptop in a complete working station. All peripherals, e.g. two HDMI screens, a mouse, keyboard and networking cable can be connected to your laptop by using only one USB-C/A connection cable. The docking station adds a Gigabit LAN port, 6 extra USB ports, a microphone and headphones connection to your laptop. The integrated DisplayLink® technology ensures extended monitor view on both Windows and Apple computers. You will save space on your desk by the vertical placement of the Docking Station. A stand, USB-C/A 3.2 Gen1 connection cable and power adapter are included. This universal docking station can be used with most laptop brands like HP, Dell, Lenovo, Acer and Asus.

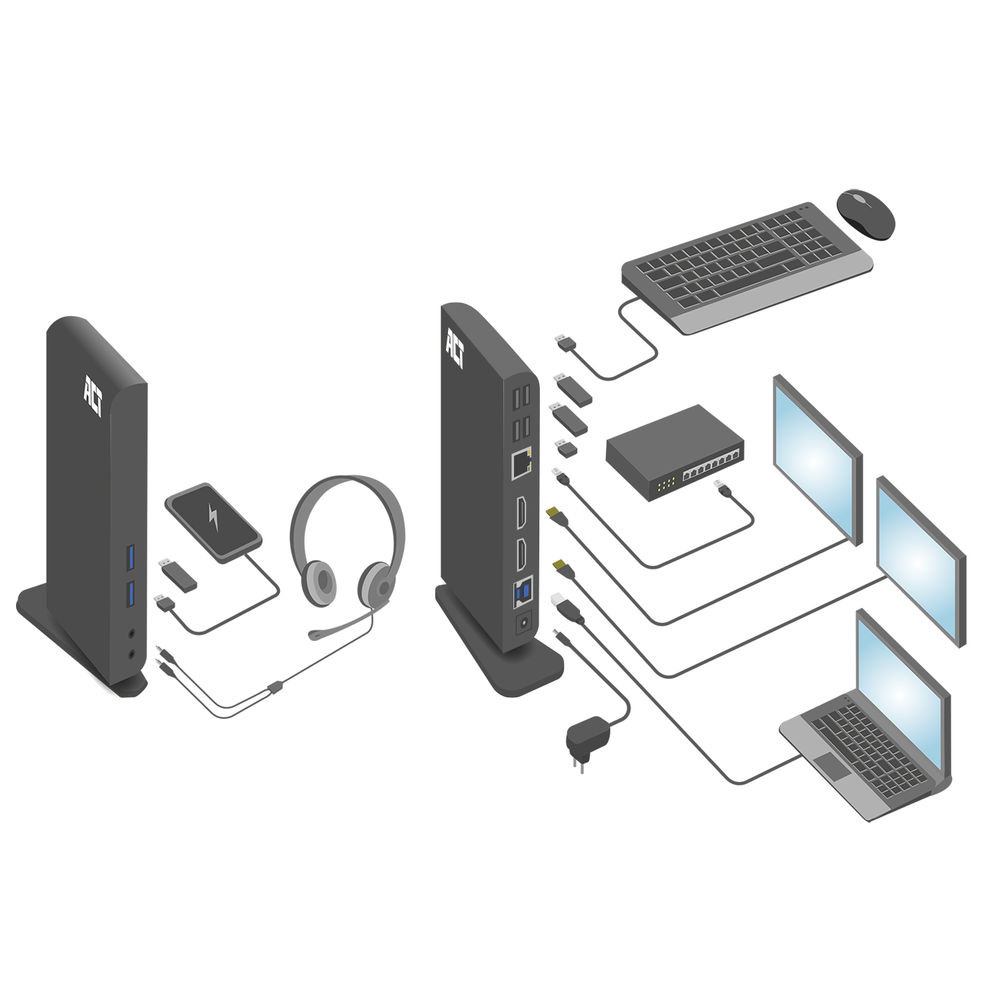

Turn your laptop into a complete working station with only one USB-C/A cable

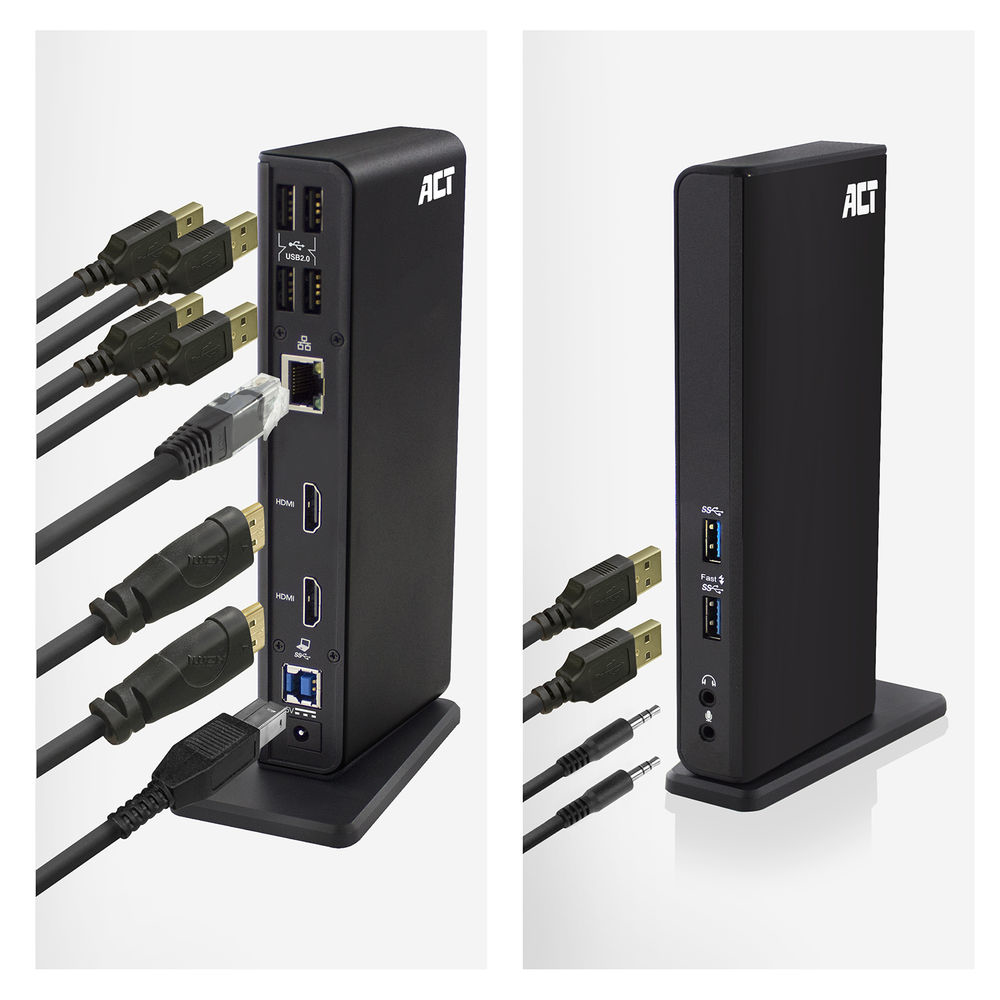

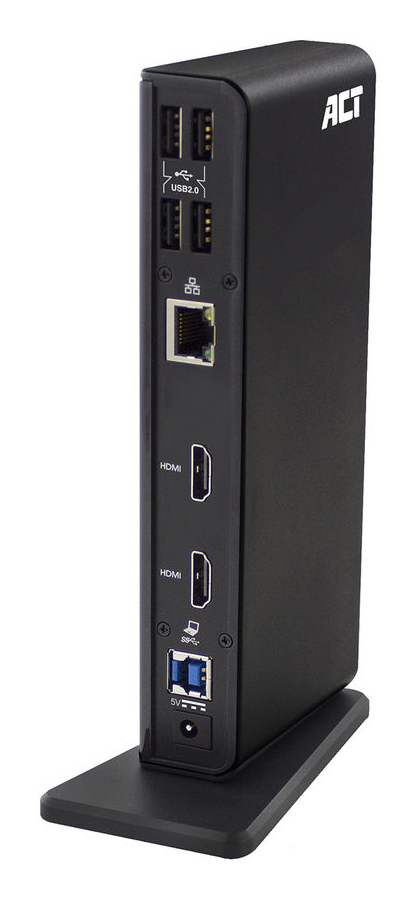

The AC7049 lets you connect up to 2 full HD screens (max. resolution 2048x1152) to your laptop by using the two HDMI ports. The Docking Station has a Gigabit LAN networking port, a microphone and headphones connection. The dock extends your laptop with 6 additional USB ports: two USB-A 3.2 Gen1 ports on the front and four USB-A 2.0 ports on the rear.

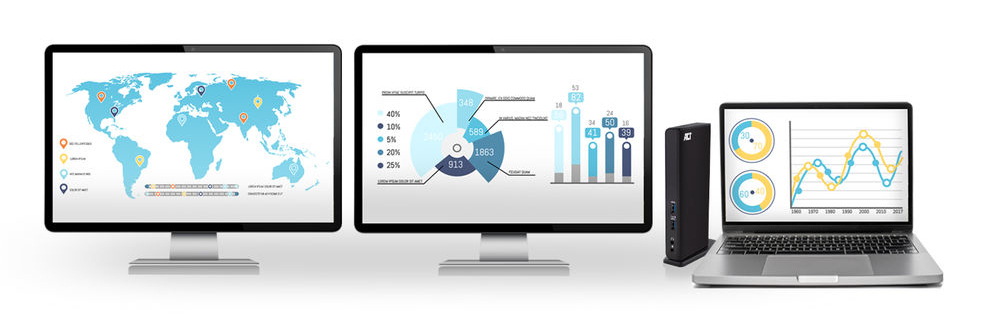

DisplayLink® technology: extended monitor view on MacOS and Windows computers
The docking station includes the DisplayLink® technology. This means that you can extend your desktop with two other screens. In total you will have 3 different monitor views. This technology works with any computer that supports USB-C or USB-A 3.0 (or higher). Ideal for small offices or home offices.
Vertical placement for saving space on your desk
Place the AC7049 Docking Station vertical on your desk and save space. Besides the space-saving feature, all connections are easy accessible. When you prefer a horizontal placement, this is possible as well.
Suitable for laptops with a USB-C or USB-A USB 3.2 Gen1 port

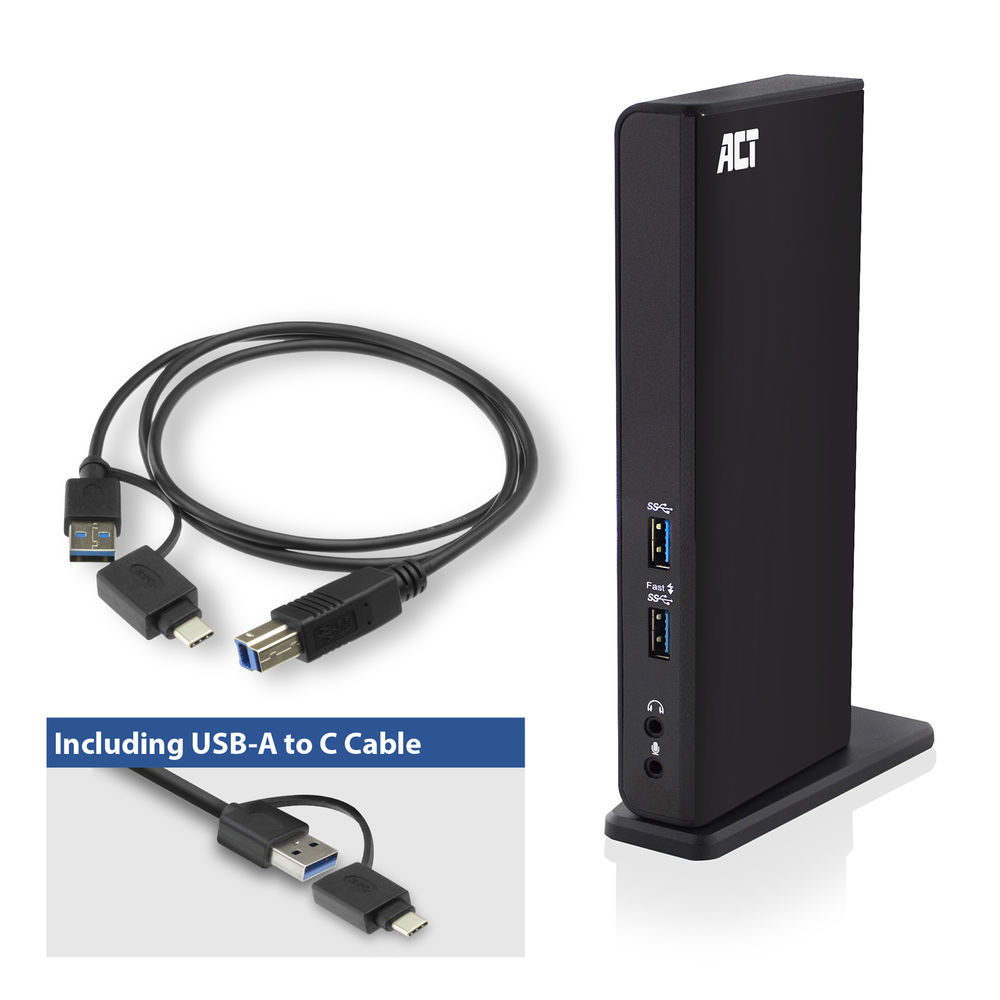

The AC7049 Dual Monitor Docking Station can be used with all laptops that have a USB 3.2 Gen1 port. A USB-C/A connection cable and power supply (to power the docking station) are included.
Please note that this docking station does not support Power Delivery passthrough when used with a USB-C laptop, so an additional power source will be required to charge your laptop.
Charge your smartphone and tablet via the USB charging port
Does your smartphone or tablet need a power boost? Connect your smartphone or tablet to the USB charging port on the Docking Station and charge the battery.
Universal use with laptop brands
The AC7049 can be used with almost every modern laptop brand, such as HP, Dell, Lenovo, Acer and Asus.
| Ports & interfaces | |
| Connectivity technology | Wired |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| HDMI ports quantity | 2 |
| HDMI version | 1.4 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| DC-in jack | Yes |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Performance | |
| Card reader integrated | No |
| Maximum digital resolution | 2560 x 1440 pixels |
| Number of displays supported | 2 |
| Product colour | Black |
| Power | |
| Power source type | DC |
| Software | |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width | 218 mm |
| Package depth | 110 mm |
| Package height | 132 mm |
| Package weight | 785 g |
| Packaging content | |
| AC adapter included | Yes |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |
| Warranty | |
| Base Warranty | Non Non |
