Docking Station - Dual Hdmi Monitor USB-c With 60w Power Delivery
ITCurry #: 75648308 | Article #: DK30CHHPDEU-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

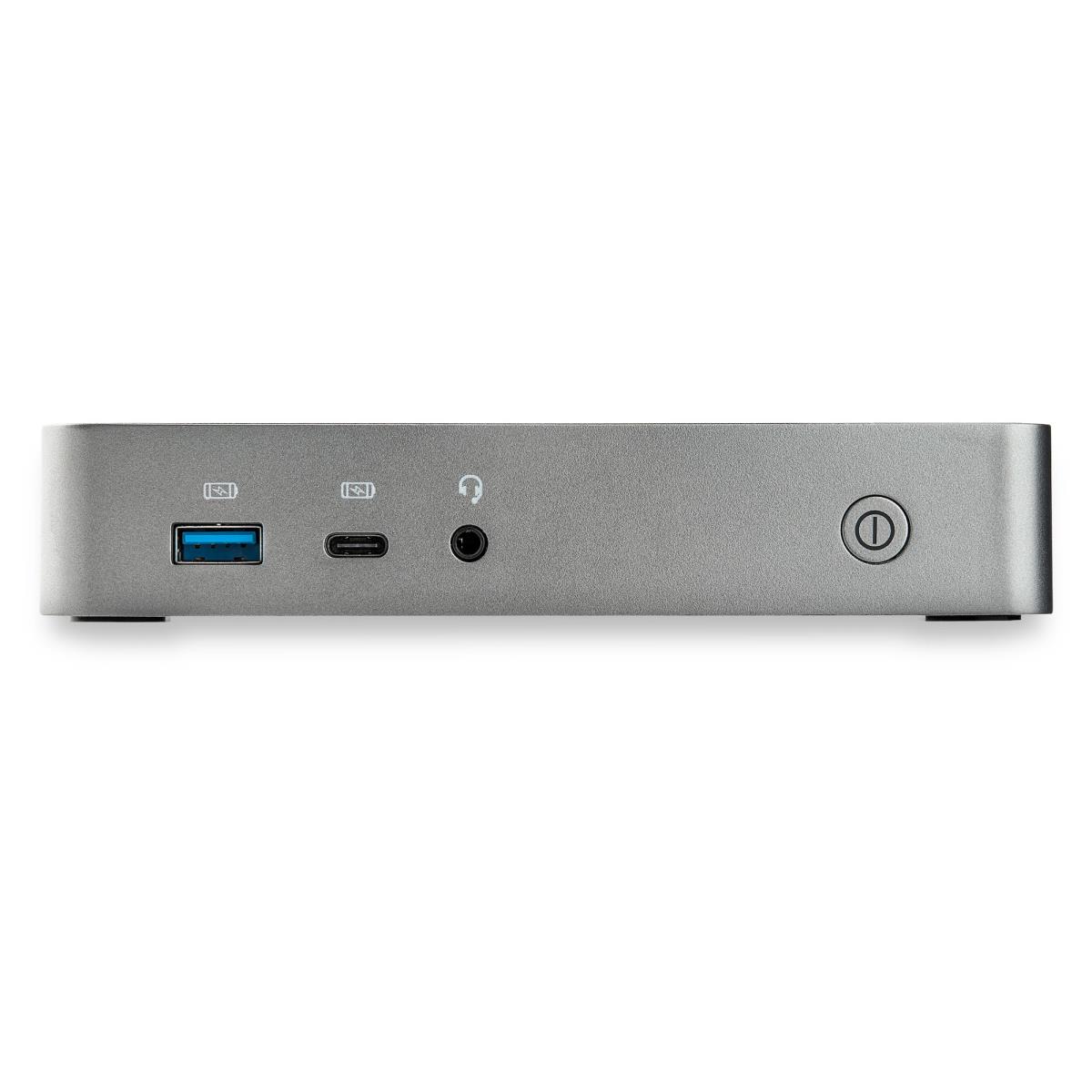

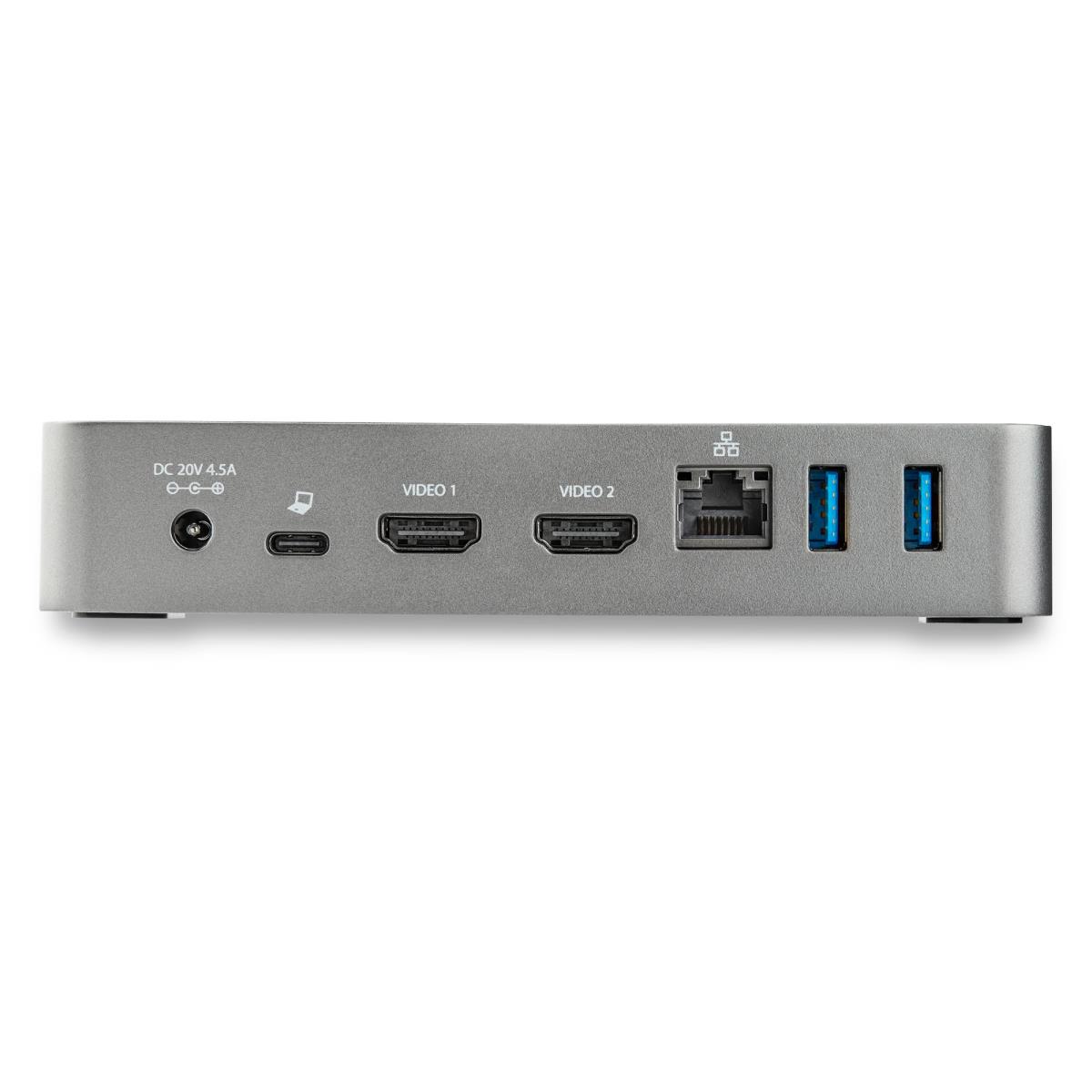

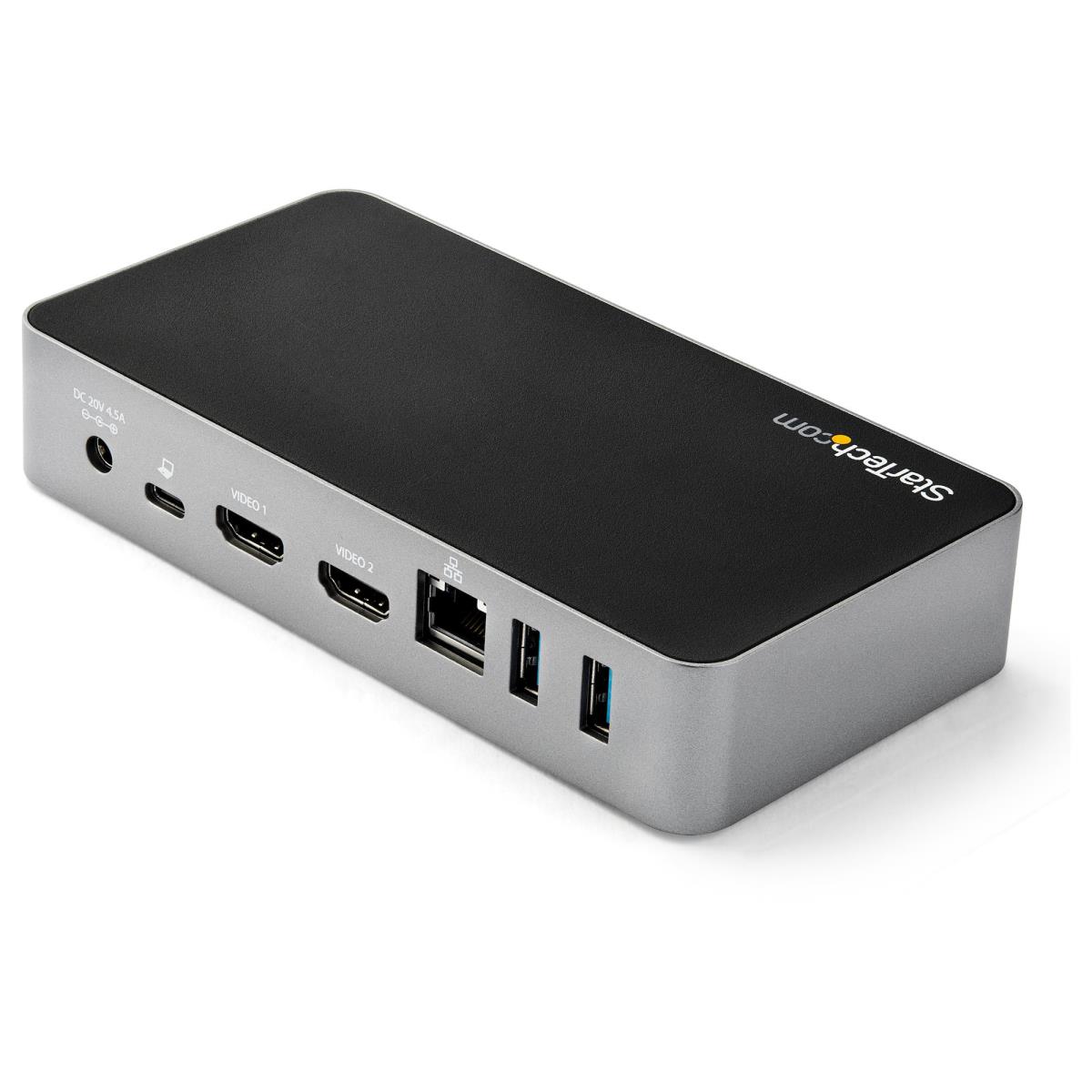

USB 3.1 Gen 1 Type-C Docking Station| Mac & Windows® | 3x USB-A | 1x USB-C | GbE | Mountable | 65W PDThis USB-C docking station is ideal for use in large organizations to meet widespread office productivity requirements and compatibility with all USB-C and Thunderbolt 3 laptops. The USB-C dock features support for Dual HDMI monitors, 65W Power Delivery 3.0, fast-charge, and both USB-C and USB-A peripheral ports.Dual Full HD 1080p HDMI DisplaysThe USB-C docking station adds dual HDMI monitors support to your workstation, with full high definitions resolutions of 1920x1080 or 1920x1200 at 60Hz. With more screen space, you can access multiple applications and reference material on one display while composing on the other.Charge Devices via USB-C & USB-AThe USB-A and USB-C charge ports can charge your smartphone, tablet or other USB peripherals whether you're working or away from your desk, and even if you disconnect your laptop.65W Power DeliveryUsing a single cable, the dock powers and charges your laptop as you work with 65W PD for faster charging, using the 90W power adapter.Convenient Setup with a Modest Desktop FootprintWith a smaller size and extended length 3.3’ (1 meter) host cable, this USB-C dock fits easily into a workspace environment. Even where desk space is limited, this dock can be mounted to the wall, monitor or underneath the desk with StarTech.com mounting brackets (SSPMSUDWM & SSPMSVESA). These mounting brackets are specifically designed for our docks and hubs to give you the customized setup you need.The Connections You NeedConnect your devices with four USB 3.1 ports: 1x USB[CC2] -C and 3x USB-A. Fast-charge your USB-C or USB-A smartphone. The dock provides a GbE port (Wake-on-LAN) and a 3.5 mm 4-position headset audio jack. It also includes a security lock slot (K-slot) to protect against theft. Connected Device Transparency with the StarTech.com MAC Address Changer UtilityThe DK30CHHPDEU, includes a free Windows® application that enables you to better manage your enterprise network security. When you connect to your network through the ethernet port of the dock, the computer’s MAC address is typically not broadcast to the network, as your network only sees the MAC address of the docking station. However, the StarTech.com MAC Address Changer or Cloning software enables the USB-C dock to use MAC address spoofing of the connected Windows laptop rather than the MAC address of the dock itself. This ensures your network administrators have full visibility of each device on the network and can monitor and limit activity accordingly. To request access to our MAC Address Changer utility, please contact our Technical Support Department by phone, live chat , or e-mail . The IT Pro’s Choice Since 1985StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to IT Professionals. Our local StarTech.com Technical Advisors have broad product expertise and work directly with our StarTech.com Engineers to provide support for our customers both pre and post-sales.DK30CHHPDEU is backed by a StarTech.com 3-year warranty and free lifetime technical support.The StarTech.com Advantage
| Ports & interfaces | |
| Connectivity technology | Wired |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB Power Delivery | Yes |
| USB Power Delivery up to | 60 W |
| HDMI ports quantity | 2 |
| Combo headphone/mic port | Yes |
| Headphone outputs | 1 |
| DC-in jack | Yes |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Full duplex | No |
| Performance | |
| Card reader integrated | No |
| Data transfer rate | 5 Gbit/s |
| HD type | Full HD |
| Maximum digital resolution | 1920 x 1200 pixels |
| Number of displays supported | 2 |

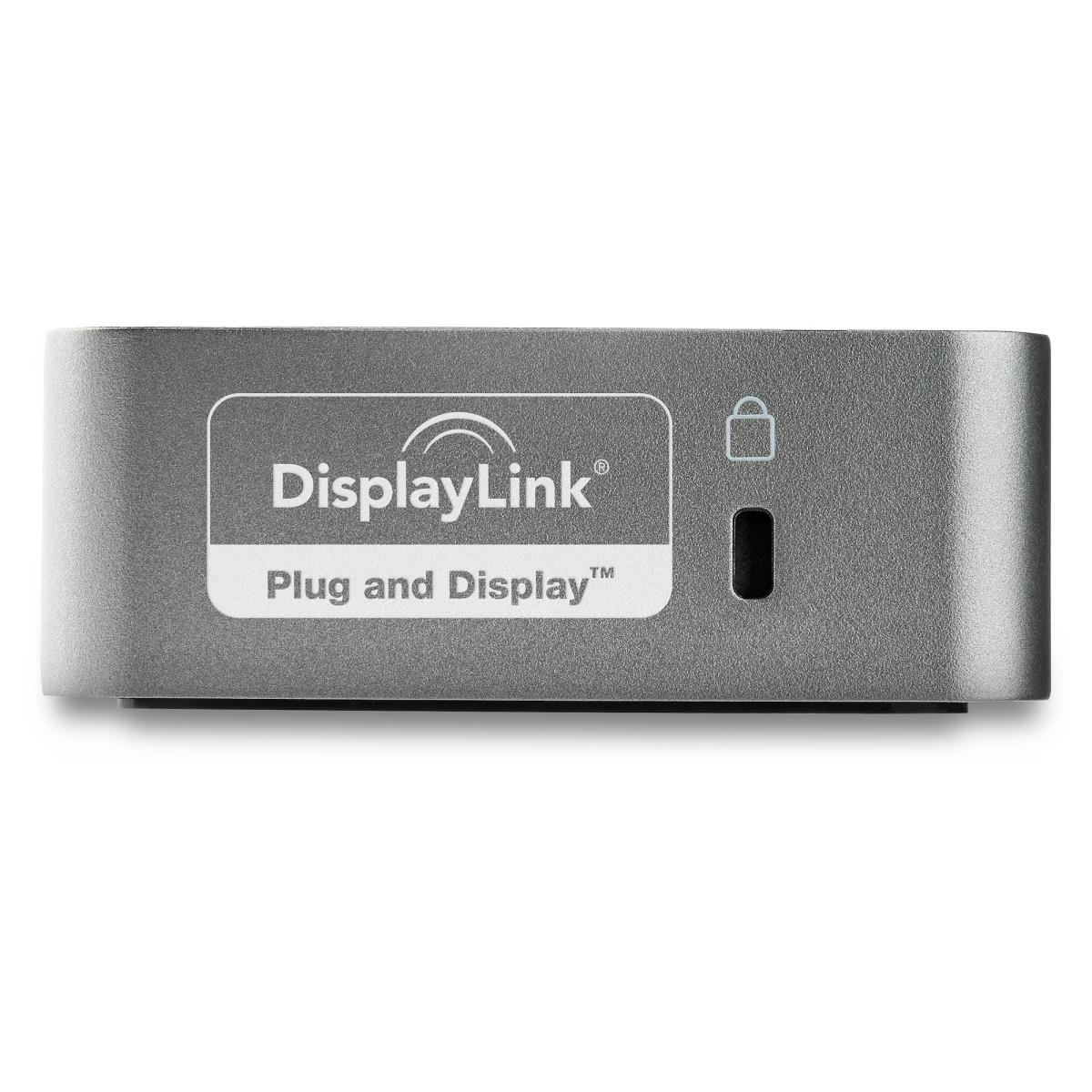

| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product colour | Black, Silver |
| UASP support | Yes |
| Power | |
| AC input voltage | 100 - 240 V |
| Input current | 1.5 A |
| Output voltage | 20 V |
| Output current | 4.5 A |
| Power plug type | Type N |
| Compatible power plug types | EU |
| Software | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
| Mac operating systems supported | Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
| Linux operating systems supported | Ubuntu 18.04 LTS, Ubuntu 20.04 LTS |
| Other operating systems supported | ChromeOS |
| Warranty | |
| Base Warranty | Non Non |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 øC |
| Storage temperature (T-T) | -20 - 70 øC |
| Operating relative humidity (H-H) | 0 - 95% |
| Sustainability | |
| Sustainability compliance | Yes |
| Weight & dimensions | |
| Width | 80 mm |
| Depth | 150 mm |
| Height | 30 mm |
| Height (rear) | 30 cm |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width | 145 mm |
| Package depth | 234 mm |
| Package height | 82 mm |
| Package weight | 1 kg |
| Packaging content | |
| Cables included | USB Type-C |
| Quick start guide | Yes |
| Technical details | |
| Compliance certificates | CE, RoHS |
| Logistics data | |
| Products per master (outer) case | 4 pc(s) |
| Master (outer) case width | 245 mm |
| Master (outer) case length | 345 mm |
| Master (outer) case height | 165 mm |
| Harmonized System (HS) code | 84733020 |
| Other features | |
| Chipset | DisplayLink DL3900, Realtek RTS5423, Realtek RTS5411E |
