USB-C 4K/8K 60Hz Docking Station for 1
ITCurry #: T4057191 | Article #: AC7095-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

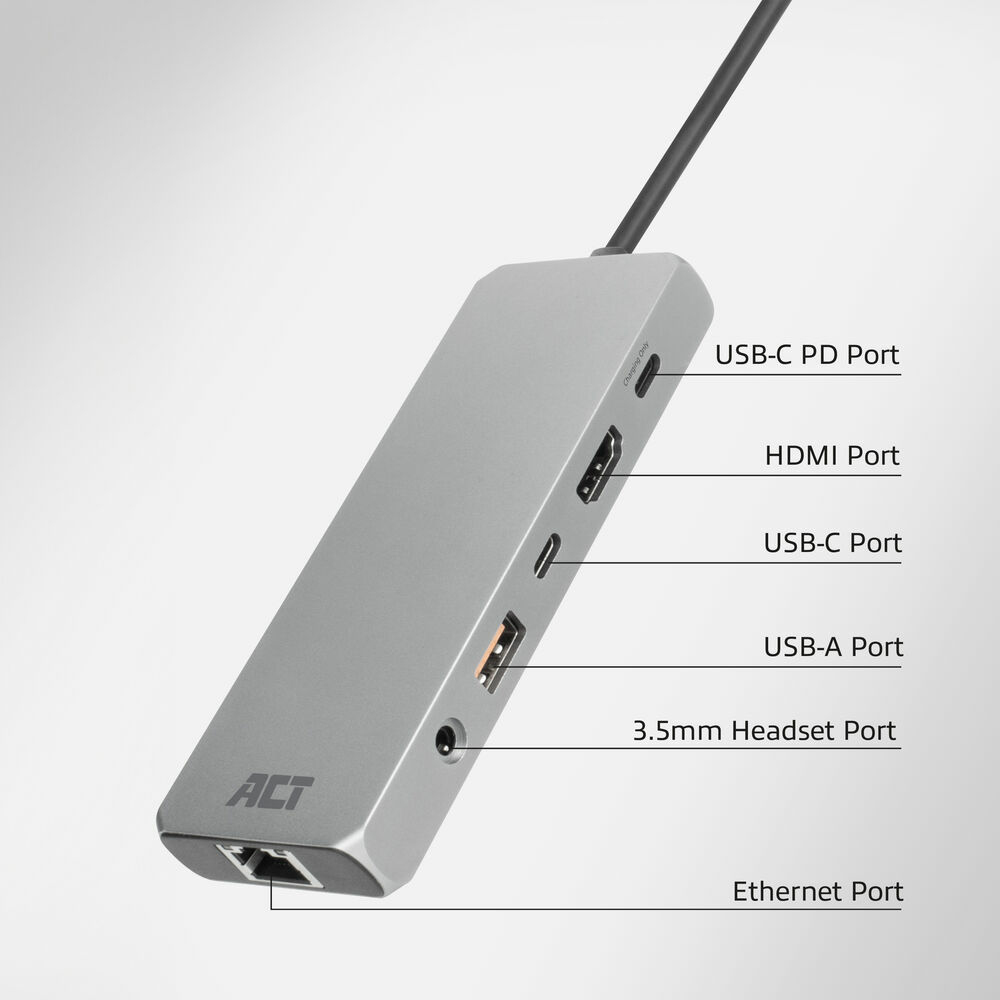

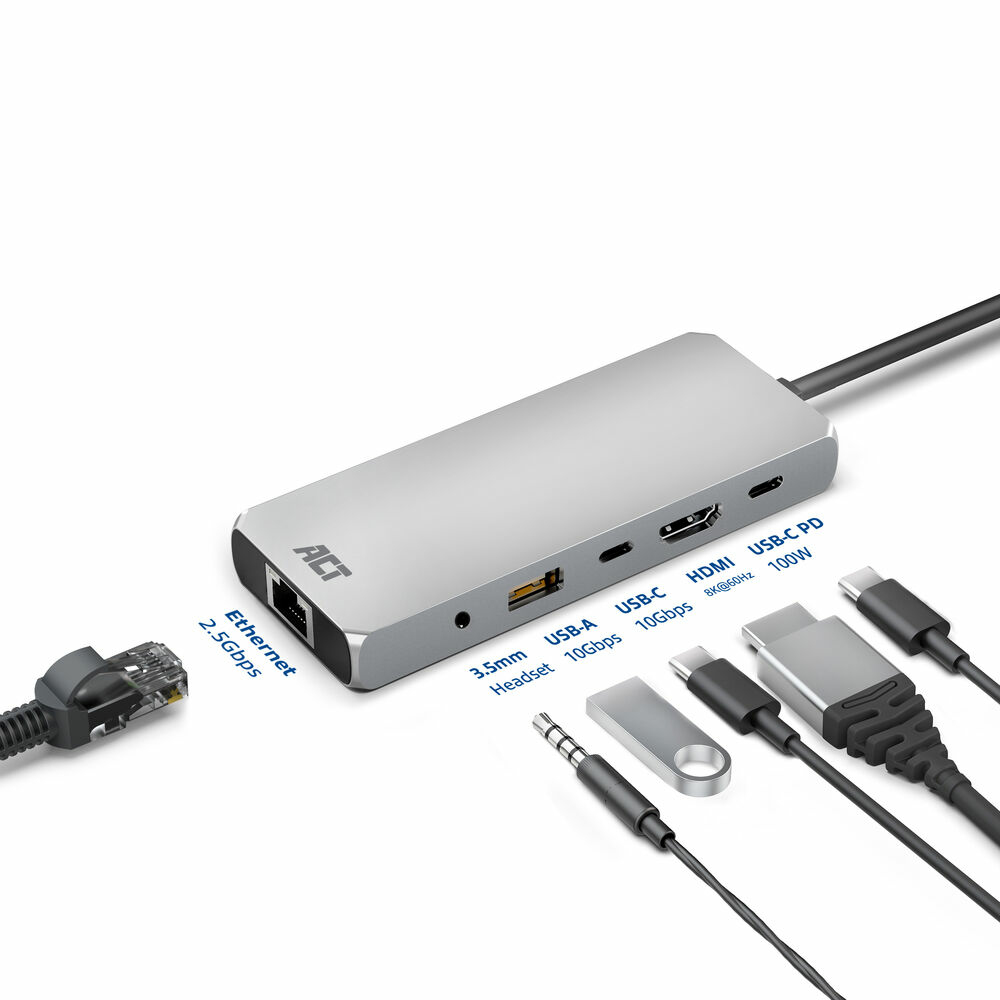

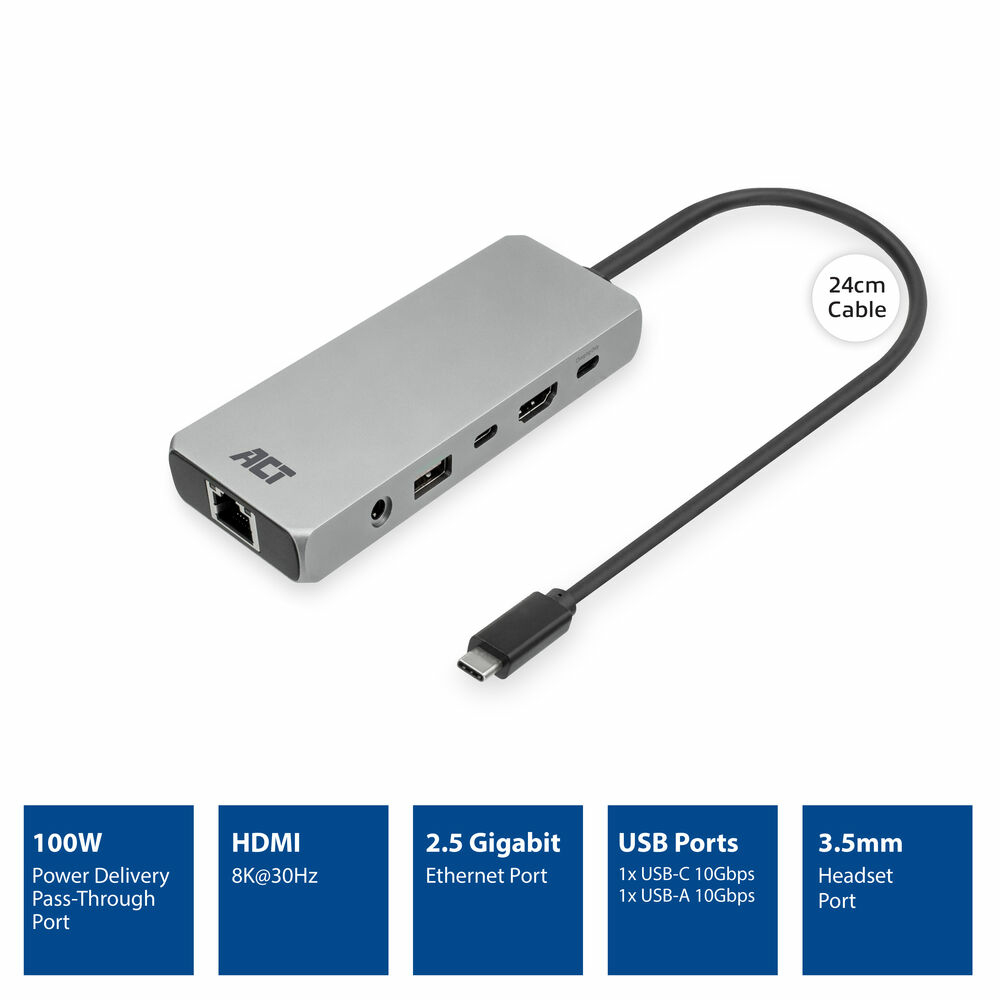

The AC7095 USB-C 4K/8K Docking Station transforms your laptop into a complete workstation with a single USB-C cable. This 6-in-1 multiport dock adds HDMI, 2.5 Gigabit Ethernet, one USB-C data port, one USB-A data port, one USB-C PD pass-through port and a 3.5mm headset port to your laptop. This solid aluminium multiport dock is USB powered, no external power supply required.

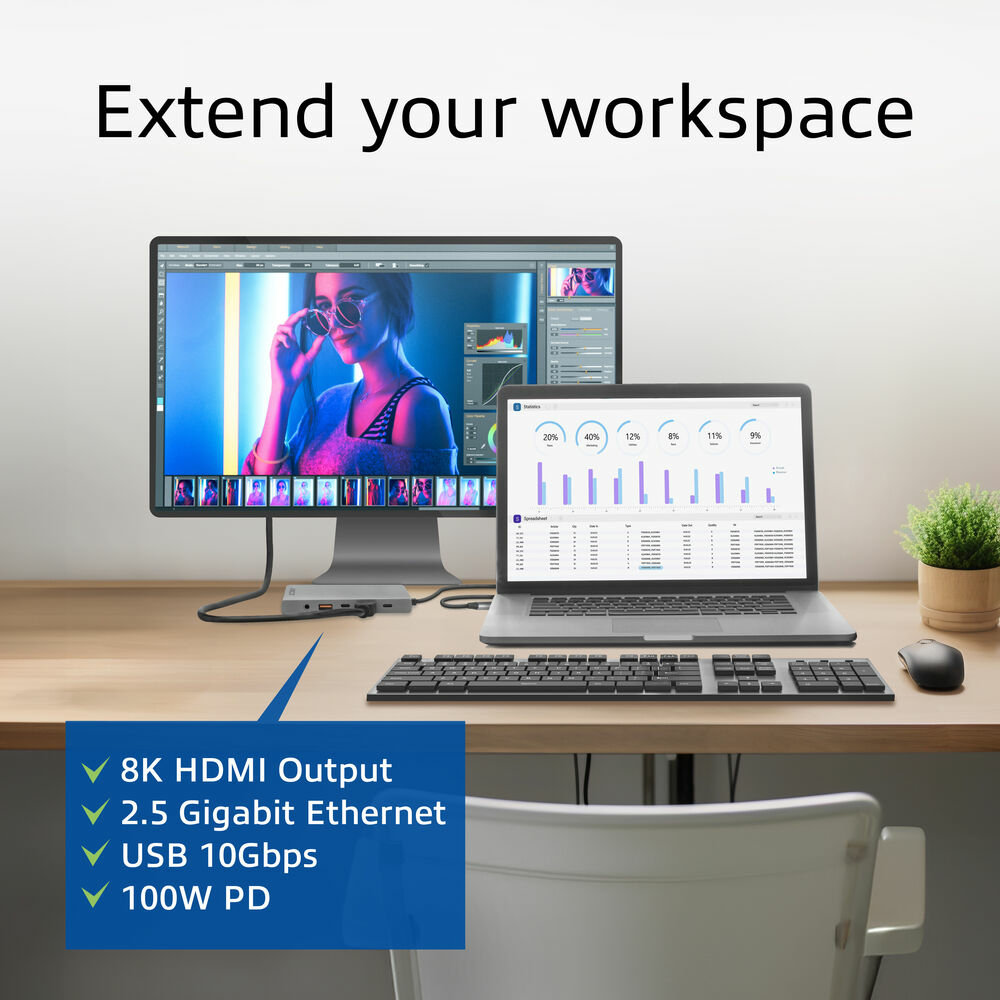

Turn your laptop into a workstation

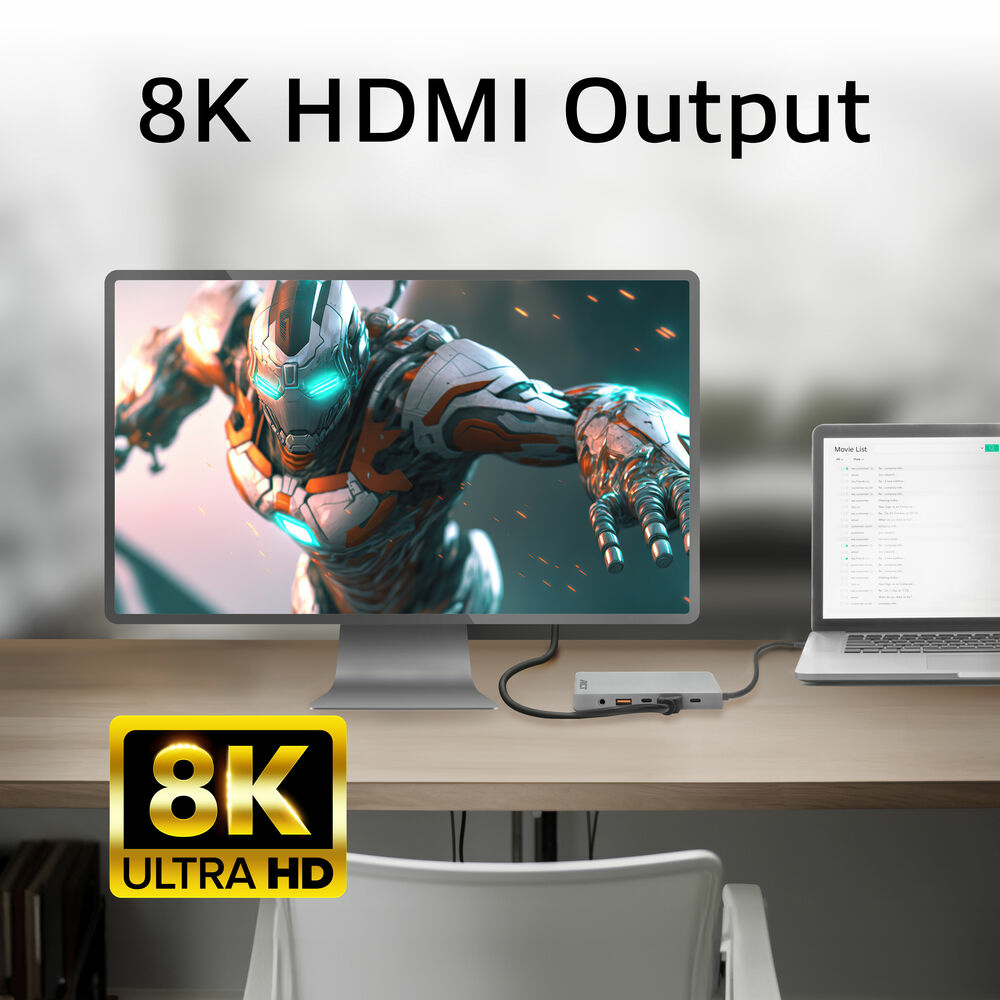

The AC7095 is a complete 6-in-1 portable docking station, also known as a multiport adapter. Add an external display by using the HDMI port. Suited for a monitor with a maximum resolution of 8K@30Hz. To achieve 8K resolution, a USB4 port is required on the laptop or computer.

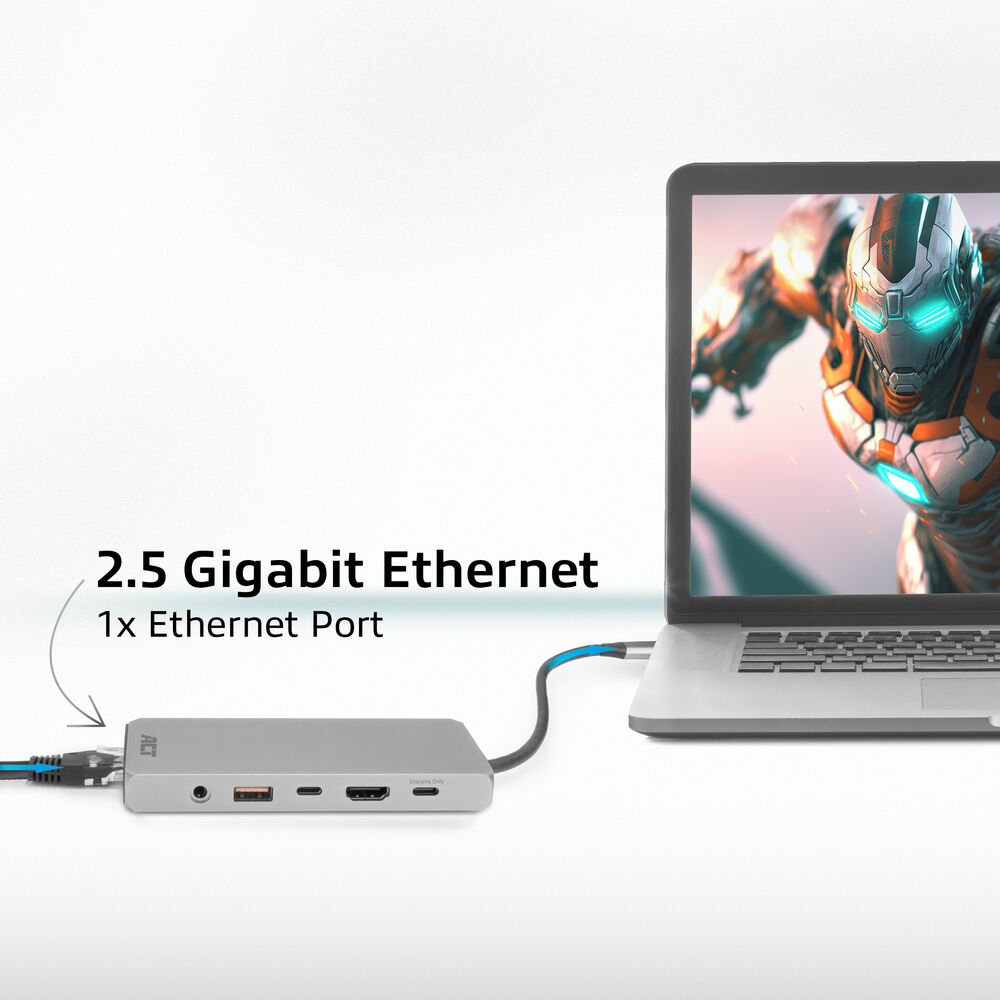

2.5 Gigabit ethernet port
The AC7095 features 2.5 Gigabit LAN. In most offices, Gigabit LAN is used to connect to the corporate network rather than the Wi-Fi network.
10Gbps USB hub
The built-in USB hub provides a USB-C 3.2 data port and a USB-A 3.2 data port for connecting peripherals, such as the receiver of your wireless keyboard and mouse and a USB drive. The USB 3.2 Gen2 ports, also called USB 10Gbps, have a max. throughput speed of 10Gbps.

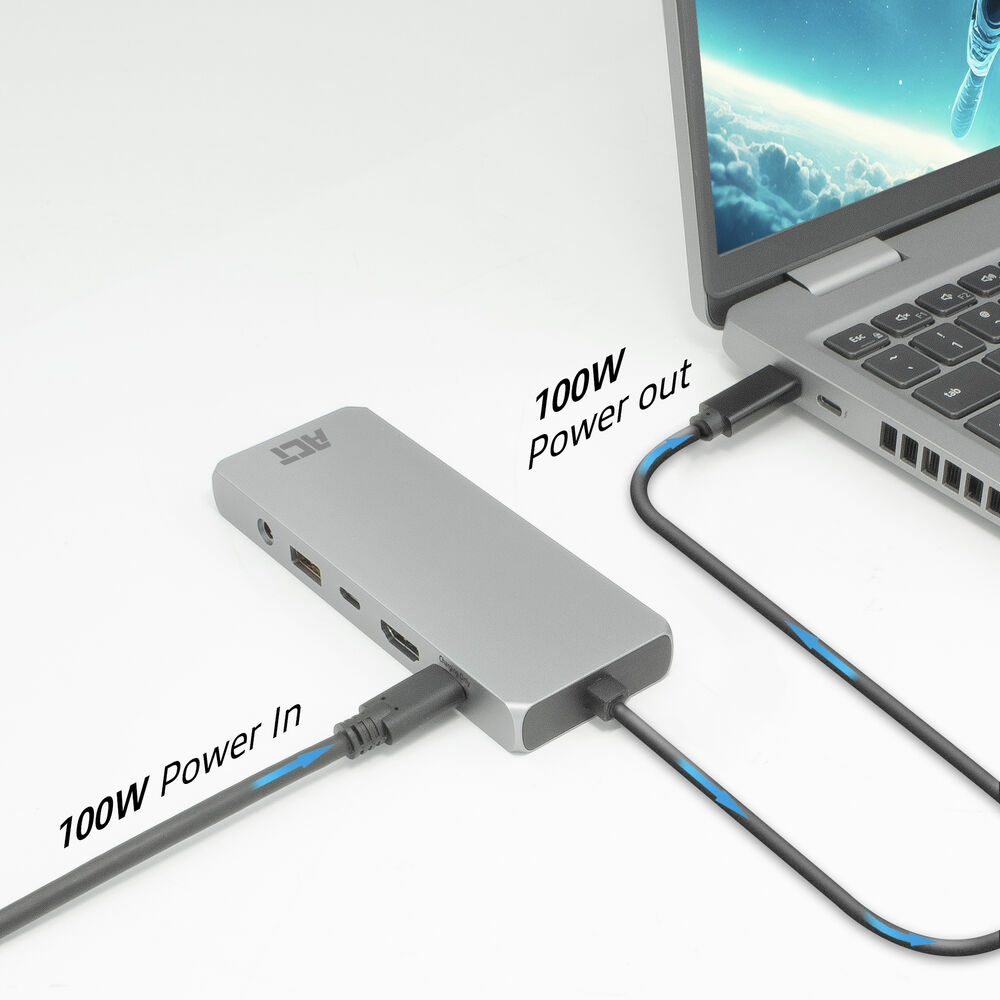

Supports Power Delivery pass-through
A USB-C port can generally support data, video, power or a combination of the three. If your notebook has a USB-C port that supports all three: data, video and power, the PD pass-through port on the AC7095 can be used to charge your laptop. Once connected to the multiport dock, the laptop is powered through the USB-C Power Delivery pass-through port, which is powered by the laptop’s USB-C power supply.
3.5mm headset connector
The 6-in-1 multiport adapter has a 3.5mm audio jack. This is a combined audio port for connecting a headset to your laptop.

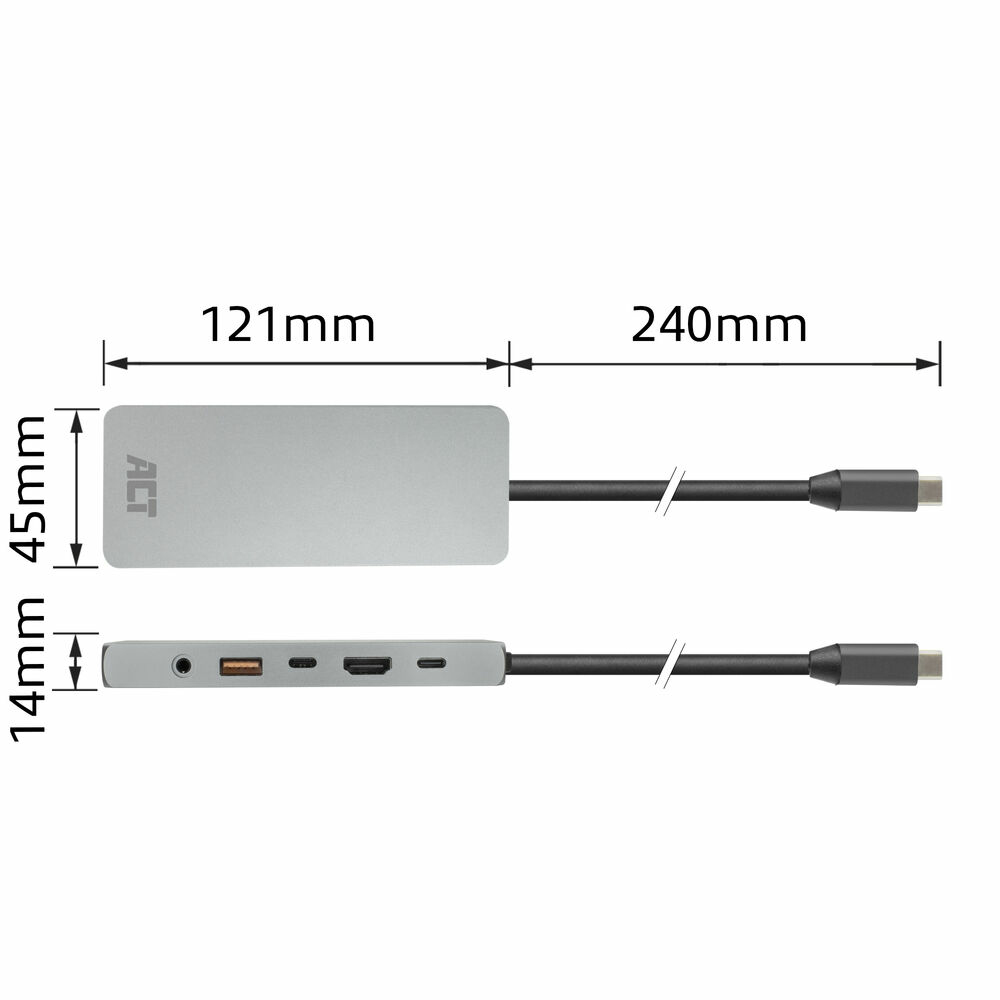

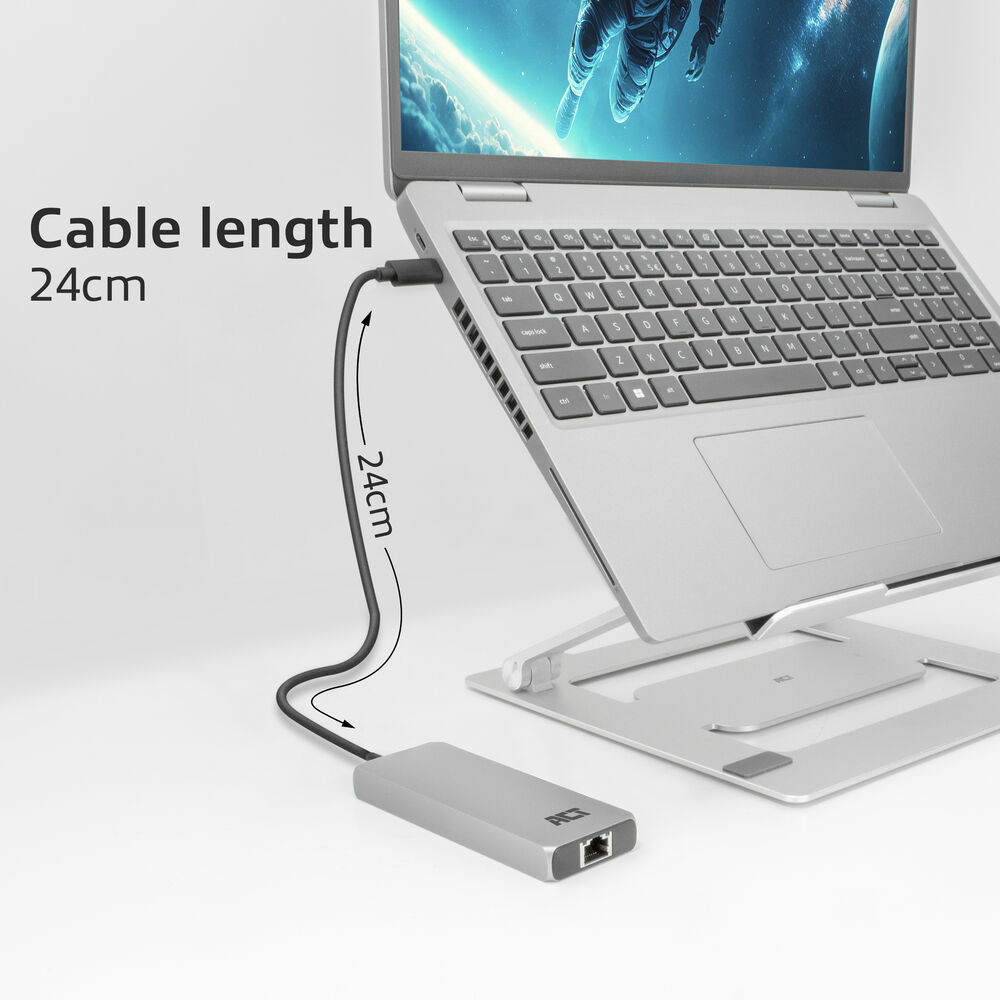

Cable length 24 centimeters
The cable on the multiport adapter is 24 centimeters long. This prevents the dock from dangling from your laptop.
Portable aluminium design
The AC7095 is a compact yet versatile device with a rugged aluminium body. Perfect for taking along in your laptop bag.

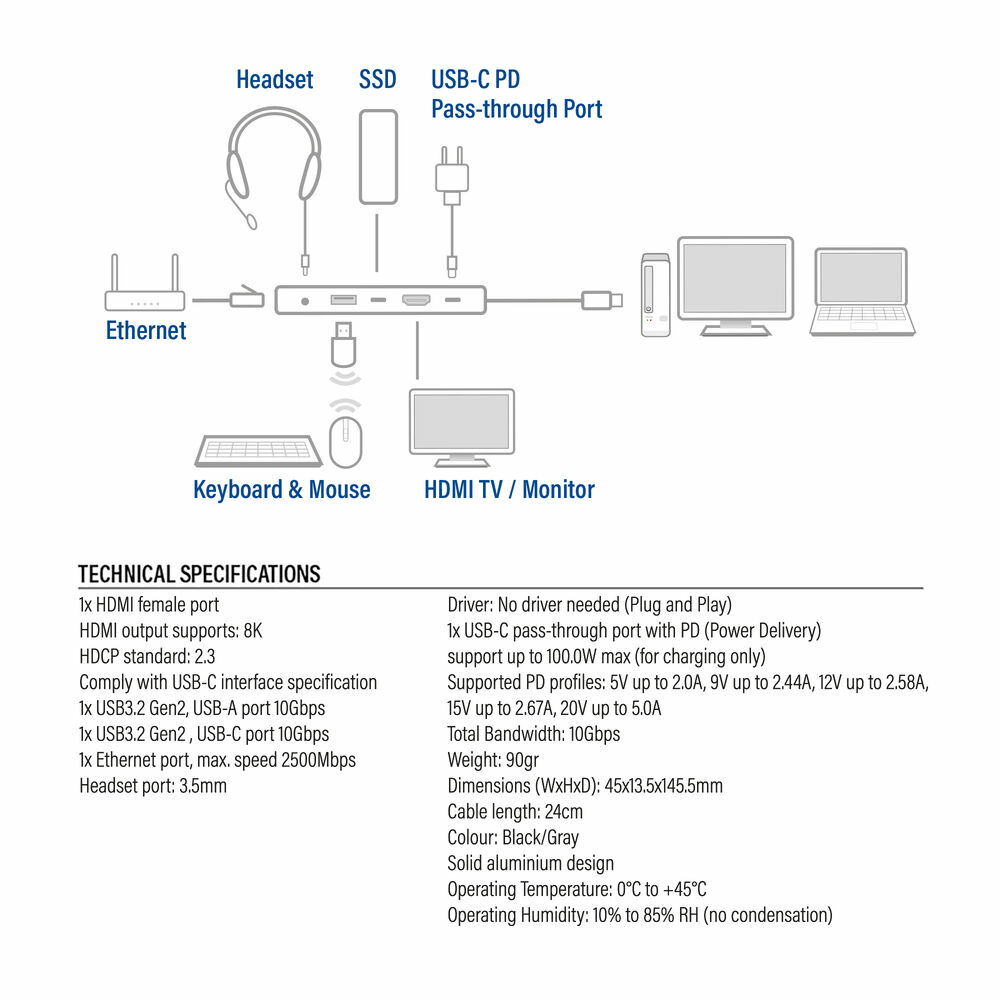

User scenarios
The 6-in-1 multiport docking station lets you create a flexible work environment. On the road, in the office or at home. You can connect an 8K monitor, a 2.5 gigabit Ethernet cable, a keyboard and mouse, an external SSD, and a headset.
Do you travel a lot? The AC7095 is the perfect travel companion. This compact dock fits easily into your laptop bag and provides all the extra connectivity your laptop needs on the go.
Flexible workspaces are more common in today’s offices. A multiport adapter allows you to work comfortably at different desks.
| Ports & interfaces | |
| Connectivity technology | Wired |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| USB Power Delivery | Yes |
| USB Power Delivery up to | 100 W |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Microphone in | Yes |
| Combo headphone/mic port | Yes |
| Headphone outputs | 1 |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 2500 Mbit/s |
| Performance | |
| Card reader integrated | No |
| HD type | 8K Ultra HD |
| Maximum digital resolution | 7680 x 4320 pixels |
| Product colour | Grey |
| Plug and Play | Yes |
| Housing material | Aluminium |
| Power | |
| Power source type | USB |
| Power connector | USB Type-C |
| Output voltage | 5 - 20 V |
| USB cable length | 0.24 m |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Warranty | |
| Base Warranty | Non Non |
