KVM Switch - 2 Port USB-a/hdmi / USB-c - 4k 60hz Hdmi 2.0
ITCurry #: 75648762 | Article #: SV221HUC4K-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

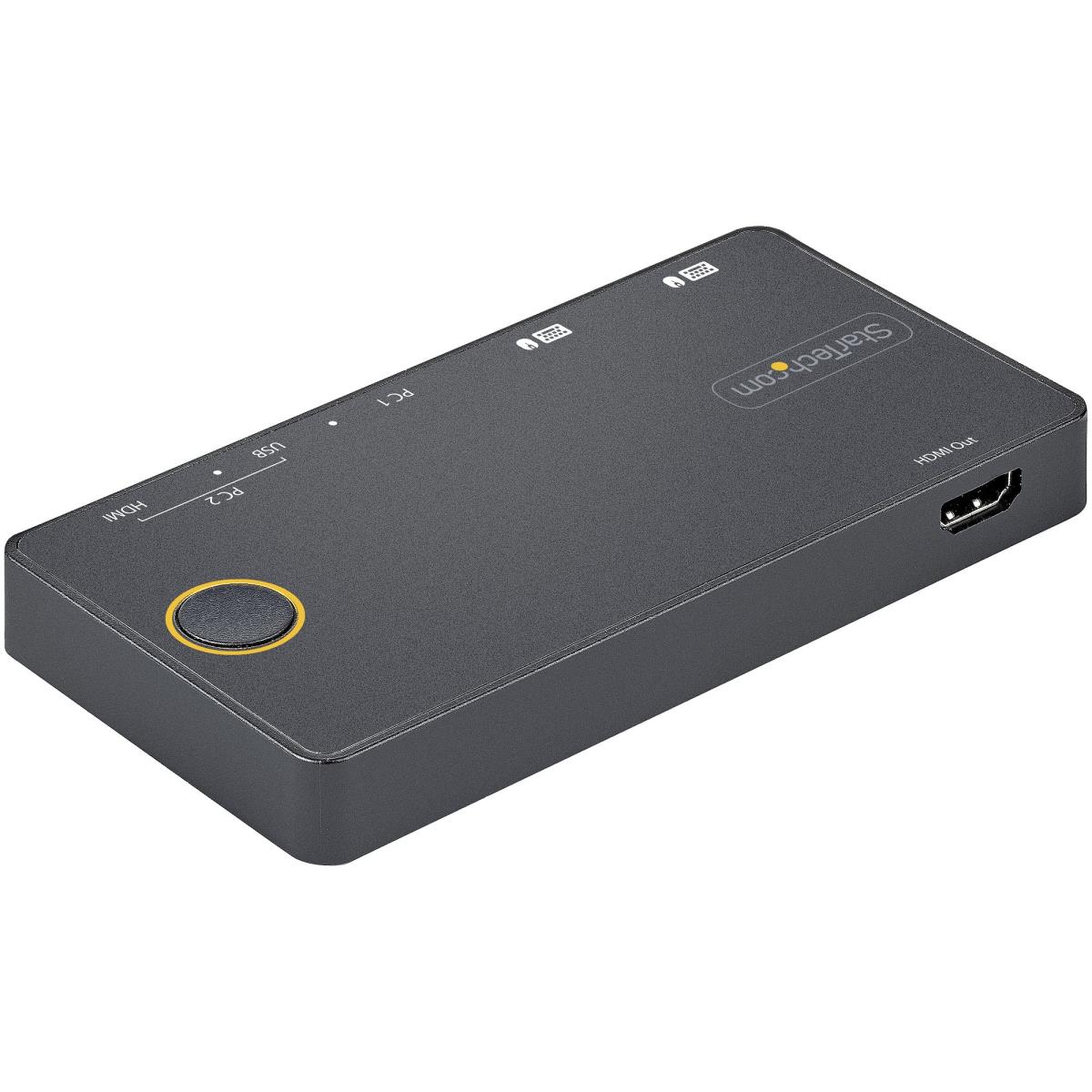

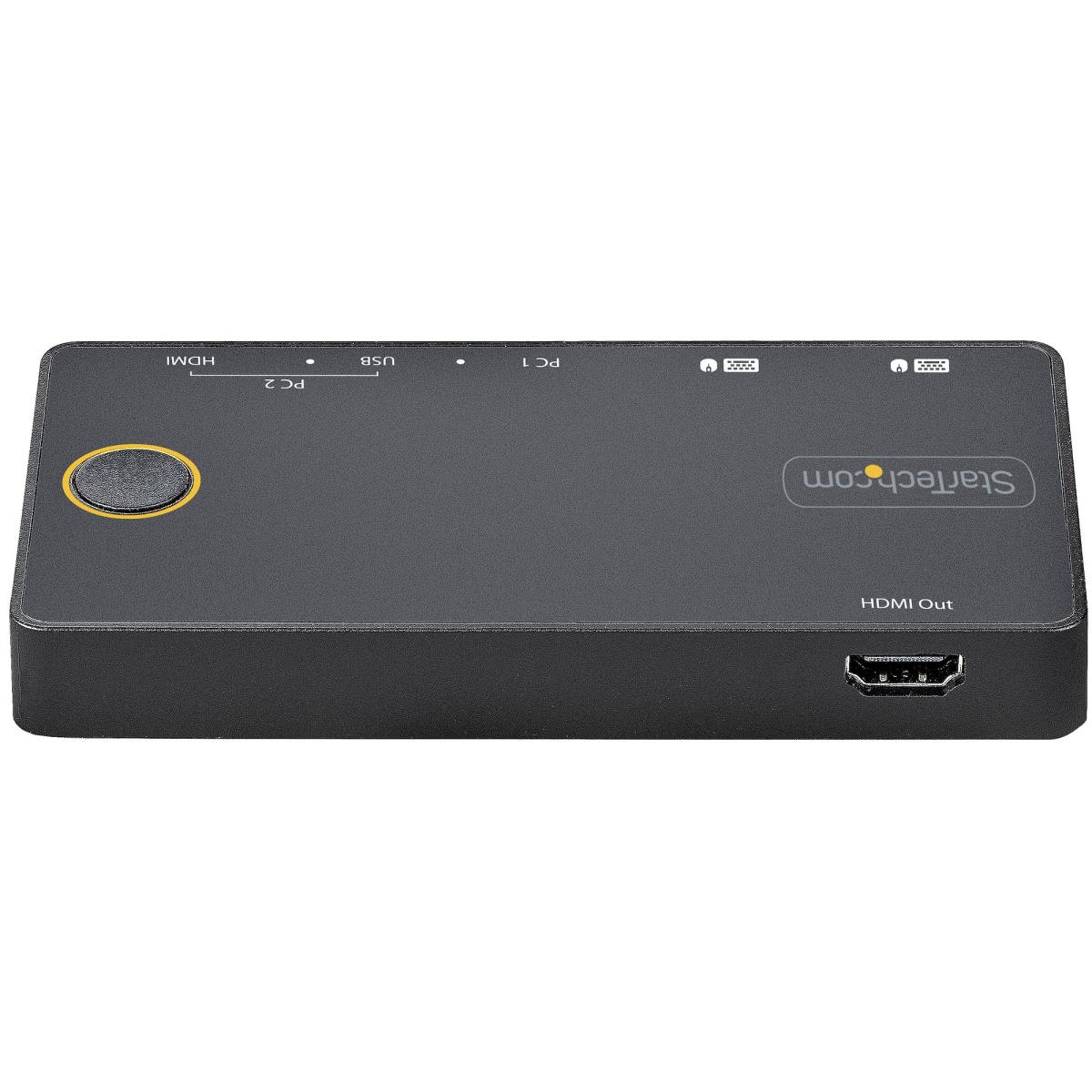

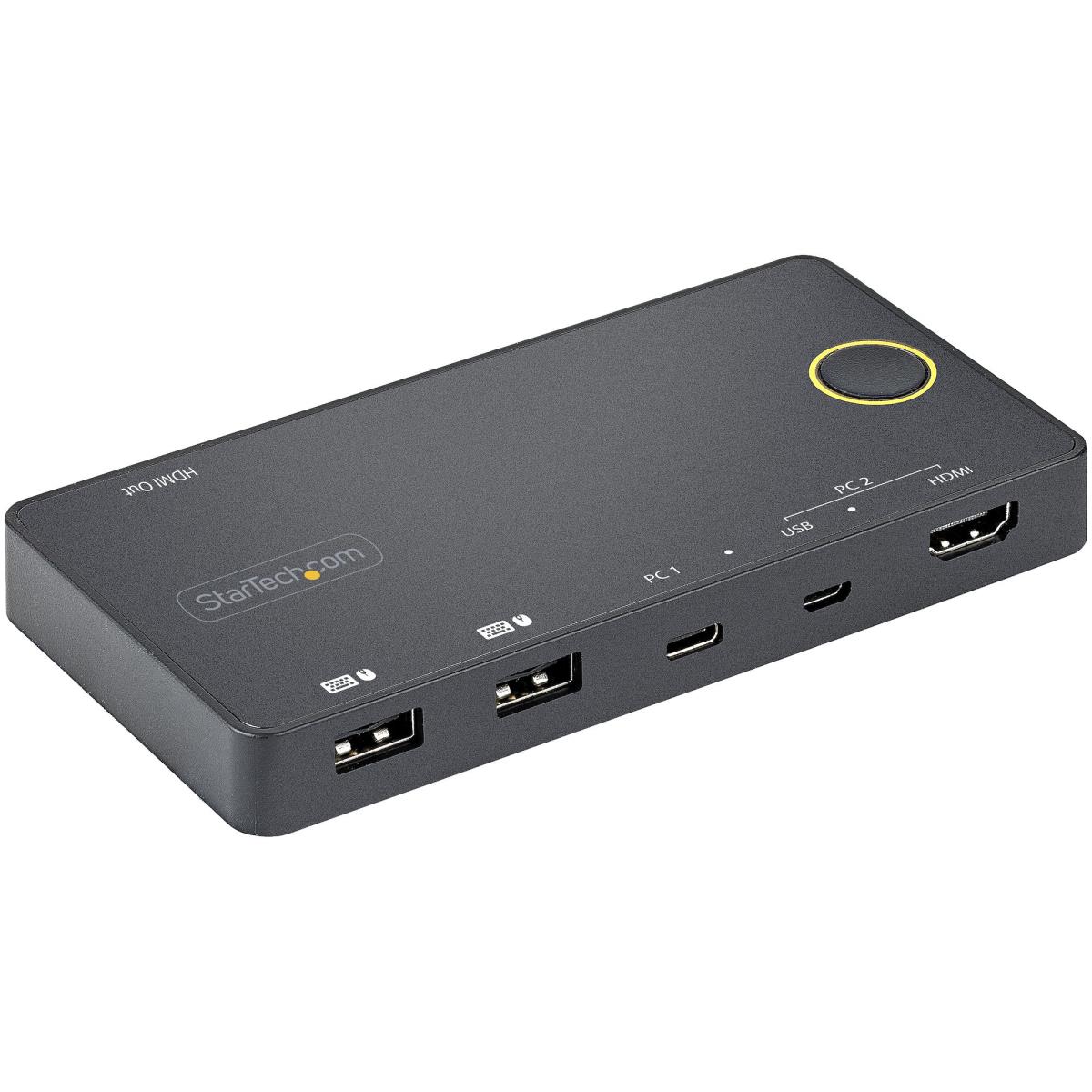

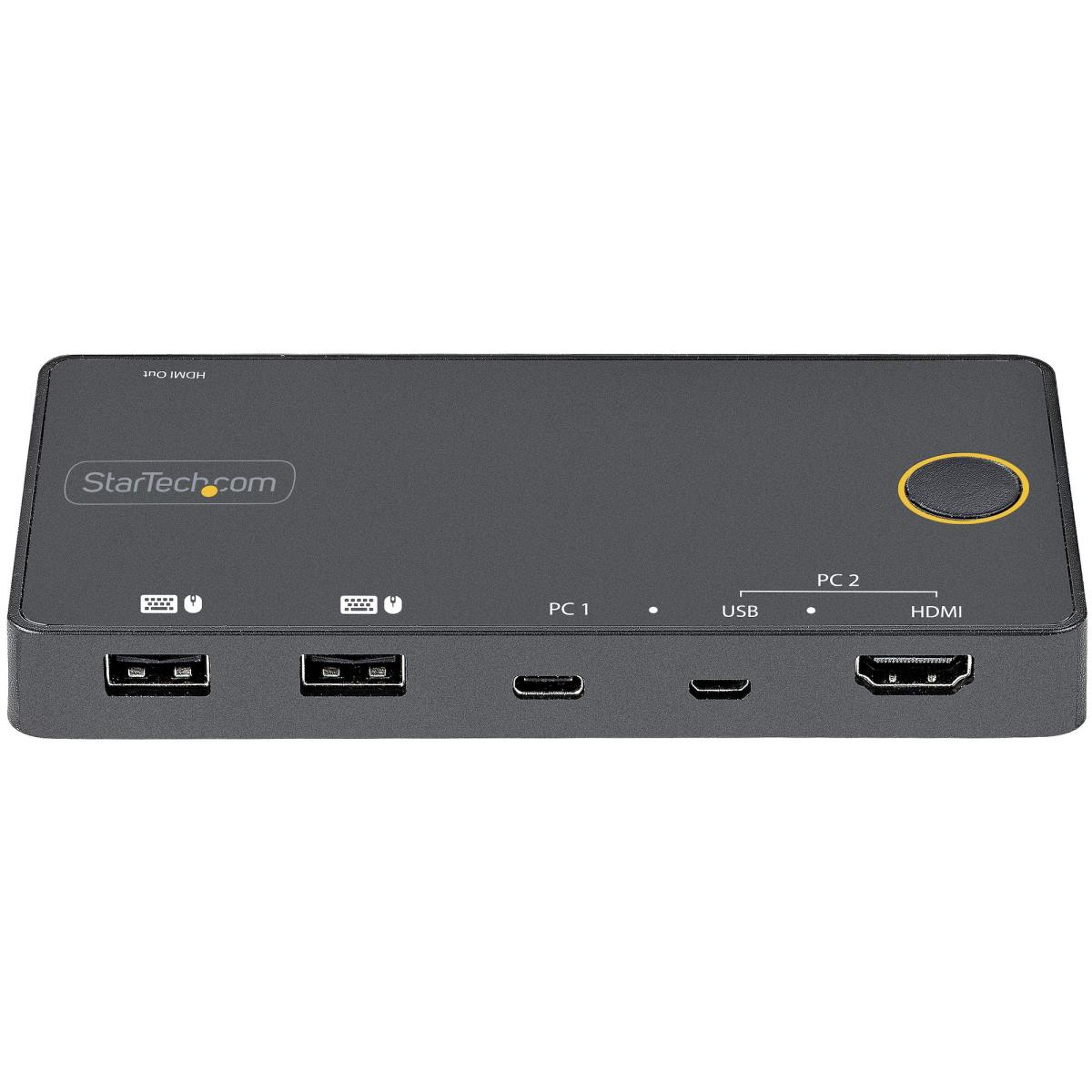

USB-C & USB-A/HDMI Desktop KVM Switch | 2 Port | 4K 60Hz HDMI 2.0

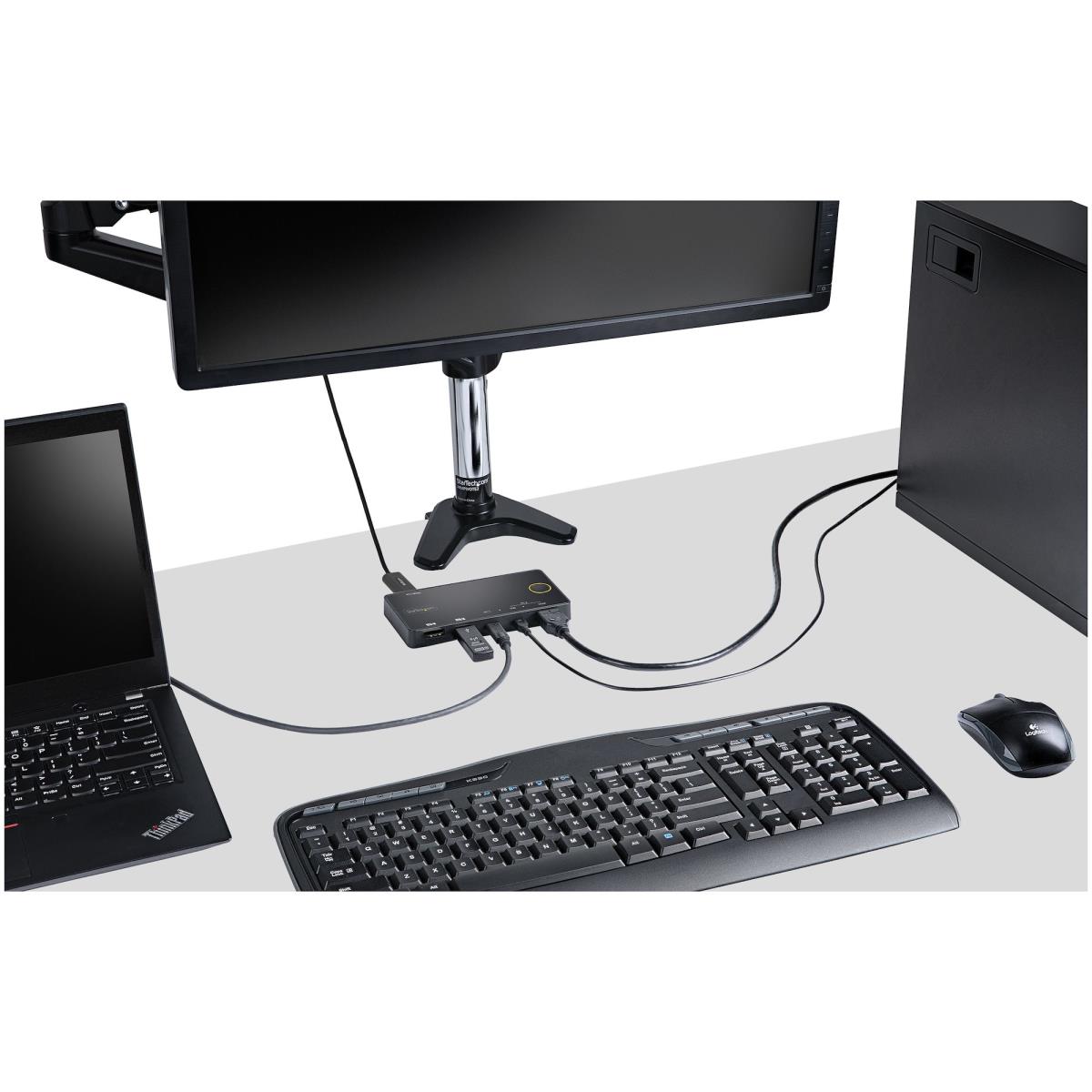

This 2-port USB-C™ / USB-A KVM enables you to easily switch between a USB Type-C or Thunderbolt™ 3 desktop/laptop computer and a USB-A and HDMI desktop/laptop computer, using a single keyboard, HDMI® monitor and mouse.

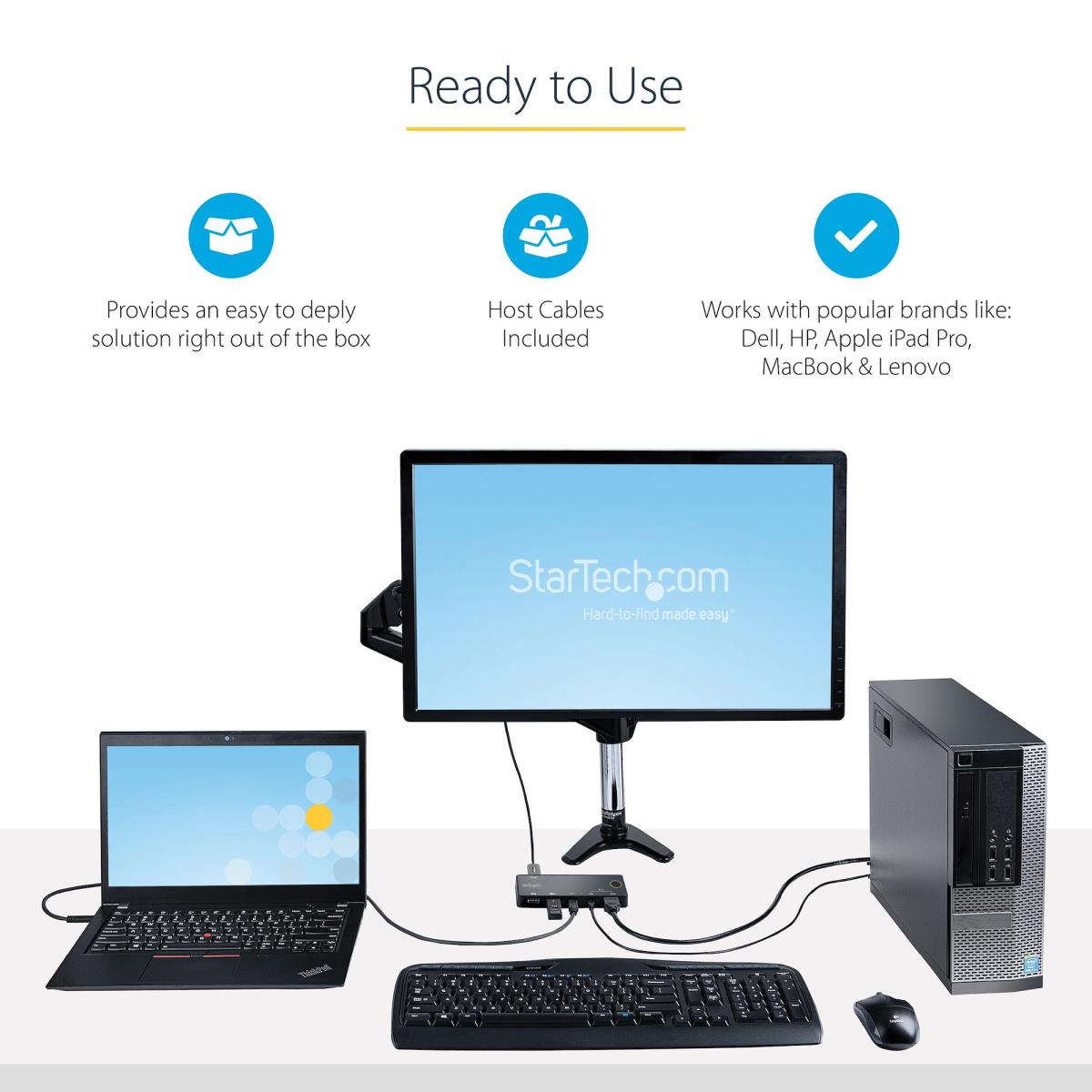

Easy to Setup and Use

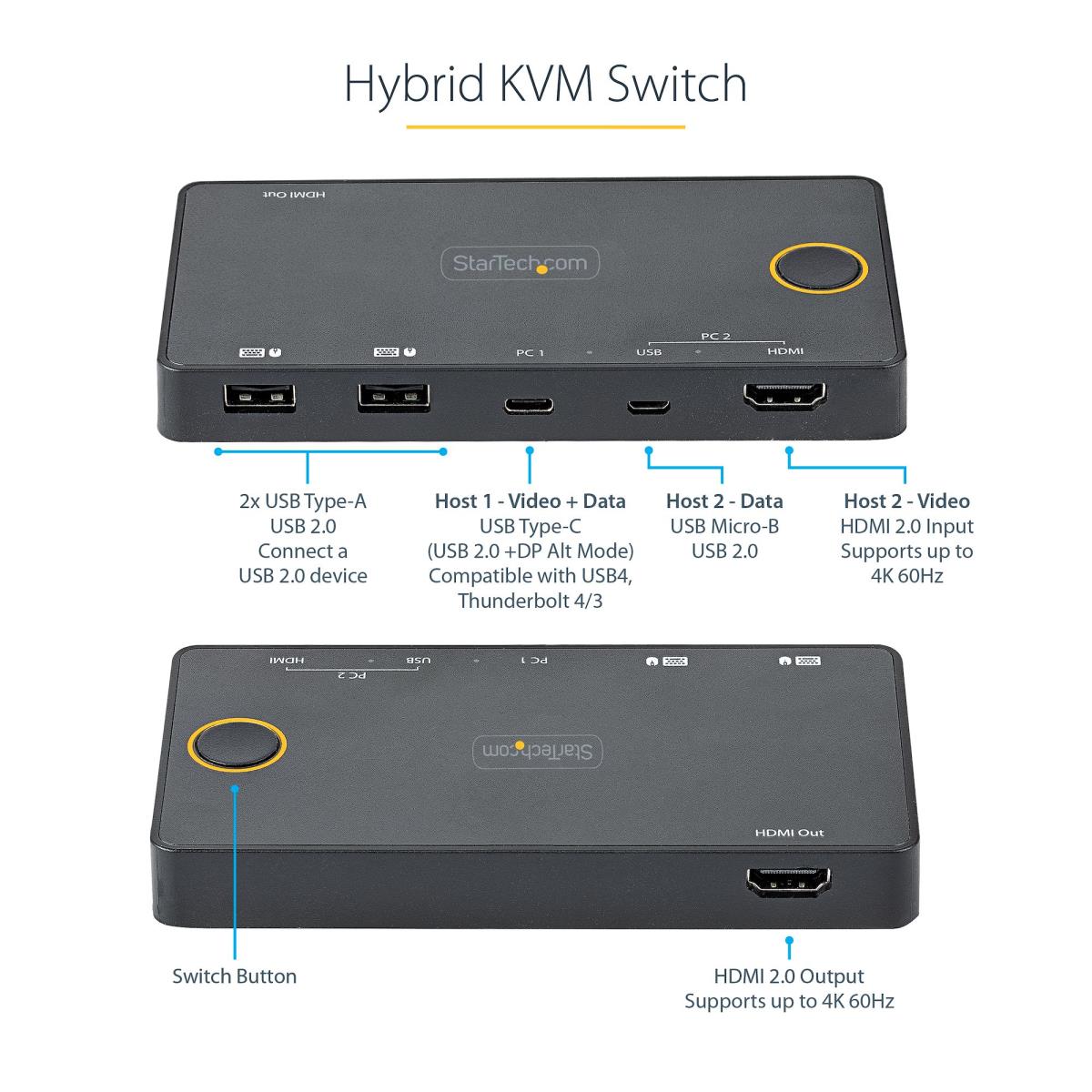

Utilizing USB-C with DP alt-mode and USB-A and HDMI this compact KVM switch only requires three host cable connections, ensuring a small footprint with limited cabling requirements. All required cables for connecting your computers are included, to ensure a hassle-free setup right out of the box.
PC 1
PC 2
1x USB Type-C
(Video + Data)
1x HDMI 2.0
+
1x Micro USB-B
For easy operation, the KVM features a single button that toggles between connected computers.
Supports 4K 60Hz Resolutions
The USB-C KVM switch supports UHD resolutions up to 4K (3840 x 2160) at 60Hz and can drive one large HDMI 2.0 display with ease, maximizing viewing space.

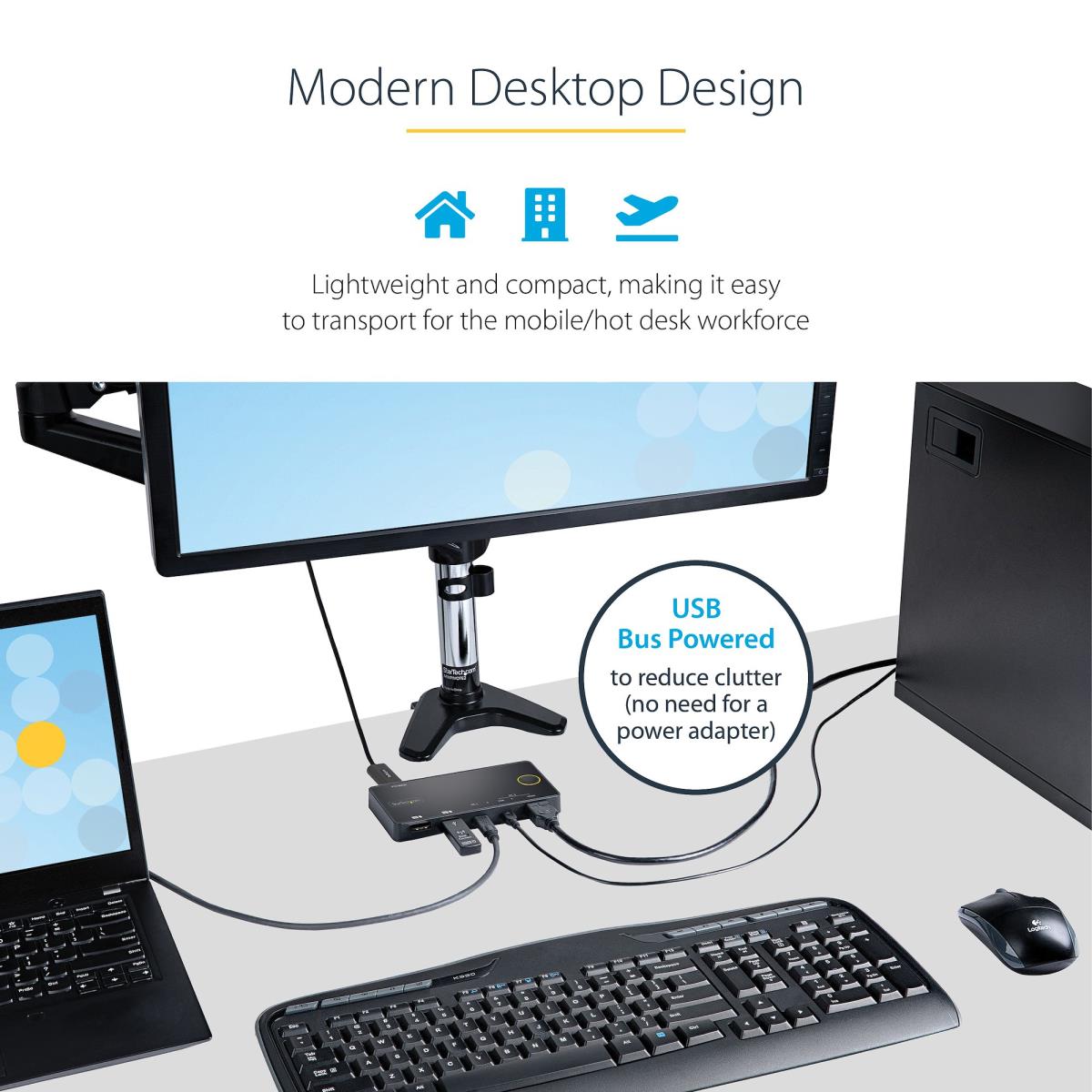

Compact and Portable
Along with the USB-C design that ensures cabling requirements are minimum the KVM is bus powered further reducing clutter by avoiding the need for a bulky power adapter. The lightweight small form factor makes this mini KVM switch easy to deploy and is ideal for mobile/hot desk workforces.
Guaranteed Compatibility
The KVM is OS independent supporting all operating systems including Windows, Linux, macOS, iOS (Apple iPad Pro) and Android. StarTech.com has rigorously tested this product to ensure compatibility with all popular device brands including: Dell, HP, Apple and Lenovo.
The SV221HUC4K is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
| Ports & interfaces | |
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | HDMI |
| HDMI ports quantity | 2 |
| HDMI version | 2.0 |
| DisplayPort version | 1.2 |
| USB connector type | Micro-USB B, USB Type-A, USB Type-C |
| Performance | |
| HD type | 4K Ultra HD |
| Maximum resolution | 3840 x 2160 pixels |
| Video bandwidth | 60 Hz |
| Data transfer rate (max) | 0.48 Gbit/s |
| Daisy chain | No |
| Chipset | Parade - PS176, VLI - VL170, Terminus - FE1.1S |
| Audio channels | 7.1 |
| Number of displays supported | 1 |
| Design | |
| Rack mounting | No |
| Product colour | Black |
| LED indicators | Yes |
| Push button | Yes |
| Hot keys | No |
| Mean time between failures (MTBF) | 50000 h |
| Display | |
| Built-in display | No |
| On Screen Display (OSD) | No |
| Power | |
| USB powered | Yes |
| Warranty | |
| Base Warranty | Non Non |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 55 øC |
| Storage temperature (T-T) | -20 - 50 øC |
| Operating relative humidity (H-H) | 20 - 80% |

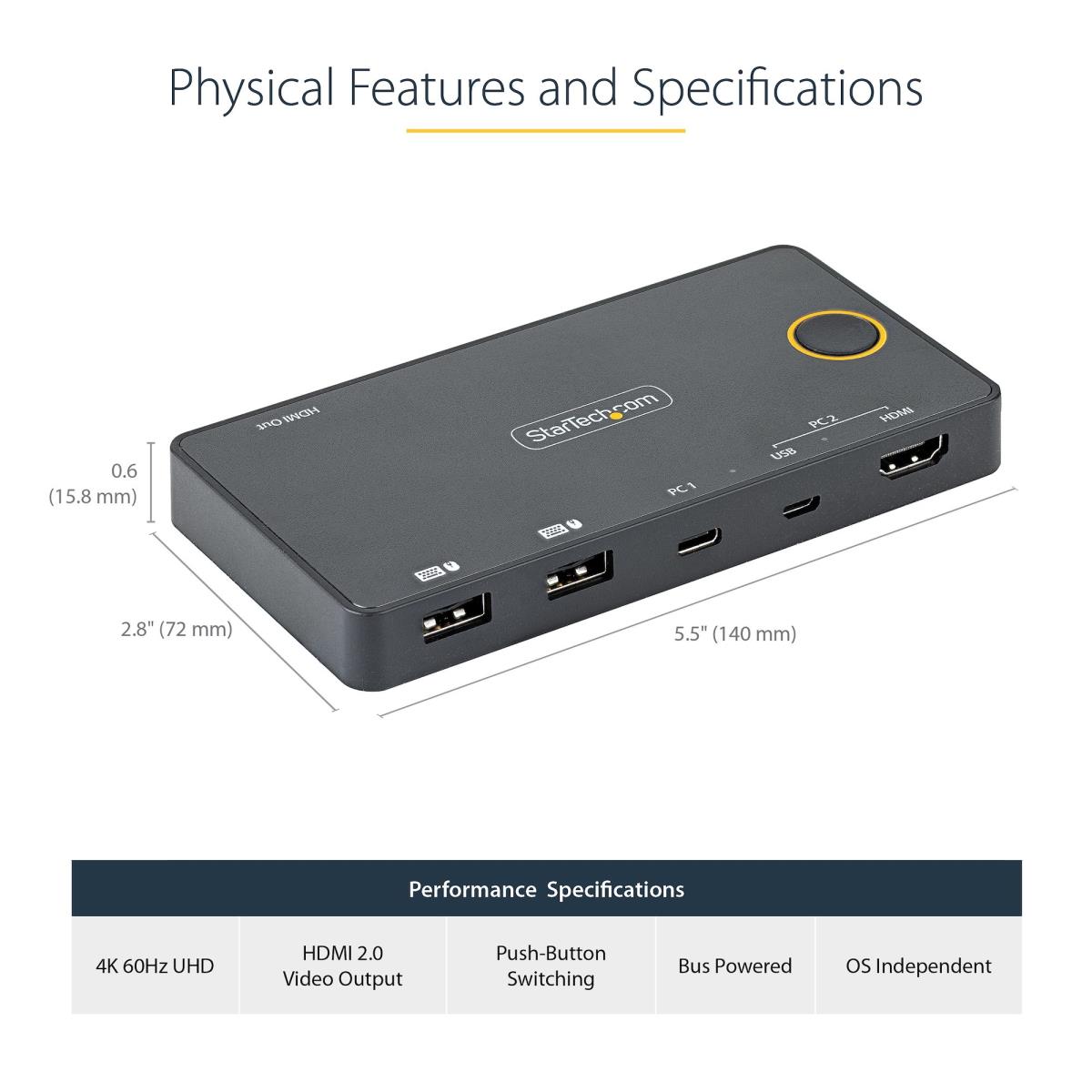

| Weight & dimensions | |
| Width | 138 mm |
| Depth | 70 mm |
| Height | 15 mm |
| Weight | 200 g |
| Packaging data | |
| Package width | 120 mm |
| Package depth | 172 mm |
| Package height | 85 mm |
| Package weight | 250 g |

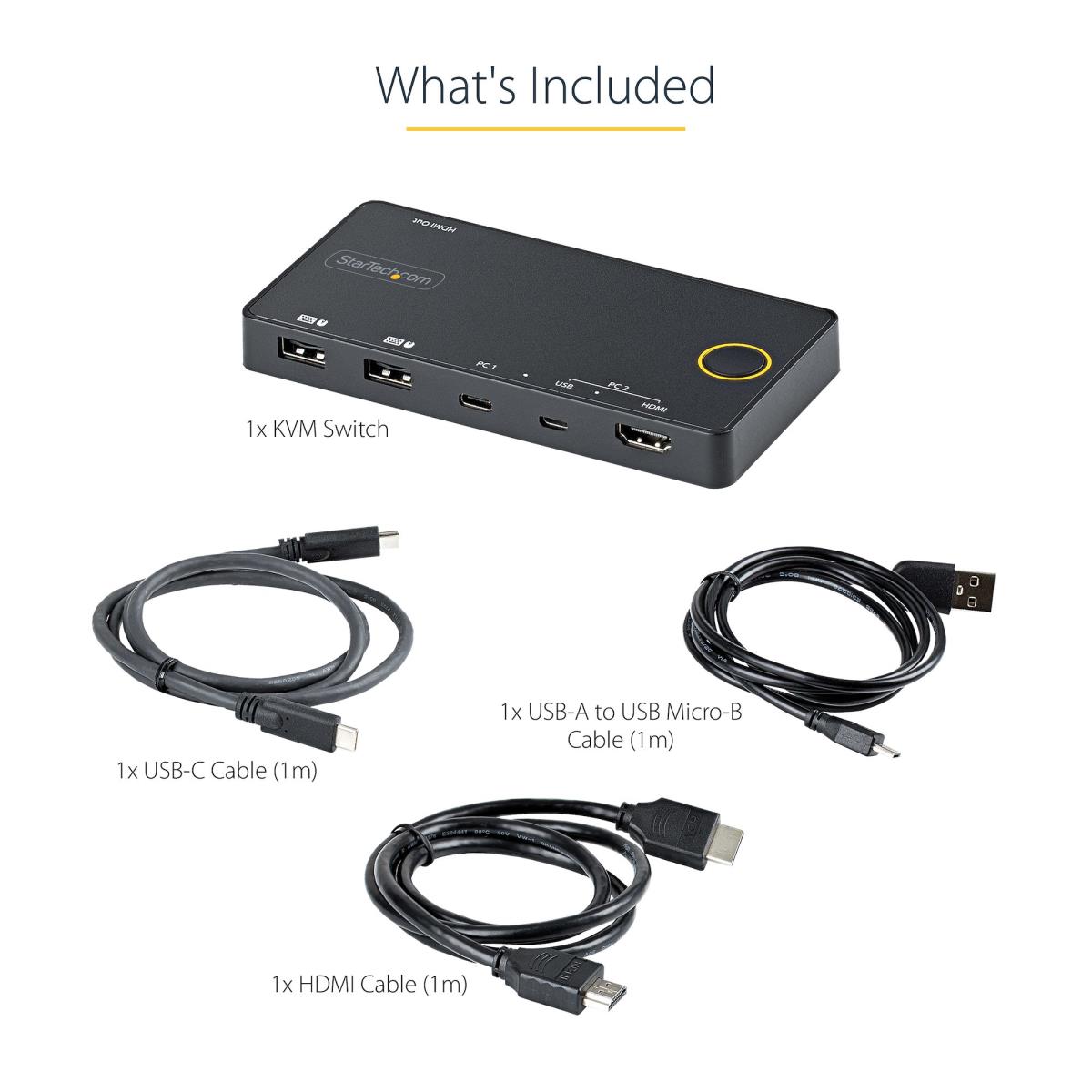

| Packaging content | |

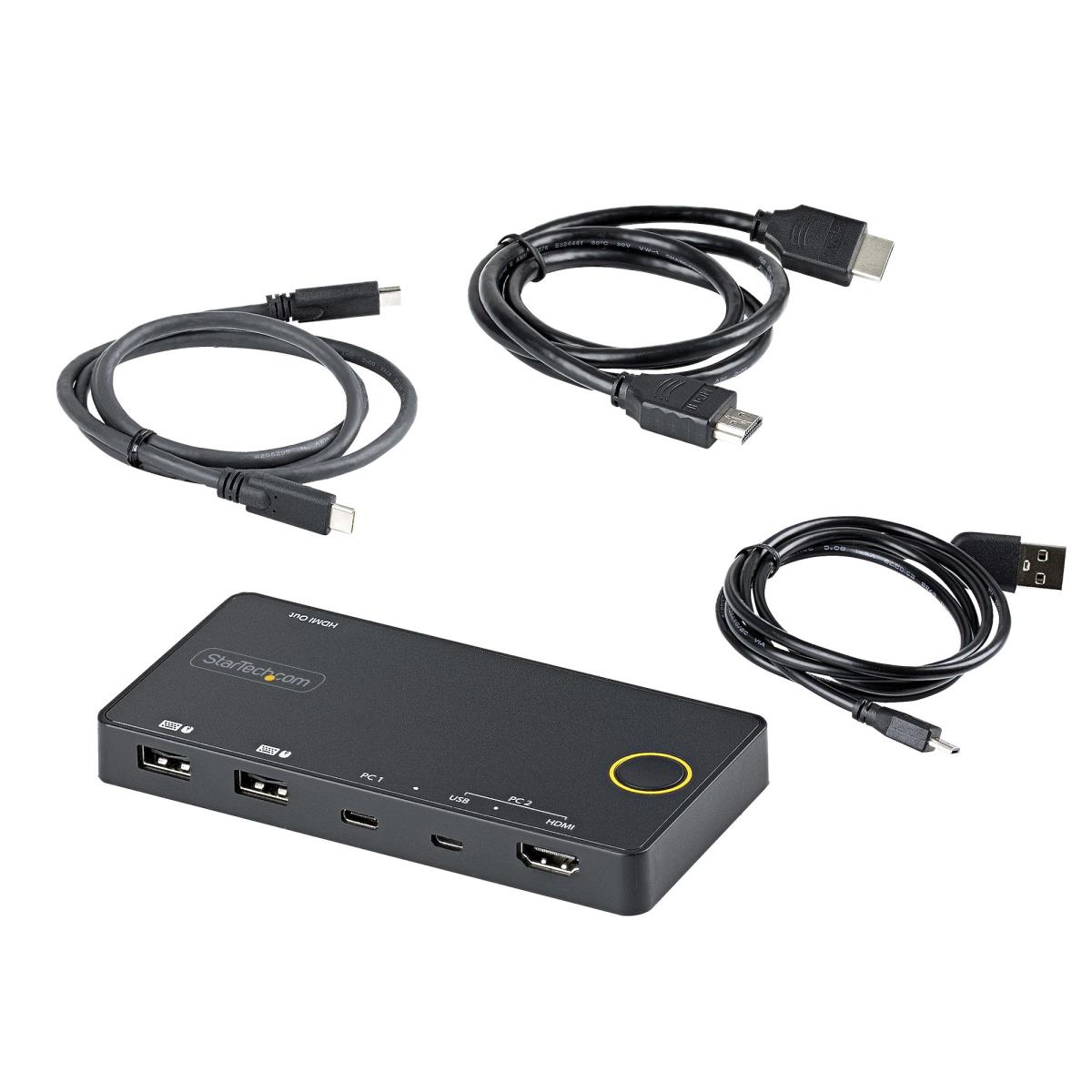

| Cables included | HDMI, Micro-USB, USB Type-C to USB Type-C |
| Quick installation guide | Yes |
| Other features | |
| IP control | No |
| Logistics data | |
| Harmonized System (HS) code | 85176200 |
| Master (outer) case width | 410 mm |
| Master (outer) case length | 470 mm |
| Master (outer) case height | 370 mm |
| Products per master (outer) case | 20 pc(s) |
