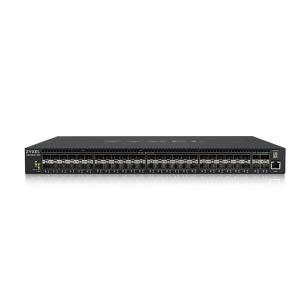

Xgs2210 52 - Gbe L2 Switch With 10gbe Uplink - 52 Total Ports
ITCurry #: 62305005 | Article #: XGS2210-52-EU0101F-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
Agile traffic control for converged networking applications
ZyXEL XGS2210/GS2210 Series has a rich Layer 2 feature set that can shape the traffic for diverse VoIP, video conference, IPTV and IP surveillance deployments and provide hotels, businesses andeducational institutions greater agility and more effective traffic management for the converged applications of today.
ZyXEL One Network experience
Aiming for relieving our customers from repetitive operations of deploying and managing a network, ZyXEL One Network is designed to simplify the configuration, management, and troubleshooting, allowing our customers to focus on the business priorities. ZyXEL One Network presents an easy-to-use tool, ZyXEL One Network Utility (ZON Utility), to realize speed network setup. ZyXEL Smart Connect allows ZyXEL networking equipment to be aware and recognize each other and further facilitating the network maintenance via one-click remote functions such as factory reset or power cycling. ZyXEL One Network redefines the network integration across multiple networking products from switch to Wi-Fi AP and to Gateway.
High-powered Power over Ethernet (PoE)
The ZyXEL XGS2210/GS2210 Series PoE switches support the IEEE 802.3af PoE and 802.3at PoE Plus standards, which provide up to 30 watts of power per port for advanced Powered Devices (PD) like 802.11ac wireless APs and video IP phones. The high power budget enables the XGS2210/GS2210 PoE switches to comfortably accommodate the PDs required in a modern network edge.
High-powered Power over Ethernet (PoE)
The ZyXEL XGS2210/GS2210 Series PoE switches support the IEEE 802.3af PoE and 802.3at PoE Plus standards, which provide up to 30 watts of power per port for advanced Powered Devices (PD) like 802.11ac wireless APs and video IP phones. The high power budget enables the XGS2210/GS2210 PoE switches to comfortably accommodate the PDs required in a modern network edge.
| Beheerfuncties | |
| Switch type | Managed |
| Switch-laag | L2 |
| Quality of Service (QoS) | Ja |
| Web-gebaseerd management | Ja |
| Traffic shaping | Ja |
| ARP-inspectie | Ja |
| System event log | Ja |
| MIB-ondersteuning | RFC 1066, RFC 1213, RFC 1493, RFC 1643, RFC 1757, RFC 2011, RFC 2233, RFC 2358, RFC 2674, RFC 2819, RFC 2925, RFC 3621, RFC 4022, RFC 4113, RFC 4292, RFC 4293 |
| Poorten & interfaces | |
| Aantal basis-switching RJ-45 Ethernet-poorten | 48 |
| Type basis-switching RJ-45 Ethernet-poorten | Gigabit Ethernet (10/100/1000) |
| Aantal moduleslots SPF+ | 4 |
| Netwerk | |
| Netwerkstandaard | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | Ja |
| Port mirroring | Ja |
| IP routing | Ja |
| Datastroombeheer | Ja |
| Verbindingsaggregatie | Ja |
| Broadcast stormbeheer | Ja |
| Rate limiting | Ja |
| Spanning tree protocol | Ja |
| MAC-adres zelflerende functie | Ja |
| VLAN=ondersteuning | Ja |
| Virtuele LAN-functies | Private VLAN, Protocol-based VLAN, Port-based VLAN |
| Data-uitwisseling | |
| Switchingcapaciteit | 176 Gbit/s |
| Throughput | 130,9 Mpps |
| MAC-adrestabel | 16000 entries |
| Aantal wachtrijen | 8 |
| Jumbo Frames ondersteuning | Ja |
| Jumbo frames | 9000 |
| Packet buffergeheugen | 1,5 MB |
| Beveiliging | |
| DHCP-functies | DHCP client |
| Access Control List (ACL) | Ja |
| IGMP snooping | Ja |
| Ondersteunde beveiligingsalgoritmen | 802.1x RADIUS, SNMP, SSH, SSH-2 |
| MAC adres filtering | Ja |
| SSH/SSL support | Ja |
| BPDU filtering / bescherming | Ja |
| Authenticatie | MAC-gebaseerde authenticatie |
| Multicast-functies | |
| Multicast-ondersteuning | Ja |
| Design | |
| Rack-montage | Ja |
| Stapelbaar | Ja |
| Vormfactor | 1U |
| Kleur van het product | Zwart |
| Veiligheid | LVD, BSMI |
| Elektromagnetische compatibiliteit | FCC 15 (A), CE (A), BSMI |
| Certificering | RoHS |
| Prestatie | |
| Geluidsniveau | 44,15 dB |
| Plug and play | Ja |
| Mean time between failures (MTBF) | 970594 uur |
| Energie | |
| AC-ingangsspanning | 100 - 240 V |
| AC-ingangsfrequentie | 50 - 60 Hz |
| Vermogensverbruik (max) | 45 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Nee |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 0 - 50 øC |
| Temperatuur bij opslag | -40 - 70 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 10 - 95 procent |
| Luchtvochtigheid bij opslag | 10 - 90 procent |
| Warmtedissipatie | 153,3 BTU/h |
| Gewicht en omvang | |
| Breedte | 441 mm |
| Diepte | 270 mm |
| Hoogte | 45 mm |
| Gewicht | 3,86 kg |
| Verpakking | |
| Meegeleverde kabels | AC |
| Rekbevestigingspakket | Ja |
| Breedte verpakking | 622 mm |
| Diepte verpakking | 358 mm |
| Hoogte verpakking | 108 mm |
| Gewicht verpakking | 4,92 kg |
| Logistieke gegevens | |
| Code geharmoniseerd systeem (HS) | 85176990 |
| Warranty | |
| Base Warranty | Non Non |
