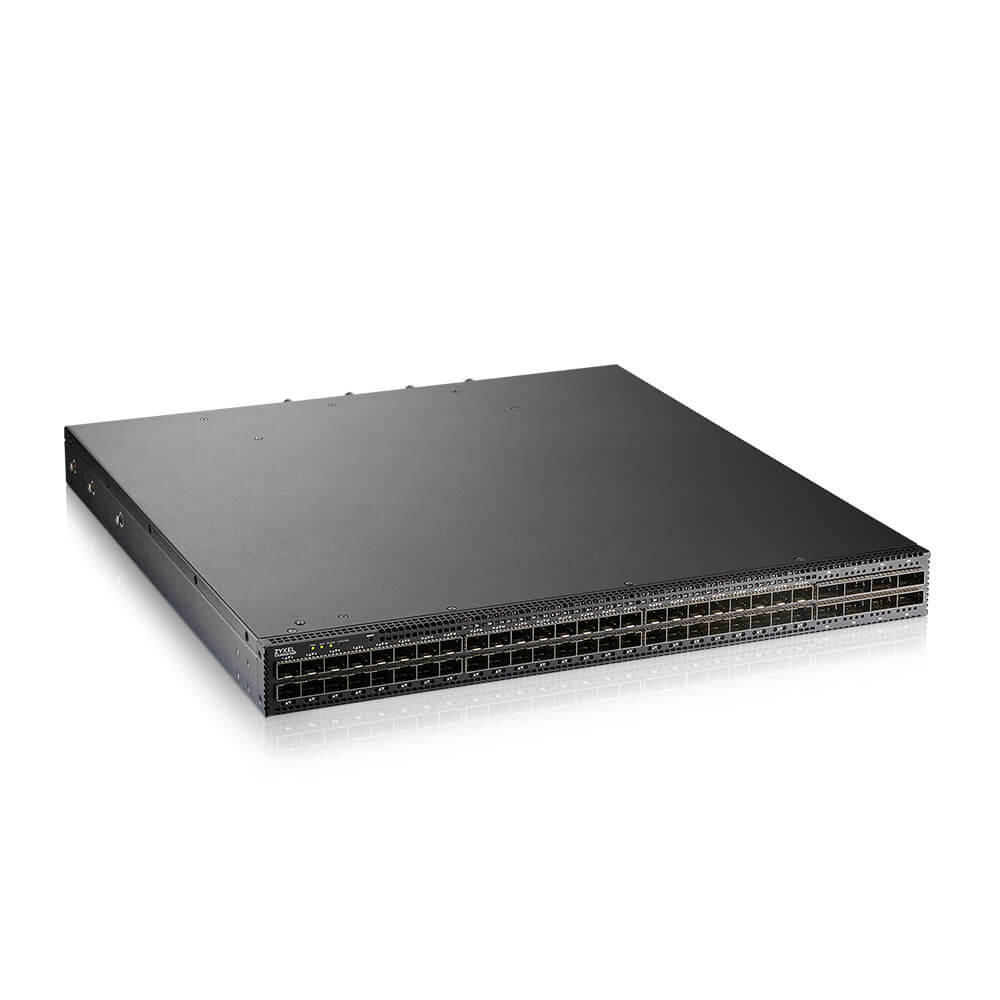

Cx4800-56f - 56-ports Flagship Aggregation Switch - Sfp (with 2 Dc Power Supply)
ITCurry #: 62306029 | Article #: CX4800-56F-ZZ0102F-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
Future Proof Aggregation & Core Switch
The CX4800-56F supports a full suite of Layer 2 features, including VLAN, ACL, port aggregation, and 802.1X, to enhance security by preventing unauthorized access to cloud resources and AI workloads, optimize bandwidth for high-speed GPU data transfers, and enable dynamic, isolated workload environments in large-scale AI and cloud deployments.
Nebula, The Intelligent Cloud Management
Nebula offers comprehensive monitoring and reporting capabilities, including real-time notifications for critical events via email or the mobile app. With Nebula, you can enjoy a streamlined experience for network installation and management without the need for additional costs for software or hardware controllers.
Dedicated Networked AV Mode
The CX4800-56F features a custom-designed networked AV mode for standalone operation. It supports 10G Ethernet with pixel-perfect 4K60 video streaming in real-time, making it ideal for applications ranging from live events to XR and medical imaging. Leveraging AI intelligence, the switch simplifies the setup process by automatically configuring all necessary parameters, enabling a professional AVoIP deployment within minutes.
| Beheerfuncties | |
| Switch type | Managed |
| Switch-laag | L3 |
| Quality of Service (QoS) | Ja |
| Web-gebaseerd management | Ja |
| Cloud-beheerd | Ja |
| ARP-inspectie | Ja |
| Locatie-instellingen (CLI) configureren | Ja |
| System event log | Ja |
| MIB-ondersteuning | Y |
| Poorten & interfaces | |
| Type basis-switching RJ-45 Ethernet-poorten | Nee |
| Aantal USB Type-A-poorten | 2 |
| Aantal beheerpoorten | 1 stuk(s) |
| Console port | RJ-45 |
| Aantal QSFP28-poorten | 8 |
| Aantal SFP28-poorten | 48 |
| Netstekker | DC-in ingang |
| Netwerk | |
| 10G support | Ja |
| Port mirroring | Ja |
| Op beleid gebaseerde routering | Ja |
| Datastroombeheer | Ja |
| Verbindingsaggregatie | Ja |
| Broadcast stormbeheer | Ja |
| Spanning tree protocol | Ja |
| VLAN=ondersteuning | Ja |
| Data-uitwisseling | |
| Switchingcapaciteit | 4000 Gbit/s |
| MAC-adrestabel | 30000 entries |
| Statische route | Ja |
| Jumbo Frames ondersteuning | Ja |
| Jumbo frames | 9000 |
| Packet buffergeheugen | 32 MB |
| Beveiliging | |
| DHCP-functies | DHCP relay, DHCP server, DHCP snooping |
| Access Control List (ACL) | Ja |
| IGMP snooping | Ja |
| Ondersteunde beveiligingsalgoritmen | SSH-2, SSL/TLS |
| MAC adres filtering | Ja |
| SSH/SSL support | Ja |
| Bescherming lus | Ja |
| Multicast-functies | |
| Multicast-ondersteuning | Ja |
| Design | |
| Rack-montage | Ja |
| Vormfactor | 1U |
| Kleur van het product | Zwart |
| Reset button | Ja |
| LED-indicatoren | Ja |
| Prestatie | |
| Type geheugen | RAM / Flash |
| Intern geheugen | 8000 MB |
| Flash memory | 64 MB |
| Mean time between failures (MTBF) | 5900181,1 uur |
| Energie | |
| Stroombron | DC |
| Vermogenstoevoer inclusief | Ja |
| Aantal voedingen | 2 |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Nee |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 0 - 40 øC |
| Temperatuur bij opslag | -20 - 70 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 10 - 95 procent |
| Luchtvochtigheid bij opslag | 10 - 95 procent |
| Warmtedissipatie | 1122 BTU/h |
| Gewicht en omvang | |
| Breedte | 440 mm |
| Diepte | 489 mm |
| Hoogte | 45 mm |
| Gewicht | 8,62 kg |
| Inhoud van de verpakking | |
| Meegeleverde kabels | AC |
| Rekbevestigingspakket | Ja |
| Verpakking | |
| Type verpakking | Doos |
| Breedte verpakking | 595 mm |
| Diepte verpakking | 706 mm |
| Hoogte verpakking | 206 mm |
| Logistieke gegevens | |
| Land van herkomst | Taiwan |
| Warranty | |
| Base Warranty | Non Non |
