Ze500 - Thermal Transfer - Right Hand - 168mm - 300dpi - Serial And Parallel And USB And Ethernet
ITCurry #: 18257109 | Article #: ZE50063-R0E0000Z-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie

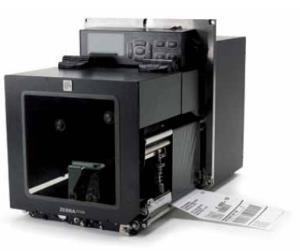

ZE500 Print Engines
The ZE500 series takes an innovative approach to OEM print engines. Leveraging customer research, the design focuses on ease of use, integration and servicing. Built with the customer in mind, the ZE500 is designed to keep mission-critical print-and-apply applications operating with no interruptions.
Used For:
- Cross Docking;
- Receiving/Shipping;
- Compliance Labeling;
- Order Labeling.
The elegant design of the ZE500 simplifies maintenance and dramatically reduces downtime. All three rollers can be exchanged in minutes, with no need to access the printer’s electronics. The wide open printhead makes cleaning and replacement simple, and the quickchange modular drive system reduces printer repair time.
Routine operations such as ribbon changing are simple and straightforward (and identical for both print widths). The new graphic display can be deported and rotated, enabling flexible positioning for improved ease of use and integration.
The user experience is much improved: the design enables easy integration with print-and-apply machinery plus has better resistance to dust and water. Expanded connectivity ports and enhanced software control of the applicator port provides further integration flexibility.
| Printsnelheid | |
| Maximale resolutie | 300 x 300 DPI |
| Printsnelheid (metrisch) | 254 mm/sec |
| Maximale print breedte | 16,8 cm |
| Papier | |
| Lint-wijdte | 18 cm |
| Lint-lente | 600 m |
| Maximale label breedte | 18 cm |
| Maximum media lengte | 3,81 m |
| Core diameter | 2,54 cm |
| Poorten & interfaces | |
| Connectiviteitstechnologie | Bedraad |
| Ethernet LAN | Ja |
| Wifi | Nee |
| USB-poort | Ja |
| Aantal USB 2.0-poorten | 1 |
| Parallelle poort(en) | 1 |
| RS-232 port | 1 |
| RS-232 | Ja |
| Prestatie | |
| Paginabeschrijving talen | XML, ZPL, ZPL II |
| Intern geheugen | 16 MB |
| Flash memory | 64 MB |
| Ingebouwde streepjescodes | 1D, 2D, CODABAR (NW-7), Code 129-Auto, Code 39, Code 49, Code 93, EAN13, EAN8, Industrial 2/5, Interleaved 2/5, MaxiCode, PDF417, POSTNET, QR Code, TLC39, UPC-A, UPC-E |
| Frequentie van processor | 133 MHz |
| Design | |
| Kleur van het product | Zwart |
| Ingebouwd display | Ja |
| Beeldscherm | LCD |
| Materiaal behuizing | Metaal |
| Eisen aan de omgeving | |
| Relatieve vochtigheid in bedrijf (V-V) | 20 - 85 procent |
| Luchtvochtigheid bij opslag | 5 - 95 procent |
| Bedrijfstemperatuur, bereik | 32 - 104 øF |
| Bedrijfstemperatuur (T-T) | 0 - 40 øC |
| Temperatuur bij opslag | -40 - 71 øC |
| Temperatuurbereik voor opslag (T-T) | -40 - 160 øF |
| Gewicht en omvang | |
| Breedte | 245 mm |
| Diepte | 438 mm |
| Hoogte | 300 mm |
| Gewicht | 17,3 kg |
| Logistieke gegevens | |
| Code geharmoniseerd systeem (HS) | 84433210 |
| Technische details | |
| Duurzaamheidscertificaten | ENERGY STAR |
| Warranty | |
| Base Warranty | Non Non |
