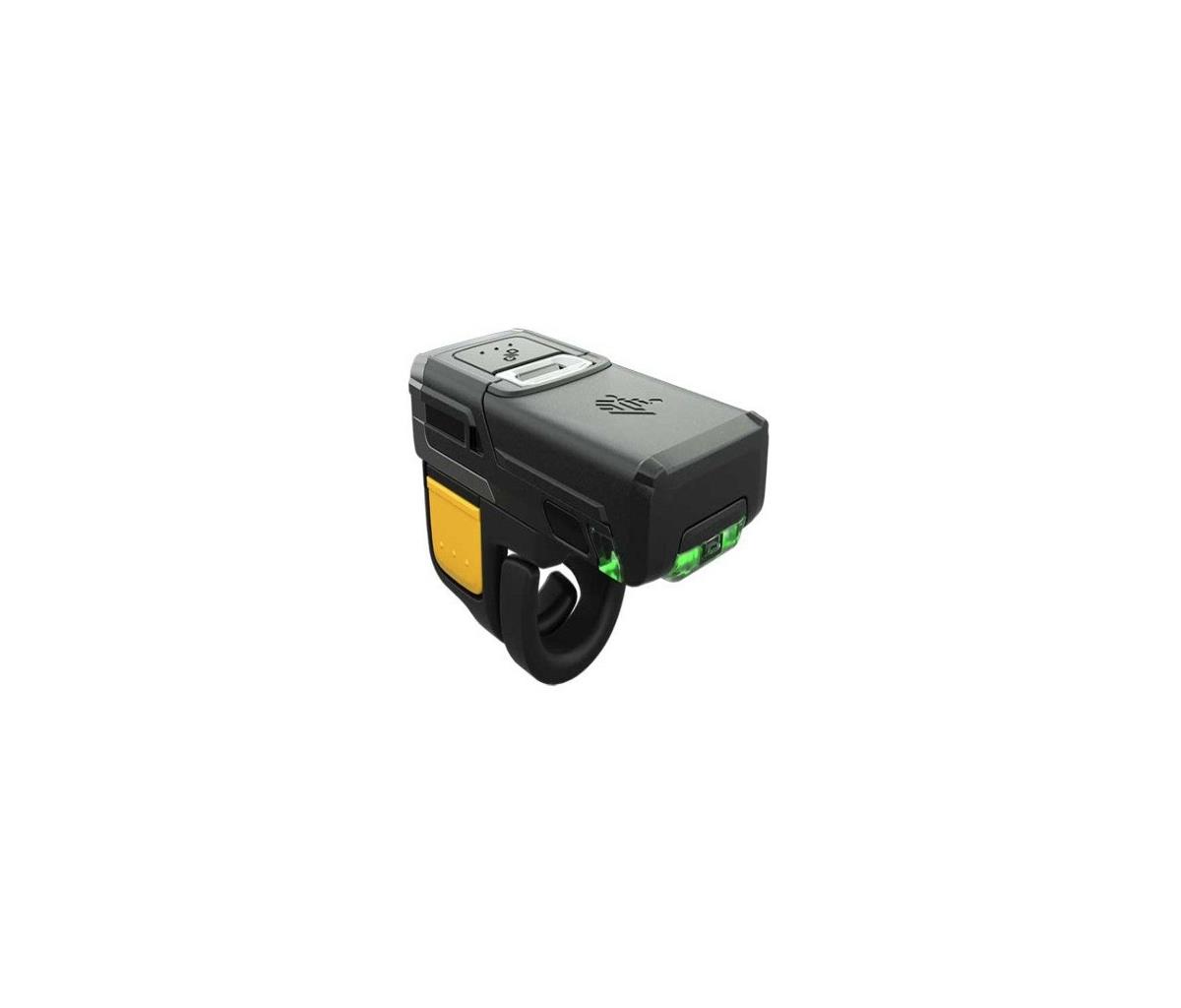

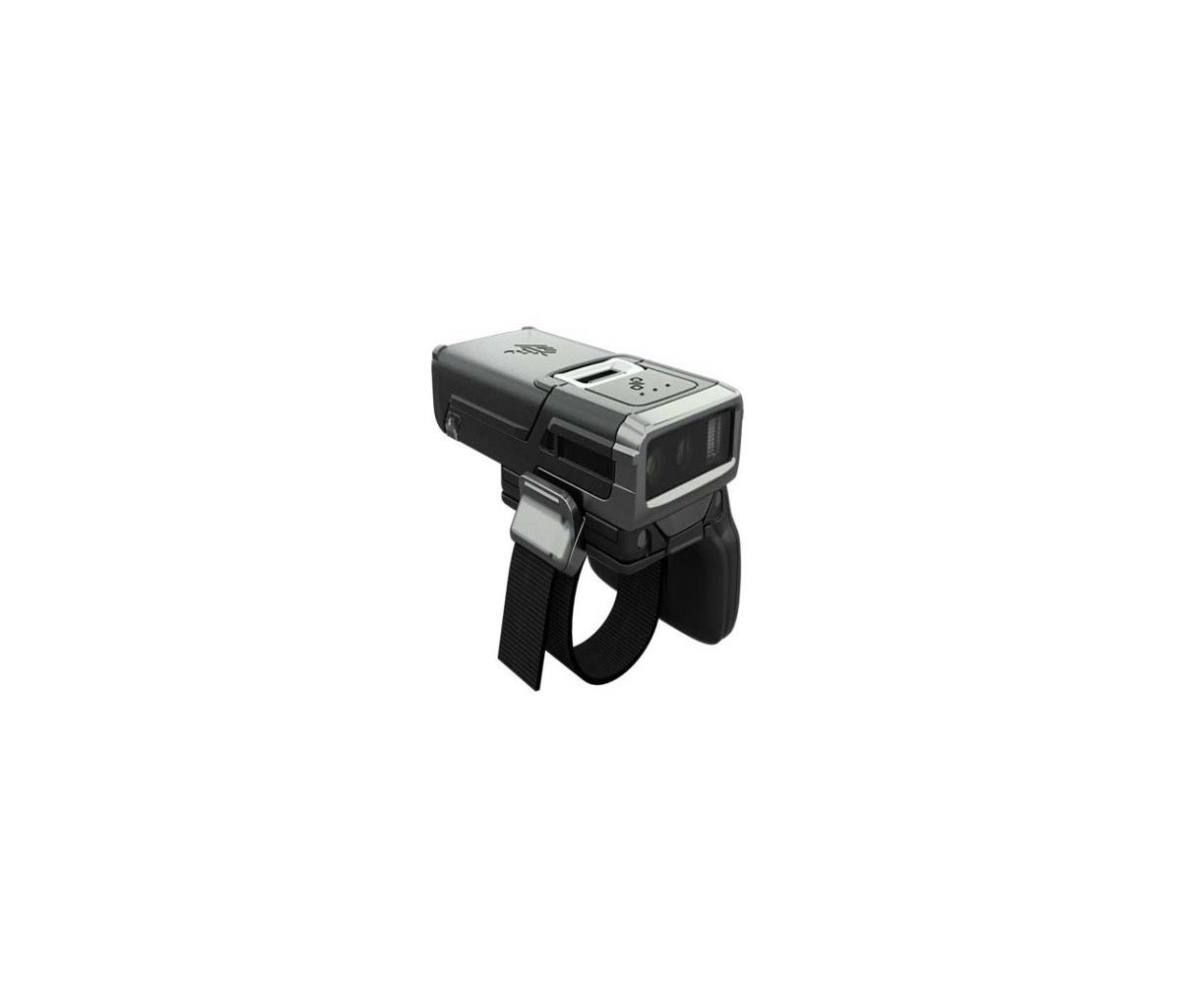

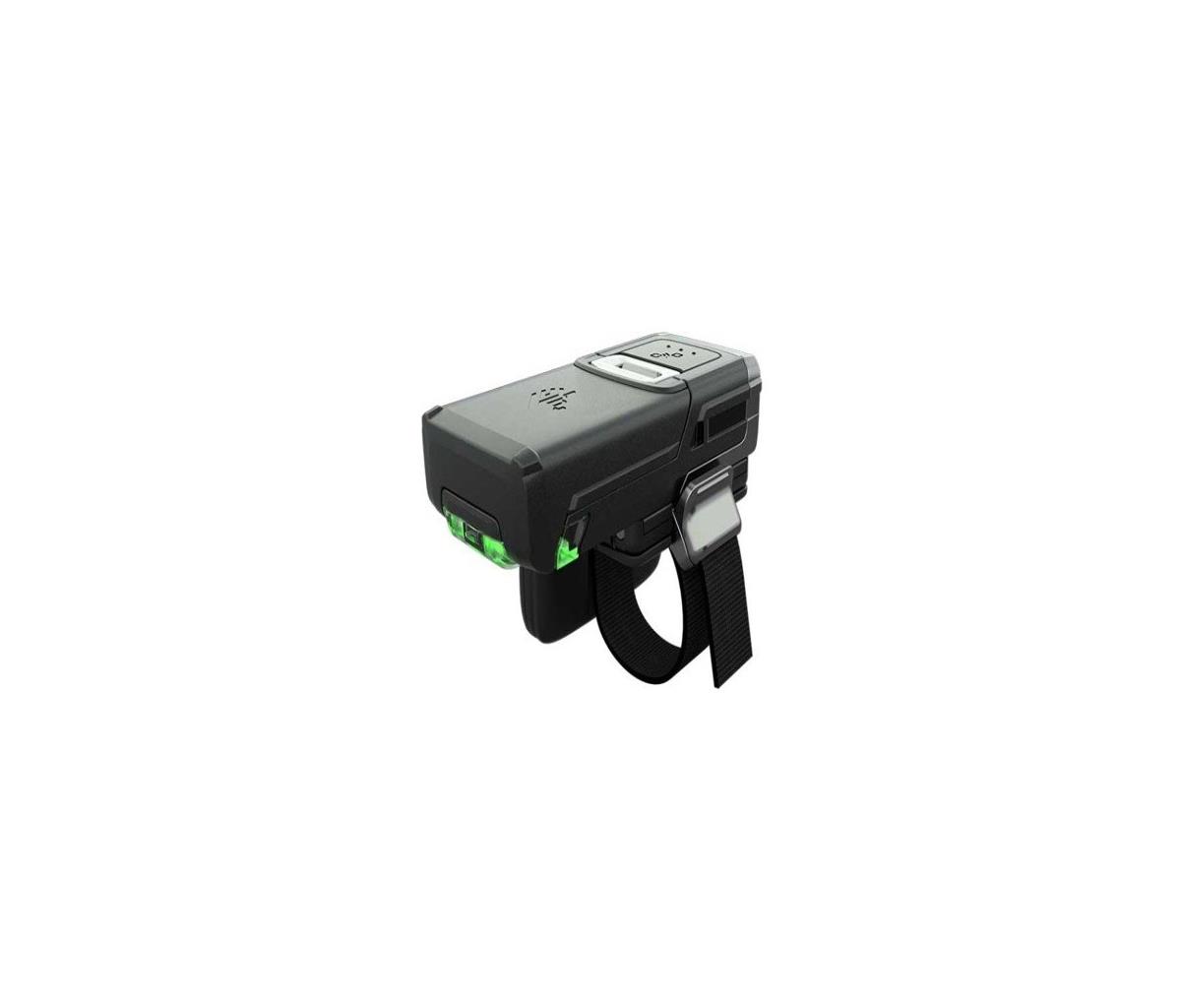

Ring Scanner Rs5100 Se4710 Standard Battery Single Trigger (rs51b0-lbsnwr)
ITCurry #: 1825H947 | Article #: RS51B0-LBSNWR-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
THE ‘GO-EVERYWHERE’ FEATHERWEIGHT AND RUGGED RING SCANNER
Finally, there’s a ring scanner that’s designed for use in customer-facing areas, as well as your warehouse and distribution center — the RS5100 next-generation ring scanner. It’s practically weightless, and so small your customers won’t even notice it. There’s a wearing option that will bring comfort to every worker. Best-in-class scanning enables instant capture of virtually every barcode at twice the range of legacy Bluetooth ring scanners. The rugged design outshines competitive devices. And a long list of features provides unsurpassed versatility and flexibility.
SUPERIOR ERGONOMICS FOR SUPERIOR COMFORT
At just over two ounces and two cubic inches, it’s practically weightless (about 1/2 the size and weight of the legacy RS507x ring scanner). Wear it on a finger, the back of a hand or on a lanyard. The single-sided trigger model accommodates gloves; the double trigger model lets workers switch hands on the fly. And the top-mounted trigger on both models allows rotation of the RS5100 to the side of a finger for near-zero protrusion.
INDUSTRY-LEADING RUGGED DESIGN
You get a best-in-class rugged design with a drop, tumble and IP sealing specification — so you can count on reliable operation despite drops, bumps, dust and even a high-pressure hose down. The long-life trigger handles millions of actuations. And the RS5100 is built to handle the high levels of electrostatic discharge common with use on concrete flooring.
BEST-IN-CLASS SCANNING
Two scan engine options allow you to choose the imager that best matches your scanning and aimer requirements — LED or laser. Both imager engines deliver first time capture of even damaged, dirty and poorly printed 1D/2D barcodes through PRZM Intelligent Imaging, a megapixel sensor and superior algorithms — plus a wide field of view for easy capture of large barcodes. In addition, the two imagers can scan barcodes twice the distance as the legacy RS507x ring scanner.
| Scannen | |
| Soort | Draagbare penstreepjescodelezer |
| Soort scanner | 1D/2D |
| Type beeldsensor | LED |
| Ondersteunde streepjescodes (1D) | Code 11, Code 128, Code 39, Code 93, GS1 DataBar, MSI, UPC-A, UPC-E |
| 2D ( matrix en gestapeld ) barcodes ondersteund | Aztec Code, Samengestelde (composite) streepjescode, Datamatrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39 |
| Resolutie optische sensor (WxH) | 1280 x 960 Pixels |
| Licht niveaus (direct zonlicht) | 0 - 107639 Lux |
| Golflengte | 610 nm |
| Tilt lees-hoek | -60 - 60ø |
| Pitch lees-hoek | -60 - 60ø |
| Yaw lees-hoek | 0 - 360ø |
| Poorten & interfaces | |
| Connectiviteitstechnologie | Draadloos |
| Standaard interfaces | Bluetooth |
| Bluetooth-versie | 4.0 |
| Bluetooth Low Energy (BLE) | Ja |
| Near Field Communication (NFC) | Ja |
| Prestatie | |
| LED-indicatoren | Ja |
| Kleur van het product | Zwart |
| Energie | |
| Type stroombron | Batterij/Accu |
| Batterijtechnologie | Lithium-Ion (Li-Ion) |
| Type batterij | Ingebouwde accu |
| Capaciteit van de accu/batterij | 480 mAh |
| Gewicht en omvang | |
| Breedte | 28 mm |
| Diepte | 21 mm |
| Hoogte | 61 mm |
| Gewicht | 70 g |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 0 - 50 øC |
| Temperatuur bij opslag | -40 - 60 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 5 - 95 procent |
| Logistieke gegevens | |
| Code geharmoniseerd systeem (HS) | 84716070 |
| Warranty | |
| Base Warranty | Non Non |
