Industrial Fs40 Scanner Fixed Auto Focus Standard Range 2.3mpix Fast 2d Barcode Decoder Ethernet
ITCurry #: 1825Q002 | Article #: FS40-SR20F4-2C00W-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie

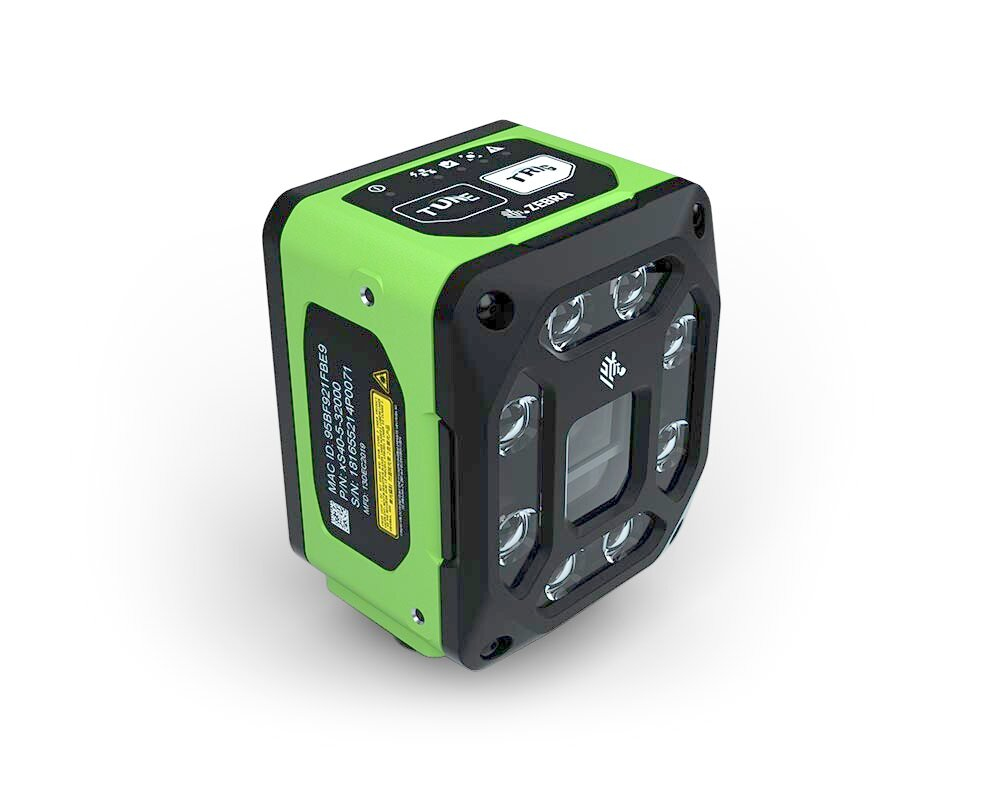

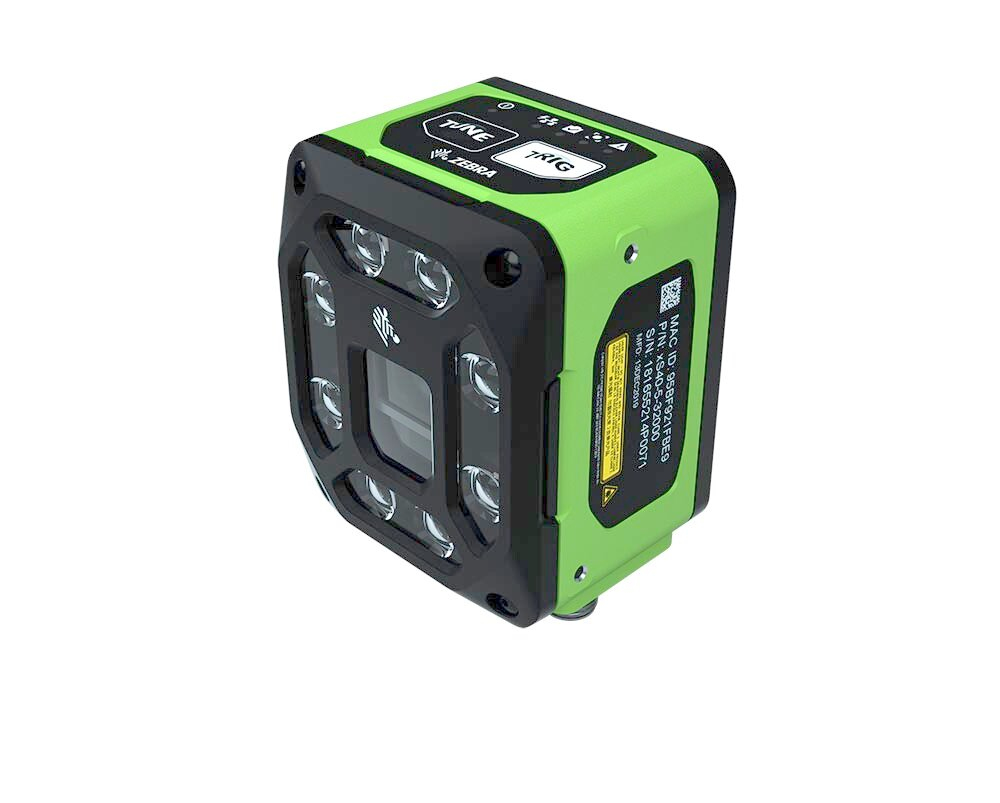

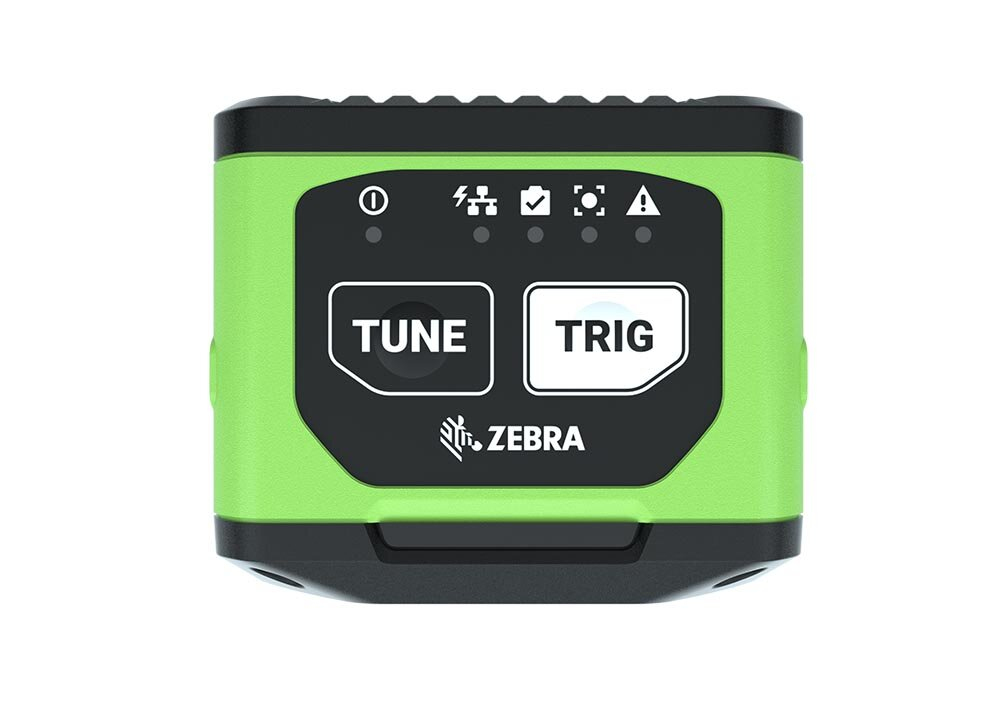

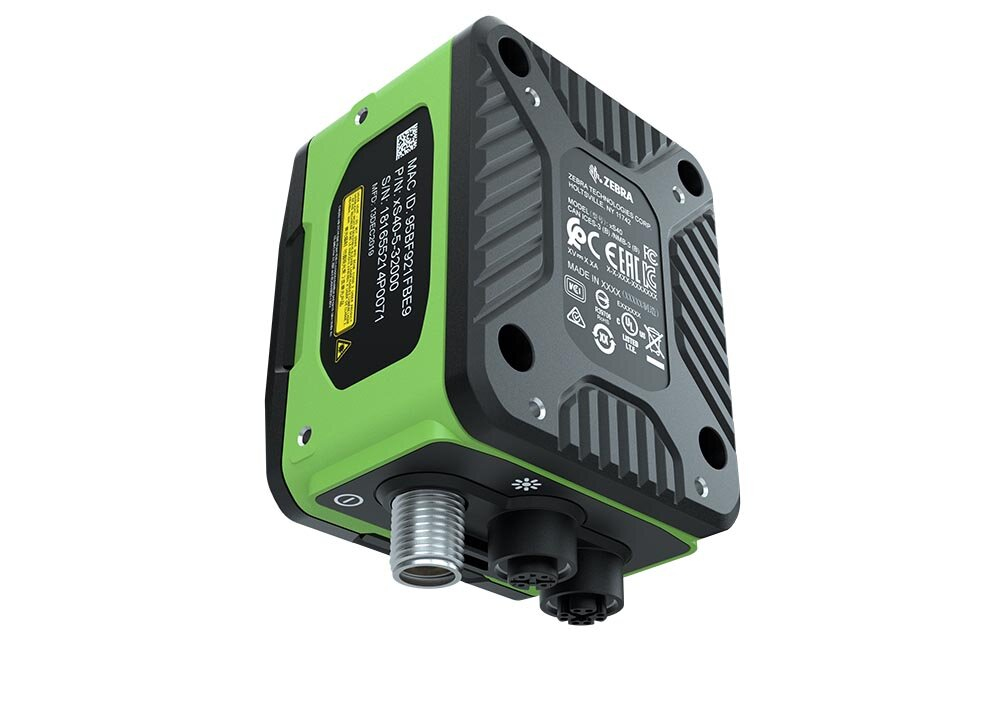

The Zebra FS40 is a fixed industrial scanner. This industrial scanner is made for automatically reading data on parts, products or packaging moving through a production line at high speed, or in warehousing and fulfillment processes.
Fixed scanner
Deploy the FS40 for tracking and tracing all items in your production or distribution environment in real time. Read up to 16 different images simultaneously for extremely fast data processing! Customize the FS40 to your specific needs by choosing from flexible options such as decode range, lighting, connectivity, power and more. And you can add advanced features with simple software upgrades.
The scanner comes with comprehensive control software that allows you to easily set up, deploy and operate all types of fixed scanners from Zebra. The intuitive interface lets both experienced and novice users navigate smoothly, reducing training and implementation time.
The Zebra FS40 is widely used in production environments for scanning at conveyor belts.
Overhead scanning with the Zebra FS40
But also in warehouses or distribution centers, the Zebra FS40 is an ideal solution for overhead scanning, for example. Instead of using a wireless barcode scanner or wearables, shop floor employees scan goods by holding the barcode in front of the scanner on their workstation. The streamlined and stationary scanning process achieves a higher degree of accuracy. In addition, speed is increased because users are not constantly picking up and putting away a handheld scanner.
| Scannen | |
| Soort | Vaste streepjescodelezer |
| Soort scanner | 1D/2D |
| Type beeldsensor | CMOS |
| Ondersteunde streepjescodes (1D) | Codabar, Code 128, Code 93, U.P.C. |
| 2D ( matrix en gestapeld ) barcodes ondersteund | Aztec Code, Datamatrix, Dot Code A, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code |
| Poorten & interfaces | |
| Connectiviteitstechnologie | Bedraad |
| Standaard interfaces | RJ-45 |
| Prestatie | |
| Internationale veiligheidscode (IP) | IP65, IP67 |
| Kleur van het product | Zwart, Groen |
| Energie | |
| Type stroombron | DC, Power over Ethernet (PoE) |
| Stroomverbruik (typisch) | 13 W |
| Gewicht en omvang | |
| Breedte | 64 mm |
| Diepte | 91,4 mm |
| Hoogte | 54 mm |
| Gewicht | 400 g |
| Warranty | |
| Base Warranty | Non Non |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 0 - 45 øC |
| Temperatuur bij opslag | -40 - 70 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 5 - 90 procent |
