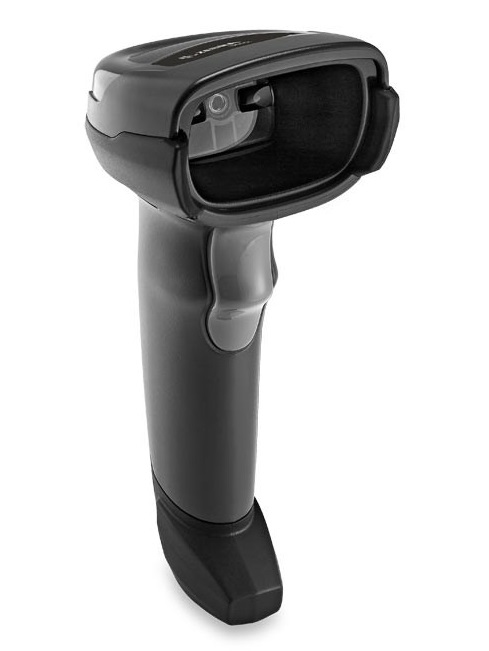

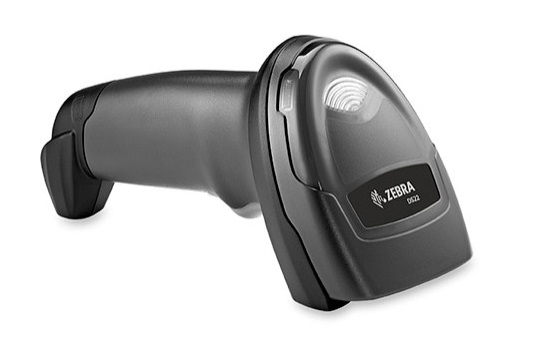

Handheld Barcode Scanner Ds2208-sr Cable Connectivity Imager Twilight Black
ITCurry #: 1825E382 | Article #: DS2208-SR7U2100AZW-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
AFFORDABILITY AND SIMPLICITY DELIVERED
2D barcodes have made their way to your Point of Sale, appearing on everything from the items your customers are purchasing to printed and electronic coupons and loyalty cards.
Your 1D scanner can’t capture the new 2D codes, leading to exceptions that slow down the check-out process and frustrate customers at that key last personal touchpoint in your store.
But with the DS2200 Series, you can scan it all. You get an affordable 1D/2D imager that doesn’t compromise performance or features for price. And you can choose the model that best fits your POS needs — the corded DS2208 or the cordless DS2278. The DS2200 Series — the affordability your budget demands, with the deployment, ease of use and management simplicity your business requires.
| Scannen | |
| Soort | Draagbare streepjescodelezer |
| Soort scanner | 1D/2D |
| Type beeldsensor | LED |
| Ondersteunde streepjescodes (1D) | Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, GS1 DataBar Expanded, Interleaved 2 of 5, MSI, U.P.C. |
| 2D ( matrix en gestapeld ) barcodes ondersteund | Aztec Code, Samengestelde (composite) streepjescode, Datamatrix, Han Xin, MaxiCode, Micro QR Code, PDF417, TLC-39 |
| Resolutie optische sensor (WxH) | 640 x 480 Pixels |
| Werkafstand | 36,8 cm |
| Golflengte | 645 nm |
| Tilt lees-hoek | -65 - 65ø |
| Pitch lees-hoek | -65 - 65ø |
| Yaw lees-hoek | -65 - 65ø |
| Bewegingstolerantie (cm/s) | 13 |
| Poorten & interfaces | |
| Connectiviteitstechnologie | Bedraad |
| Standaard interfaces | USB, RS-232, RS-485, Toetsenbord-aansluiting |
| Prestatie | |
| Internationale veiligheidscode (IP) | IP42 |
| LED-indicatoren | Ja |
| Kleur van het product | Zwart |
| Certificering | EN 60950-1 2ed + A11 + A1 + A12 + A2:2013, IEC 60950-1 2ed + A1 + A2, UL 60950-1, CAN/CSA-C22.2 No. 60950-1-07 IEC 62471 EN 55022 (Class B); EN 55032 (Class B) EN 55024 EN 61000-3-2 EN 61000-3-3 47 CFR Part 15, Subpart B, Class B ICES-003 Issue 6, Class B |
| Energie | |
| Type stroombron | DC |
| Batterijtechnologie | Lithium-Ion (Li-Ion) |
| Capaciteit van de accu/batterij | 2400 mAh |
| Levensduur batterij | 100 uur |
| AC-adapter, uitgangsspanning | 5 V |
| Stroomverbruik | 250 mA |
| Gewicht en omvang | |
| Breedte | 66 mm |
| Diepte | 99 mm |
| Hoogte | 165 mm |
| Gewicht | 161,6 g |
| Verpakking | |
| Meegeleverde kabels | Micro-USB |
| Oplaadstation | Nee |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 0 - 50 øC |
| Temperatuur bij opslag | -40 - 70 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 5 - 95 procent |
| Technische details | |
| Certificaten van naleving | RoHS |
| Logistieke gegevens | |
| Code geharmoniseerd systeem (HS) | 84716070 |
| Warranty | |
| Base Warranty | Non Non |
