SE4U60-60 240TB NTAA SAS 512E SE-H4060-J
ITCurry #: 60505757 | Article #: 1ES1645-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie

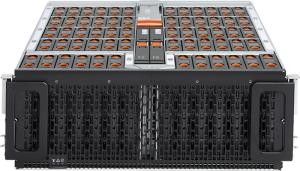

This new platform addresses the demanding storage needs of large enterprise customers, storage OEMs, cloud service providers and resellers/integrators that require dense, shared HDD or hybrid storage. The Ultrastar Data60® Hybrid Storage Platform provides the flexibility to specify the HDD and SSD combinations to balance capacity, performance and cost.
Designed for Big Data
Conventional dense disk shelves frequently suffer from performance degradation due to induced vibration from adjacent drives. Traditional platforms also have cooling challenges as the cooling air passes over successive rows of drives, losing effectiveness as it gets heated up along the airflow path. Developing storage devices and platforms side-by-side, we address these challenges through vertical innovation, a set of technologies developed based on a holistic view of devices, platform, and their interactions. The first two of these patented technologies are IsoVibe™ and ArcticFlow™. IsoVibe reduces vibration-induced performance degradation, while ArcticFlow overcomes the cooling issues by introducing cool air into the middle of the platform. Both these technologies contribute to long-term reliability, enabling our five-year limited warranty on the entire platform.
| Opslagmedia | |
| Opslagdrives ge‹nstalleerd | Ja |
| Ge‹nstalleerde opslag-drive | HDD |
| Aantal storage drives ge‹nstalleerd | 60 |
| Totale ge‹nstalleerde opslagcapaciteit | 240 TB |
| Ondersteunde types opslag-drives | HDD & SSD |
| Aantal storage drives ondersteund | 60 |
| Capaciteit opslag-drive | 4 TB |
| Opslag schijf-interface | Serial Attached SCSI (SAS) |
| Opslag schijfgrootte | 3.5" |
| Ondersteunde opslagstationinterfaces | SAS, SATA III |
| Opslagschijf afmetingen ondersteund | 3.5" |
| Hot-swap drive bays | Ja |
| Design | |
| Type behuizing | Rack (4U) |
| Kleur van het product | Zwart |
| LED-indicatoren | Ja |
| Prestatie | |
| Apparaatklasse | Grote bedrijven |
| Energie | |
| Capaciteit voedingsunit (PSU) | 1600 W |
| Aantal voedingen | 2 |
| Redundante voeding | Ja |
| AC-ingangsspanning | 200 - 240 V |
| AC-ingangsfrequentie | 50 - 60 Hz |
| Gewicht en omvang | |
| Breedte | 447 mm |
| Diepte | 712 mm |
| Hoogte | 175 mm |
| Gewicht | 27,3 kg |
| Diskbehuizing gewicht | 79,4 kg |
| Logistieke gegevens | |
| Code geharmoniseerd systeem (HS) | 84717020 |
| Warranty | |
| Base Warranty | Non Non |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 5 - 35 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 5 - 85 procent |
| Temperatuur bij opslag | -40 - 70 øC |
| Hoogte, in bedrijf | -300 - 3048 m |
