Projector LS950WU Laser 1920x1200 (WUXGA) 7000 Lm
ITCurry #: 11914491 | Article #: LS950WU-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie

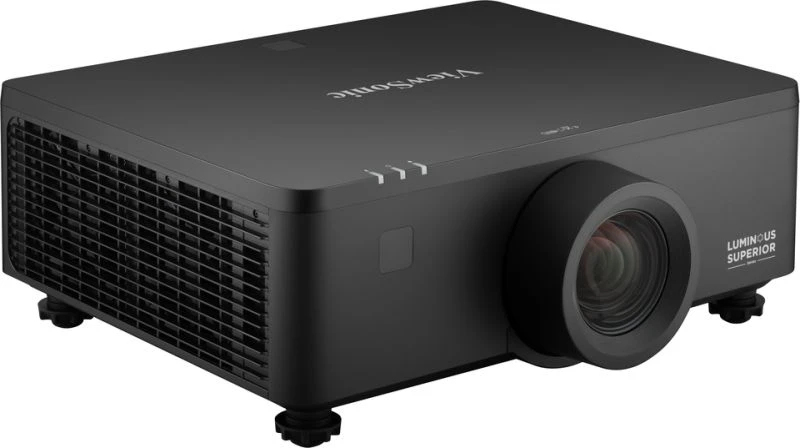

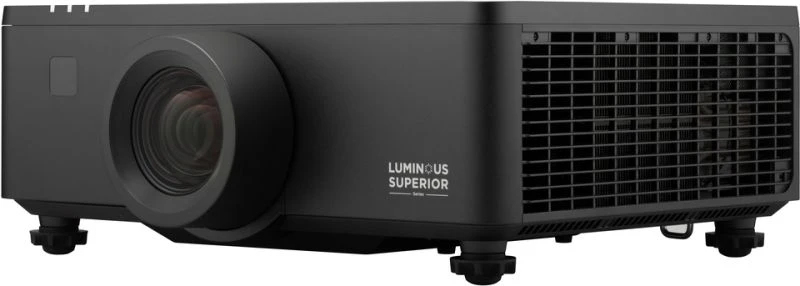

Introducing the LS950WU from ViewSonic’s Luminous Superior Series, tailored for expansive venue displays. Featuring a robust 7,100 ANSI Lumens brightness and high native contrast provided by a 0.67” DMD chip through DLP technology, it delivers stunning visuals on screens up to 300-inch. Ideal for modern workplaces, its 21:9 aspect ratio is optimized for Microsoft Teams Rooms, enhancing collaborative environments. With a 1.6x optical zoom, it allows for a flexible setup to suit various installation needs, and the motorized focus, lens shift, and H/V keystone adjustment make the process a breeze. Additionally, portrait mode and 360° projection capabilities cater to more advanced requirements. Comprehensive LAN control ensures seamless integration into existing device management networks. Employing advanced 2nd generation laser phosphor technology, the LS950WU boasts a remarkable 30,000-hour lifespan, reducing maintenance costs for both business and educational institutions.

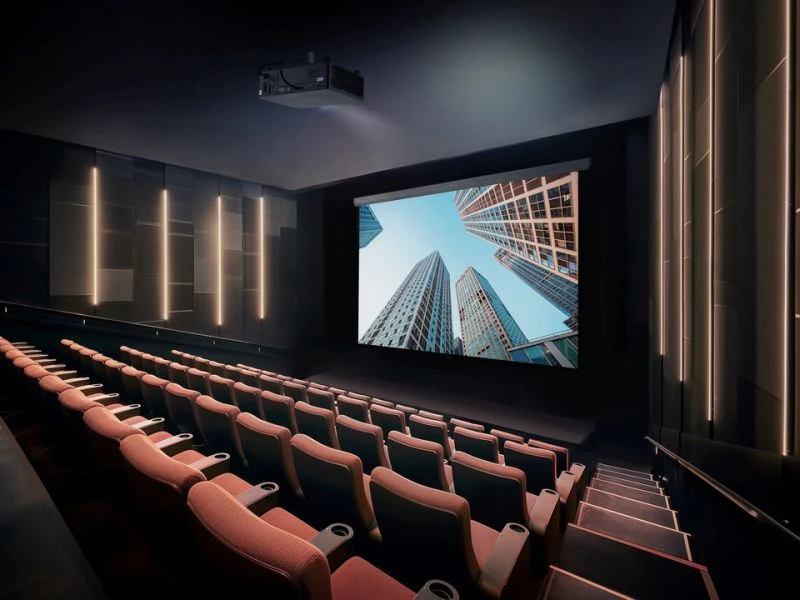

Brilliant Visuals for Large Venues

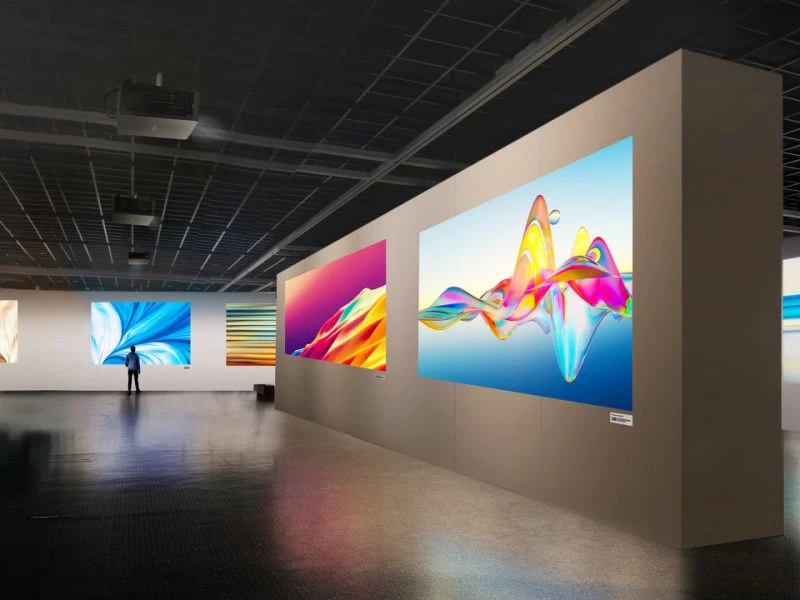

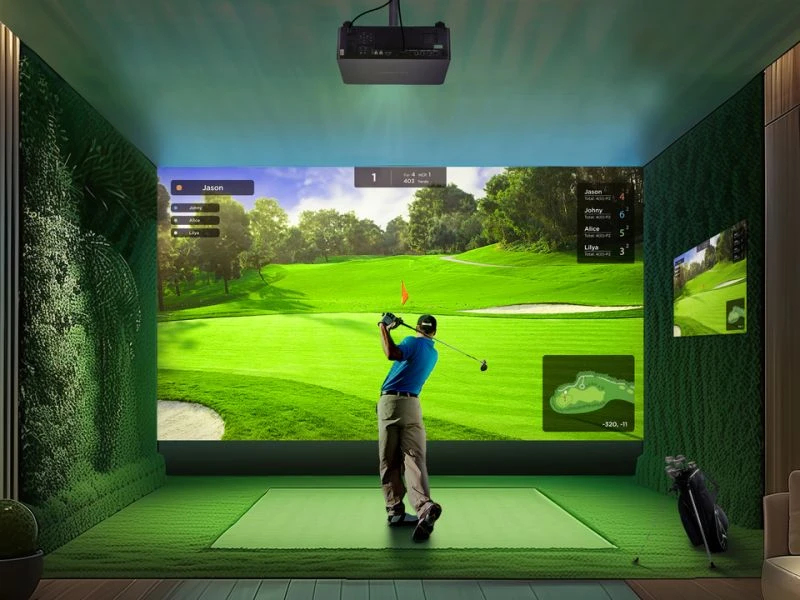

With an impressive 7,100 ANSI Lumens, the LS950WU ensures crystal-clear visuals even in brightly lit environments. Its WUXGA resolution provides stunningly detailed images, enhancing the impact of presentations, training sessions, and events. This makes it the preferred choice for large venues such as auditoriums, receptions, training rooms, and indoor golf clubs.
Unmatched Contrasts, Enhanced Visibility
Experience enhanced visuals with the LS950WU, boasting high contrast thanks to DLP technology and an advanced 0.67" DMD chip from Texas Instruments. This provides deeper blacks and richer depth, ensuring an exceptional viewing experience.

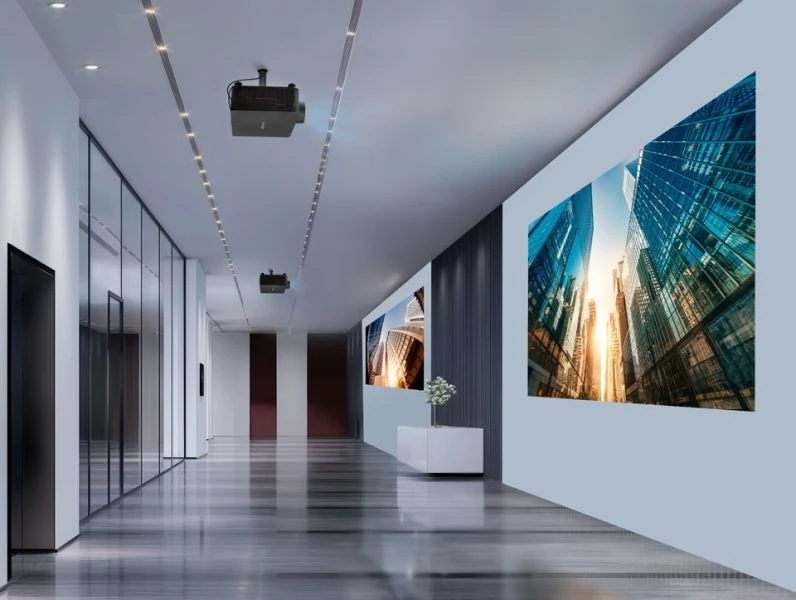

Ultra-Large Screen with Lower Cost-per-Inch
This easy-to-install projector allows for an image size of up to 300”, offering a lower cost-per-inch compared to other types of commercial displays.?

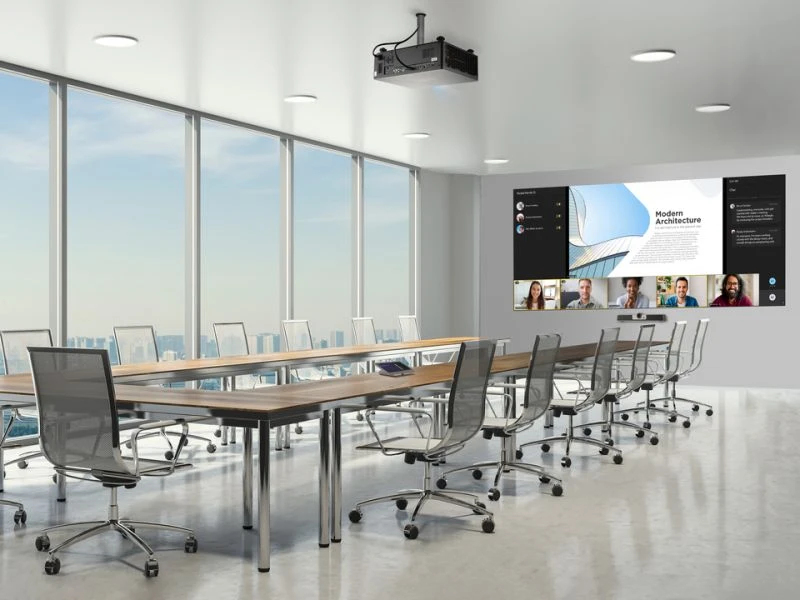

Next-Gen Meeting Experience with 21:9 Aspect Ratio
The projector supports a 21:9 aspect ratio, tailored for Microsoft Teams Rooms (MTR) in front-row mode. This widescreen format enhances meeting experiences by simultaneously displaying the presentation, chat box, hands-up notifications, and participant video feeds, fostering a highly engaging and collaborative environment.
Enhanced Installation Flexibility

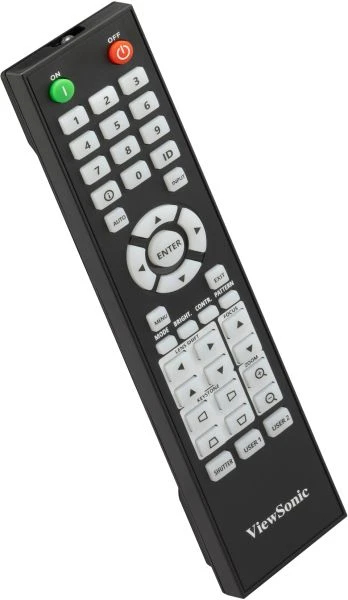

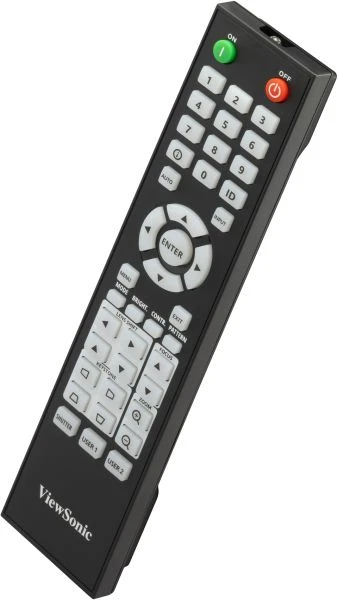

Equipped with a 1.6x optical zoom, the projector allows users to choose the ideal setup location within a range, achieving the desired image size without altering the existing interior design. Conveniently fine-tune the zoom and focus using the remote control, ensuring seamless operation without needing to access the ceiling-mounted projector
Convenient Placement Setup
The tool-free lens shift control knobs allow you to adjust the projection up, down, left, and right without moving the projector. Additionally, you can also adjust the image position directly via the remote control from a distance. It provides flexible installation options with a wide adjustable range (H: +/- 25%, V: +/- 55%) and minimal placement restrictions.
Get ??Perfectly-Shaped Images Effortlessly
Horizontal and vertical keystone correction, along with 4-corner adjustment features, eliminate crooked or distorted images for a perfectly proportioned picture every time.
Centralized Control for Management Efficiency
The LS950WU is compatible with Crestron, AMX, PJ Link, ATEN, and Extron systems, allowing for centralized device management for better operational efficiency?.
2nd Generation Laser Phosphor Technology
The LS950WU adopts 2nd generation laser phosphor technology. In addition to inheriting excellent color performance, a lamp-free design, and instant power on/off from the previous generation, the new generation improves brightness by around 20%, offers better heat resistance, and features a smaller module design. This results in consistent images in various ambient settings, increased reliability, and a more compact size for extended use in different scenarios.
Reliable Long-Term Performance with DLP Projection Technology
With DLP technology, the LS950WU maintains consistent color performance over time, free from any yellowing issues. Featuring a sealed engine design, it is filter-free, preventing dust from affecting internal components and ensuring minimal maintenance. Moreover, it offers crisp and seamless image quality, displaying remarkable contrast and eliminating the noticeable screen-door effect.
Versatile Creative Application?s
The projector can rotate vertically at any angle, enabling projection onto ceilings, walls, or floors. Its portrait mode further expands its capabilities for projection mapping, staging, and creative advertising applications.
Cost-Effective Long-Distance AV Signal Reception
With a built-in HDBT receiver, this projector can receive uncompressed high-resolution video and audio over long distances (up to 100m for 1080p) via a single Cat.5e/6 network cable and is compatible with any certified HDBaseT transmitter.
Seamless Collaboration with Split-Screen Modes
Enhance collaborative content sharing with intuitive split-screen capabilities. The projector seamlessly supports Picture-by-Picture (PBP), allowing up to two different inputs, and Picture-in-Picture (PIP), displaying a smaller screen within the main display, in real-time. This creates a dynamic and versatile collaboration experience.
A Simpler Way to Update Projector Software
Skip trips to the service center by keeping software up to date easily and onsite via a LAN webpage.
| Projector | |
| Ondersteunde beeldverhoudingen | 16:10 |
| Geschikt voor schermmaten | 1270 - 7620 mm (50 - 300") |
| Projectie-afstand objectief | 1,33 - 13,06 m |
| Projector helderheid | 7100 ANSI lumens |
| Projector native resolution | WUXGA (1920x1200) |
| Typische contrastverhouding | 3000000:1 |
| Oorspronkelijke beeldverhouding | 16:10 |
| Aantal kleuren | 1,07 miljard kleuren |
| Keystone correctie, horizontaal | -30 - 30ø |
| Keystone correctie, verticaal | -30 - 30ø |
| Horizontale synchronisatie (min) | 15 kHz |
| Horizontale synchronisatie (max) | 135 kHz |
| Verticale synchronisatie ( min) | 0,023 kHz |
| Verticale synchronisatie (max) | 0,12 kHz |
| Lichtbron | |
| Type lichtbron | Lamp |
| Levensduur van de lichtbron | 20000 uur |
| Levensduur van de lichtbron (besparingsmodus) | 30000 uur |
| Lenssysteem | |
| Brandpuntbereik | 18.72 - 29.59 mm |
| Diafragma (F-F) | 2 - 2,4 |
| Zoomcapaciteit | Ja |
| Throw ratio | 1.25 - 2 |
| Horizontale lens verplaatsingsbereik | -25 - 25 procent |
| Verticale lens verplaatsingsbereik | -55 - 55 procent |
| Video | |
| Volledige HD | Ja |
| 3D | Nee |
| Ondersteunde grafische resoluties | 1920 x 1200 (WUXGA) |

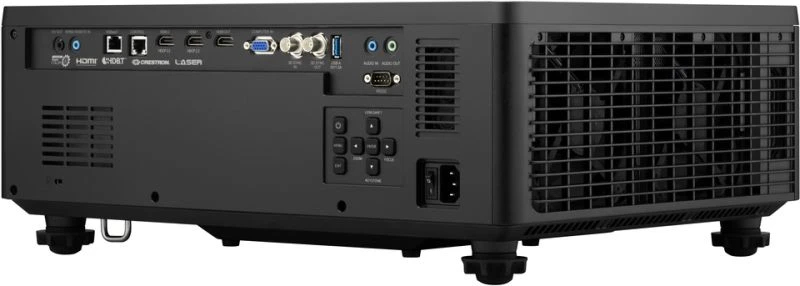

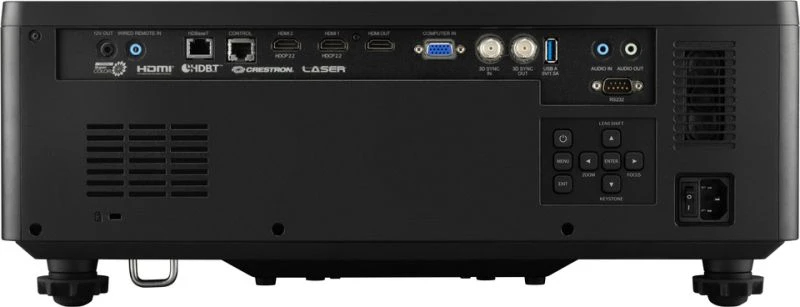

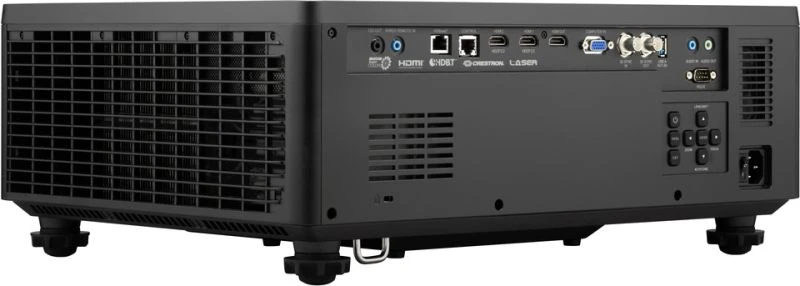

| Poorten & interfaces | |
| HDMI versie | 2.0 |
| Aantal USB 2.0-poorten | 1 |
| Audio-ingang (L, R) | 1 |
| Audio (L,R) out | 1 |
| Soort serie‰le aansluiting | RJ-45, RS-232 |
| VGA (D-Sub)poort(en) | 1 |
| Aantal HDMI-poorten | 2 |
| 3D sync-poort | Ja |
| 3G-SDI-ingang | 1 |
| 3G-SDI-uitvoer | Ja |
| DVI-poort | Nee |
| Ingang stroom | Ja |
| Netwerk | |
| Ethernet LAN | Ja |
| Kenmerken | |
| Geluidsniveau (spaarzame modus) | 30 dB |
| Geluidsniveau | 32 dB |
| Multimedia | |
| Ingebouwde luidsprekers | Ja |
| Gemiddeld vermogen | 20 W |
| Aantal ingebouwde luidsprekers | 2 |
| Design | |
| Markt positionering | Onderwijs |
| Type product | Projector met normale projectieafstand |
| Kleur van het product | Zwart |
| Plaatsing | Plafond |
| LED-indicatoren | Ja |
| Beeldscherm | |
| Ingebouwd display | Nee |
| Energie | |
| Stroombron | AC |
| Stroomverbruik (typisch) | 405 W |
| Stroomverbruik (in standby) | 0,5 W |
| AC-ingangsspanning | 100 - 240 V |
| AC-ingangsfrequentie | 50 - 60 Hz |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 5 - 40 øC |
| Gewicht en omvang | |
| Breedte | 486 mm |
| Diepte | 433 mm |
| Hoogte | 186 mm |
| Gewicht | 12,8 kg |
| Breedte verpakking | 654 mm |
| Diepte verpakking | 563 mm |
| Hoogte verpakking | 373 mm |
| Gewicht verpakking | 17,5 kg |
| Inhoud van de verpakking | |
| Afstandsbediening inbegrepen | Ja |
| Gebruikershandleiding | Ja |
| Warranty | |
| Base Warranty | Non Non |
