Antenna Unifi Dual Band Directional Mesh For Uap-ac-m White
ITCurry #: N3302298 | Article #: UMA-D
slide 2 of 3
Prijs:
81,33
Excl. btw
Levering in Benelux:
GRATIS Levering bij bestelling van meer dan € 100 zbtw.
Leverbaar in 3 dagen.
Hoeveelheid:
Verwante producten
slide 7 to 11 of 14
Product Informatie

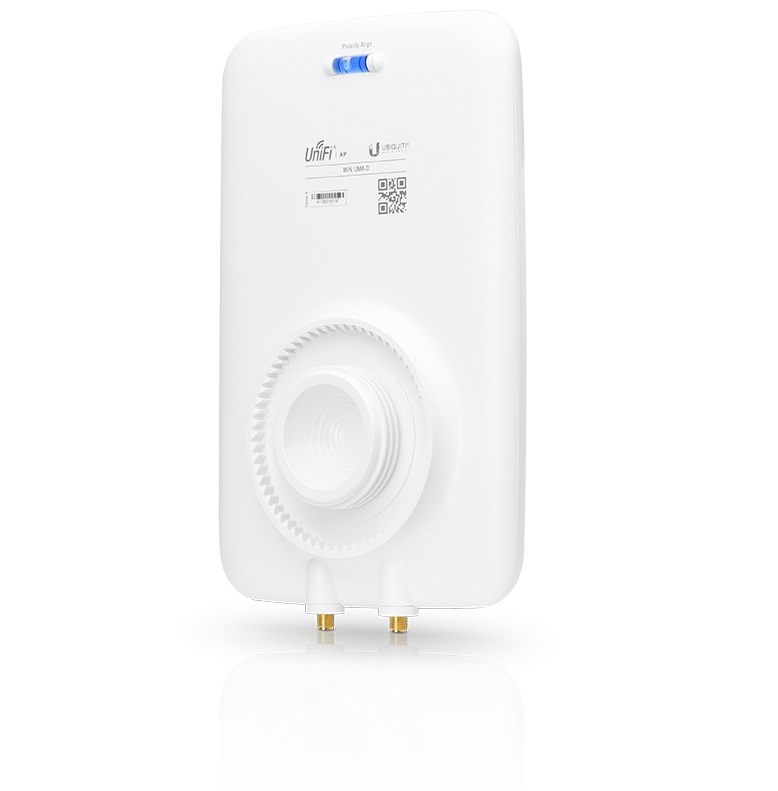

The UniFi Antenna, model UMA-D, is an optional mesh antenna designed to work with the UniFi® AC Mesh AP, model UAP-AC-M. With dual-band support, the UMA-D expands range coverage and provides customized pattern shaping. It is available in single- and five-packs.
Antenna Features
Optimized for 802.11ac, the UMA-D offers a high efficiency directional radiation pattern with dual polarity.
Weather-Resistant Enclosure
Encased in UV-stabilized plastic, the UMA-D can be used indoors or outdoors.
Versatile Mounting

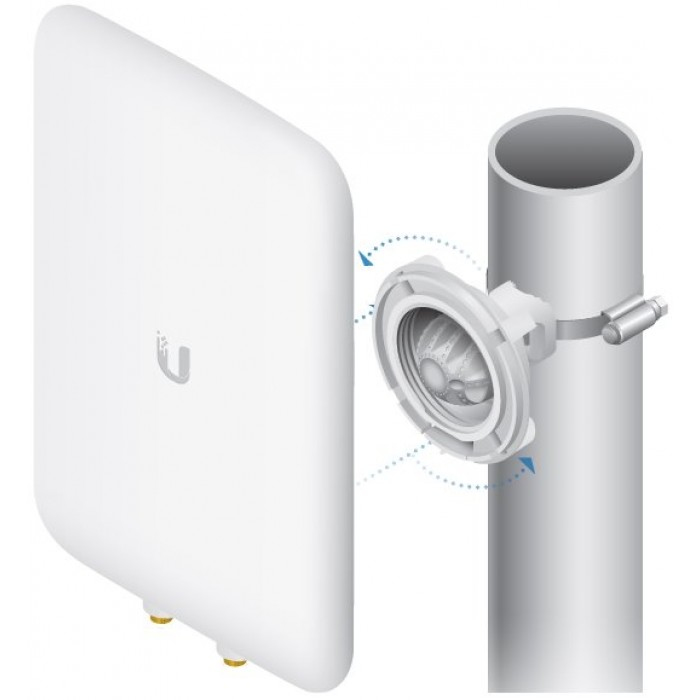

The UMA-D has a ball joint mount designed for precise aiming and can be mounted on a pole or wall.
Compatibility
The UMA-D is a connectorized antenna that is compatible with the UAP-AC-M.
| Prestatie | |
| Frequentieband | 2.4 - 2.5, 5.1 - 5.9 GHz |
| Netwerkstandaard | IEEE 802.11ac |
| Antenne versterking (2.4 GHz) | 10 dBi |
| Antenna versterking (5 GHz) | 15 dBi |
| Horizontale balk wijdte (2.4 GHz) | 90ø |
| Verticale balk wijdte (2.4 GHz) | 90ø |
| Horizontale balk wijdte (5 GHz) | 45ø |
| Verticale balk wijdte (5 GHz) | 45ø |
| Antenne versterkingsniveau (max) | 15 dBi |
| Kenmerken | |
| Soort antenne | Richtantenne |
| Aansluiting antenne | RP-SMA |
| Polarisatie | Dubbele polarisatie |
| Voltage Standing Wave Ratio (VSWR) | 2:1 |
| Montage | Wand/paal |
| Bedoeld voor | Binnen & buiten |
| Compatibele producten | UAP-AC-M |
| Materiaal behuizing | Kunststof |
| Kleur van het product | Wit |
| Gewicht en omvang | |
| Breedte | 128 mm |
| Diepte | 32,5 mm |
| Hoogte | 201,3 mm |
| Gewicht | 480 g |
| Inhoud van de verpakking | |
| Aantal per verpakking | 1 stuk(s) |
| Montage gereedschap | Ja |
| Logistieke gegevens | |
| Code geharmoniseerd systeem (HS) | 85177100 |
| Warranty | |
| Base Warranty | Non Non |
