Access Point Nano Beam Ac Gen2 Nbe-5ac-gen2 Airmax Atheros MIPS 74kc White
ITCurry #: N3302324 | Article #: NBE-5AC-GEN2-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie

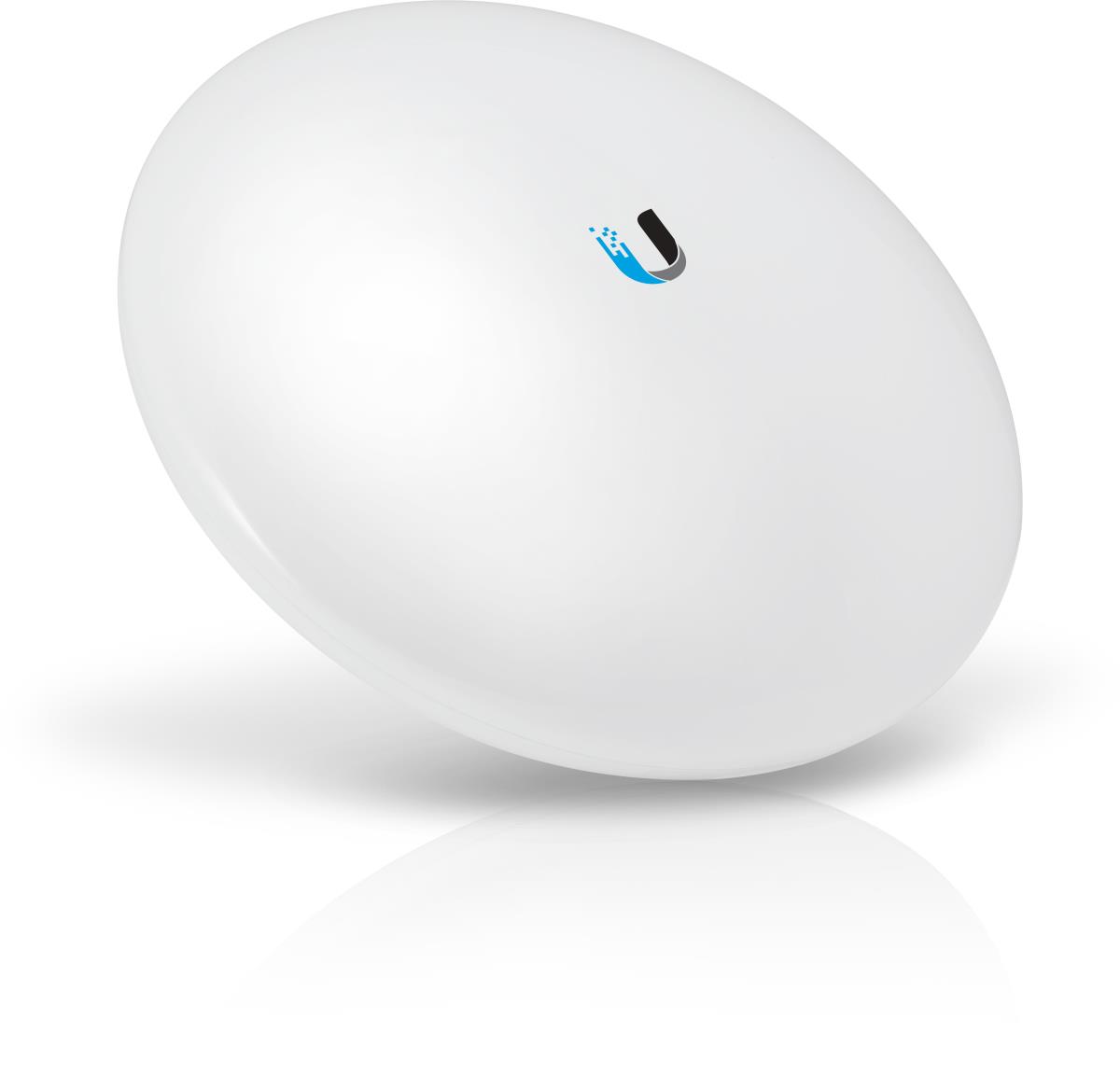

Incorporating innovative industrial design with proprietary airMAX ac technology, the NanoBeam AC is ideal for CPE deployments requiring maximum performance from the smallest possible footprint.
Management Wi-Fi Radio
The NanoBeam AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.
Improved Surge Protection
The NanoBeam AC features enhanced protection against ESD events.
Superior Processing
Ubiquiti's airMAX engine with custom IC dramatically improves TDMA latency and network scalability. The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the high data rates and dense modulation used in airMAX ac technology.
Incredible Antenna “Beam” Performance
The form factor of the NanoBeam AC features the highest gain for its size. The NanoBeam AC’s excellent beam directivity provides the best performance in high-noise environments.
Performance Breakthrough
airMAX ac products offer improved latency, noise immunity, scalability and significantly increased throughput performance.
Advanced Software Technology
Ubiquiti’s airMAX technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.
Plug and Play Installation

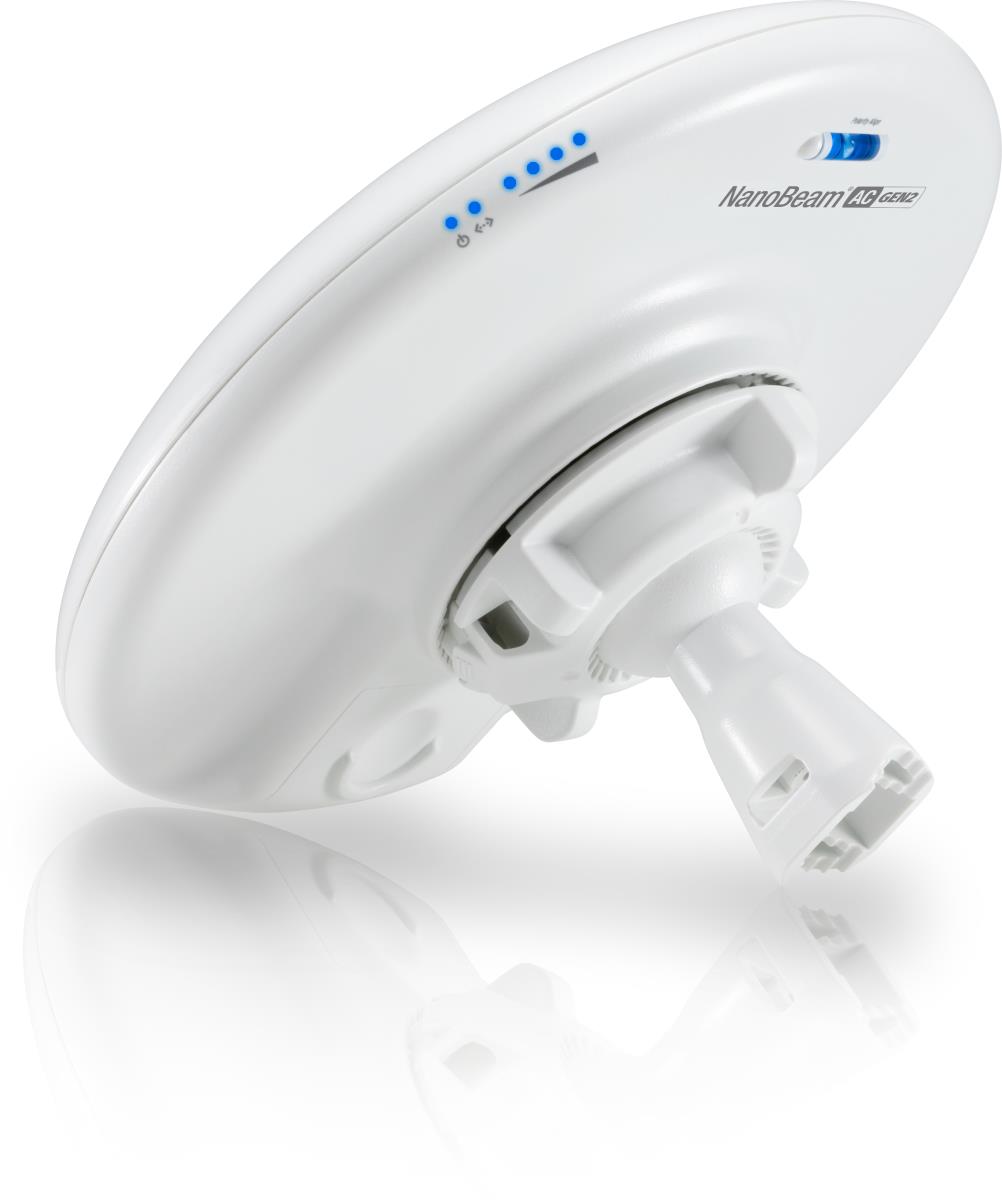

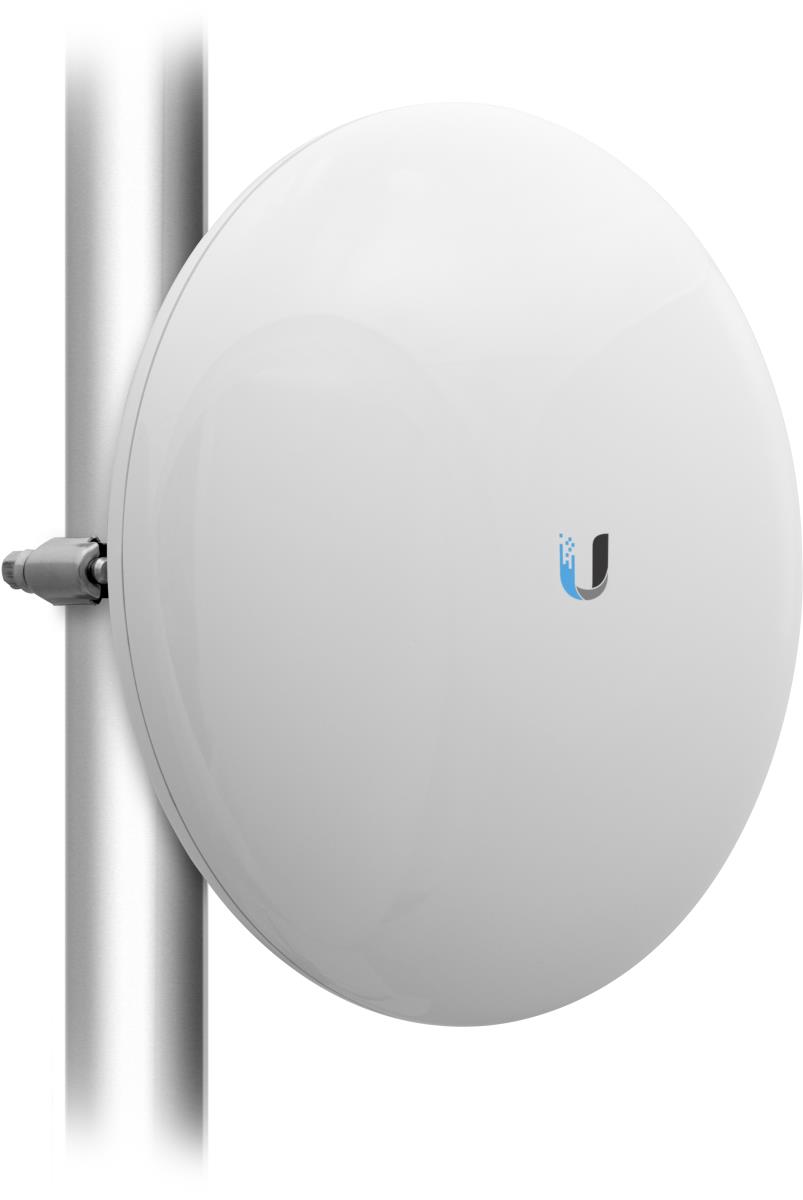

The NanoBeam AC mounts to a variety of surfaces including poles or walls, and offers the freedom of three-axis alignment. No screws are required for pole-mounting, and only a single wall screw (not included) is required for wall-mounting.
Now with airOS8
airOS®8 provides powerful features, including airMAX ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.
| Data-uitwisseling | |
| Maximale overdrachtssnelheid van gegevens | 450 Mbit/s |
| Maximaal bereik | 15000 m |
| Antenne | |
| Antenne versterkingsniveau (max) | 19 dBi |
| Draadloos LAN | |
| Wifi | Ja |
| Frequentieband | 5.15-5.875 GHz |
| Modulatie | 16-QAM, 64-QAM, 256-QAM, BPSK, QPSK |
| Netwerk | |
| Ethernet LAN | Ja |
| Interfacetype Ethernet LAN | Gigabit Ethernet |
| Ethernet LAN, data-overdrachtsnelheden | 10,100,1000 Mbit/s |
| Poorten & interfaces | |

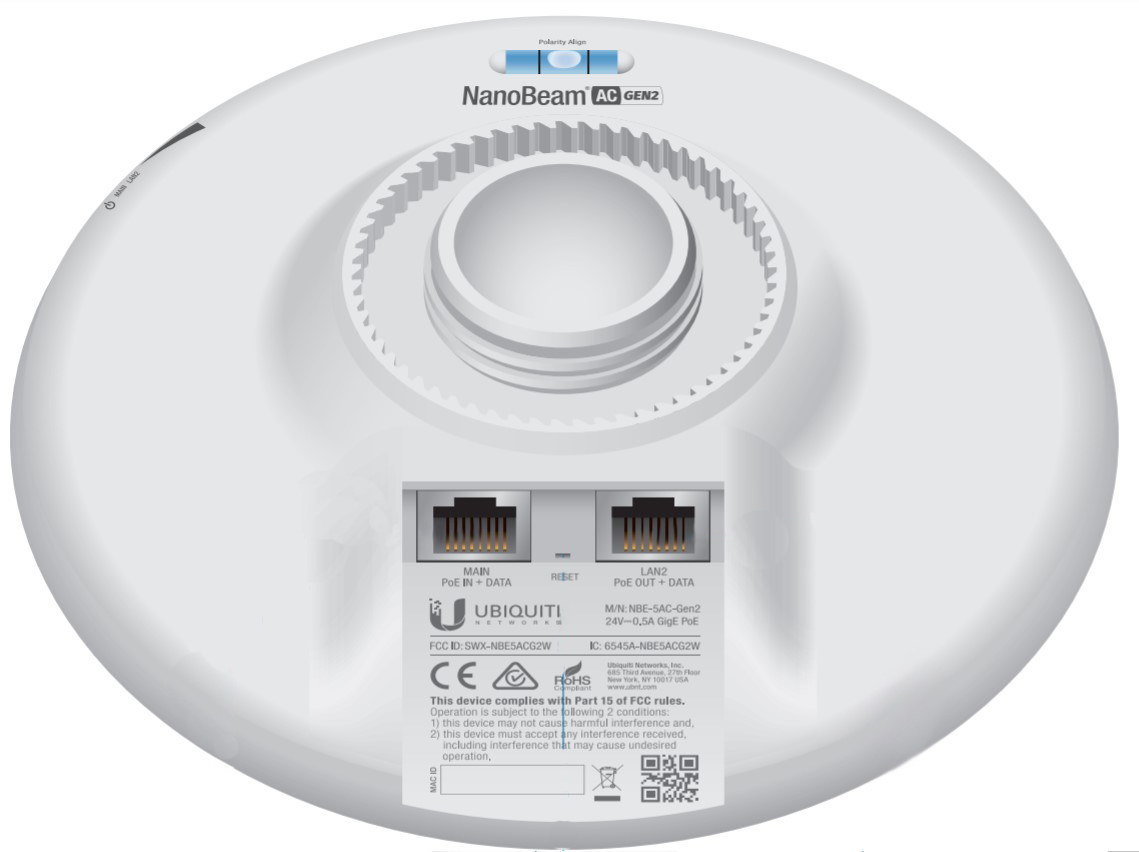

| Aantal Ethernet LAN (RJ-45)-poorten | 2 |
| Beveiliging | |
| Ondersteunde beveiligingsalgoritmen | WPA2 |
| Beheerfuncties | |
| Web-gebaseerd management | Ja |
| Kenmerken | |
| Type product | Netwerkbrug |
| Materiaal | Kunststof |
| Montagewijze | Paal/wand |
| Kleur van het product | Wit |
| LED-indicatoren | LAN, Stroom, Signaalsterkte |
| Reset button | Ja |
| Spanningsbeveiliging | Ja |
| Energie | |
| Type stroombron | Power over Ethernet (PoE) |
| Vermogensverbruik (max) | 8,5 W |
| Power over Ethernet (PoE) | Ja |
| DC-uitgangsspanning | 24 V |
| Stroomuitvoer (ampŠre) | 0,5 A |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | -40 - 80 øC |
| Bedrijfstemperatuur, bereik | -40 - 176 øF |
| Relatieve vochtigheid in bedrijf (V-V) | 5 - 95 procent |
| Certificaten | |
| Certificering | CE, FCC, IC, RoHS |
| Gewicht en omvang | |
| Breedte | 189 mm |
| Diepte | 189 mm |
| Hoogte | 125 mm |
| Gewicht | 530 g |
| Inhoud van de verpakking | |
| PoE+ injector(en) | Ja |
| Inclusief bevestigingsbeugel | Ja |
| Meegeleverde kabels | AC |
| Technische details | |
| Duurzaamheidscertificaten | CE, RoHS |
| Compliance certificates | CE, RoHS |
| Processor | |
| Processorfamilie | Atheros |
| Processormodel | MIPS 74Kc |
| Frequentie van processor | 720 MHz |
| Geheugen | |
| Flash memory | 8 MB |
| RAM-capaciteit | 128 MB |
| RAM-type | DDR2 |
| Verpakking | |
| Aantal per verpakking | 1 stuk(s) |
| Warranty | |
| Base Warranty | Non Non |
