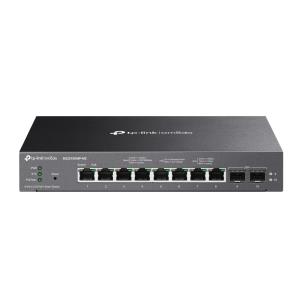

Switch Omada Sg3218xp-m2 16-port 2.5g And 2-port 10ge Sfp+ L2+ Managed With 8-port Poe+
ITCurry #: P6043662 | Article #: SG3218XP-M2-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
Ultrafast 2.5G PoE+ Managed Switch with 10G Uplink for Futuristic Network
2.5G Ports for WiFi 7/6E/6
16× 2.5 Gbps Ports Unlock the Full Potential of WiFi 7/6E/6 APs
10G Lightning-Fast Uplink Connection
2× 10 Gbps SFP+ Slots for High-Bandwidth Connectivity
250W PoE Budget
8× PoE+ Ports with Total 250 W Power Budget
Centralized Cloud Management
SDN Solutions Integration for a Highly Efficient Network
Unlock the Full Potential of WiFi 7/6E/6 with Multi-Gigabit PoE+ Ports
Featuring 8x PoE+ 2.5G ports, the switch is capable of future network expansion and deployment, providing sufficient bandwidth for incoming WiFi 7/6E/6 APs. Designed to use a single Ethernet cable for both data and power transmission, it supports up to 250W total PoE power budget* and flexible installation to fit in various application scenarios.
Enterprise Switch with 10G Uplink
2× 10 Gbps SFP+ slots provide non-blocking switching performance and ultra-low latency, so reliable and lightning-fast connections to server and other switches are easily built.
Software Defined Networking (SDN) with Cloud Access
Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.
Advanced L3 Features***
An abundance of L2+ and L3 features are supported to help build a highly scalable and robust network, providing a reliable and efficient solution for enterprises, campuses and ISPs.
Secure Networking
Security features include IP-MAC-Port-VID Binding, Port Security, Storm Control and DHCP Snooping to defend against a range of network threats. An integrated list of common DoS attacks is available, making it easier than ever to prevent them. In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports or VLAN ID. Users’ network access can be controlled via 802.1X authentication, which works with a RADIUS/Tacacs+ server to grant access only when valid user credentials are provided.
Enterprise Level Features
A complete lineup of L2+ features are supported, including 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to only the appropriate subscribers, cutting out unnecessary traffic, while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Static Routing is a simple way of segmenting the network and internally routs traffic through the switch for improved efficiency.
Advanced QoS
Voice and video traffic can be prioritized based on IP address, MAC address, TCP port number, UDP port number, and more. With QoS (Quality of Service), voice and video services remain smooth, even when bandwidth is in short supply.
ISP Features
QinQ, L2PT PPPoE ID Insertion and IGMP authentication features are provided, developed with service providers in mind. 802.3ah OAM and Device Link Detection Protocol (DLDP) offer easy monitoring and troubleshooting of Ethernet links.
IPv6 Support
IPv6 functions such as Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path Maximum Transmission Unit (PMTU) Discovery and IPv6 Neighbor Discover guarantee your network is ready for the Next Generation Network (NGN) without upgrading your hardware.
| Beheerfuncties | |
| Switch type | Managed |
| Switch-laag | L2+ |
| Quality of Service (QoS) | Ja |
| Web-gebaseerd management | Ja |
| Cloud-beheerd | Ja |
| ARP-inspectie | Ja |
| Locatie-instellingen (CLI) configureren | Ja |
| System event log | Ja |
| MIB-ondersteuning | MIB II (RFC1213), Interface MIB (RFC2233), Ethernet Interface MIB (RFC1643), Bridge MIB (RFC1493), P/Q-Bridge MIB (RFC2674), RMON MIB (RFC2819), RMON2 MIB (RFC2021), Radius Accounting Client MIB (RFC2620), Radius Authentication Client MIB (RFC2618), Remote Ping, Traceroute MIB (RFC2925), Support TP-Link private MIB |
| Poorten & interfaces | |
| Aantal basis-switching RJ-45 Ethernet-poorten | 16 |
| Type basis-switching RJ-45 Ethernet-poorten | 2.5G Ethernet (100/1000/2500) |
| Aantal moduleslots SPF+ | 2 |
| Console port | RJ-45/Micro-USB |
| Netstekker | AC-in-aansluiting |
| Netwerk | |
| Netwerkstandaard | IEEE 802.1D, IEEE 802.1s, IEEE 802.1w |
| 10G support | Ja |
| Port mirroring | Ja |
| IP routing | Ja |
| Datastroombeheer | Ja |
| Verbindingsaggregatie | Ja |
| Broadcast stormbeheer | Ja |
| Rate limiting | Ja |
| Spanning tree protocol | Ja |
| Head-of-line (HOL) blocking | Ja |
| Ethernet LAN, data-overdrachtsnelheden | 100,1000,2500 Mbit/s |
| VLAN=ondersteuning | Ja |
| Virtuele LAN-functies | MAC address-based VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN |
| Data-uitwisseling | |
| Switchingcapaciteit | 120 Gbit/s |
| Verzending snelheid | 89,28 Mpps |
| MAC-adrestabel | 16000 entries |
| Statische route | Ja |
| Aantal statische routes | 48 |
| Aantal IP-interfaces | 32 |
| Jumbo Frames ondersteuning | Ja |
| Jumbo frames | 9000 |
| Packet buffergeheugen | 12 MB |
| Beveiliging | |
| DHCP-functies | DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping |
| Access Control List (ACL) | Ja |
| IGMP snooping | Ja |
| Ondersteunde beveiligingsalgoritmen | HTTPS, SSH, SSH-2, SSL/TLS |
| MAC adres filtering | Ja |
| Statische poort beveiliging | Ja |
| SSH/SSL support | Ja |
| Bescherming lus | Ja |
| BPDU filtering / bescherming | Ja |
| IP-MAC-Port binding | Ja |
| Authenticatie | MAC-gebaseerde authenticatie, Poortgebaseerde authenticatie |
| Wachtwoordbeveiliging | Ja |
| Authenticatie type | AAA, TACACS+ |
| Algoritmen wachtrijplanning | SP, WRR+SP, Weighted Round Robin (WRR) |
| Multicast-functies | |
| Multicast-ondersteuning | Ja |
| Multicast Listener Discovery (MLD) snooping | Y |
| Protocollen | |
| Beheerprotocollen | SNMP v1/v2c/v3, SNTP |
| GARP VLAN Registratieprotocol (GVRP) | Ja |
| Design | |
| Rack-montage | Ja |
| Vormfactor | 1U |
| Kleur van het product | Zwart |
| LED-indicatoren | Ja |
| Aantal ventilatoren | 2 ventilator(en) |
| Certificering | CE, FCC, RoHS |
| Technische details | |
| Compliance certificates | Federal Communications Commission (FCC), RoHS |
| Energie | |
| Stroombron | AC |
| Vermogenstoevoer inclusief | Ja |
| AC-ingangsspanning | 100 - 240 V |
| AC-ingangsfrequentie | 50/60 Hz |
| Vermogensverbruik (max) | 299,4 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Ja |
| Aantal Power over Ethernet plus (PoE +)-poorten | 8 |
| Vermogen per poort Power over Ethernet (PoE) | 30 W |
| Totaal Power over Ethernet (PoE)-budget | 240 W |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 0 - 50 øC |
| Temperatuur bij opslag | -40 - 70 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 10 - 90 procent |
| Luchtvochtigheid bij opslag | 5 - 90 procent |
| Warmtedissipatie | 1021,64 BTU/h |
| Gewicht en omvang | |
| Breedte | 440 mm |
| Diepte | 180 mm |
| Hoogte | 44 mm |
| Verpakking | |
| Meegeleverde kabels | AC |
| Snelstartgids | Ja |
| Type verpakking | Doos |
| Duurzaamheid | |
| Naleving van duurzaamheid | Ja |
| Duurzaamheidscertificaten | Federal Communications Commission (FCC), RoHS |
| Warranty | |
| Base Warranty | Non Non |
