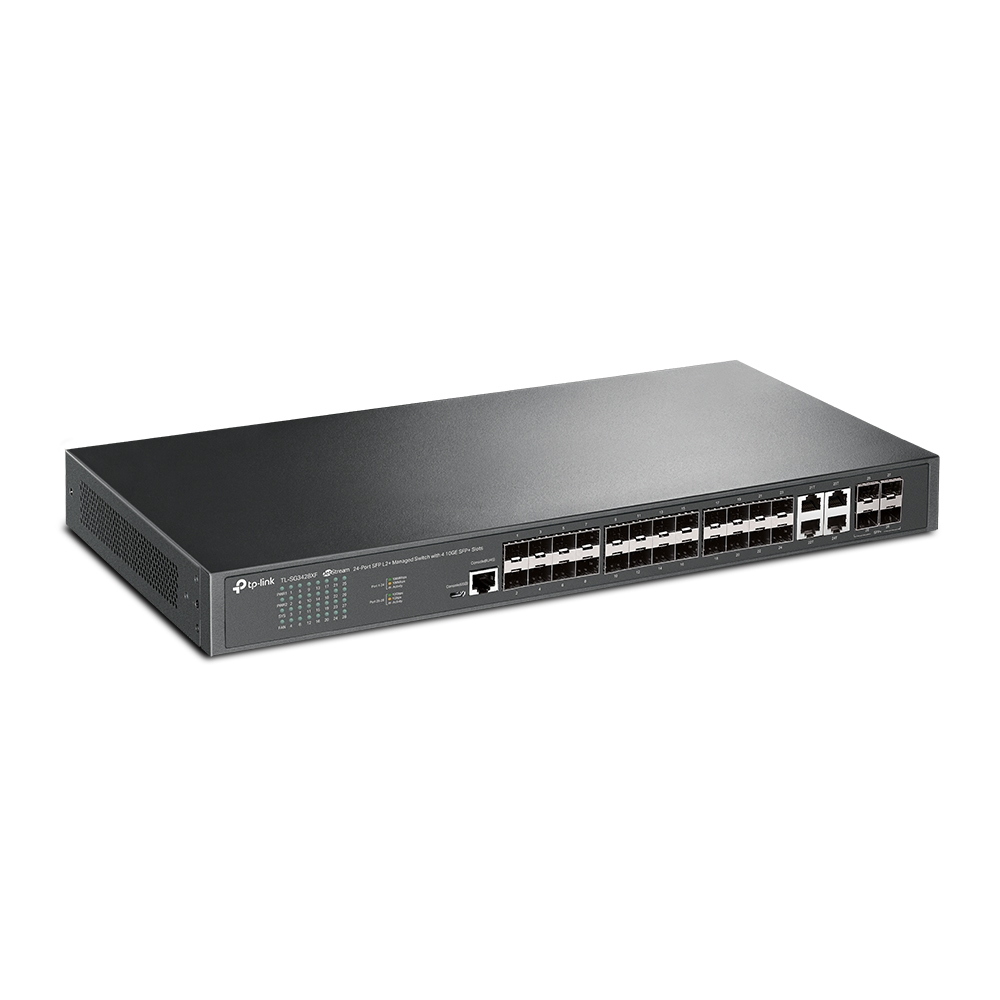

Switch Jetstream Tl-sg3428xf 24-port Sfp L2+ Managed Switch With 4 10ge Sfp+ Slots
ITCurry #: P6043421 | Article #: SG3428XF-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
10G Uplink Managed Switch with Full Fiber Ports
JetStream 24-Port SFP L2+ Managed Switch with 4 10GE SFP+ Slots
10G Lightning-Fast Uplink Connection
4× 10 Gbps SFP+ Slots for High-Bandwidth Connectivity
Gigabit Fiber Connections
20× gigabit SFP ports and 4× SFP/RJ45 Combo Ports Offer Flexible and Reliable Connections
Centralized Cloud Management
SDN Solutions Integration for a Highly Efficient Network
Advanced L2+ Features
Static Routing, IGMP Snooping, 802.1Q VLAN and More
Full Fiber Switch with Lightning-Fast 10G
Build and expand your lightning-fast network with TP-Link TL-SG3428XF—a fully managed switch with 20× gigabit SFP ports, 4× gigabit SFP/RJ45 combo ports, and 4× 10G SFP+ ports. Being ideal for any business network, it meets and surpasses the needs for high-speed, reliable, and safe enterprise networks.
Seamless Integration to Omada Cloud SDN
Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.
Dual Redundant Power Supplies
Two power supplies back each other up and makes an ideal choice for reliable networking architecture.
Advanced L3 Features
An abundance of L2+ and L3 features are supported to help build a highly scalable and robust network, providing a reliable and efficient solution for enterprises, campuses and ISPs.
Secure Networking
Our high-quality security features defend against a range of network threats. They include IP-MAC-Port-VID Binding, Port Security, Storm Control, and DHCP Snooping. An integrated list of common DoS attacks makes it easier to prevent them. The Access Control Lists (ACL, L2 to L4) restrict access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports, or VLAN ID. User access to the network can be controlled through 802.1X authentication to grant access according to valid user credentials.
Enterprise Level Features
802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control are supported by the lineup of innovative L2+ features. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to appropriate subscribers and reduces unnecessary traffic. IGMP throttling & filtering restrict subscribers at the port level to prevent unauthorized multicast access. Static Routing segments the network to route traffic efficiently.
Advanced Quality of Service (QoS)
Voice and video traffic and be prioritized based on IP address, MAC address, TCP port number, UDP port number, and more. With QoS, voice and video services remain smooth, even in low bandwidth situations.
ISP Features**
Internet Service Providers (ISPs) get the support they need with features including sFlow, QinQ, L2PT, PPPoE ID Insertion, and IGMP authentication. 802.3ah OAM and Device Link Detection Protocol (DLDP) provide straightforward monitoring and troubleshooting of Ethernet links across the entire network.
IPv6 Support
An enormous variety of IPv6 functions guarantees your network will be ready for the Next Generation Network (NGN) without needing to upgrade your hardware. Take advantage of features to enhance your network environment, including Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path Maximum Transmission Unit (PMTU) Discovery, and IPv6 Neighbor Discover.
| Beheerfuncties | |
| Switch type | Managed |
| Switch-laag | L2+ |
| Quality of Service (QoS) | Ja |
| Web-gebaseerd management | Ja |
| Cloud-beheerd | Ja |
| ARP-inspectie | Ja |
| Locatie-instellingen (CLI) configureren | Ja |
| System event log | Ja |
| MIB-ondersteuning | RFC1213, RFC2233, RFC1643, RFC1493, RFC2674, RFC2819, RFC2021, RFC2620, RFC2618, RFC2925 |
| Poorten & interfaces | |
| Type basis-switching RJ-45 Ethernet-poorten | Nee |
| Aantal Combo SFP-poorten | 4 |
| Aantal moduleslots SPF+ | 4 |
| Fibre channel-poorten | 20 |
| Vezel-optische connector | SFP, SFP+ |
| Console port | RJ-45/Micro-USB |
| Netstekker | AC-in-aansluiting |
| Netwerk | |
| Netwerkstandaard | IEEE 802.11d, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | Ja |
| Port mirroring | Ja |
| IP routing | Ja |
| Op beleid gebaseerde routering | Ja |
| Routing entries | 512 |
| Datastroombeheer | Ja |
| Verbindingsaggregatie | Ja |
| Broadcast stormbeheer | Ja |
| Rate limiting | Ja |
| Spanning tree protocol | Ja |
| Head-of-line (HOL) blocking | Ja |
| Ethernet LAN, data-overdrachtsnelheden | 10,100,1000,10000 Mbit/s |
| Active Link-detectie | Ja |
| IPv4-routes | 48 |
| IPv6-routes | 48 |
| VLAN=ondersteuning | Ja |
| Virtuele LAN-functies | Port-based VLAN, Private VLAN, Tagged VLAN, VLAN mapping, Voice VLAN |
| Aantal VLANs | 4000 |
| Data-uitwisseling | |
| Switchingcapaciteit | 128 Gbit/s |
| Verzending snelheid | 95,23 Mpps |
| MAC-adrestabel | 16000 entries |
| Store-and-forward | Ja |
| Statische route | Ja |
| Aantal statische routes | 48 |
| Jumbo Frames ondersteuning | Ja |
| Jumbo frames | 9000 |
| Packet buffergeheugen | 12 MB |
| Beveiliging | |
| DHCP-functies | DHCP client, DHCP relay, DHCP server |
| Access Control List (ACL) | Ja |
| IGMP snooping | Ja |
| IGMP-proxy | Ja |
| MAC adres filtering | Ja |
| SSH/SSL support | Ja |
| Bescherming lus | Ja |
| BPDU filtering / bescherming | Ja |
| IP-MAC-Port binding | Ja |
| Authenticatie | Auto VLAN, Gast-VLAN, MAC-gebaseerde authenticatie, Poortgebaseerde authenticatie |
| Wachtwoordbeveiliging | Ja |
| Authenticatie type | AAA, RADIUS, TACACS+ |
| Algoritmen wachtrijplanning | SP, WRR+SP, Weighted Round Robin (WRR) |
| Multicast-functies | |
| Multicast-ondersteuning | Ja |
| Multicast Listener Discovery (MLD) snooping | Y |
| Protocollen | |
| Beheerprotocollen | SNMPv1/v2c/v3, SNTP |
| GARP VLAN Registratieprotocol (GVRP) | Ja |
| IPv4- & IPv6-functies | IPv4/IPv6 access-control list (ACL), IPv6 Telnet, IPv6 ping, IPv6 tracert |
| Design | |
| Rack-montage | Ja |
| Vormfactor | 1U |
| Kleur van het product | Zwart |
| LED-indicatoren | Ja |
| Aantal ventilatoren | 1 ventilator(en) |
| Energie | |
| Stroombron | AC |
| Vermogenstoevoer inclusief | Ja |
| Redundante voeding | Ja |
| Aantal voedingen | 2 |
| Vermogensverbruik (max) | 35,7 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Nee |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 0 - 45 øC |
| Temperatuur bij opslag | -40 - 70 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 10 - 90 procent |
| Luchtvochtigheid bij opslag | 5 - 90 procent |
| Warmtedissipatie | 121,81 BTU/h |
| Gewicht en omvang | |
| Breedte | 440 mm |
| Diepte | 220 mm |
| Hoogte | 44 mm |
| Verpakking | |
| Meegeleverde kabels | AC |
| Gebruikershandleiding | Ja |
| Rekbevestigingspakket | Ja |
| Breedte verpakking | 528 mm |
| Diepte verpakking | 336 mm |
| Hoogte verpakking | 100 mm |
| Gewicht verpakking | 2,97 kg |
| Warranty | |
| Base Warranty | Non Non |
