Desktop Switch Tl-sg116 Gigabit 16-port 10/100/1000mbps Black
ITCurry #: P6042924 | Article #: TL-SG116-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
What This Product Does

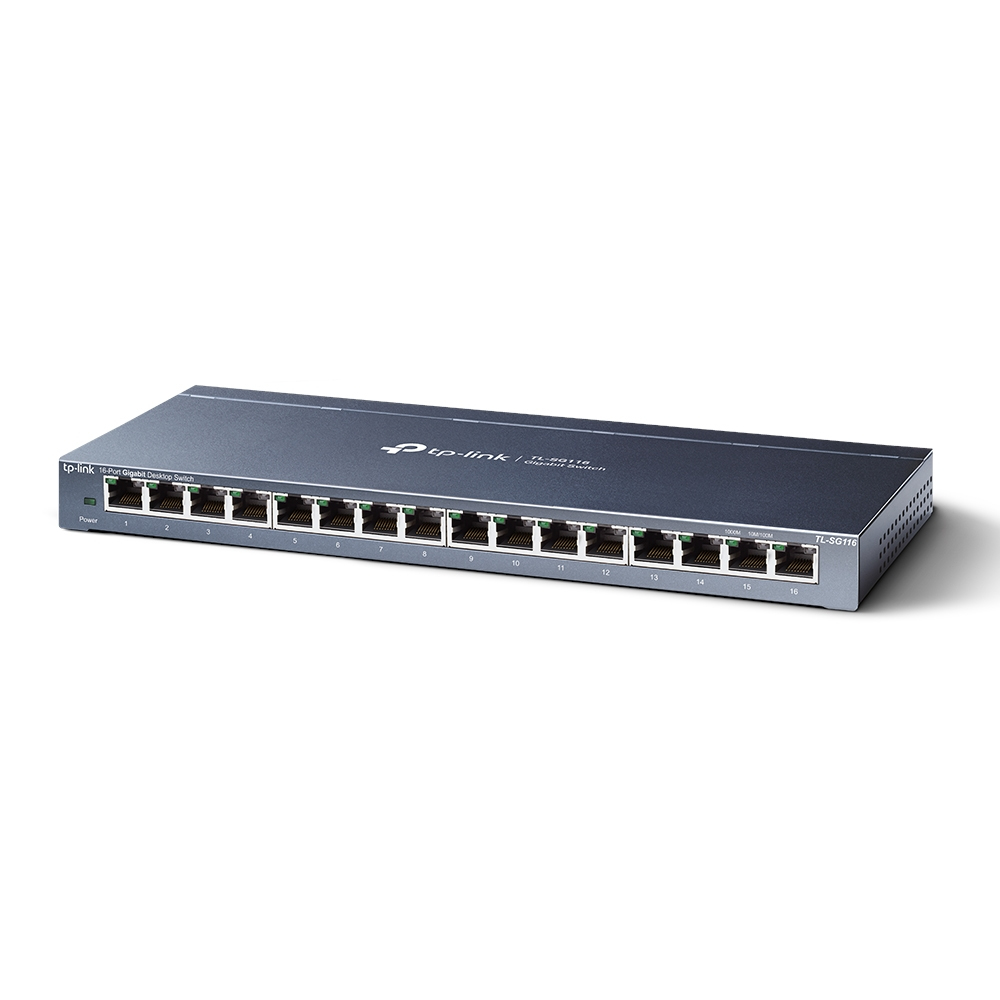

The TP-Link 16-Port 10/100/1000Mbps Desktop Switch provides you an easy way to make the transition to Gigabit Ethernet. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality. Plug and Play design, with no configuration required, makes the product easy to use. Moreover, TL-SG116 adopts lower power consumption design. With the innovative energy-efficient technology, the TL-SG116 can save power consumption, making it an eco-friendly solution for your home or office network.
Gigabit Switch
Featured with 16 10/100/1000Mbps ports, TL-SG116 greatly expands your network capacity, enabling instant large files transferring. So, power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly.
Go Green With Your Ethernet
You now have the choice to go green when upgrading to a gigabit network! This new generation TL-SG116 16-Port 10/100/1000Mbps Desktop Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.
Traffic Optimization
802.1p and DSCP QoS enable smooth latency-sensitive traffic such as voice and video, and IGMP Snooping optimizes the Multicast data stream.
Easy to use
The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminate the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. Moreover, fanless design ensures quiet operation.
| Beheerfuncties | |
| Switch type | Unmanaged |
| Quality of Service (QoS) | Ja |
| Poorten & interfaces | |
| Aantal basis-switching RJ-45 Ethernet-poorten | 16 |
| Type basis-switching RJ-45 Ethernet-poorten | Gigabit Ethernet (10/100/1000) |
| Aantal Gigabit Ethernet (koper)-poorten | 16 |
| Netwerk | |
| Netwerkstandaard | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| 10G support | Nee |
| Koperen ethernetbekabelingstechnologie | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Full duplex | Ja |
| Datastroombeheer | Ja |
| Auto MDI/MDI-X | Ja |
| Auto-negotiation | Ja |
| Data-uitwisseling | |
| Switchingcapaciteit | 32 Gbit/s |
| Verzending snelheid | 23,8 Mpps |
| MAC-adrestabel | 8000 entries |
| Store-and-forward | Ja |
| Jumbo Frames ondersteuning | Ja |
| Jumbo frames | 10000 |
| Packet buffergeheugen | 4,1 MB |
| Beveiliging | |
| IGMP snooping | Ja |
| Design | |
| Rack-montage | Nee |
| Kleur van het product | Zwart |
| Materiaal behuizing | Staal |
| LED-indicatoren | Ja |
| Certificering | CE, FCC ,RoHS |
| Prestatie | |
| Plug and play | Ja |
| Energie | |
| Stroombron | DC |
| Vermogenstoevoer inclusief | Ja |
| Stroom | 1 A |
| Ingangsspanning | 12 V |
| Vermogensverbruik (max) | 10 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Nee |
| Warranty | |
| Base Warranty | Non Non |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 0 - 40 øC |
| Temperatuur bij opslag | -40 - 70 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 10 - 90 procent |
| Luchtvochtigheid bij opslag | 5 - 90 procent |
| Warmtedissipatie | 34,12 BTU/h |
| Gewicht en omvang | |
| Breedte | 286 mm |
| Diepte | 111,7 mm |
| Hoogte | 25,4 mm |
| Verpakking | |
| Snelstartgids | Ja |
| Inclusief AC-adapter | Ja |
| Type verpakking | Doos |
| Rubberen voetjes | Ja |
| Breedte verpakking | 170 mm |
| Diepte verpakking | 412 mm |
| Hoogte verpakking | 70 mm |
| Gewicht verpakking | 1,33 kg |
| Logistieke gegevens | |
| Code geharmoniseerd systeem (HS) | 85176990 |
