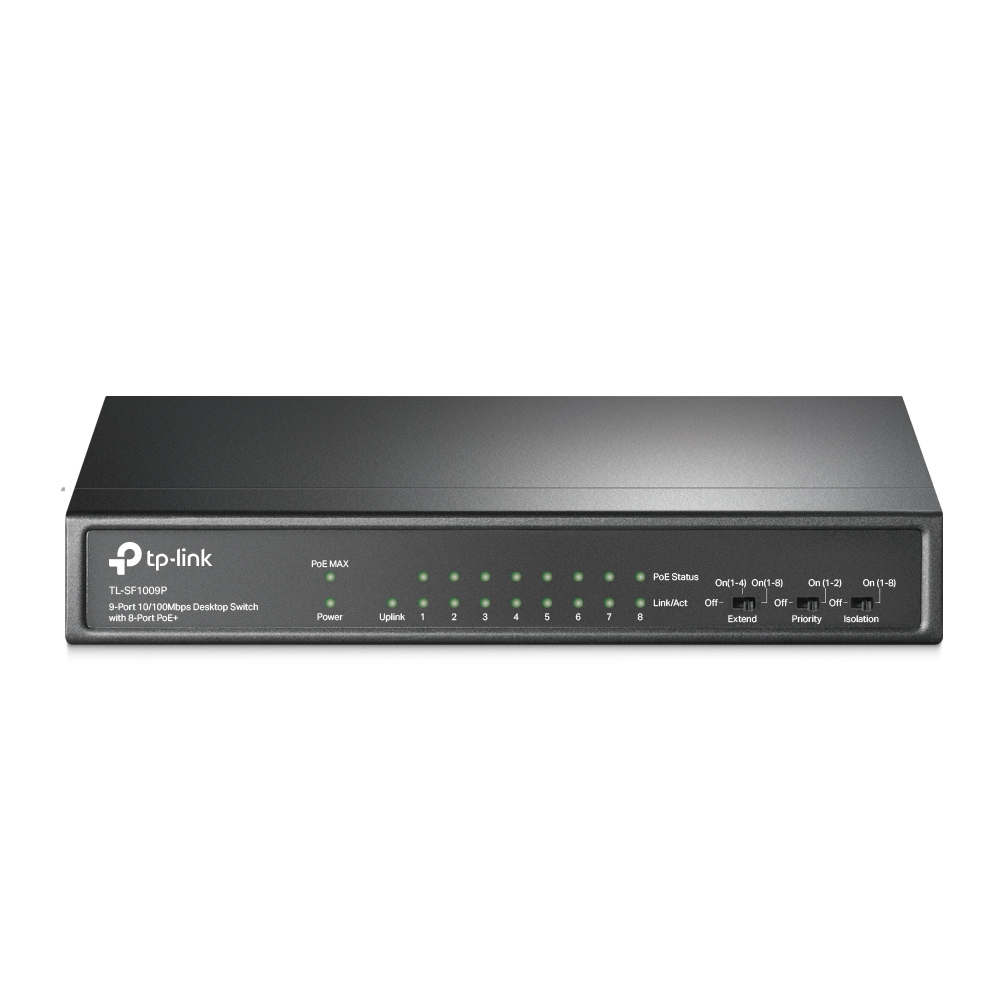

Desktop Poe Switch Tl-sf1009p 9-port 10/100mbps With 8-port Poe+
ITCurry #: P6043248 | Article #: TL-SF1009P-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
Professional 9-Port Unmanaged Switch with 8 PoE+ Ports
Plug and Play, with PoE Transmission for Surveillance up to 250 m
Professional 9-Port Switch with 8-Port PoE+ (65 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 65 W PoE power budget* for the 8× PoE+ ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.
Ideal for IP Surveillance
—Up to 250 m Transmissions
With extend mode, the PoE transmission distance reaches up to 250 m**—perfect for IP Camera deployment in large areas.
**The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.
Ideal for IP Surveillance
—Higher Performance and Security
Priority Mode and Isolation Mode make surveillance smoother and safer.
Intelligent Power Management
When total power consumption exceeds 65 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.
Durable Metal Casing
The interior components of TL-SF1009P are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SF1009P delivers switching performance you can depend on.
| Beheerfuncties | |
| Switch type | Unmanaged |
| Poorten & interfaces | |
| Aantal basis-switching RJ-45 Ethernet-poorten | 9 |
| Type basis-switching RJ-45 Ethernet-poorten | Fast Ethernet (10/100) |
| Fast Ethernet (koperen) ports kwantiteit | 9 |
| Netstekker | DC-in ingang |
| Netwerk | |
| Netwerkstandaard | IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| 10G support | Nee |
| Koperen ethernetbekabelingstechnologie | 10BASE-T, 100BASE-TX |
| Ondersteundende kabel types | Cat3, Cat4, Cat5, Cat5e |
| Full duplex | Ja |
| Half-duplex | Ja |
| Datastroombeheer | Ja |
| Auto MDI/MDI-X | Ja |
| Auto-negotiation | Ja |
| MAC-adres zelflerende functie | Ja |
| MAC-adres zelfverouderende functie | Ja |
| Data-uitwisseling | |
| Switchingcapaciteit | 1,6 Gbit/s |
| Verzending snelheid | 1,3392 Mpps |
| MAC-adrestabel | 2000 entries |
| Store-and-forward | Ja |
| Design | |
| Rack-montage | Nee |
| Stapelbaar | Nee |
| Kleur van het product | Zwart |
| Materiaal behuizing | Metaal |
| LED-indicatoren | Activiteit, Link, Power over Ethernet (PoE), Stroom |
| Ophangsysteem voor aan de muur | Ja |
| Prestatie | |
| Fanloos | Ja |
| Energie | |
| Stroombron | DC/PoE |
| Vermogenstoevoer inclusief | Nee |
| AC-ingangsspanning | 220 V |
| AC-ingangsfrequentie | 50 Hz |
| DC voltage input | 53.5 V |
| Stroom | 1.31 A |
| Vermogensverbruik (max) | 77,08 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Ja |
| Aantal Power over Ethernet plus (PoE +)-poorten | 8 |
| Vermogen per poort Power over Ethernet (PoE) | 30 W |
| Totaal Power over Ethernet (PoE)-budget | 65 W |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 0 - 40 øC |
| Temperatuur bij opslag | -40 - 70 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 10 - 90 procent |
| Luchtvochtigheid bij opslag | 5 - 90 procent |
| Warmtedissipatie | 262,84 BTU/h |
| Gewicht en omvang | |
| Breedte | 171 mm |
| Diepte | 98 mm |
| Hoogte | 27 mm |
| Inhoud van de verpakking | |
| Gebruiksaanwijzing | Ja |
| Verpakking | |
| Inclusief AC-adapter | Ja |
| Type verpakking | Doos |
| Breedte verpakking | 223 mm |
| Diepte verpakking | 280 mm |
| Hoogte verpakking | 68 mm |
| Gewicht verpakking | 980 g |
| Duurzaamheid | |
| Naleving van duurzaamheid | Ja |
| Certificaten | |
| Certificaten van naleving | Federal Communications Commission (FCC), CE, RoHS |
| Certificering | FCC, CE, RoHS |
| Logistieke gegevens | |
| Code geharmoniseerd systeem (HS) | 85176990 |
| Warranty | |
| Base Warranty | Non Non |
