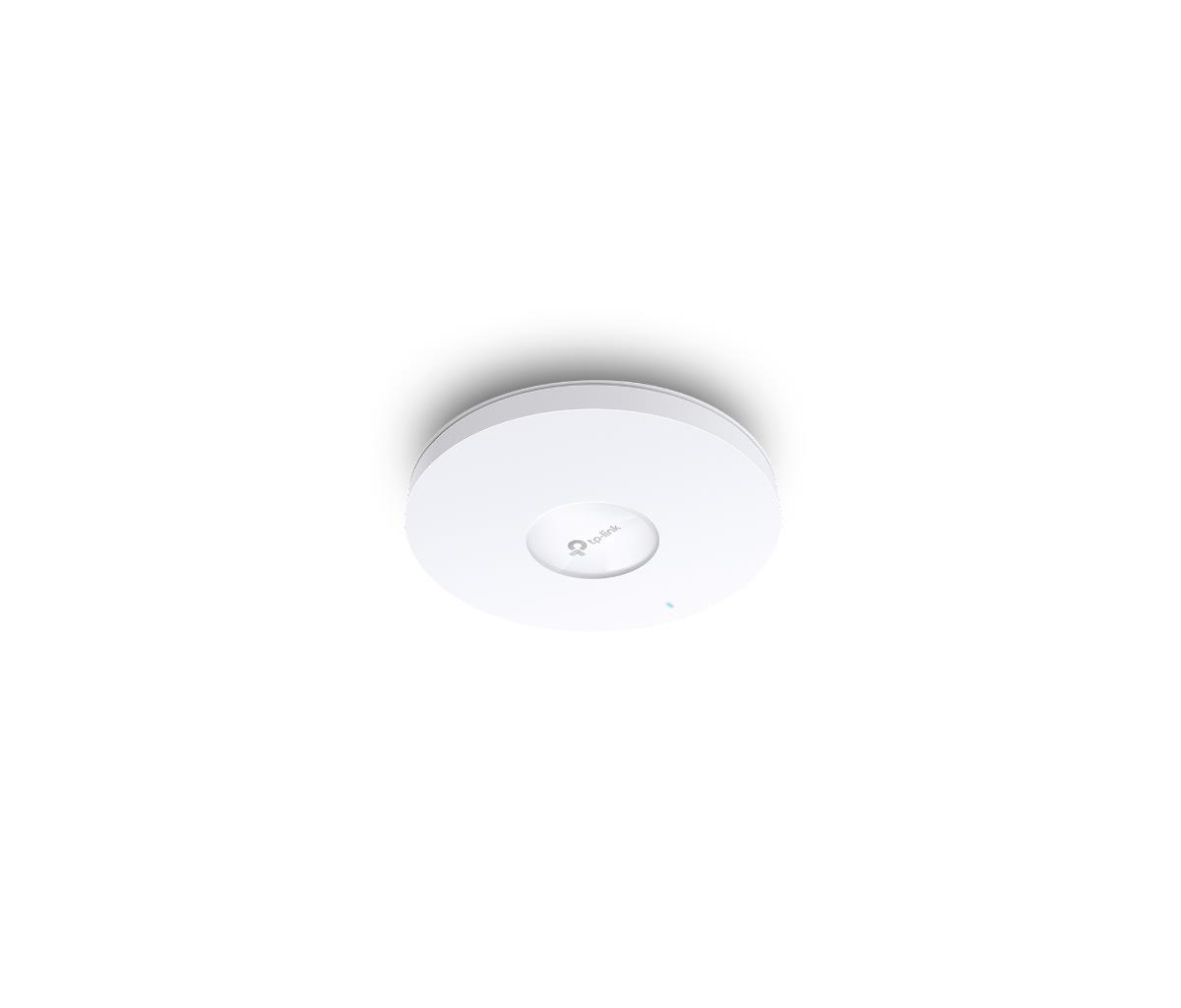

Access Point Omada Eap653 Ax3000 574mbps 2.4GHz Dual Band Ceiling Mount
ITCurry #: P6043431 | Article #: EAP653-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie

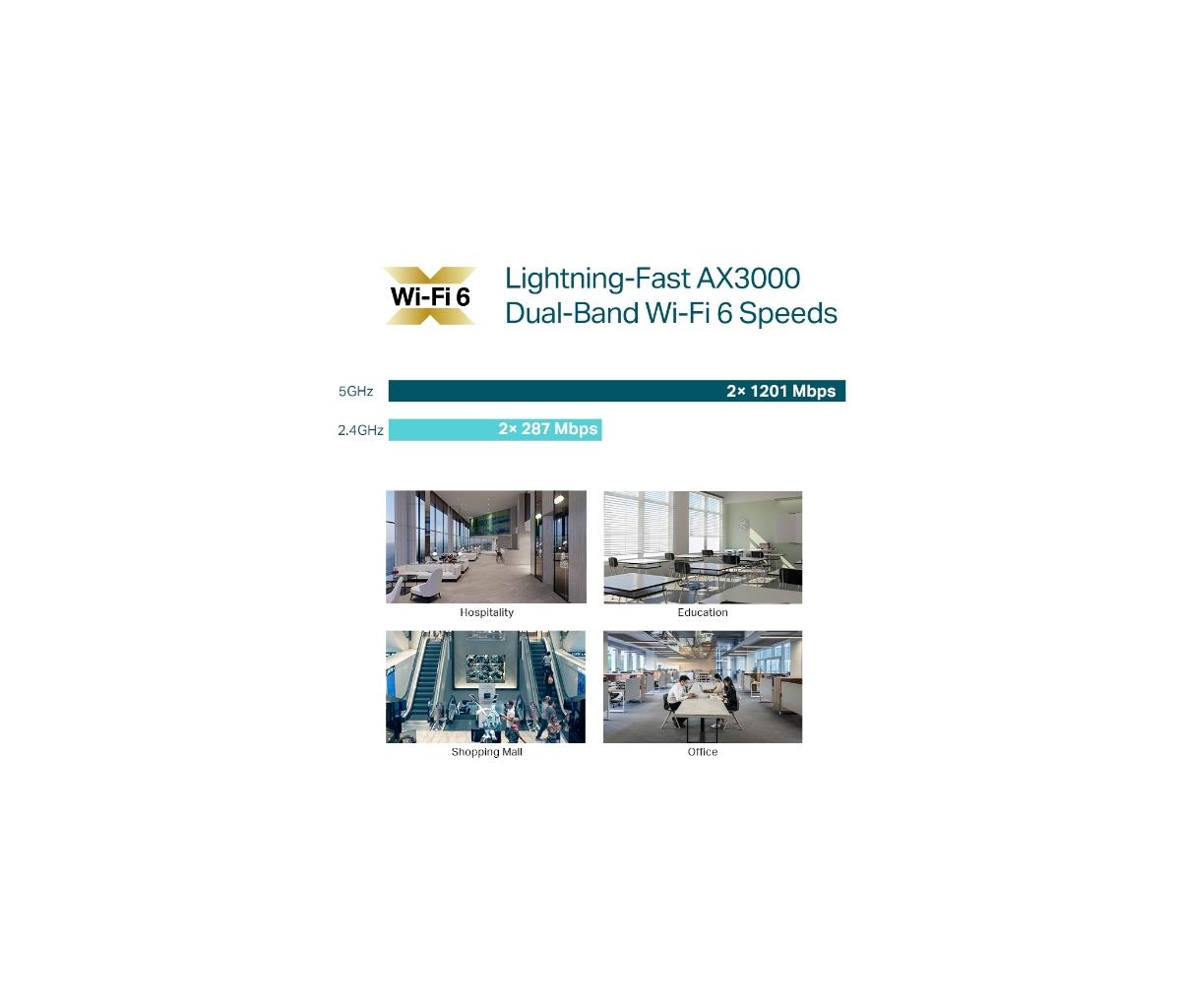

Power up Your Business with New-Era Business WiFi 6
WiFi 6 brings faster speeds, lower lag, less interference, and higher capacity.

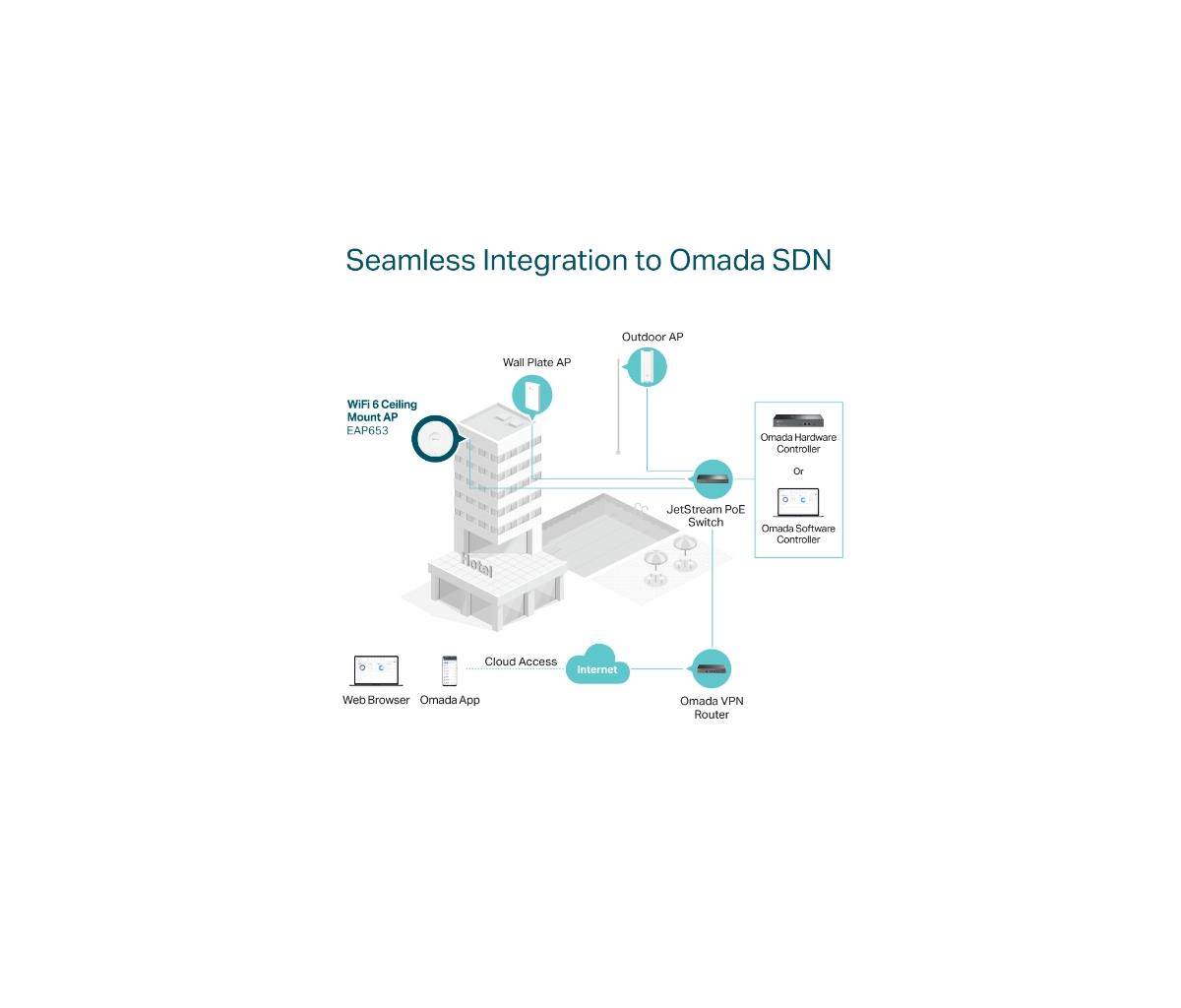

Seamless Integration into Omada SDN
The Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers. It provides 100% centralized cloud management and creates a highly scalable network controlled from a single interface.
Auto Channel Selection and Power Adjustment
to Optimize Overall Performance*
Provides powerful wireless performance while significantly reducing WiFi interference by automatically adjusting the channel settings and transmission power levels of neighboring APs in the same network.
Easy Deployment & Higher Performance by Omada Mesh§
Easy Pairing, Less Wiring
With Mesh technology, Omada EAPs save you from extra wires by wirelessly extending your WiFi signal further and more flexibly to hard-to-wire areas.
Optimized Network Performance
Intelligent self-organization optimizes the best path between EAPs while self-healing ensures you stay online even when one AP is disrupted.

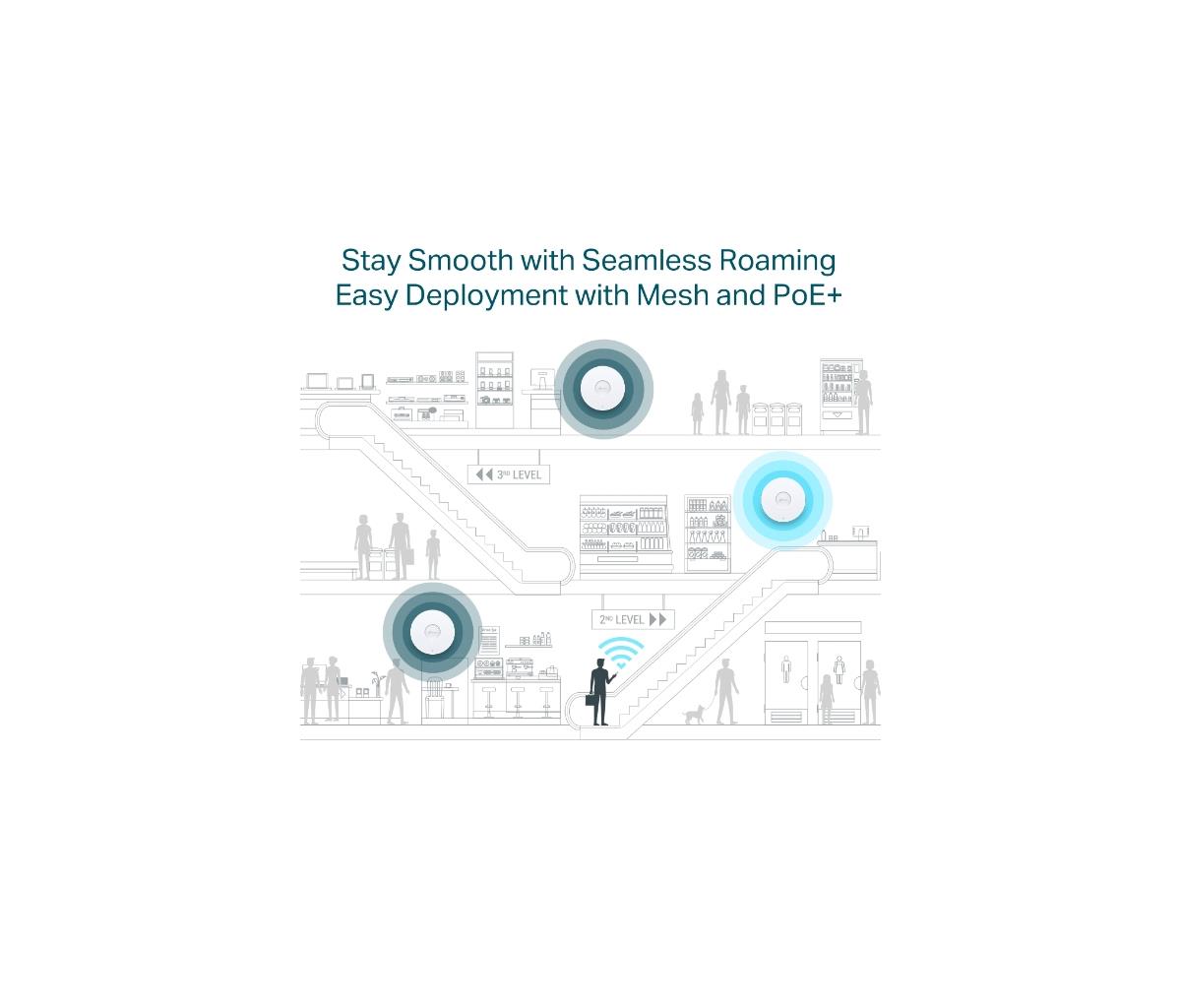

Always Stay Smooth with Fast Roaming§
Ensures customers to enjoy uninterrupted streaming when moving around by switching clients automatically to the access points with the optimal signal.

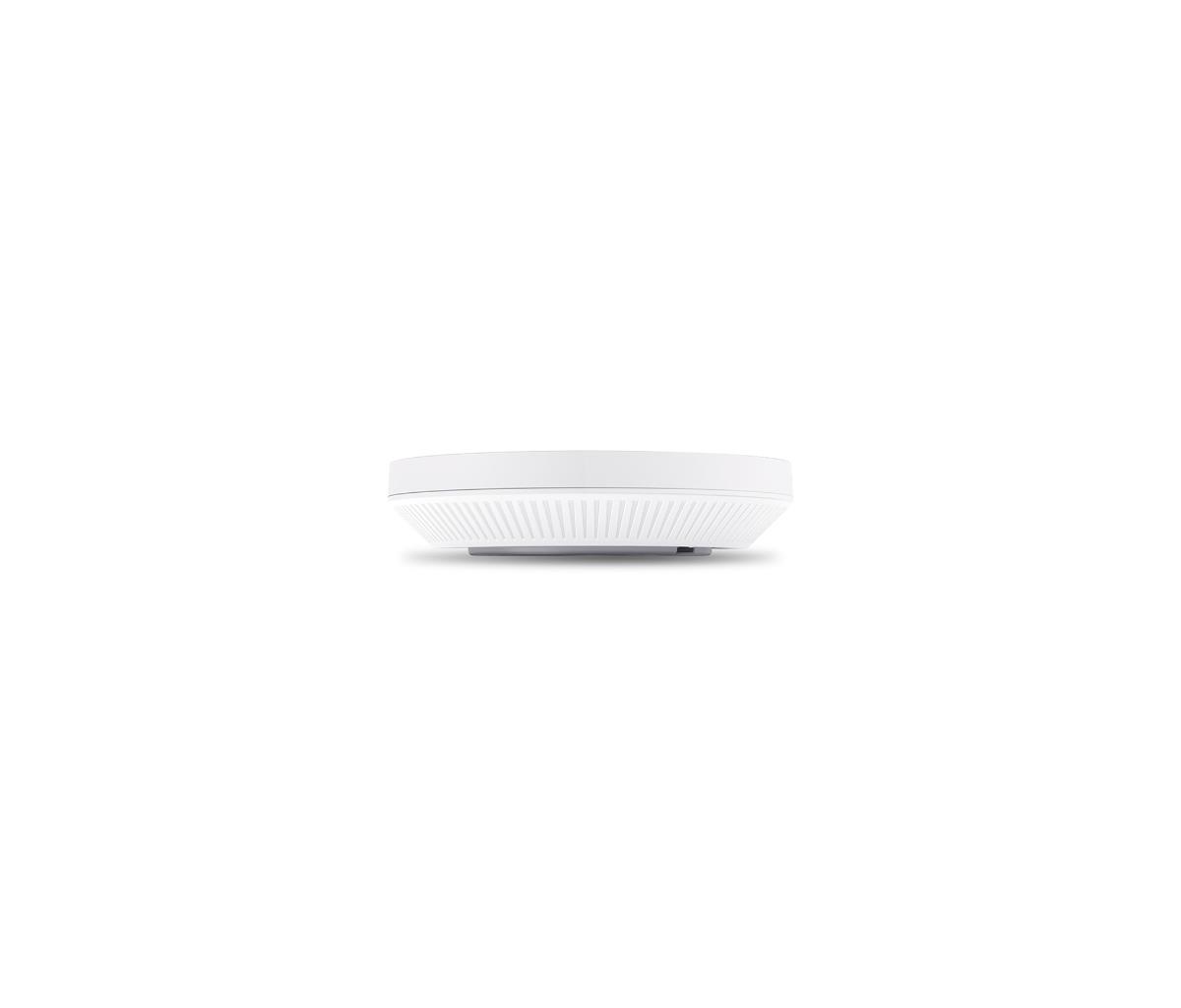

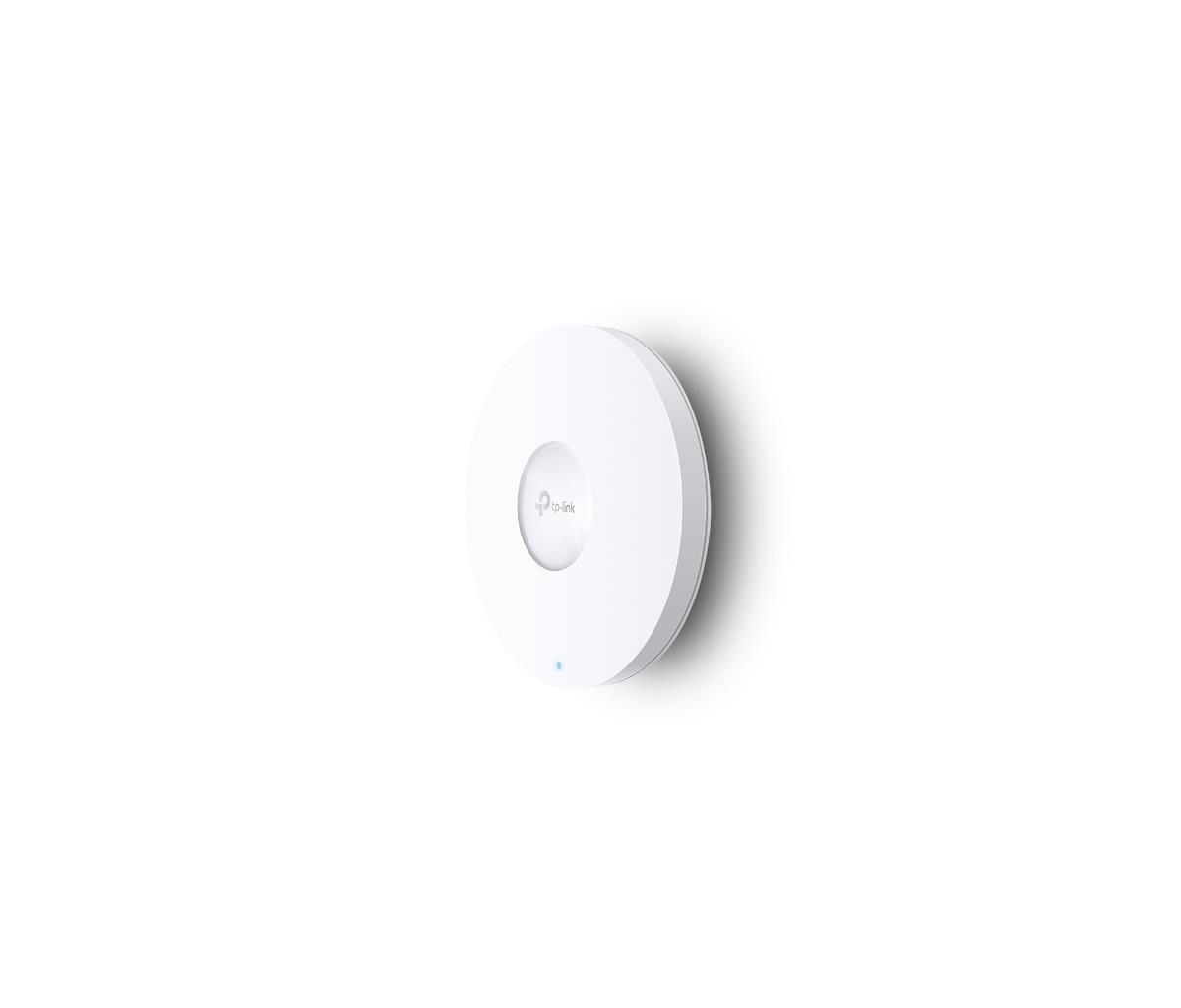

Ultra-Slim Design Brings More Agility

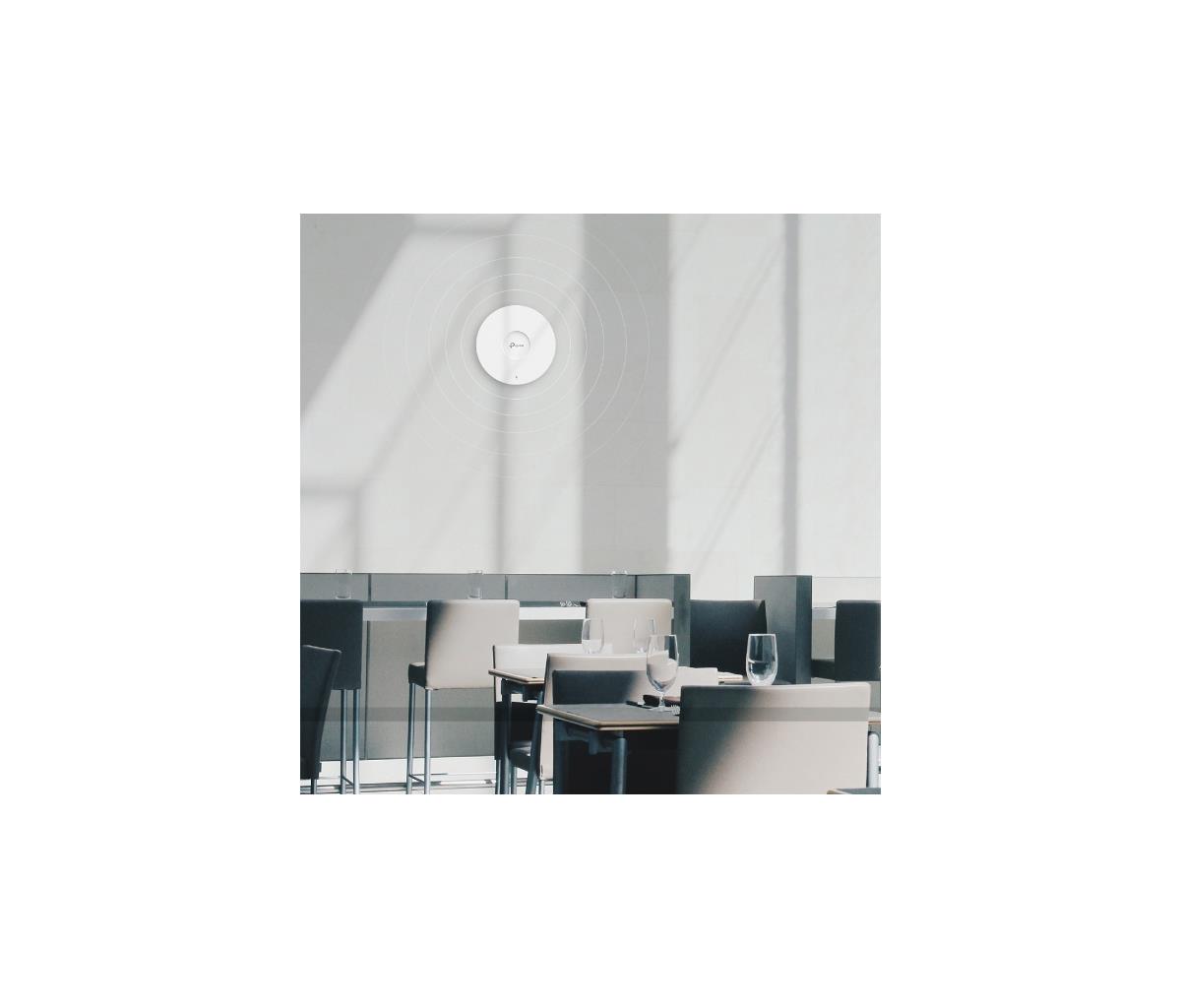

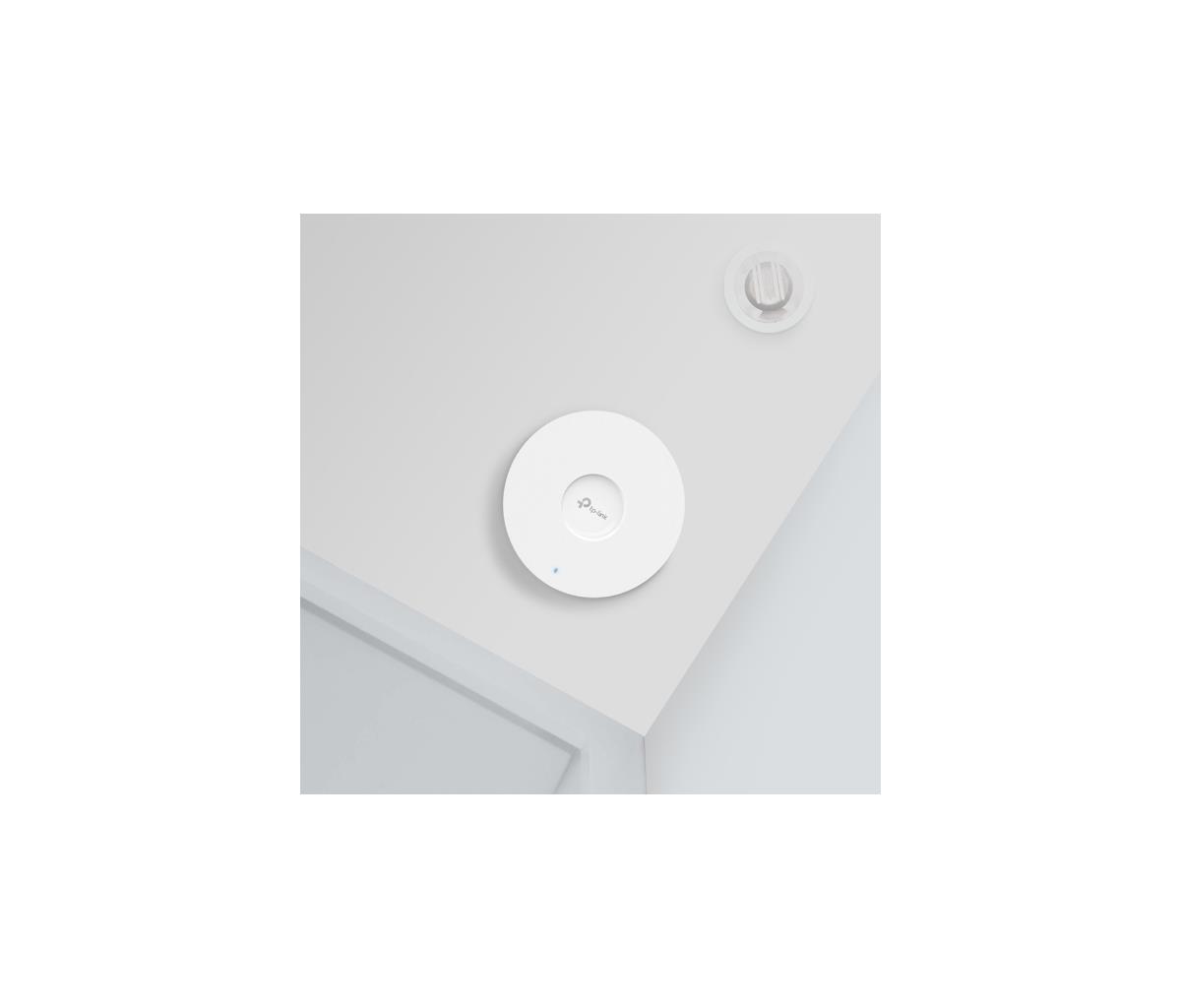

Exceptional performance with compact design ensures simple WiFi installation while saving space. The elegant appearance makes EAP653 perfectly blend into any modern office, hotel, classroom, or café.
| Kenmerken | |
| 2,4 GHz | Ja |
| 5 GHz | Ja |
| 6 GHz | Nee |
| Maximale overdrachtssnelheid van gegevens | 2976 Mbit/s |
| Maximale overdrachtssnelheid van gegevens (2.4 GHz) | 574 Mbit/s |
| Maximale overdrachtssnelheid van gegevens (5 GHz) | 2402 Mbit/s |
| Ethernet LAN, data-overdrachtsnelheden | 10,100,1000 Mbit/s |
| Netwerkstandaard | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11h |
| Kanaalbandbreedte | 160 MHz |
| Automatische kanaalselectie | Ja |
| MIMO | Ja |
| MIMO-type | Multi User MIMO |
| Spread spectrum methode | OFDMA |
| Fit AP-modusfuncties | Vermaasd netwerk |
| VLAN=ondersteuning | Ja |
| Virtuele LAN-functies | VLAN mapping |
| Draadloze isolatie | Ja |
| Bandbreedteaansturing | Ja |
| Quality of Service (QoS) | Ja |
| BeamForming | Ja |
| Zendvermogen (CE) | 27 dBm |
| Zendvermogen (FCC) | 22 dBm |
| Beveiliging | |
| Ondersteunde beveiligingsalgoritmen | HTTPS, SNMP, SNMPv2, SNMPv3, SSH, WPA, WPA2, WPA3 |
| MAC adres filtering | Ja |
| Service Set Identifier (SSID) functies | Multiple SSIDs |
| Aantal SSID-ondersteuningen | 16 |
| Beheerfuncties | |
| Web-gebaseerd management | Ja |
| Upgraden van firmware mogelijk | Ja |
| Poorten & interfaces | |
| Aantal Ethernet LAN (RJ-45)-poorten | 1 |
| Energie | |
| Power over Ethernet (PoE) | Ja |
| Design | |

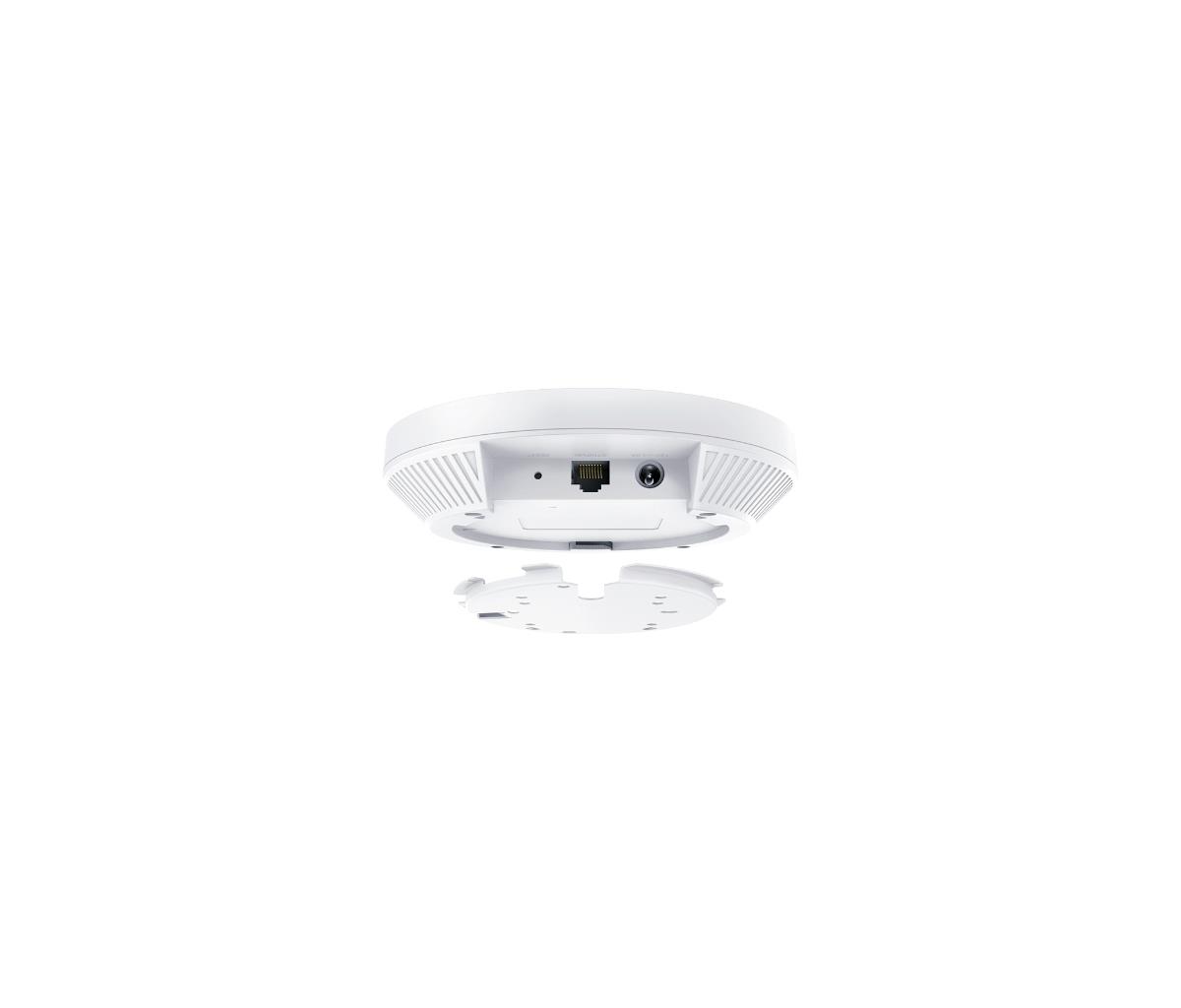

| Plaatsing | Plafond, Muur |
| Kleur van het product | Wit |
| Reset button | Ja |
| LED-indicatoren | Ja |
| Antenne | |
| Soort antenne | Intern |
| Antennas quantity | 4 |
| Antenne versterkingsniveau (max) | 5 dBi |
| Prestatie | |
| Compatibele besturingssystemen | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux |
| Gewicht en omvang | |
| Breedte | 160 mm |
| Diepte | 160 mm |
| Hoogte | 33,6 mm |
| Verpakking | |
| Breedte verpakking | 228 mm |
| Diepte verpakking | 245 mm |
| Hoogte verpakking | 65 mm |
| Gewicht verpakking | 700 g |
| Inhoud van de verpakking | |
| Aantal producten inbegrepen | 1 stuk(s) |
| Eisen aan de omgeving | |
| Relatieve vochtigheid in bedrijf (V-V) | 10 - 90 procent |
| Bedrijfstemperatuur (T-T) | 0 - 40 øC |
| Temperatuur bij opslag | -40 - 70 øC |
| Luchtvochtigheid bij opslag | 5 - 90 procent |
| Duurzaamheid | |
| Duurzaamheidscertificaten | RoHS |
| Logistieke gegevens | |
| Code geharmoniseerd systeem (HS) | 85176990 |
| Warranty | |
| Base Warranty | Non Non |
