USB-c Hub 4-port 10gbps - 100w Pd Charging 4x USB-c Ports
ITCurry #: 7564C679 | Article #: 309B-USBC-HUB-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie

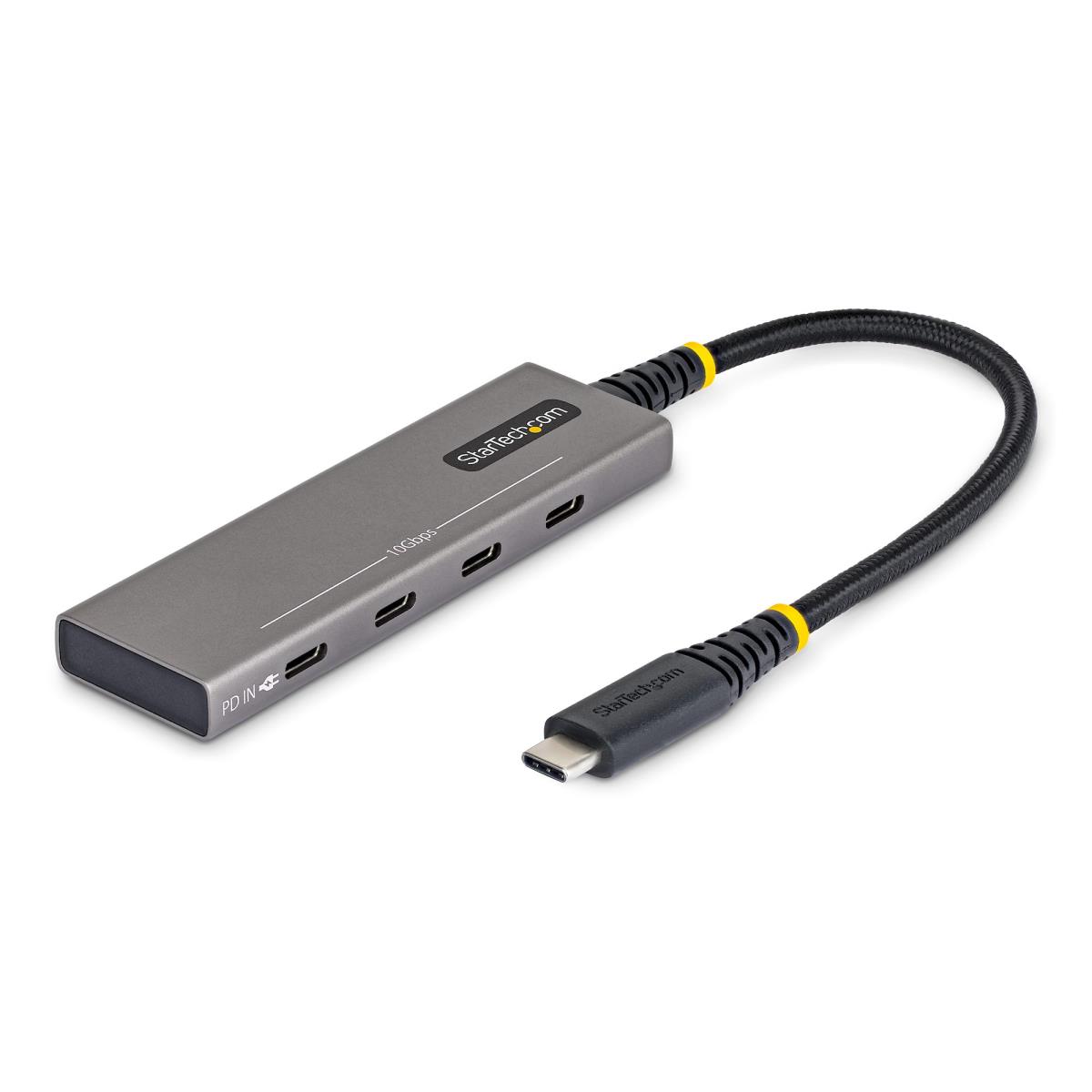

Transform a single USB-C port on your laptop into four high-speed USB-C ports with 10Gbps data transfer and 100W Power Delivery
Turn one USB-C port into a compact expansion hub with four USB-C connections for 10Gbps peripherals and up to 100W Power Delivery pass-through, all in one durable, travel-ready design.
Build a Clean, High-Performance USB-C Workspace Anywhere
Create a simple, standardized setup from a single USB-C port. Add four USB-C connections for fast peripherals, including one shared-function port that supports up to 100W Power Delivery pass-through (based on host and charger capability). Plug in external SSDs, capture devices, adapters, and other USB-C peripherals simultaneously without sacrificing charging and constantly swapping cables.
Charge and Connect Without Compromise
Keep your host powered while staying productive. Use the shared-function USB-C port for up to 100W PD pass-through when you need charging, while the remaining ports maintain full 10Gbps performance for connected devices. Standardize hot desks, shared workstations, and mobile kits to reduce "not enough ports" tickets across mixed-device environments.
Expand with High-Speed, Driverless Connectivity
Add three dedicated 10Gbps USB-C data ports for file transfers, diagnostics, backups, and software loads. Deploy instantly with plug-and-play operation and no drivers required.
Built for Sustainability, Designed for Performance
The built-in 8in (20cm) host cable is a dual-layer cable that pairs a flexible silicone inner layer with a braided nylon exterior for extra abrasion resistance. This hub features a housing made from 90% post-consumer recycled (PCR) aluminum, 75% PCR Plastic, and a cable jacket composed of 35% PCR TPE (Thermoplastic Elastomer). The product also ships in FSC Mix packaging made from responsibly sourced materials. These materials help align your IT infrastructure with your organization's sustainability goals, without compromising on quality or durability.
| Poorten & interfaces | |
| Hostinterface | USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| Hub-interfaces | USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type C | 4 |
| Aantal poorten | 4 |
| USB Type-C DisplayPort alternatieve modus | Ja |
| Kenmerken | |
| Overdrachtssnelheid | 10000 Mbit/s |
| Kleur van het product | Grijs |
| Materiaal behuizing | Kunststof, Aluminium |
| USB Power Delivery (USB PD) | Ja |
| USB Power Delivery herziening | 3.0 |
| USB Power Delivery tot max. | 100 W |
| Aantal displays ondersteund | 1 |
| Snoerlengte | 0,203 m |
| Plug and play | Ja |
| Netwerk | |
| UASP-ondersteuning | Ja |
| Energie | |
| Stroomverbruik (typisch) | 15 W |
| Gewicht en omvang | |
| Breedte | 28,5 mm |
| Diepte | 96,8 mm |
| Hoogte | 9,5 mm |
| Gewicht | 43 g |
| Verpakking | |
| Breedte verpakking | 57 mm |
| Diepte verpakking | 190 mm |
| Hoogte verpakking | 19 mm |
| Gewicht verpakking | 108 g |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 0 - 45 øC |
| Temperatuur bij opslag | 0 - 45 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 10 - 85 procent |
| Luchtvochtigheid bij opslag | 10 - 85 procent |
| Logistieke gegevens | |
| (Buitenste) hoofdverpakking breedte | 205 mm |
| (Buitenste) hoofdverpakking lengte | 425 mm |
| (Buitenste) hoofdverpakking hoogte | 260 mm |
| Hoeveelheid per (buitenste) hoofdverpakking | 80 stuk(s) |
| Technische details | |
| Certificaten van naleving | RoHS, CE |
| Overige specificaties | |
| Chipset | VIA - VL103, VIA - VL822 |
| Warranty | |
| Base Warranty | Non Non |
