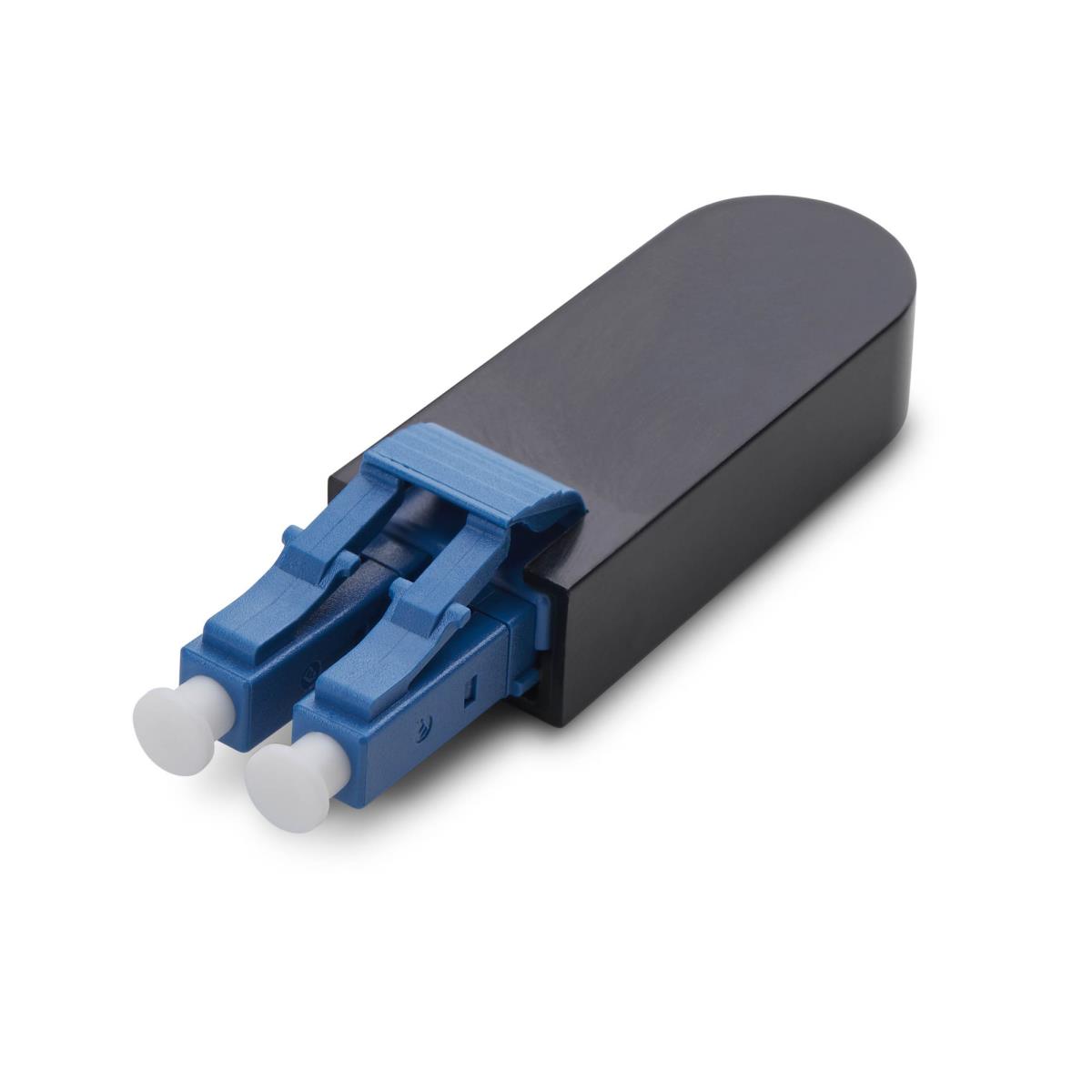

Lc Loopback Plug, Single Mode 9/125 Lc Fiber Loopback Adapter
ITCurry #: 7564C617 | Article #: LOOPBACKLCLC00DB-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
Perform loopback testing and verify signal continuity in Single Mode LC fiber networks
This Single Mode LC Loopback Plug is a practical tool for verifying signal continuity, insertion loss, and port function in fiber optic networks. Ideal for technicians and IT Pros, it enables fast, consistent testing across LC/UPC fiber connections.
Test Single Mode Connections
This 9/125um LC Loopback Adapter is compatible with OS1 and OS2 LC/UPC cabling in point-to-point and structured installations. IEC and RoHS compliance ensures readiness for standardized deployments and testing in regulated environments.
Accurate Signal Diagnostics
Validate transceivers, isolate faults, and confirm port function across single mode LC switches and SFP/SFP+ devices. The 0dB low-loss design and high-precision ceramic ferrules deliver clean signaling for accurate, reliable diagnostics.
For Enterprise Fiber Switches
The streamlined LC connector fits securely into high-density fiber arrays without blocking adjacent ports. A durable ABS housing withstands wear from repeated use and is suitable for frequent testing in data centers and edge or on-prem installations.
| Kenmerken | |
| Type product | Glaskabeltester |
| Testtype | Loopback-test |
| Ondersteunde aansluitingen | LC |
| Ingebouwd display | Nee |
| Kleur van het product | Zwart, Blauw |
| Materiaal behuizing | Acrylonitrielbutadieenstyreen (ABS) |
| Draad modus structuur | Single-mode |
| Type glasvezel | OS1/OS2 |
| Geslacht connector | Mannelijk |
| Certificaten | |
| Certificaten van naleving | CE, RoHS, Amerikaanse Federale wet inzake handelsovereenkomsten (TAA) |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | -40 - 75 øC |
| Temperatuur bij opslag | -40 - 75 øC |
| Gewicht en omvang | |
| Breedte | 14,2 mm |
| Diepte | 50,5 mm |
| Hoogte | 8,5 mm |
| Gewicht | 4 g |
| Verpakking | |
| Breedte verpakking | 120 mm |
| Diepte verpakking | 90 mm |
| Hoogte verpakking | 12 mm |
| Gewicht verpakking | 6 g |
| Logistieke gegevens | |
| (Buitenste) hoofdverpakking breedte | 430 mm |
| (Buitenste) hoofdverpakking lengte | 335 mm |
| (Buitenste) hoofdverpakking hoogte | 400 mm |
| Hoeveelheid per (buitenste) hoofdverpakking | 1000 stuk(s) |
| Warranty | |
| Base Warranty | Non Non |
