Protect network devices from harmful power surges with this Network Isolator
This TAA-Compliant 1G Network Isolator with 4kV isolation is bus-powered and provides a separation of all conductive connections between devices connected via an Ethernet cable. The isolator helps prevent ground loops in audio and video equipment.
Ready to Use
This isolator features simple plug-and-play setup with no software, drivers, power supply, or grounding wire required. The isolator acts as a coupler, with two RJ45 ports for two Cat5 or Cat6 cables to connect compatible equipment to a computer or data network. It is compact, universally compatible and OS independent.
Safe, Reliable, & Efficient
This isolator provides full transparency on the network it is part of. With no IP, it does not route or alter traffic or affect equipment or network performance. Safeguard equipment and operators by blocking stray electrical currents, surges, and ground faults in your network. This device is ETL Safety Listed (IEC 62368-1) and CE: EN55032/EN55035 Certified.
Versatile Mounting Options & Applications

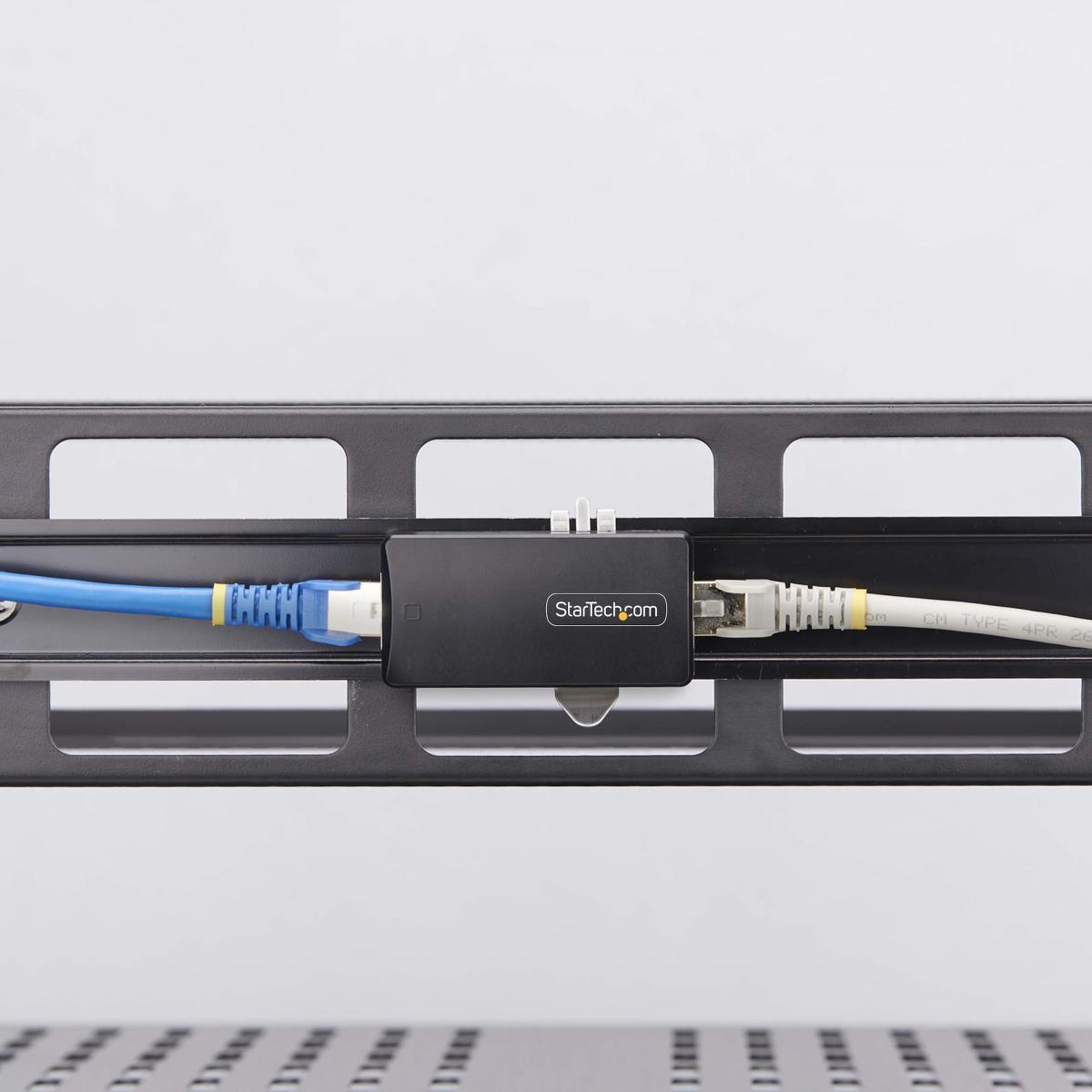

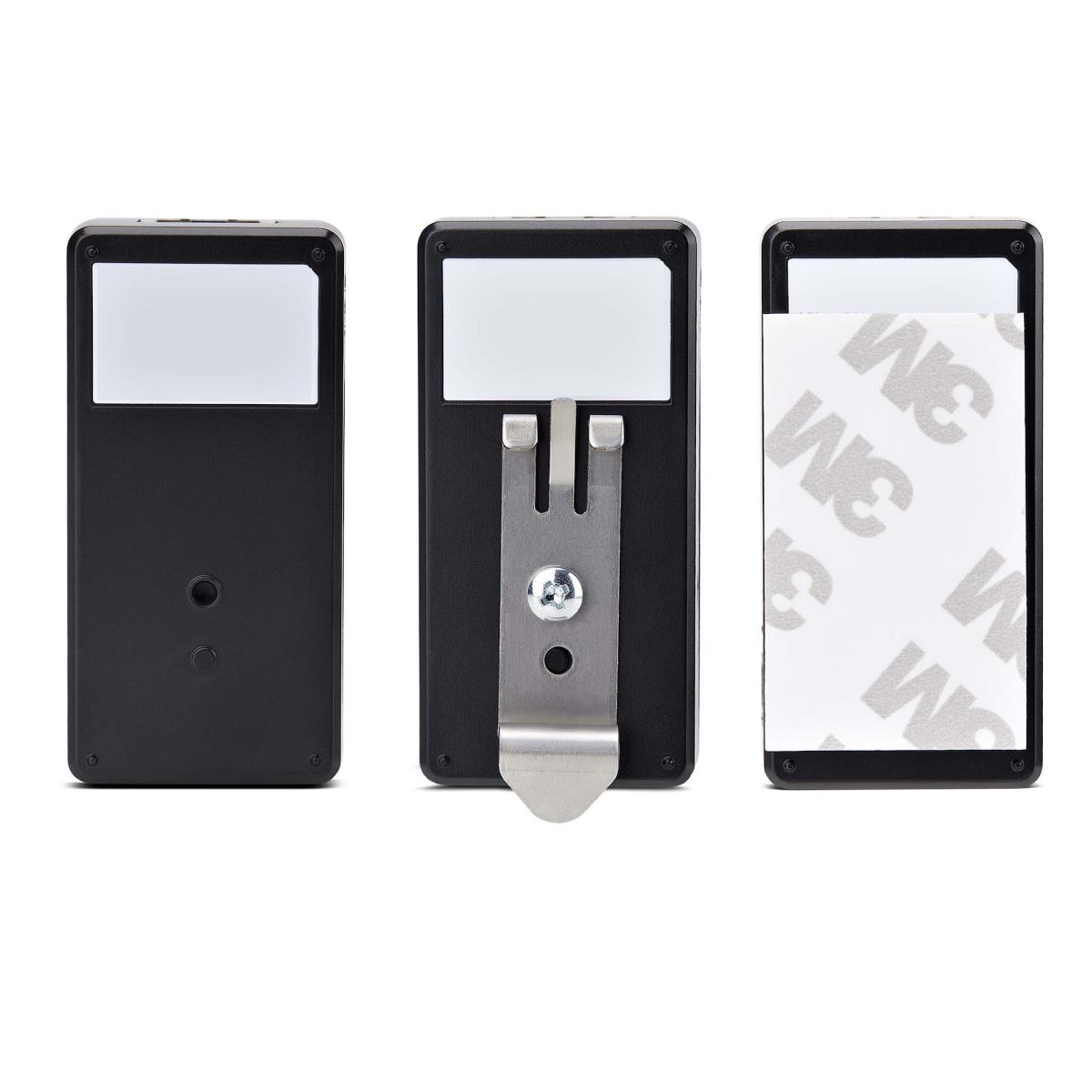

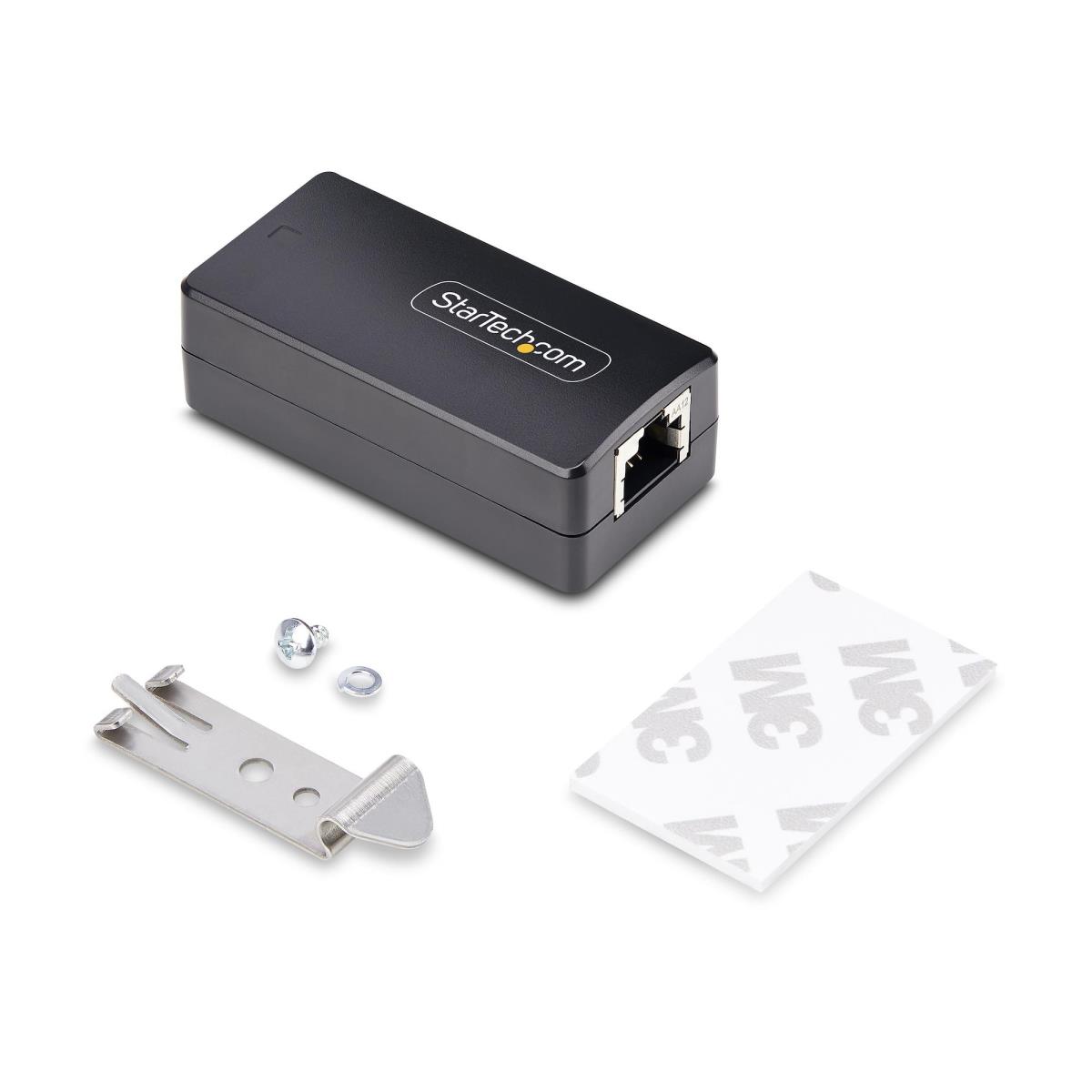

The compact and durable IP40 rated plastic housing supports multiple installation methods, including DIN rail mounting (kit included) or adhesive mounting for versatile placement on various surfaces. Designed for IT professionals to protect network infrastructure in labs and manufacturing facilities. This device is ideal for ensuring safe operation and reducing risks during network maintenance or upgrades.
The StarTech.com Advantage
| Prestatie | |
| Bescherming elektrostatische ontlading (ESD) (contact) | 4 kV |
| Design | |
| Kleur van het product | Zwart |
| Logistieke gegevens | |
| Hoeveelheid per (buitenste) hoofdverpakking | 100 stuk(s) |
| (Buitenste) hoofdverpakking lengte | 483 mm |
| (Buitenste) hoofdverpakking breedte | 454 mm |
| (Buitenste) hoofdverpakking hoogte | 180 mm |
| Technische details | |
| Certificaten van naleving | CE, Federal Communications Commission (FCC), RoHS, Amerikaanse Federale wet inzake handelsovereenkomsten (TAA) |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | -10 - 70 øC |
| Temperatuur bij opslag | -40 - 85 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 10 - 90 procent |
| Gewicht en omvang | |
| Breedte | 67 mm |
| Diepte | 33 mm |
| Hoogte | 24 mm |
| Gewicht | 31 g |
| Verpakking | |
| Breedte verpakking | 110 mm |
| Diepte verpakking | 200 mm |
| Hoogte verpakking | 29 mm |
| Gewicht verpakking | 40 g |
| Inhoud van de verpakking | |
| Aantal | 1 |
| Warranty | |
| Base Warranty | Non Non |
