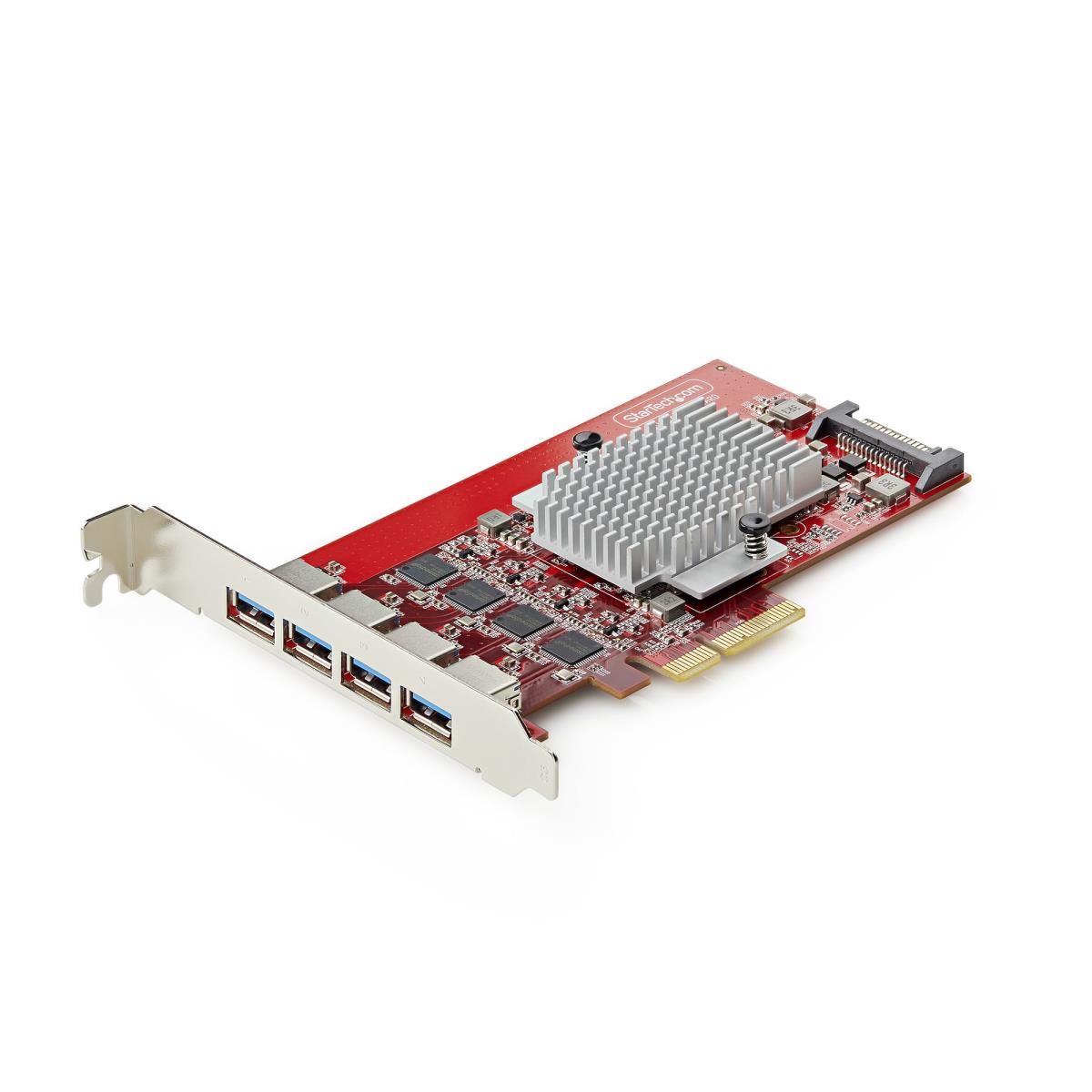

Expansion Card - 4-port USB-a Pci-e Card, USB 3.2 10gbps, PCI Express 3.0
ITCurry #: 7564C568 | Article #: P10Q4A-USB-CARD-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
Add four USB Type-A ports with four independent 10Gbps channels to a computer via a PCI Express slot
Enhance the USB connectivity of a desktop computer or server by adding four external USB-A 10Gbps ports with this internal PCI Express 3.0 expansion card.
Dedicated USB Controllers
With its four independent USB controllers, this PCIe USB-C card enables each port to achieve up to 10Gbps performance, reducing bottlenecks and increasing data throughput.
USB 3.2 Gen 2 (10Gbps) Performance
The high bandwidth makes the card ideal for transferring large files, real-time editing of high-resolution photos and videos on external storage, off-loading media from mobile devices, using high-resolution video capture devices, tethered photography equipment, or high-speed USB network adapters.
Charge and Sync USB Devices
This USB PCI Express card can provide up to 5V 2A (10W) per USB-A port, enabling sync and charge of portables devices. If the motherboard can't supply enough power, a built-in SATA power connector supports auxiliary power to maintain stable performance.
Compatibility
The PCIe USB card is plug-and-play in most major operating systems, including Windows, macOS, and Linux. It supports PCI Express 3.0 and x4, x8, and x16 slots. The USB expansion card ships with a pre-installed standard profile bracket.
| Poorten & interfaces | |
| Hostinterface | PCIe |
| Output interface | USB 3.2 Gen 2 (3.1 Gen 2) |
| Uitbreidingskaartstandaard | PCIe 3.0 |
| Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type A | 4 |
| Type SATA-voedingsconnector | SATA 15-pin |
| Design | |
| Intern | Ja |
| Kleur van het product | Rood |
| Kenmerken | |
| Chipset | ASMedia - ASM3142, ASMedia - ASM2812X |
| Data transfer snelheid (max) | 10 Gbit/s |
| UASP-ondersteuning | Ja |
| Minimale systeemeisen | |
| Ondersteunt Windows | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64 |
| Ondersteunt Mac-besturingssysteem | Mac OS X 14.0 Sonoma, Mac OS X 15.0 Sequoia |
| Ondersteunt Linux | Ja |
| Ondersteunde server operating systems | Windows Server 2019, Windows Server 2022 |
| Technische details | |
| Certificaten van naleving | RoHS, Amerikaanse Federale wet inzake handelsovereenkomsten (TAA) |
| Gewicht en omvang | |
| Breedte | 56 mm |
| Diepte | 140 mm |
| Hoogte | 120 mm |
| Gewicht | 94 g |
| Verpakking | |
| Gebruiksaanwijzing | Ja |
| Breedte verpakking | 142 mm |
| Diepte verpakking | 170 mm |
| Hoogte verpakking | 30 mm |
| Gewicht verpakking | 160 g |
| Logistieke gegevens | |
| Hoeveelheid per (buitenste) hoofdverpakking | 60 stuk(s) |
| (Buitenste) hoofdverpakking breedte | 380 mm |
| (Buitenste) hoofdverpakking lengte | 310 mm |
| (Buitenste) hoofdverpakking hoogte | 500 mm |
| Warranty | |
| Base Warranty | Non Non |
