Remotely capture broadcast quality 4K images with smooth, silent PTZ and excellent low-light sensitivity

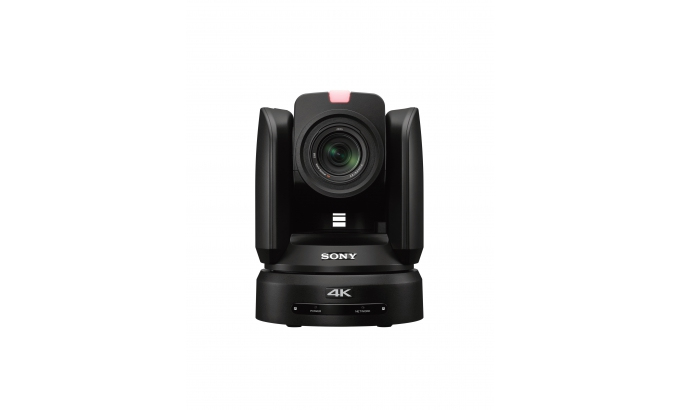

The BRC-X1000 is Sony's first 4K remote camera, combining uncompromising broadcast picture quality and smooth, silent PTZ operation with the flexibility of 3G-SDI and HDMI connections.
Designed for remote operation, this compact but powerful robotic camera is an ideal complement to other broadcast cameras for capturing images in hard-to-reach or unobtrusive positions. It's equally at home in TV newsrooms, remote studios and on-air suites, auditoriums, houses of worship, courtrooms or sports stadiums. It's also particularly suited to efficient multi-camera set-ups, under the control of a single operator.
The 1-inch type Exmor R CMOS image sensor captures detail-packed 4K footage at 30p with four times the pixel count of Full HD, and excellent low-light sensitivity. The large image sensor also allows the creation of beautiful 'bokeh' effects with a shallow depth of field to suit any artistic intention.
Speedy, near-silent PTZ operation with 12x optical zoom accommodates wide-angle scenes and tightly framed close-ups, with Clear Image Zoom 18x (4K), 24x(HD) extending this range even further without visible loss of resolution. Broadcast-friendly features include dual tally lamps for on-air operation, while operational flexibility is enhanced with options for ceiling, table top or tripod mounting.
There’s also a broad range of video interfacing and remote control possibilities - plus support for PoE+ and genlock - for smooth integration into any broadcast, professional or corporate AV environment.
| Prestatie | |
| Soort | IP-beveiligingscamera |
| Ondersteuning voor plaatsing | Binnen |
| Connectiviteitstechnologie | Bedraad |
| PTZ control | Ja |
| Dag/nacht modus | Ja |
| Antenne versterkingsniveau (max) | 33 dBi |
| Blootstelling type | Auto, Handmatig, Sluiter-prioriteit AE |
| Design | |
| Vormfactor | Dome |
| Montagewijze | Plafond |
| Kleur van het product | Zwart |
| Camera | |
| Minimale belichting | 1,7 Lux |
| Kijkhoek lens, horizontaal | 64.6ø |
| Bereik kantelhoek | -30 - 90ø |
| Draai-snelheid | 60 ø/sec |
| Pan bereik | -170 - 170ø |
| Pan snelheid | 60 ø/sec |
| Witbalans | Auto, Binnen, Handmatig, Buiten |
| Camera sluitertijd | 1/10000s - 1/8 (59.94/29.97), 1/10000s - 1/6 (50/25) |
| Beeldsensor | |
| Omvang optische sensor | 1 |
| Type beeldsensor | CMOS |
| Lenssysteem | |
| Zoomcapaciteit | Ja |
| Optische zoom | 12x |
| Brandpuntbereik | 9.3 - 111.6 mm |
| Automatisch scherpstellen | Ja |
| Maximum aperture number | 4,5 |
| Video | |
| Totaal aantal megapixels | 14,2 MP |
| Ondersteunde video-modi | 720p, 1080i, 1080p, 2160p |
| Maximaal 30 frames per seconde | 60 fps |
| Automatische versterking control | Ja |
| Volledige HD | Ja |
| Netwerk | |
| Ethernet LAN | Ja |
| Netwerkstandaard | IEEE 802.3at |
| Wifi | Nee |
| Opslagmedia | |
| Ingebouwde HDD | Nee |
| Poorten & interfaces | |
| Aantal Ethernet LAN (RJ-45)-poorten | 1 |
| Aantal HDMI-poorten | 1 |
| Aansluiting voor netstroomadapter | Ja |
| Interface | RS-422 |
| Energie | |
| Type stroombron | Power over Ethernet (PoE) |
| Stroomuitvoer (ampŠre) | 13,2 A |
| Power over Ethernet (PoE) | Ja |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 0 - 40 øC |
| Gewicht en omvang | |
| Breedte | 198 mm |
| Diepte | 238 mm |
| Hoogte | 260 mm |
| Gewicht | 4,3 kg |
| Inhoud van de verpakking | |
| Aantal cameras | 1 |
| Logistieke gegevens | |
| Code geharmoniseerd systeem (HS) | 85258900 |
| Warranty | |
| Base Warranty | Non Non |
