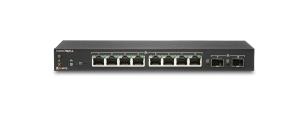

Switch Sws12-10 10 Port 2sfp Poe
ITCurry #: 11518710 | Article #: 02-SSC-2464-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
Explore the Switch Series
Your network is under more pressure than ever. As the number of connected devices expands, bandwidth demands continue to soar, making it difficult to consistently provide the secure, high-speed connection your business depends on.
SonicWall’s feature-rich switches answer the challenge delivering high-speed switching, so you can add more devices, keep up with SaaS proliferation and gain more control, all while protecting your network and your budget.
Its unified security posture makes it ideal for small and medium-sized businesses and Software Defined Branch (SD-Branch) deployments. Keep pace with the changing network and security landscape.
SD-Branch Ready
Integrates seamlessly with the SonicWall ecosystem to provide unified security posture.
10 Gigabit Connectivity
Attain significant boost in your overall switching performance as network demands grow.
Simplified Management
Whether through the firewall or cloud, with our single-pane-of-glass view, managing your security is easy.
Zero-Touch Deployment
Quickly set up, configure and deploy devices without the time and expense of site visits or on-site personnel.
Flexible Deployment Options
Multiple models provide you the flexibility to choose the best option aligned with your business goals.
Stackable Switch
Allows you to daisy chain multiple switches to enhance simplicity and scalability.
| Warranty | |
| Base Warranty | Non Non |
| Beheerfuncties | |
| Switch type | Managed |
| Switch-laag | L2 |
| System event log | Ja |
| MIB-ondersteuning | MIB-II |
| Poorten & interfaces | |
| Aantal basis-switching RJ-45 Ethernet-poorten | 10 |
| Type basis-switching RJ-45 Ethernet-poorten | Gigabit Ethernet (10/100/1000) |
| Aantal moduleslots SPF | 2 |
| Console port | RJ-45 |
| Netwerk | |
| Netwerkstandaard | IEEE 802.1ab, IEEE 802.1p, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at |
| 10G support | Nee |
| Koperen ethernetbekabelingstechnologie | 10BASE-T, 100BASE-TX, 1000BASE-LX, 1000BASE-SX, 1000BASE-T |
| Port mirroring | Ja |
| IP routing | Ja |
| Auto MDI/MDI-X | Ja |
| VLAN=ondersteuning | Ja |
| Virtuele LAN-functies | Tagged VLAN |
| Aantal VLANs | 4096 |
| Data-uitwisseling | |
| Switchingcapaciteit | 24 Gbit/s |
| MAC-adrestabel | 8000 entries |
| Jumbo Frames ondersteuning | Ja |
| Beveiliging | |
| DHCP-functies | DHCP client, DHCP relay, DHCP snooping |
| IGMP snooping | Ja |
| Ondersteunde beveiligingsalgoritmen | 802.1x RADIUS, HTTPS, SNMP, SSH |
| Multicast-functies | |
| Multicast-ondersteuning | Ja |
| Design | |
| Kleur van het product | Zwart |
| LED-indicatoren | Storing, Power over Ethernet (PoE), Stroom |
| Aantal ventilatoren | 1 ventilator(en) |
| Certificering | FCC Class A, ICES Class A, CE (EMC Class A, LVD, RoHS), C-Tick, VCCI Class A, UL cUL, TUV/GS, CB, Mexico UL DGN notification, WEEE, REACH, BSMI, KCC/MSIP, ANATEL |
| Prestatie | |
| Intern geheugen | 256 MB |
| Flash memory | 32 MB |
| Mean time between failures (MTBF) | 180837 uur |
| Energie | |
| Vermogenstoevoer inclusief | Ja |
| AC-ingangsspanning | 100 - 240 V |
| AC-ingangsfrequentie | 50 - 60 Hz |
| Stroom | 2.5 A |
| Vermogensverbruik (max) | 152,8 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Ja |
| Totaal Power over Ethernet (PoE)-budget | 130 W |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 0 - 40 øC |
| Temperatuur bij opslag | -40 - 70 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 10 - 95 procent |
| Warmtedissipatie | 521,1 BTU/h |
| Gewicht en omvang | |
| Breedte | 330 mm |
| Diepte | 44 mm |
| Hoogte | 230 mm |
| Gewicht | 2,5 kg |
| Logistieke gegevens | |
| Code geharmoniseerd systeem (HS) | 85176990 |
