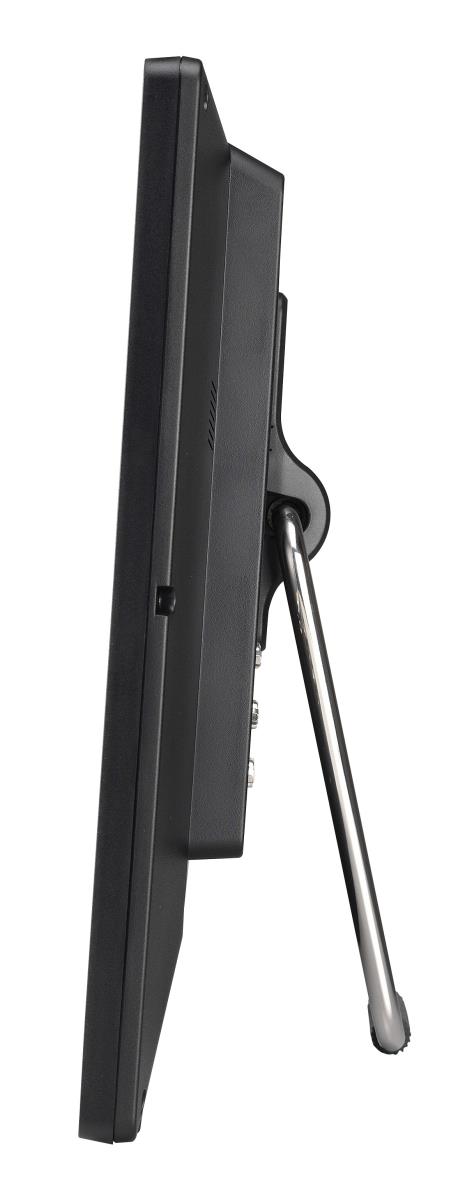

P9200PA - 19.5in - Celeron 5205U - 8GB Ram - 250GB SSD - Win 10 IoT - Black

ITCurry #: 88702750 | Article #: P9200PA
Prijs:
773,03 Excl. btw
Levering in Benelux:
GRATIS Levering.
Nu niet op voorraad. Bel ons!

Verwante producten

slide 6 to 10 of 15

Product Informatie

19.5” ALL-IN-ONE PC FOR POS, POI AND KIOSK APPLICATIONS
The Shuttle XPC all-in-one P9200PA is a fully configured All-in-One PC with Windows 10 and capacitive 19.5" touchscreen. An Intel Ultra-Low-Voltage (ULV) processor makes for high computing power while it keeps energy consumption at a low level. Thanks to its passive cooling, the system is virtually noiseless, maintenance-free and approved for 24/7 nonstop operation. Particularly suitable for vertical applications is the arrangement of connectors at the bottom and the IP54 compliant front panel which is dust-protected and protected from splashing of water.

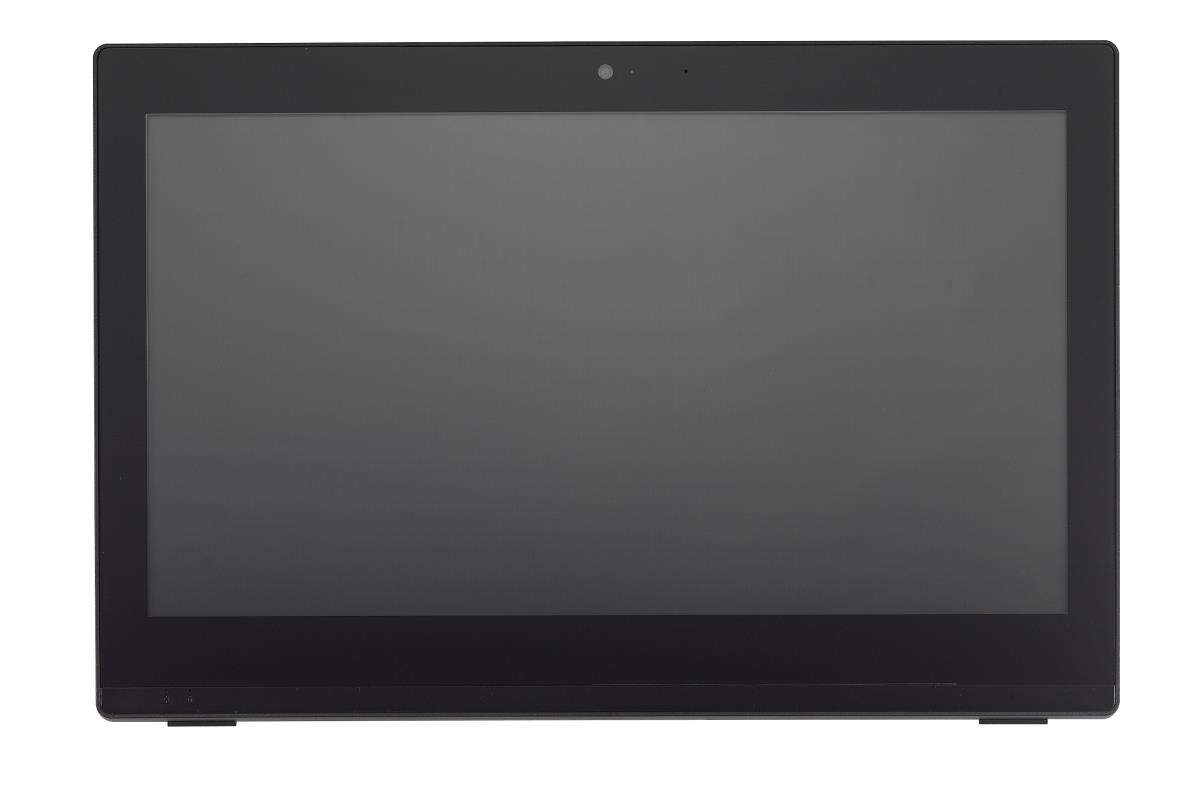

Beeldscherm
Beeldschermdiagonaal 49,5 cm (19.5")
Resolutie 1600 x 900 Pixels
Touchscreen Ja
HD type HD+
Oorspronkelijke beeldverhouding 16:9
Soort paneel LCD
Processor
Processorfabrikant Intel
Processorfamilie Intel© Celeron©
Processormodel 5205U
Aantal processorkernen 2
Frequentie van processor 1,9 GHz
Processor cache 2 MB
Configureerbare TDP-downfrequentie 0,8 GHz
Configureerbare TDP-down 12,5 W
Geheugen
Intern geheugen 8 GB
Intern geheugentype DDR4-SDRAM
Maximum intern geheugen 64 GB
Geheugenslots 2
Geheugen slots type SO-DIMM
Kloksnelheid geheugen 2400 MHz
Geheugen form factor DIMM/SO-DIMM
Opslagmedia
Totale opslagcapaciteit 250 GB
Opslagmedia SSD
Aantal storage drives ge‹nstalleerd 1
Totale capaciteit SSD's 250 GB
Aantal ge‹nstalleerde SSD's 1
SSD capaciteit 250 GB
SSD interfaces NVMe, PCI Express
NVMe Ja
SSD-vormfactor M.2
Soort optische drive Nee
Ge‹ntegreerde geheugenkaartlezer Ja
Compatibele geheugenkaarten SD, SDHC, SDXC
Grafisch
Aparte grafische adapter Nee
Discreet grafische adapter model Niet beschikbaar
Ingebouwde grafische adapter Ja
Interne-GPU-fabrikant Intel
On-board graphics adapter model Intel© UHD Graphics
Audio
Ingebouwde luidsprekers Ja
Aantal luidsprekers 2
Gemiddeld vermogen 2 W
Ingebouwde microfoon Ja
Camera
Ingebouwde camera Ja
Cameraresolutie 1920 x 1080 Pixels
Camera HD-type Full HD
Netwerk
Wifi Ja
Wifi-standaard Wi-Fi 5 (802.11ac)
Wi-Fi-standaarden 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Fabrikant van de WLAN-controller Realtek
WLAN-controller-model Realtek RTL8821CE
Ethernet LAN Ja
Ethernet LAN, data-overdrachtsnelheden 10,100,1000 Mbit/s
Bluetooth Ja
Bluetooth-versie 4.2

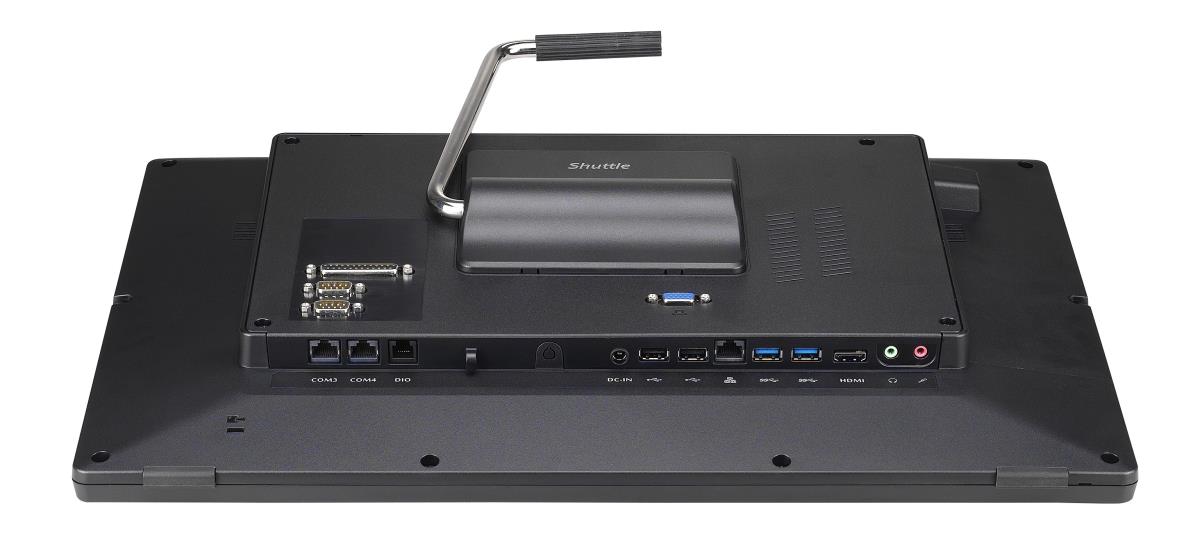

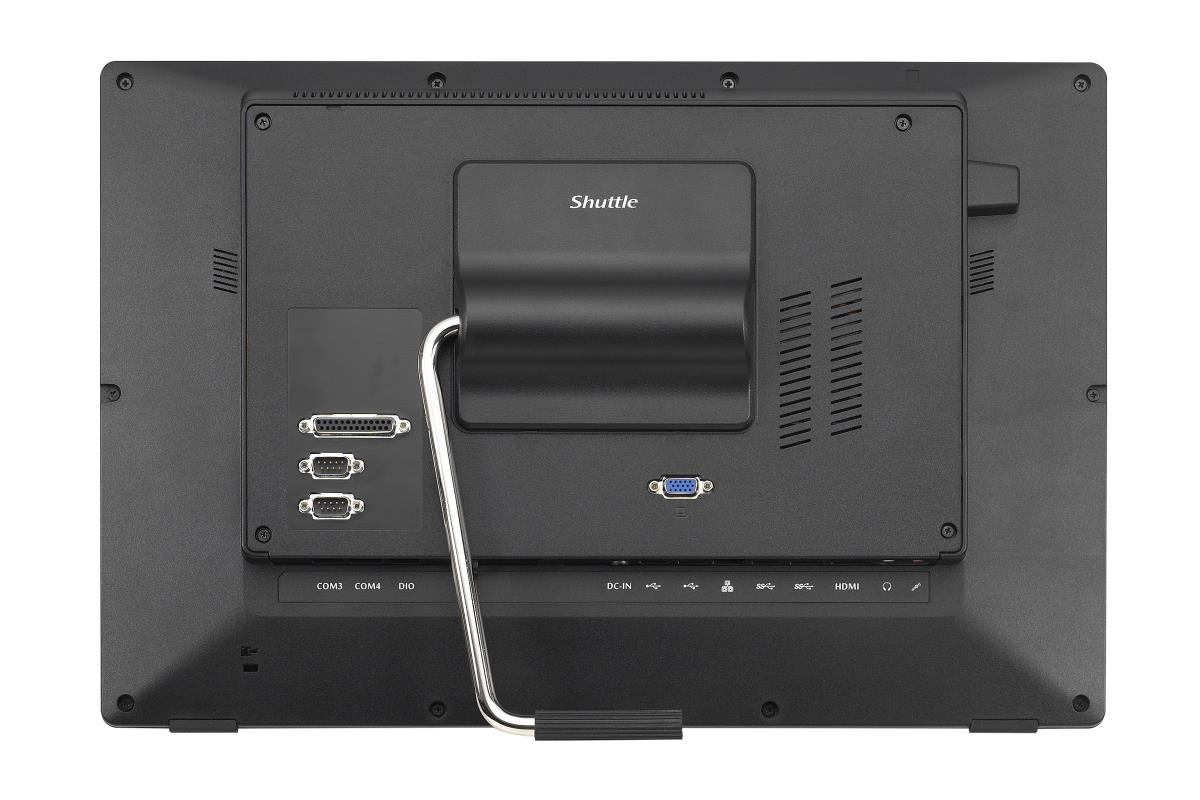

Poorten & interfaces
Aantal Ethernet LAN (RJ-45)-poorten 1
Aantal USB 2.0-poorten 2
Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A 4
Aantal HDMI-poorten 1
HDMI versie 1.4b
VGA (D-Sub)poort(en) 1
Hoofdtelefoonuitgangen 1
Microfoon, line-in ingang Ja
Aansluiting voor netstroomadapter Ja
Design
Kleur van het product Zwart
Bevestigingsmogelijkheid voor kabelslot Ja
Kabelslot sleuf type Kensington
Ophangsysteem voor aan de muur Ja
VESA-montage Ja
Paneelmontage-interface 100 x 100 mm
Land van herkomst China
Prestatie
Type product Alles-in-‚‚n-pc
Markt positionering Bedrijf
Chipset moederbord Intel SoC
Trusted Platform Module (TPM) Ja
Software
Architectuur besturingssysteem 64-bit
Inclusief besturingssysteem Windows 10 IoT Enterprise
Processor speciale functies
Enhanced Intel SpeedStep Technology Ja
Intel© Clear Video-technologie Ja
Intel© Flex Memory Access Ja
Intel© Trusted Execution Technology Nee
Intel© VT-x with Extended Page Tables (EPT) Ja
Intel© TSX-NI Nee
Intel© Software Guard Extensions (Intel© SGX) Ja
Intel© 64 Ja
Execute Disable Bit Ja
Idle States Ja
CPU configuratie (max) 1
Ingebouwde opties beschikbaar Nee
Intel© Virtualization Technology for Directed I/O (VT-d) Ja
Intel© Virtualization Technology (VT-x) Ja
Energie
AC-adapter, vermogen 65 W
AC-adapterfrequentie 50/60 Hz
AC-adapter ingangsspanning 100 - 240 V
AC-adapter, uitgangsspanning 19 V
Gewicht en omvang
Breedte apparaat (met standaard) 487 mm
Diepte apparaat (met standaard) 44 mm
Hoogte apparaat (met standaard) 321 mm
Gewicht (met standaard) 4,29 kg
Gewicht verpakking 5,62 kg
Eisen aan de omgeving
Bedrijfstemperatuur (T-T) 0 - 40 øC
Relatieve vochtigheid in bedrijf (V-V) 10 - 90 procent
Certificaten
Compliance certificates RoHS
Certificering CE, RED, FCC, RCM, VCCI
Duurzaamheid
Duurzaamheidscertificaten ENERGY STAR
Inhoud van de verpakking
Meegeleverde kabels AC
Logistieke gegevens
Code geharmoniseerd systeem (HS) 84713000
Warranty
Base Warranty Non Non
