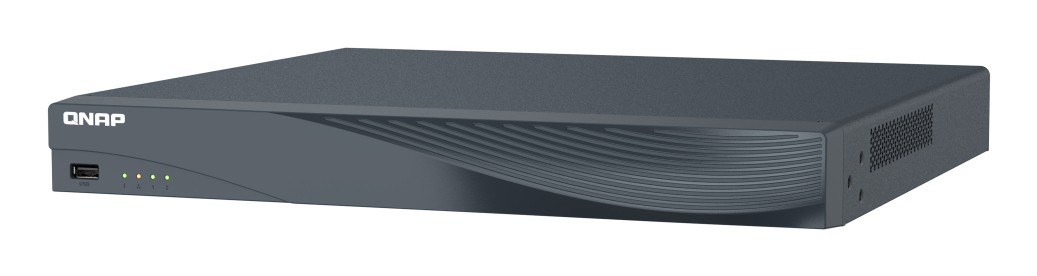

NVR - 16 channel POE+ K3568 Quad-Core Cortex-A55
ITCurry #: N222F171 | Article #: TVR-AI200-16CH-16P-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
The cost-efficient and high-performing TVR-AI200 NVR features two fixed 2.5-inch/3.5-inch SATA hard drive bays and sixteen PoE+ ports. It is plug-and-play in offline mode, and within 10 minutes, you can complete setup and start recording. The TVR-AI200 supports real-time video display and playback with resolutions up to 16 megapixels (MP), H.265+ compression technology, AI video analytics, and remote backup. With the TVR-AI200, smart retail and small-to-medium businesses can deploy smart video surveillance solutions on a budget, ensuring around-the-clock environmental safety.
4K high-resolution video
The monitoring interface allows you to playback up to 16MP footage and output clear footage through the 4K HDMI™ port. It supports advanced compression technologies like H.265+ provided by the cameras, effectively reducing network bandwidth and halving storage space requirements.
Supports ONVIF® S/T/G standards
Compatible with over 200 brands and more than 8,000 cameras, and supports third-party camera events and API platform services, providing high hardware and software compatibility.
Easy installation, quick deployment
Its 16 PoE+ ports directly powers IP cameras, transmitting both power and data through a single Ethernet cable, eliminating the need for complex cabling.
24/7 recording
Supports hard drives with capacities up to 24TB for storing recordings for over 540 days. Combined with QNAP's active backup solution, TVR-AI200 ensures uninterrupted multi-site video surveillance.
Remote monitoring, powerful management
Advanced real-time detection, notifications, and prompt response to suspicious events, with flexible monitoring through computers or mobile devices to keep you in control.
Lightweight AI Business Analytics
Built-in NPU acceleration for smart image/video recognition, offering advanced AI capabilities such as facial recognition and people counting, even without AI-enabled cameras.
16 PoE plug-and-play ports for IP Cameras
The TVR-AI200 complies with the 802.3at PoE+ standard, is equipped with 16 ports providing 25.5-watt PoE. A single Ethernet cable can simultaneously deliver data and power, supplying power to various 4K PTZ (Pan-Tilt-Zoom) cameras, fisheye cameras, and other high-powered IP cameras, with a total power supply capacity of up to 130W. When paired with a UPS (Uninterruptible Power Supply), it can easily support continuous recording for up to one hour during a power outage.
| Prestatie | |
| Videoingangkanalen | 16 kanalen |
| Maximum resolutie | 1920 x 1080 Pixels |
| Resolutie bij opnamesnelheid | 1920x1080@30fps |
| Intern geheugen | 4096 MB |
| Ondersteunde talen | Duits, Engels |
| Gegevensdoorvoersnelheid | 160 Mbit/s |
| Syslog | Ja |
| Aantal ventilatoren | 1 ventilator(en) |
| Draadloos LAN | |
| Wifi | Nee |
| Harde schijf | |
| HDD capaciteit | 0 GB |
| Maximum aantal HDD's per behuizing | 2 |
| HDD interface | SATA |
| HDD omvang | 2.5/3.5" |
| RAID support | Ja |
| Soorten RAID | 1 |
| Poorten & interfaces | |
| Aantal Ethernet LAN (RJ-45)-poorten | 1 |
| Power over Ethernet (PoE) | Ja |
| Ethernet LAN, data-overdrachtsnelheden | 10,100,1000 Mbit/s |
| Hoeveelheid Power over Ethernet (PoE) ports | 16 |
| HDMI-uitgang | Ja |
| Aantal HDMI-poorten | 1 |
| Aantal USB 2.0-poorten | 2 |
| Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A | 1 |
| Kenmerken | |
| Rack-montage | Ja |
| Rackcapaciteit | 1U |
| LED-indicatoren | HDD, LAN, Status |
| Reset button | Ja |
| Kleur van het product | Zwart |
| Processor | |
| Type processor | Ja |
| Aantal processorkernen | 4 |
| Frequentie van processor | 2 GHz |
| Energie | |
| Stroomverbruik (typisch) | 23,9 W |
| AC-ingangsspanning | 100 - 240 V |
| Netvoeding | 190 W |
| Vermogen per poort Power over Ethernet (PoE) | 25,5 W |
| Totaal Power over Ethernet (PoE)-budget | 130 W |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 0 - 40 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 5 - 95 procent |
| Gewicht en omvang | |
| Breedte | 360 mm |
| Diepte | 333 mm |
| Hoogte | 44 mm |
| Gewicht | 2,16 kg |
| Gewicht verpakking | 3,6 kg |
| Warranty | |
| Base Warranty | Non Non |
