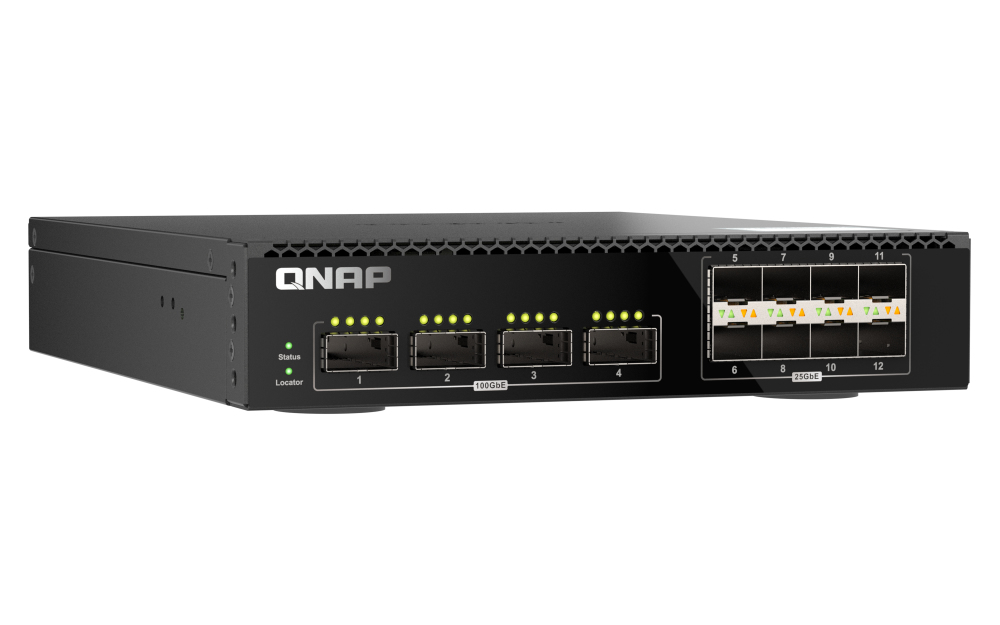

Managed Switch - QSW-M7308R-4X 4 port 100GbE 8 port 25GbE half-rackmount design
ITCurry #: N222A714 | Article #: QSW-M7308R-4X-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
100GbE/25GbE Network
Includes four 100GbE QSFP28 and eight 25GbE SFP28 fiber ports to offer a backbone switching capacity of 1200Gbps for uplinking server rooms.
User-friendly management interface
The user-friendly QNAP Switch System (QSS) centralizes and simplifies central network management with an overview dashboard, port management, and settings guide.
Layer 2 network
Provides Layer 2 management features (such as LACP, VLAN, ACL and LLDP) for efficiently controlling network bandwidth and enhancing security.
Space-saving half-width design
One of the few compact 100GbE switches on market, the QSW-M7308R-4X, can be installed in a 1U rack space with another half-width rackmount switch for efficient physical space utilization.
Compatible with QNAP NAS
Supports FEC (Forward Error Correction) and IEEE-802.3ap Auto-Negotiation for high compatibility to connect to QNAP 25GbE NAS or NAS installing 100G network cards for high-performance, low-latency computing.
Online firmware update
QSS can be updated with just one click, helping IT staff ensure their network security.
Embrace the ultra-high-speed 100GbE network generation!
According to market research, the demand for 100GbE switches has taken off in 2023. Enterprises, hyperscalers, and service providers worldwide continue to invest in higher-speed network infrastructure to support higher-speed servers and higher bandwidth demands of new applications such as Generative AI workloads.
High switching capacity of 1200Gbps for backbone networks
The QSW-M7308R-4X has four 100GbE QSFP28 and eight 25GbE SFP28 fiber ports and offers a backbone switching capacity of 1200Gbps, guaranteeing the full potential of each port. The QSW-M7308R-4X can uplink to 100G servers and NAS in server rooms or connect to 25GbE switch QSW-M5216-1T.

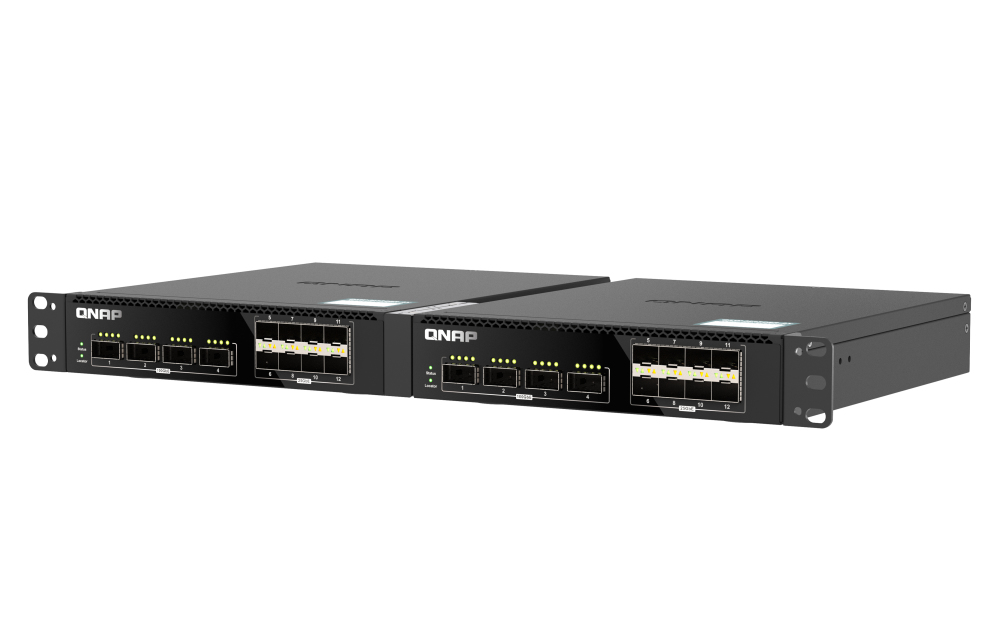

Half-width design, two models in 1U
With a half-width rackmount design, a QSW-M7308R-4X can be installed in a 1U rack space with another half-width rackmount switch (such as QSW-M7308R-4X and QSW-M3216R-8S8T) for efficient physical space utilization and tidy cabling.
Flexible deployment with multiple 100GbE and 25GbE ports

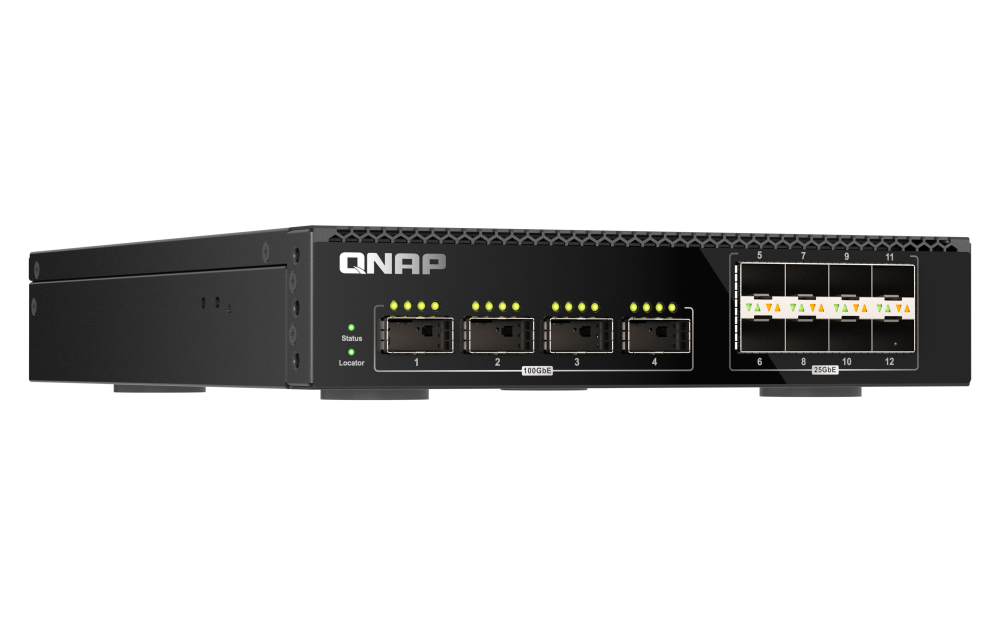

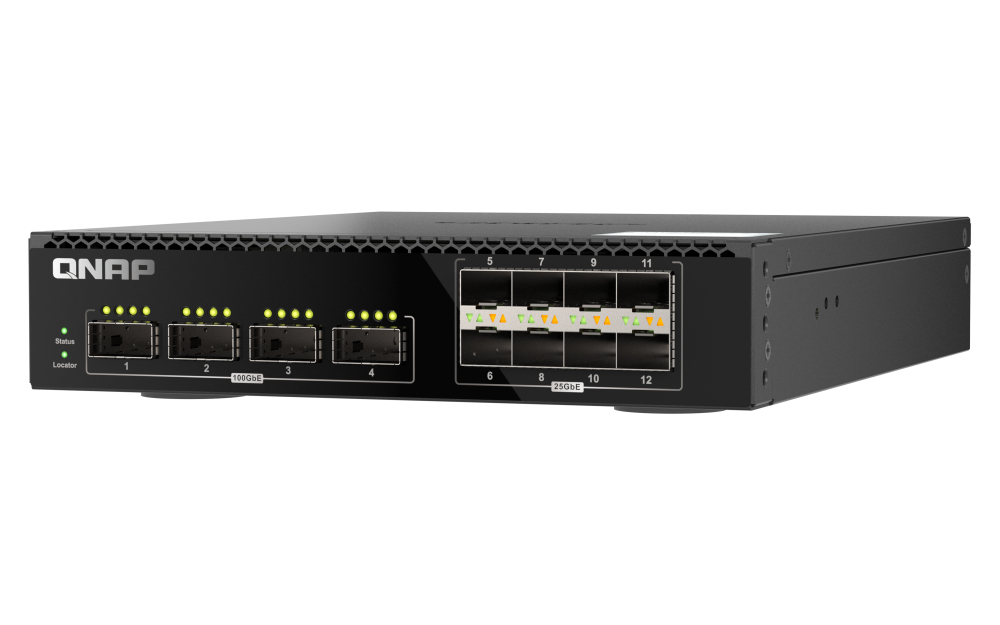

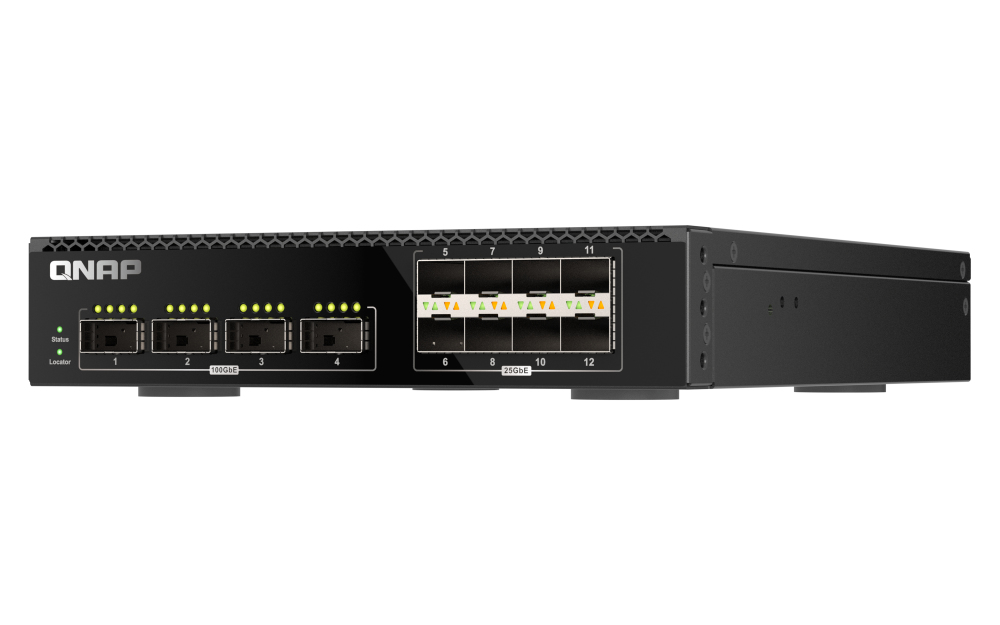

The QSW-M7308R-4X has four 100GbE QSFP28 and eight 25GbE SFP28 fiber ports for enabling hybrid high-speed networks. Its 25GbE SFP28 interfaces are backward compatible with 10GbE SFP+/1GbE SFP interfaces, and the 100GbE QSFP28 interface can be uplinked to 100GbE+ core switches, or connected to 100GbE+ servers/NAS directly.*
Pair with a NAS and 100GbE network expansion card for high-performance, low-latency computing
Connect a QSW-M7308R-4X to multiple NAS with 100GbE/25GbE network cards to offer 100GbE/25GbE connectivity. Up to 200GbE network transmission can be achieved connecting to a NAS with a QXG-100G2SF-CX6 installed.
Optimize network performance with bandwidth and packet control
The QSW-M7308R-4X provides bandwidth and packet control functions (such as LACP, VLAN, QoS, and IGMP Snooping) to boost network performance through IP grouping and bandwidth management.
Powerful security and system functions
The QSW-M7308R-4X has powerful security and system functions (including ACL, LLDP, RSTP and Flow Control) to help administrators enhance network reliability using access controls, troubleshooting, loop prevention and avoiding packet loss.
Dependable performance with effective heat dissipation
With a compact metal body, the QSW-M7308R-4X provides stable and reliable operations while staying near-silent even when under full load. The front-panel LEDs also assist in viewing the current system status.
QNAP high-speed switch solutions for diverse business network environments
QNAP provides comprehensive enterprise managed and unmanaged switches with speeds ranging from 2.5GbE, 10GbE to 25GbE and covering PoE, industrial-grade, rackmount, and desktop models. QNAP’s all-inclusive high-speed switches assist businesses in quickly deploying high-speed network infrastructure, accelerating enterprise backbone, smart hotels, retail, and industry 5.0 applications.
A High-speed NAS for Your High-speed Network Environment
QNAP’s high-speed NAS offer a reliable storage space for your local network applications.
| Beheerfuncties | |
| Switch type | Managed |
| Switch-laag | L2 |
| Poorten & interfaces | |
| Aantal basis-switching RJ-45 Ethernet-poorten | 12 |
| Aantal beheerpoorten | 1 stuk(s) |
| Console port | RJ-45 |
| Aantal QSFP28-poorten | 4 |
| Aantal SFP28-poorten | 8 |
| Netwerk | |
| Netwerkstandaard | IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | Nee |
| Data-uitwisseling | |
| Switchingcapaciteit | 1200 Gbit/s |
| Doorvoercapaciteit | 600 Gbit/s |
| MAC-adrestabel | 32000 entries |
| Jumbo Frames ondersteuning | Ja |
| Jumbo frames | 9000 |
| Design | |
| Rack-montage | Ja |
| Vormfactor | 1U |
| Reset button | Ja |
| Aantal ventilatoren | 2 ventilator(en) |
| Technische details | |
| Garantieperiode | 2 jaar |
| Certificaten van naleving | BSMI, CE, Federal Communications Commission (FCC), VCCI |
| Energie | |
| Stroombron | AC |
| Vermogenstoevoer inclusief | Ja |
| AC-ingangsspanning | 100 - 240 V |
| AC-ingangsfrequentie | 50/60 Hz |
| Vermogensverbruik (max) | 100 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Nee |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 0 - 40 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 5 - 95 procent |
| Gewicht en omvang | |
| Breedte | 207 mm |
| Diepte | 248,8 mm |
| Hoogte | 43,3 mm |
| Gewicht | 1,78 kg |
| Verpakking | |
| Gewicht verpakking | 2,63 kg |
