8GB Pci-e Dual Port Fibre Channel Host Bus Adapter
ITCurry #: 11042230 | Article #: QLE2562-CK-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie

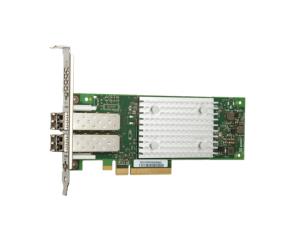

QLE2562 Host Bus Adapter
The QLE2562 is a PCI Express, dual port, Fibre Channel adapter. The QLE2562 is part of the QLE2500 adapter product family that offers next generation 8Gb Fibre Channel technology, meeting the business requirements of the enterprise data center.
Virtualization Optimized
The QLE2562 delivers enhanced security, Quality of Service (QoS), and enables dynamic provisioning. The QLE2562 allows multiple logical (virtual) connections to share the same physical port. Each logical connection has its own resources and the ability to be managed independently.
Power Optimized
The QLE2562 takes advantage of QLogic StarPower technology, ensuring power efficiency. QLogic StarPower technology offers dynamic and adaptive power management features such as power and bandwidth optimized intelligent PCI Express link training, low-power switching power supplies, and thermally efficient layout requiring lower airflows.
RAS Optimized
The QLE2562 provides the highest data integrity by ensuring Overlapping Protection Domains (OPD) on both the control and data paths. The QLE2562 also utilizes Enhanced Hardware Assist Firmware Tracing (EHAFT), allowing more comprehensive debugging with standard drivers.
Security Optimized
The QLE2562 enables SAN-level authentication (FC-SP), fabric-level isolation (NPIV), and is capable of end-to-end data integrity (T10).
Management Optimized
The QLE2562 is backward compatible with 4Gb and 2Gb speeds. A single common driver per operating system for three generations of FC HBAs (8Gb, 4Gb, and 2Gb) simplifies deployment. QLogic’s unified driver model (firmware embedded in the driver) eliminates potential interoperability issues between firmware and driver versions. The QLE2562’s API compatibility with 4Gb products accelerates deployment while ensuring application compatibility.
Investment Protection
For over 15 years, QLogic has been a technological leader with products that address the current needs of customers, yet provide strong investment protection to support emerging technologies and standards. QLogic stands alone in the industry with its product portfolio depth and experience in successfully delivering technological solutions that address the needs of today and tomorrow.
| Poorten & interfaces | |
| Hostinterface | PCIe |
| Design | |
| Certificering | FCC Part 15, Subpart B, Class A; ICES-003, Class A EN55022, Class A AS/NZS 3548 Class A VCCI V-3/2004.4, Class A MIC BSMI (CNS 13438) UL, cUL: UL60950, CSA C22.2 No.60950, Class 1 Laser Product per DHHS 21CFR J 73/23/ECC Low Voltage Directive TUV: EN60950-1:2001, EN60825-2:1994+A1, EN60825-2:1994+A1 |
| Energie | |
| Stroomverbruik (typisch) | 6,2 W |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 0 - 55 øC |
| Temperatuur bij opslag | -40 - 70 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 10 - 90 procent |
| Relatieve luchtvochtigheid bij opslag (geen condensering) | 5 - 93 procent |
| Logistieke gegevens | |
| Code geharmoniseerd systeem (HS) | 84733020 |
| Overige specificaties | |
| Overdrachtssnelheid | 8 Gbit/s |
| Aantal poorten | 2 |
| Aansluitingen | Dual 8Gbps Fibre Channel SFP+ with LC-style connector |
| Connectiviteitstechnologie | Bedraad |
| Vormfactor | Low-profile PCIe |
| Mac-compatibiliteit | Nee |
| Compatibele besturingssystemen | Windows Server 2003, Windows XP Pro x64, Windows Vista (Business and Enterprise), Windows Server 2008 Solaris 10 (x86 and SPARC, Open Solaris) Red Hat AS 5.x, 4.x Novell SLES 11, 10, 9 NetWare 6.5 |
| Warranty | |
| Base Warranty | Non Non |
