Open Ethernet Switch Ge Rj45 1u With Oni
ITCurry #: Q6253363 | Article #: 920-9N010-00R1-0C0-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie

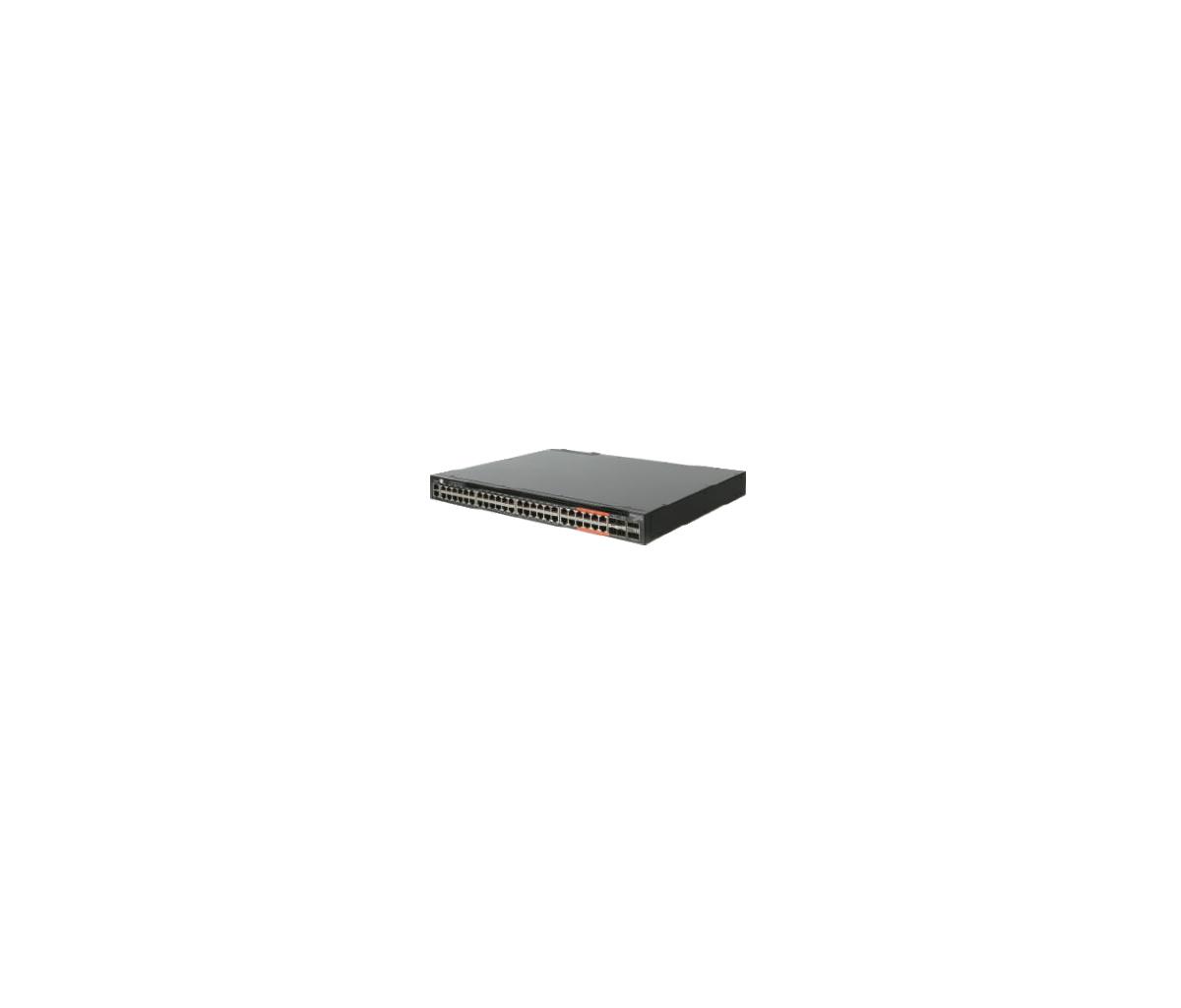

The Edgecore AS4610 series is a high-performance Gigabit Ethernet Layer 3 switch family featuring 54 ports; 48 10/100/1000BASE-T ports, 4 x 10G SFP+ uplink ports, and 2 x 20G QSFP+ stacking ports (Stacking capability subject to NOS implementations).
The AS4610-54T is ideal as a data center top-of-rack switch or IPMI (Intelligent Platform Management Interface) switch, it includes redundant hot-swappable AC PSUs and port-to-power or power-to-port (AS4610-54T v1 only) airflow.The AS4610-54P v1 fully supports IEEE 802.3at and IEEE 802.3af Power-over-Ethernet (PoE). The AS4610-54P v1 is an ideal for campus networking and able to provide up to 30 Watts of power per port to attached devices (eight ports support UPoE up to 60 W per port), such as VoIP phones, wireless access points, surveillance cameras etc, fully utilizing existing Cat. 5 cable infrastructure.
| Beheerfuncties | |
| Switch type | Managed |
| Switch-laag | L2/L3 |
| Cloud-beheerd | Ja |
| Poorten & interfaces | |
| Aantal basis-switching RJ-45 Ethernet-poorten | 48 |
| Type basis-switching RJ-45 Ethernet-poorten | Gigabit Ethernet (10/100/1000) |
| Aantal moduleslots SPF+ | 4 |
| Aantal GSFP+-moduleslots | 2 |
| Console port | RJ-45/Micro-USB |
| Netwerk | |
| Netwerkstandaard | IEEE 802.3af, IEEE 802.3at |
| Data-uitwisseling | |
| Switchingcapaciteit | 128 Gbit/s |
| Verzending snelheid | 191 Mpps |
| MAC-adrestabel | 96000 entries |
| Jumbo Frames ondersteuning | Ja |
| Packet buffergeheugen | 4 MB |
| Design | |
| Rack-montage | Ja |
| Stapelbaar | Nee |
| Vormfactor | 1U |
| Kleur van het product | Zwart |
| LED-indicatoren | Ja |
| Aantal ventilatoren | 2 ventilator(en) |
| Certificering | CE, RoHS, WEEE, FCC Class A, CB, UL, CCC, BSMI |
| Prestatie | |
| Type processor | Ja |
| Processormodel | Broadcom BCM56340 |
| Type geheugen | DDR3-SDRAM |
| Intern geheugen | 2000 MB |
| Flash memory | 8000 MB |
| Energie | |
| Vermogenstoevoer inclusief | Ja |
| AC-ingangsspanning | 100 - 240 V |
| AC-ingangsfrequentie | 50 - 60 Hz |
| Vermogensverbruik (max) | 99,1 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Ja |
| Hoeveelheid Power over Ethernet (PoE) ports | 48 |
| Vermogen per poort Power over Ethernet (PoE) | 30 W |
| Totaal Power over Ethernet (PoE)-budget | 1650 W |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 0 - 45 øC |
| Temperatuur bij opslag | -40 - 70 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 5 - 95 procent |
| Gewicht en omvang | |
| Breedte | 440 mm |
| Diepte | 350 mm |
| Hoogte | 45 mm |
| Gewicht | 6,36 kg |
| Warranty | |
| Base Warranty | Non Non |
