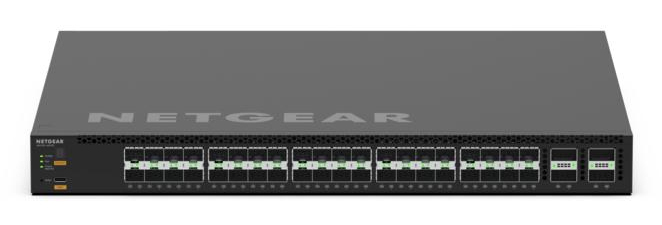

Managed Switch XSM4344C 44 Port - 40x10G/Multi-Gig PoE++ (196W base, up to 1676W) and 4xQSFP28 100G
ITCurry #: 20325592 | Article #: XSM4344FC-100NES-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
POWER AND
THROUGHPUT
Edge to core flexible platform, from 1 Gigabit to 100 Gigabit, good for projects of all sizes.
Groundbreaking AV GUI
A simplified user interface makes it easy to assign configuration profiles to each port.
Multicast in an Instant
NETGEAR IGMP Plus™ provides multicast functionality right out of the box for most AV over IP applications.
Sleek, Quiet Design
Less fan noise, and mounting ears included for rack mounting.
Automatic Configuration
Auto-trunk and auto-LAG functionality auto connects with other M4350
FOCUS ON THE EVENT
NOT FAN NOISE
Most models have quiet mode which greatly reduces fan noise.
DESIGNED FOR AV OVER IP RIGHT OUT OF THE BOX
With built-in NETGEAR IGMP Plus™, there's little-to-no setup required for flawless audio and video delivery. Enable multicasting right out of the box.
MAXIMIZE PERFORMANCE WITH PRO WIFI ACCESS POINTS
Enable powerful, reliable WiFi at your location with Pro WiFi access points, powered by PoE or an external power adapter.
| Beheerfuncties | |
| Switch type | Managed |
| Switch-laag | L3 |
| Poorten & interfaces | |
| Aantal ge‹nstalleerde SFP+ modules | 40 |
| Fibre channel-poorten | 44 |
| Vezel-optische connector | QSFP28, SFP+ |
| Console port | USB |
| Aantal QSFP28-poorten | 4 |
| Netwerk | |
| 10G support | Ja |
| Data-uitwisseling | |
| Switchingcapaciteit | 1600 Gbit/s |
| Jumbo Frames ondersteuning | Ja |
| Beveiliging | |
| IGMP snooping | Ja |
| IGMP-proxy | Ja |
| Design | |
| Rack-montage | Ja |
| Stapelbaar | Ja |
| Vormfactor | 1U |
| Kleur van het product | Zwart |
| Prestatie | |
| Type geheugen | DDR4-SDRAM |
| Intern geheugen | 4000 MB |
| Geluidsniveau | 69,5 dB |
| Energie | |
| Stroombron | AC |
| Vermogenstoevoer inclusief | Ja |
| Vermogensverbruik (max) | 213,6 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Nee |
| Eisen aan de omgeving | |
| Warmtedissipatie | 728,21 BTU/h |
| Gewicht en omvang | |
| Breedte | 440 mm |
| Diepte | 400 mm |
| Hoogte | 43,2 mm |
| Gewicht | 7,38 kg |
| Inhoud van de verpakking | |
| Meegeleverde kabels | AC, USB |
| Gebruikershandleiding | Ja |
| Rekbevestigingspakket | Ja |
| Warranty | |
| Base Warranty | Non Non |
