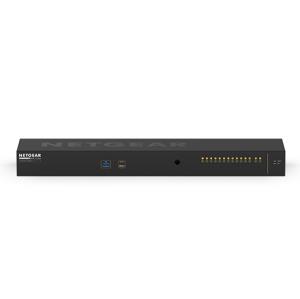

GSM4212P - M4250-10G2F-PoE+ AV Line Managed Switch 2x1G 2xSFP+ and 8x1G PoE+ 125W
ITCurry #: 20325322 | Article #: GSM4212P-100EUS-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
Switching engineered for 1G AV over IP with PoE+, Ultra90 PoE++ and rear-facing ports ensuring a clean integration in AV racks. M4250 switches come pre-configured for standard audio and video signals. When requirements are more specific, an AV user interface offers customization with port-based profiles. For audio Dante, Q-SYS and AES67 profiles are available, as well as an AVB profile requiring an AVB license sold separately. For video the M4250 offers profiles for NVX, SVSI, Q-SYS, NDI, Dante etc. as well as audio/video/control mixed profiles. When multiple switches, NETGEAR IGMP Plus brings automation for you to just connect them together.
M4250 Support for Audio Video Bridging (AVB)
One of the many features designed into the new M4250 product line is full support for Audio Video Bridging (AVB), an industry standard for transporting content over a network. AVB is used most often when very low latency is required such as in live performances when lip sync is critical. All of the AV Line M4250 switches can be optionally licensed for AVB support.
| Beheerfuncties | |
| Switch type | Managed |
| Switch-laag | L2/L3 |
| Quality of Service (QoS) | Ja |
| Poorten & interfaces | |
| Aantal basis-switching RJ-45 Ethernet-poorten | 10 |
| Type basis-switching RJ-45 Ethernet-poorten | Gigabit Ethernet (10/100/1000) |
| Aantal moduleslots SPF | 2 |
| Netwerk | |
| Netwerkstandaard | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x |
| 10G support | Nee |
| Full duplex | Ja |
| Verbindingsaggregatie | Ja |
| Broadcast stormbeheer | Ja |
| Rate limiting | Ja |
| Spanning tree protocol | Ja |
| VLAN=ondersteuning | Ja |
| Virtuele LAN-functies | MAC address-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN |
| Aantal VLANs | 4093 |
| Data-uitwisseling | |
| Switchingcapaciteit | 24 Gbit/s |
| Throughput | 17,86 Mpps |
| MAC-adrestabel | 16000 entries |
| Store-and-forward | Ja |
| Latentie (1 Gbps) | 2,27 æs |
| Aantal wachtrijen | 8 |
| Jumbo Frames ondersteuning | Ja |
| Jumbo frames | 12000 |
| Packet buffergeheugen | 16 MB |
| Beveiliging | |
| DHCP-functies | DHCP Option 82, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 relay, DHCPv6 server, DHCPv6 snooping |
| Access Control List (ACL) | Ja |
| IGMP snooping | Ja |
| SSH/SSL support | Ja |
| Bescherming lus | Ja |
| BPDU filtering / bescherming | Ja |
| Authenticatie | MAC-gebaseerde authenticatie |
| Authenticatie type | RADIUS |
| Multicast-functies | |
| Multicast-ondersteuning | Ja |
| IPv4-multicast-vermeldingen | 2000 |
| IPv6-multicast-vermeldingen | 2000 |
| Design | |
| Rack-montage | Ja |
| Vormfactor | 1U |
| Kleur van het product | Zwart |
| LED-indicatoren | Power over Ethernet (PoE), Stroom, Status |
| Prestatie | |
| Type processor | Ja |
| Processormodel | ARM Cortex-A9 |
| Frequentie van processor | 1250 MHz |
| Intern geheugen | 2048 MB |
| Geluidsniveau | 30,06 dB |
| Mean time between failures (MTBF) | 778769 uur |
| Energie | |
| Stroomverbruik (typisch) | 163,9 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Ja |
| Aantal Power over Ethernet plus (PoE +)-poorten | 8 |
| Vermogen per poort Power over Ethernet (PoE) | 30 W |
| Totaal Power over Ethernet (PoE)-budget | 150 W |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 0 - 50 øC |
| Temperatuur bij opslag | -20 - 70 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 0 - 90 procent |
| Luchtvochtigheid bij opslag | 0 - 95 procent |
| Hoogte, in bedrijf | 0 - 3000 m |
| Hoogte bij opslag | 0 - 3000 m |
| Warmtedissipatie | 559,555 BTU/h |
| Gewicht en omvang | |
| Breedte | 440 mm |
| Diepte | 200 mm |
| Hoogte | 43,2 mm |
| Gewicht | 2,85 kg |
| Logistieke gegevens | |
| Code geharmoniseerd systeem (HS) | 85176990 |
| Warranty | |
| Base Warranty | Non Non |
