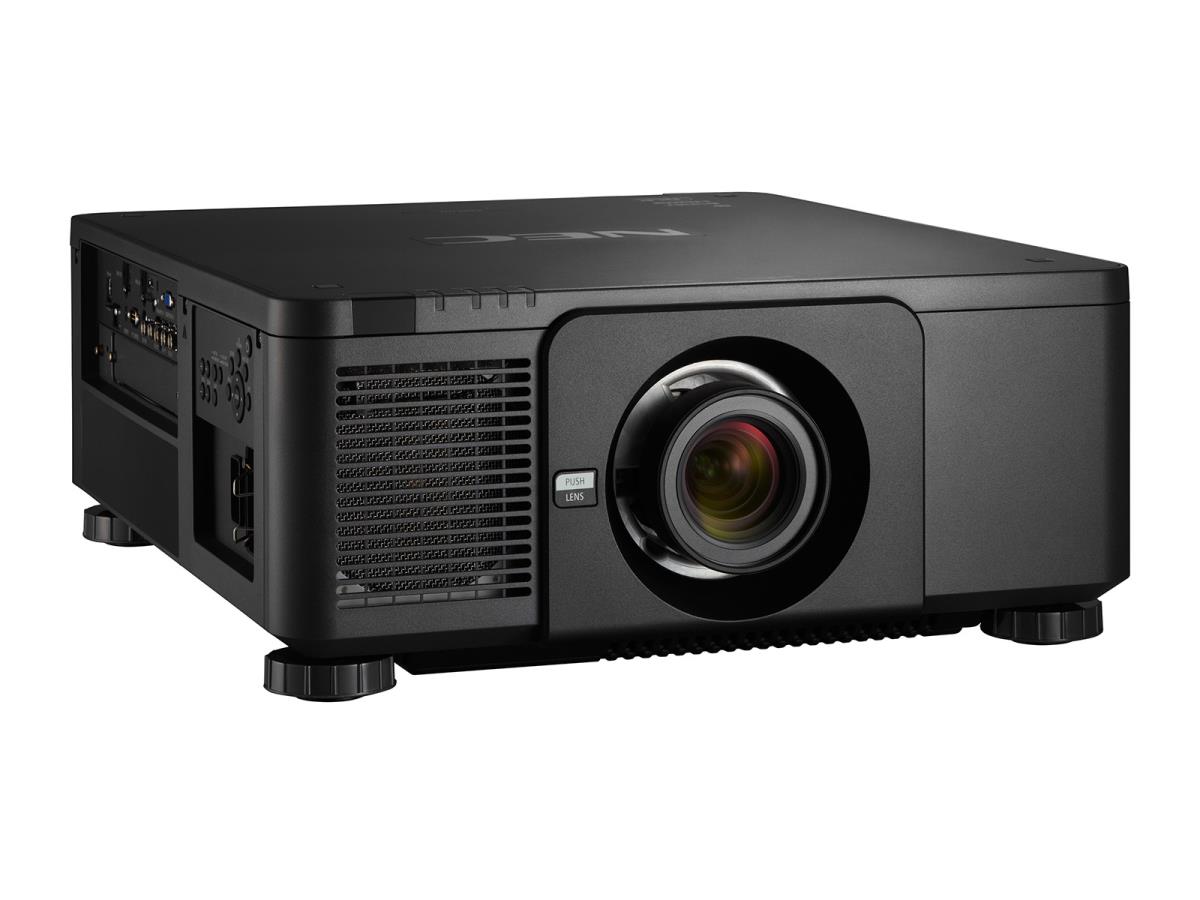

Projector Px1004ul Wuxga Black
ITCurry #: 38908367 | Article #: 60004235-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
The PX1004UL – simply “install & forget”. First grade high end blue laser diode light source, combined with an unique quality Phosphor wheel technology and no filter replacement required, results in an up to 20,000 hours hassle free operation. These features, bundled with a low overall power consumption, provide exceptional reliability and an attractive total cost of ownership addressing long lasting Signage installations or Museums.
Superior cinema picture quality, especially on large screens is provided by 4k signal processing performance. Enhanced by an optional new ultra-short throw lens, this projector is also perfectly suited for Rental/Staging, Higher Education and large Corporate installations.
All in all a perfect custom-tailored solution, saving you valuable time and money for a secure investment into a brighter future.
- Resource-saving - up to 20,000 h maintenance-free operation thanks to Laser Light Source technology, filter less dust shielded design & integrated liquid cooling system.
- Hassle-free Installation - wide zoom bayonet lens portfolio & support of third party lenses (ask your local trusted NEC partner) enables customised installations and easy replacement of current installation projectors.
- Outstanding Picture Quality - whole new visualisation experience with high brightness, up to 4K input signal and unique picture & colour processing technology based on the latest NEC scaler chip.
- Easy Way to Large Viewing - use the OPS slot for built-in players, HDMI-out signal loop-through, built-in signal splitter and edge blending capability to provide large presentation pictures.
- Maximum Flexibility - 360 degree installation in any direction, unique geometric adjustment, Picture in Picture and 3D support offer unrivalled installation capabilities for any application.
- Cost Saving Device Management - save effort whilst administrating all connected NEC devices from a centralised location by using the NaViSet Administrator 2 software tool.
| Projector | |
| Ondersteunde beeldverhoudingen | 16:10 |
| Geschikt voor schermmaten | 1016 - 12700 mm (40 - 500") |
| Projectie-afstand objectief | 0,86 - 118 m |
| Projector helderheid | 10000 ANSI lumens |
| Projectietechnologie | DLP |
| Projector native resolution | WUXGA (1920x1200) |
| Typische contrastverhouding | 10000:1 |
| Oorspronkelijke beeldverhouding | 16:10 |
| Frequentiebereik horizontaal | 15 - 153 kHz |
| Frequentiebereik verticaal | 24 - 120 Hz |
| Keystone correctie, horizontaal | -40 - 40ø |
| Keystone correctie, verticaal | -40 - 40ø |
| Lichtbron | |
| Type lichtbron | Laser |
| Levensduur van de lichtbron | 20000 uur |
| Aantal lampen | 1 lampen |
| Lenssysteem | |
| Focus | Auto |
| Zoomcapaciteit | Ja |
| Zoom type | Auto |
| Horizontale lens verplaatsingsbereik | -0,15 - 0,15ø |
| Verticale lens verplaatsingsbereik | -0,3 - 0,5ø |
| Aantal optionele lenzen ondersteund | 8 |
| Video | |
| Formaat analoog signaal | NTSC, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM |
| Volledige HD | Ja |
| 3D Ready | Ja |
| Ondersteunde grafische resoluties | 640 x 480 (VGA), 1920 x 1200 (WUXGA), 2048 x 1080, 2560 x 1600 (WQXGA), 4096 x 2160 |
| Ondersteunde video-modi | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |

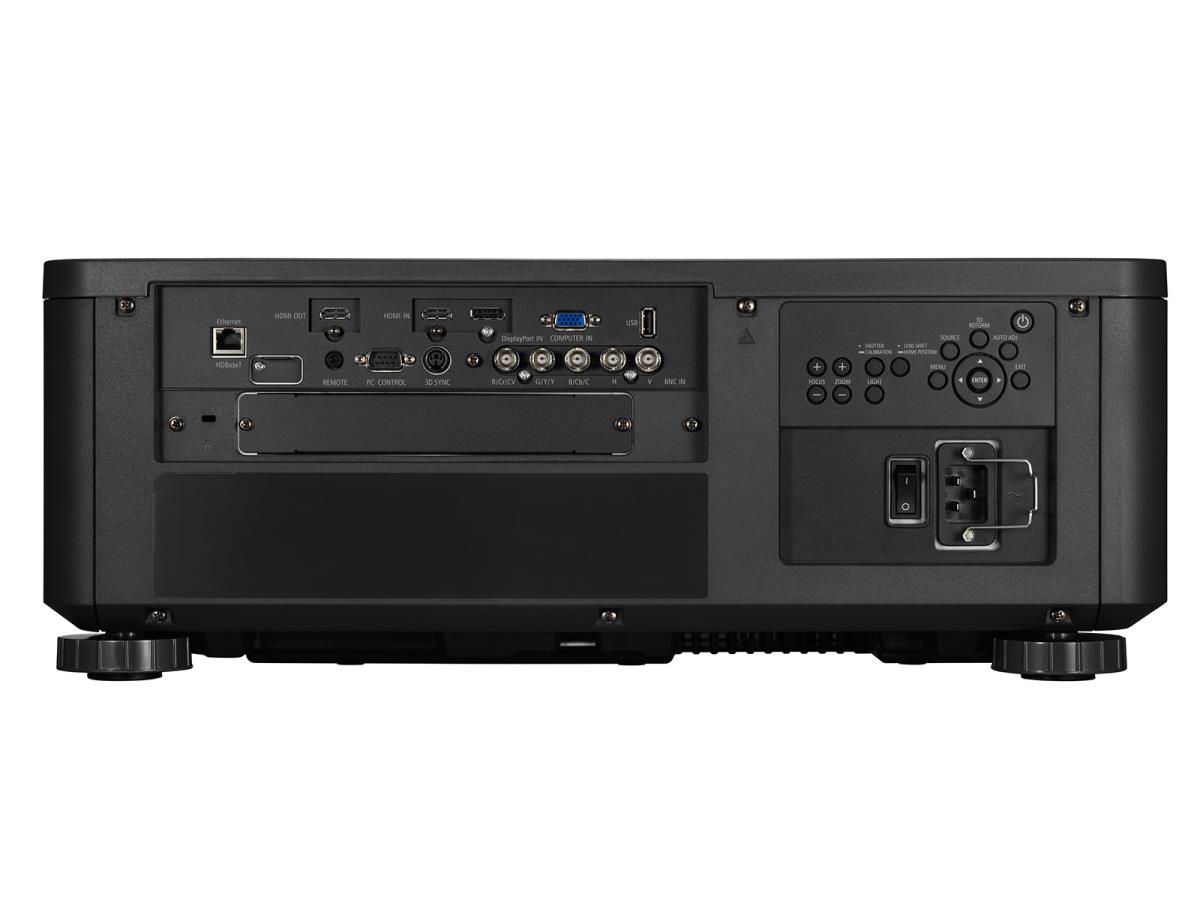

| Poorten & interfaces | |
| HDMI-connector type | Volledige grootte |
| Aantal DisplayPorts | 1 |
| Aantal USB 2.0-poorten | 1 |
| Audio-ingang (L, R) | 1 |
| Hoofdtelefoonuitgangen | 1 |
| Microfoon, line-in ingang | Ja |
| Soort serie‰le aansluiting | RS-232 |
| VGA (D-Sub)poort(en) | 2 |
| Aantal HDMI-poorten | 2 |
| BNC input ports | 1 |
| Componentingang video (YPbPr/YCbCr) | 1 |
| DVI-poort | Nee |
| Ingang stroom | Ja |
| Netwerk | |
| Ethernet LAN | Ja |
| Aantal Ethernet LAN (RJ-45)-poorten | 1 |
| Wifi | Nee |
| Opslagmedia | |
| Ge‹ntegreerde geheugenkaartlezer | Nee |
| Kenmerken | |
| Geluidsniveau (spaarzame modus) | 35 dB |
| HDCP | Ja |
| On Screen Display (OSD) | Ja |
| Geluidsniveau | 40 dB |
| Wachtwoordbeveiliging | Ja |
| Certificering | CE; ErP; RoHS; TUEV |
| Design | |
| Type product | Projector voor grote zalen |
| Kleur van het product | Zwart |
| Plaatsing | Desktop |
| LED-indicatoren | Ja |
| Beeldscherm | |
| Ingebouwd display | Nee |
| Energie | |
| Stroombron | AC |
| Stroomverbruik (typisch) | 1400 W |
| AC-ingangsspanning | 100 - 240 V |
| AC-ingangsfrequentie | 50 - 60 Hz |
| Automatisch uitschakelen | Ja |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 5 - 40 øC |
| Temperatuur bij opslag | -10 - 60 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 0 - 80 procent |
| Luchtvochtigheid bij opslag | 0 - 90 procent |
| Gewicht en omvang | |
| Breedte | 500 mm |
| Diepte | 577 mm |
| Hoogte | 211 mm |
| Gewicht | 28 kg |
| Inhoud van de verpakking | |
| Afstandsbediening inbegrepen | Ja |
| Afstandsbediening | IR |
| Meegeleverde kabels | AC |
| Snelstartgids | Ja |
| Gebruikershandleiding | Ja |
| Technische details | |
| Certificaten van naleving | RoHS |
| Logistieke gegevens | |
| Code geharmoniseerd systeem (HS) | 85286200 |
| Overige specificaties | |
| RS-232 port | 1 |
| Resolutie (maximum digitaal) | 4096 x 2160 Pixels |
| Warranty | |
| Base Warranty | Non Non |
