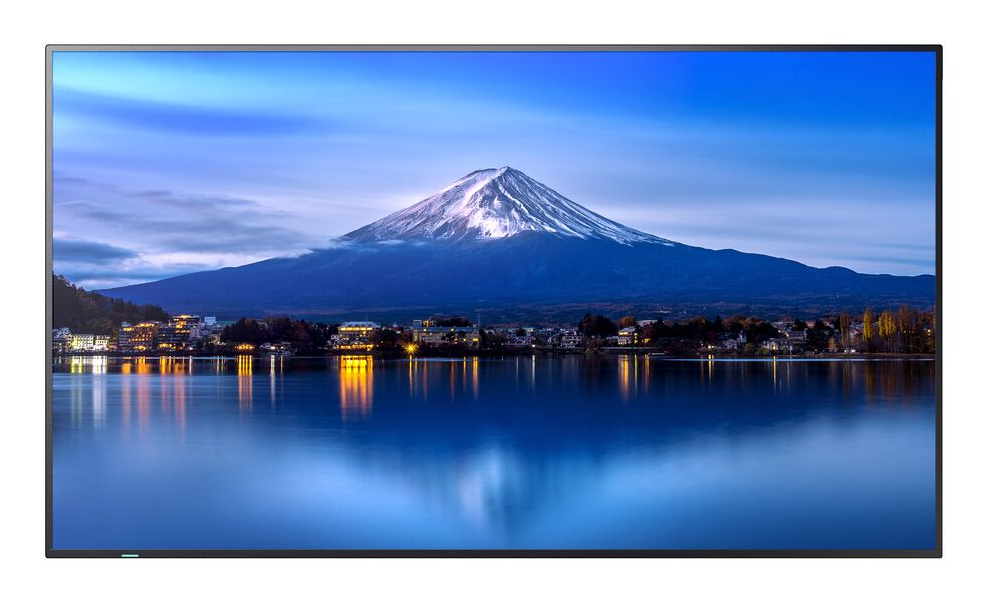

Large Format Display - Multisync P506 - 55in - 3840x2160 (uhd) - Black
ITCurry #: 38909347 | Article #: PNP506-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
When reliability, security, and exceptional visual performance are mandatory, the Sharp MultiSync® P6 Series delivers with precision and resilience. Engineered for mission-critical applications and high-end signage, the P6 Series combines robust durability with advanced visual technologies to meet the most demanding commercial needs. With 700 cd/m² brightness, a high-haze panel, and SpectraViewTM Engine, it delivers outstanding image clarity and colour accuracy even in challenging lighting conditions. Despite its slim profile, the P6 Series is endorsed for use in heavy traffic spaces with a durable all-metal chassis that complies to the strictest fire safety standards. Building on NEC’s trusted heritage, the next generation Sharp P6 Series is designed for longevity and integration flexibility. Its modular architecture supports custom computing options by Intel® SDM or Raspberry Pi, and flexible connectivity including AVoverIP for versatile deployments. Native video daisy chaining via HDMI and DisplayPort enables content to be easily cloned or expanded across multiple displays. Compatibility with leading platforms such as Crestron, Cisco Webex, and Q-Sys enhances its future-proof appeal, while 802.1x LAN support safeguards robust security against cyber threats. Purpose-designed for control rooms, passenger information, and prestige retail or corporate signage, the P6 Series delivers uncompromising performance, day after day.
| Beeldscherm | |
| Soort paneel | VA |
| LED backlight | Ja |
| LED backlight-type | Direct-LED |
| Beeldschermdiagonaal | 127 cm (50") |
| Resolutie | 3840 x 2160 Pixels |
| Helderheid | 700 cd/mý |
| Oorspronkelijke beeldverhouding | 16:9 |
| Responstijd | 8 ms |
| Typische contrastverhouding | 8000:1 |
| Kijkhoek, horizontaal | 178ø |
| Kijkhoek, verticaal | 178ø |
| Beeldscherm, aantal kleuren | 1.073 biljoen kleuren |
| Pixel pitch | 0,285 x 0,285 mm |
| Actief weergavegebied (b x h) | 1095 x 616 mm |
| Schermdiameter in centimeters | 126 cm |
| Frequentiebereik horizontaal | 15 - 135 kHz |
| Frequentiebereik verticaal | 23 - 76 Hz |
| Waasniveau | 25 procent |
| Poorten & interfaces | |
| Consumer Electronics Control (CEC) | Ja |
| DisplayPorts out | 1 |
| USB-poort | Ja |
| RS-232C | Ja |
| Audio Return Channel (ARC) | Ja |
| Audio | |
| Ingebouwde luidsprekers | Ja |
| Aantal ingebouwde luidsprekers | 2 |
| Gemiddeld vermogen | 10 W |
| Design | |
| Productontwerp | Digitale signage flatscreen |
| Ondersteuning voor plaatsing | Binnen |
| Kleur van het product | Zwart |
| VESA-montage | Ja |
| Paneelmontage-interface | 300 x 300 mm |
| Bezel breedte (onderkant) | 1,4 cm |
| Bezel breedte (zijkant) | 1,1 cm |
| Bezel breedte (bovenkant) | 1,1 cm |
| Prestatie | |
| Bedoeld voor | Universeel |
| Bedrijfsuren (uren/dagen) | 24/7 |
| Energie | |
| Stroomverbruik (typisch) | 95 W |
| Stroomverbruik (in standby) | 2 W |
| Energie-effici‰ntieklasse (SDR) | G |
| Energieverbruik (SDR) per 1000 uur | 85 kWu |
| AC-ingangsspanning | 100 - 240 V |
| AC-ingangsfrequentie | 50 - 60 Hz |
| Gewicht en omvang | |
| Schermbreedte | 1122 mm |
| Display diepte | 67 mm |
| Display hoogte | 645 mm |
| Display gewicht | 18 kg |
| Verpakking | |
| Breedte verpakking | 1245 mm |
| Diepte verpakking | 188 mm |
| Hoogte verpakking | 785 mm |
| Gewicht verpakking | 23 kg |
| Inhoud van de verpakking | |
| Afstandsbediening inbegrepen | Ja |
| Meegeleverde kabels | HDMI, Stroom |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 0 - 40 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 20 - 80 procent |
| Temperatuur bij opslag | -20 - 60 øC |
| Luchtvochtigheid bij opslag | 10 - 80 procent |
| Sensoren | |
| Temperatuursensor | Ja |
| Eco-sensor | Ja |
| Netwerk | |
| Ethernet LAN | Ja |
| Ethernet LAN, data-overdrachtsnelheden | 100 Mbit/s |
| Kenmerken | |
| Ophangsysteem voor aan de muur | Ja |
| Technische details | |
| Certificaten van naleving | Elektromagnetische compatibiliteit (EMC), UKCA, RoHS, UL, cUL, CSA, Federal Communications Commission (FCC), CE, REACH |
| Warranty | |
| Base Warranty | Non Non |
