Cubi 5 12m 001eu - i7 1255u - 16GB Ram - 512GB SSD - Intergrated Graphics - Win11 Pro With Air Cooling 3 Years Warranty
ITCurry #: 86329652 | Article #: CUBI 5 12M-001EU-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
We always focus on how to improve the efficiency, stability and flexibility for users in any kinds of situations.
Small But Powerful
Bring it home when you need without any inconvenience that it can be your mini PC and your portable storage device.
SUPPORT UP TO 8K RESOLUTION
Cubi 5 allows you to enjoy the best experience of watching movie with your family or attending online conference call while working from home or learning professional tasks at home.
BOLT TO THE NEXT POWER
Thunderbolt™ 4* brings Thunderbolt to USB-C at speeds up to 40 Gbps, creating one compact port that does it all – delivering the fastest, most versatile connection to any dock, display, or data device & NAS.
Embracing a wide array of interface compatibilities so that you can edit, collaborate and share seamlessly
SEE MORE, DO MORE
With HDMI™, DP, and Thunderbolt 4, Cubi 5 allows you to extend to three monitors to preview your E-commerce content & data at home or in the office, enhancing your efficiency.
MSI Cloud Center
FAST, SECURE & WIRELESS BACKUP
Fast, secure, and wireless backup & download between your PC and mobile devices. Transfer files, photos, videos, and more between your PC, Android, and iOS device faster and easier than a cabled connection. You can make these files accessible to your family or team members, or you can also make files as private as you want. The decision is in your hands.
MSI CENTER
The MSI Center takes optimization to the next level with easily adjustable system modes; it helps to prioritize & allocate the resource on your hand to accelerate the performance of those software which you work with everyday.
STABLE & POWERFUL
Equips up to 12th Gen Intel® Core™ i7 processor with 10 cores and 12 threads, delivering computing capability and keeping you in the flow, wherever you go. Also, enjoy more detailed, immersive viewing experience with Intel® Iris® Xe Graphics.
WI-FI 6E TECHNOLOGY
Wi-Fi 6E puts more emphasis on transmission security and improves the signal between the interference problem can also be connected to more devices at the same time, thereby meeting the trend of higher and higher data transmission bandwidth requirements with speed up to 2.4Gbps.
USB 3.2 GEN 2 Type A
With data transfer speeds up to 10Gbps, dual USB 3.2 Gen 2 Type A ports in the front I/O offer twice the bandwidth of the older USB 3.1 Gen 1 Type A ports, effectively halving any data delay or waiting time.
DUAL LAN - SECURITY
More than Dual LAN, the best way to secure your data and prevent the Hacker
FW TPM SUPPORT
FW TPM (Trusted Platform Module) technology is designed to provide hardware-based, security-related functions. You can store your sensitive data & passwords by encryption keys for advanced security.

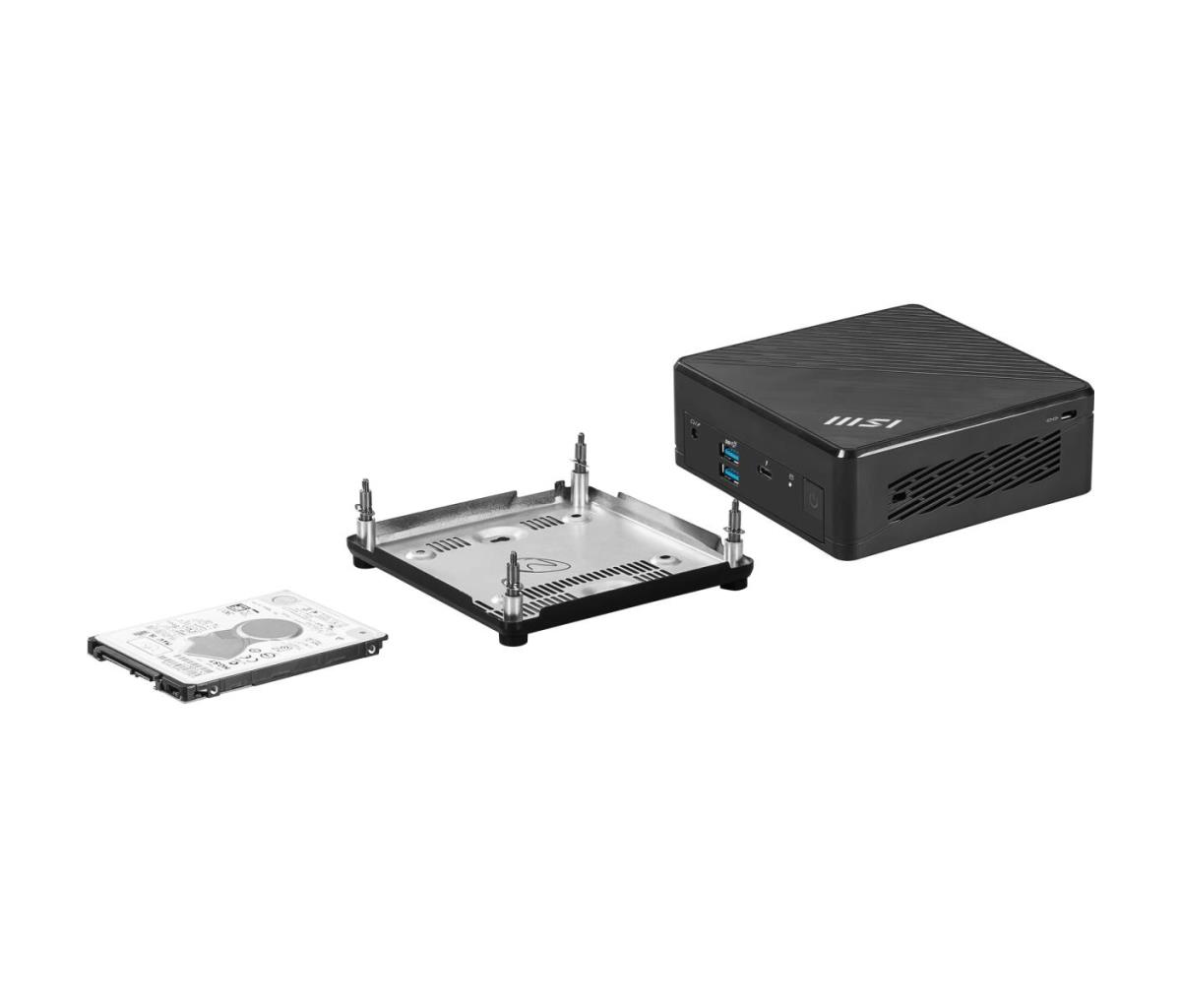

EASY MAINTENANCE
Users can easily upgrade two SO-DIMM, one M.2 SSD or one 2.5” HDD/SSD by disassembling the cover. Made Cubi 5 an even flexible desktop and also reduce the time wasting on upgrading.
VESA MOUNT SUPPORT
VESA Mountable design allows users to hook Cubi 5 up anywhere you like or mount it with MSI PRO MP243 Series . Not only improve the flexibility of using Cubi 5, but also let users make good use of their space at home or at office.

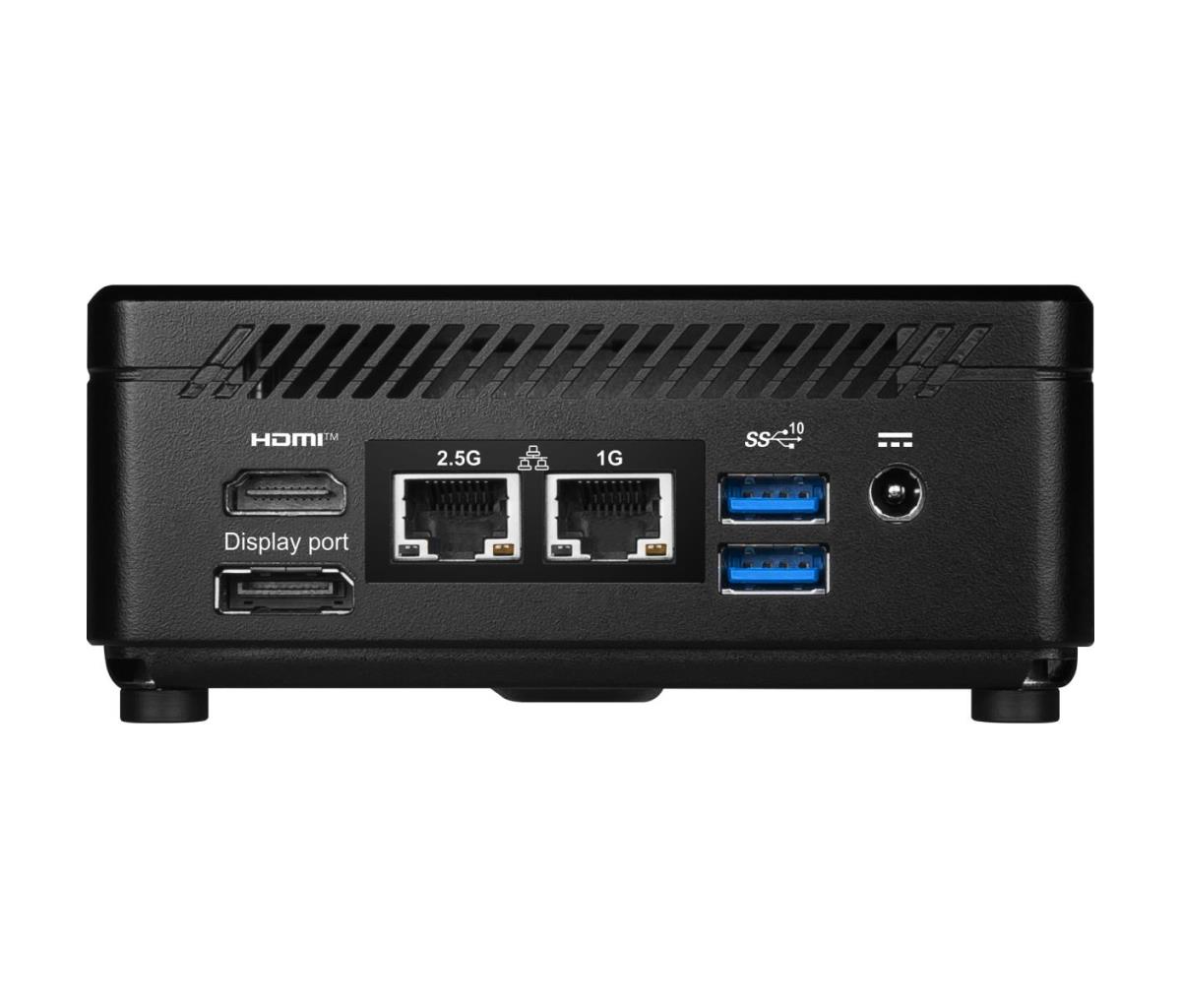

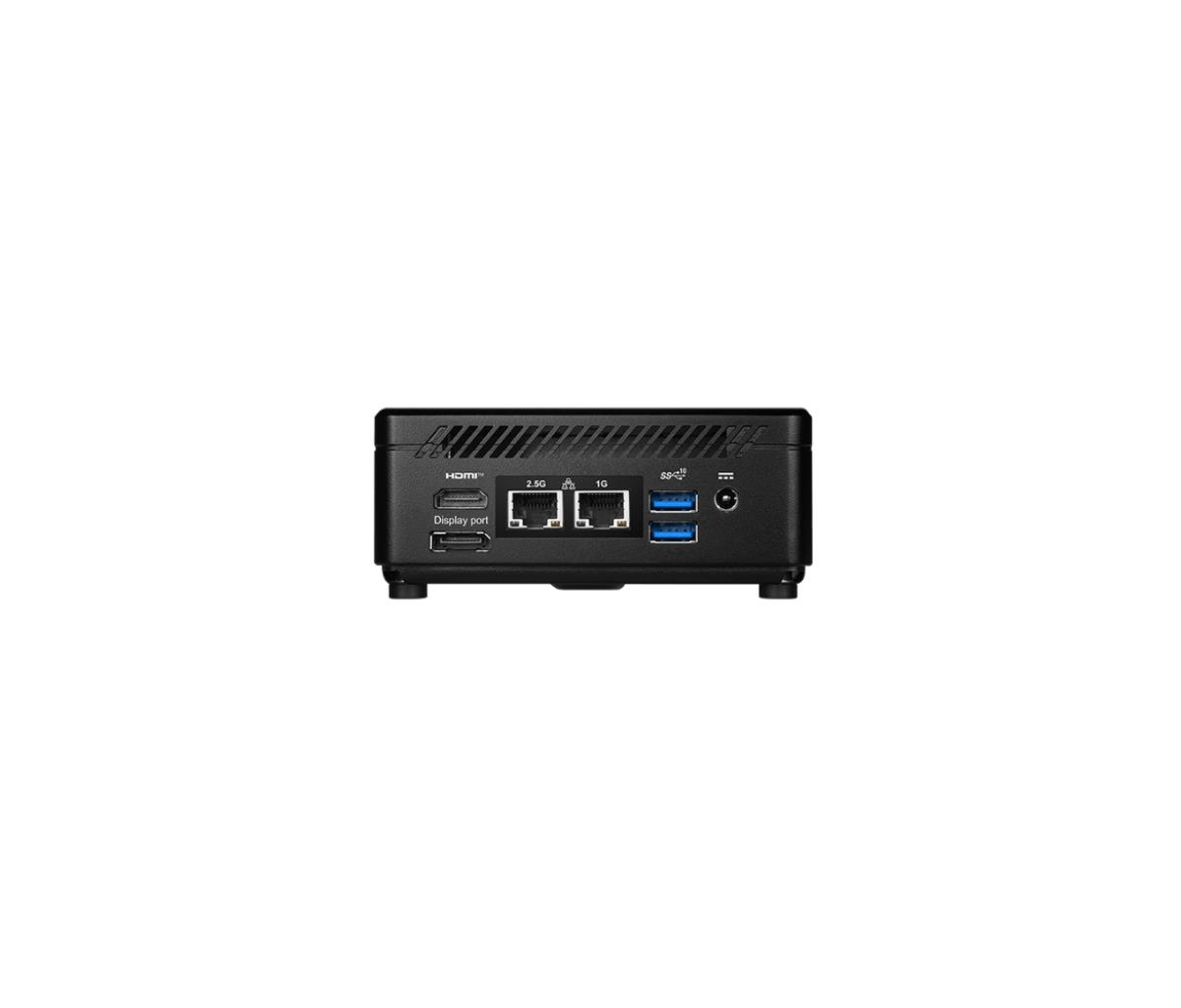

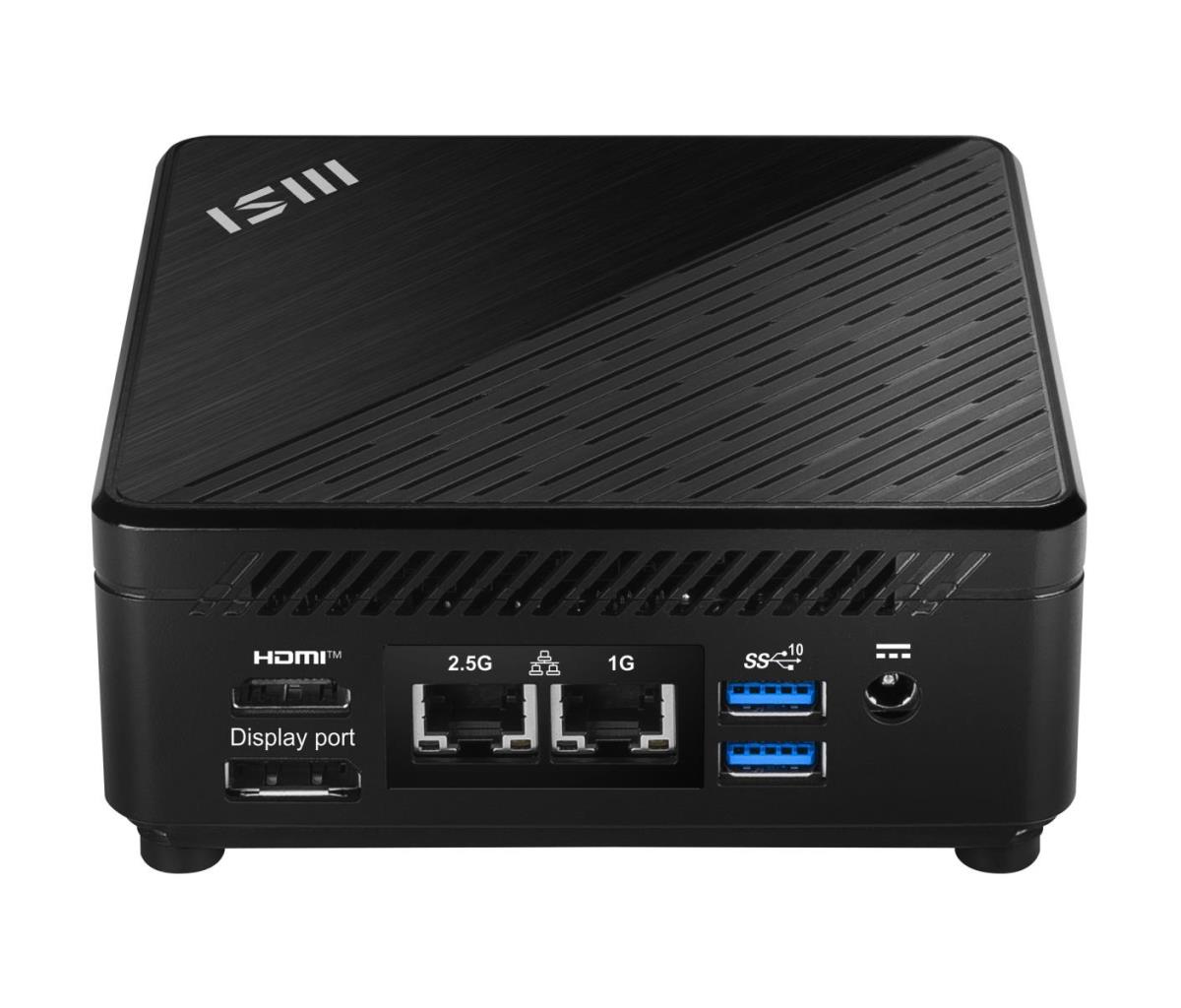

VARIOUS IO PORTS
With a complete array of I/O ports, it can connect all devices you need and connect many devices at the same time so you can multi-task with those devises to make you work more efficiently and of course you won’t need an adaptor or a dock.
1. 1x Mic-in / Headphone-out combo
2. 2x USB 3.2 Gen 2 Type A
3. 1x ThunderBolt 4 (USB Type-C)
4. 1x HDMI™ out (2.0b)
5. 1x DP out(1.4)
6. 2x RJ45
7. 2x USB 3.2 Gen 2 Type A
8. DC Jack
Successful & Stylish B2B projects
Over the past years, MSI has successfully supported Countless of commercial projects, including government tenders, restaurant & hotel facilitation, shopping mall navigation projects, school & university developments and professional office projects.
| Processor | |
| Processorfabrikant | Intel |
| Processorfamilie | Intel© CoreT i7 |
| Processorgeneratie | Intel© 12de generatie CoreT i7 |
| Processormodel | i7-1255U |
| Aantal processorkernen | 10 |
| Processor aantal threads | 12 |
| Frequentie van processor | 3,5 GHz |
| Prestatiekernen | 2 |
| Effici‰nte kernen | 8 |
| Performance-core Max Turbo Frequency | 4,7 GHz |
| Efficient-core Max Turbo Frequency | 3,5 GHz |
| Processor cache | 12 MB |
| Processor cache type | Smart Cache |
| Configureerbare TDP-down | 12 W |
| Aantal ge‹nstalleerde processoren | 1 |
| Processor basisvermogen | 15 W |
| Maximaal turbovermogen | 55 W |
| Geheugen | |
| Intern geheugen | 16 GB |
| Maximum intern geheugen | 64 GB |
| Intern geheugentype | DDR4-SDRAM |
| Geheugenlayout | 2 x 8 GB |
| Geheugenslots | 2x SO-DIMM |
| Kloksnelheid geheugen | 3200 MHz |
| Opslagmedia | |
| Totale opslagcapaciteit | 512 GB |
| Opslagmedia | SSD |
| Soort optische drive | Nee |
| Totale capaciteit SSD's | 512 GB |
| Aantal ge‹nstalleerde SSD's | 1 |
| SSD capaciteit | 512 GB |
| SSD interfaces | PCI Express 4.0 |
| NVMe | Ja |
| SSD-vormfactor | M.2 |
| Grafisch | |
| Aparte grafische adapter | Nee |
| Ingebouwde grafische adapter | Ja |
| Discreet grafische adapter model | Niet beschikbaar |
| Interne-GPU-fabrikant | Intel |
| Familie ingebouwde grafische adapter | Intel Iris Xe Graphics |
| On-board graphics adapter model | Intel Iris Xe Graphics |
| Netwerk | |
| Ethernet LAN | Ja |
| Ethernet LAN, data-overdrachtsnelheden | 10,100,1000 Mbit/s |
| Bekabelingstechnologie | 10/100/1000Base-T(X) |
| LAN controller | Realtek RTL8111H |
| Wifi | Ja |
| Wifi-standaard | Wi-Fi 6 (802.11ax) |
| Wi-Fi-standaarden | Wi-Fi 6 (802.11ax) |
| Soort antenne | 2x2 |
| Bluetooth | Ja |
| Bluetooth-versie | 5.2 |
| Poorten & interfaces | |
| Aantal poortenUSB 3.2 Gen 1 (3.1 Gen 1) Type C | 1 |
| Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type A | 4 |
| Aantal Thunderbolt 4-poorten | 1 |
| Intel© Thunderbolt 4 | Ja |
| Aantal HDMI-poorten | 1 |
| HDMI versie | 2.0b |
| Aantal DisplayPorts | 1 |
| DisplayPort versie | 1.4 |
| Aantal Ethernet LAN (RJ-45)-poorten | 1 |
| Combo koptelefoon/microfoon port | Ja |
| Aansluiting voor netstroomadapter | Ja |
| Design | |
| Type behuizing | Mini PC |
| Volume | 0,66 l |
| Ondersteuning voor plaatsing | Horizontaal/Verticaal |
| VESA-montage | Ja |
| Bevestigingsmogelijkheid voor kabelslot | Ja |
| Kleur van het product | Zwart |
| Prestatie | |
| Markt positionering | Bedrijf |
| Chipset moederbord | Intel SoC |
| Type product | Mini PC |
| Software | |
| Inclusief besturingssysteem | Windows 11 Home |
| Meegeleverde software | MSI Center: Hardware Monitoring, Free Up Memory, Clean Up Disk, LAN Manager, MSI Recovery, F3 Recovery, Devices Speed Up, Smart Priority, Smart Image Finder, Noise Cancellation, Live Update, Microsoft App Update, System Info, Troubleshooting, Contact Us, MSI Forum & Channel |
| Processor speciale functies | |
| Ingebouwde opties beschikbaar | Nee |
| Intel© VT-x with Extended Page Tables (EPT) | Ja |
| Intel© Trusted Execution Technology | Ja |
| Execute Disable Bit | Ja |
| Intel© Flex Memory Access | Ja |
| CPU configuratie (max) | 1 |
| Intel© Virtualization Technology for Directed I/O (VT-d) | Ja |
| Intel© Virtualization Technology (VT-x) | Ja |
| Energie | |
| Netvoeding | 65 W |
| Duurzaamheid | |
| Duurzaamheidscertificaten | CE, Federal Communications Commission (FCC) |
| Gewicht en omvang | |
| Breedte | 124 mm |
| Diepte | 124 mm |
| Hoogte | 53,7 mm |
| Gewicht | 550 g |
| Gewicht verpakking | 1,4 kg |
| Inhoud van de verpakking | |
| Inclusief monitor | Nee |
| Meegeleverde kabels | AC, Stroom |
| Inclusief schroeven | Ja |
| Warranty | |
| Base Warranty | Non Non |
