Product Informatie
Compact

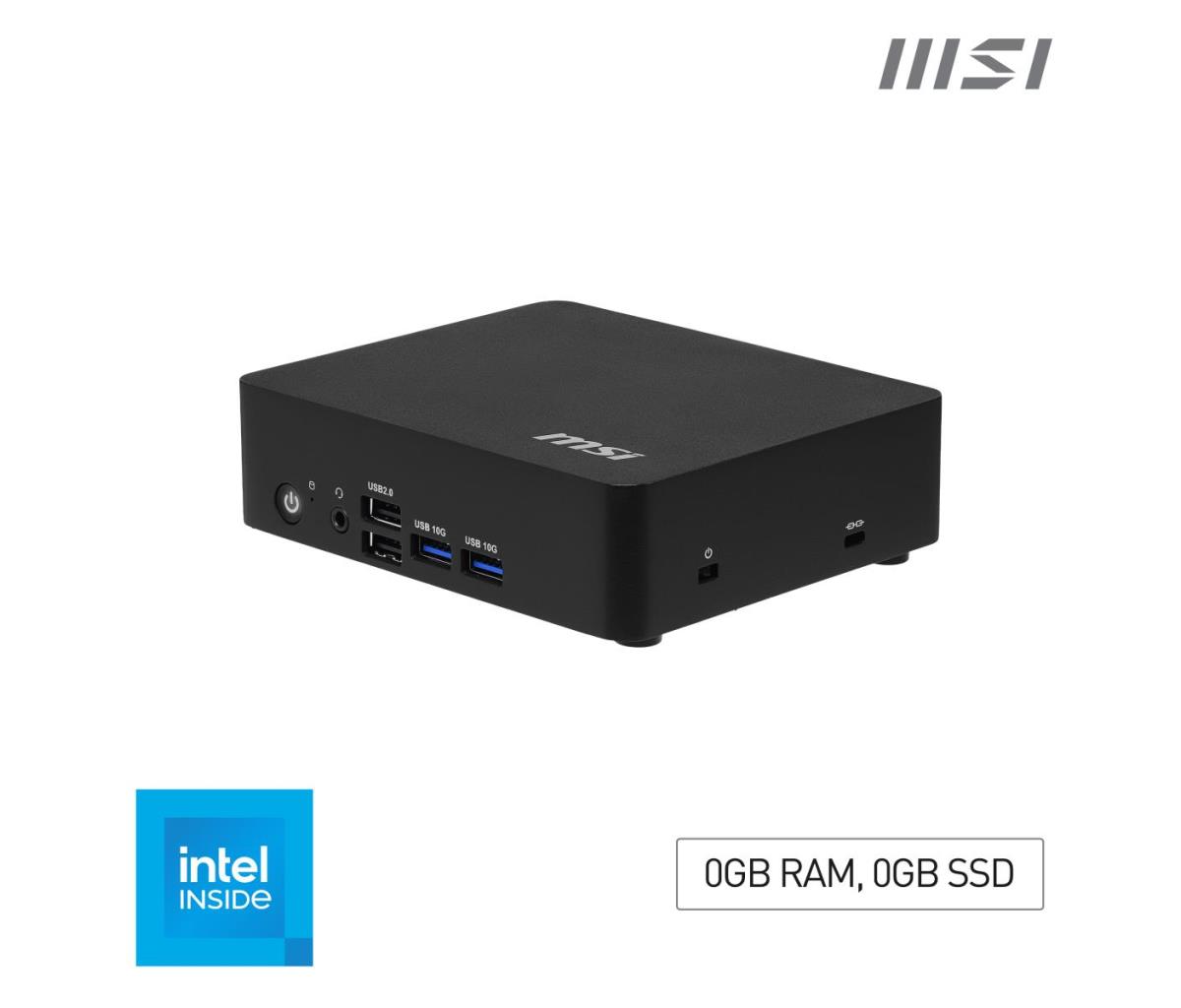

The Cubi NUC TWG Mini PC comes in a palm-sized 135.6 X 112.6 X 40.1 mm case (0.55L/0.54Kg) with far less performance trade-off compared to laptops.
The Cubi NUC TWG Series is an exceptionally quiet system, and includes an Intel N Series processor.
Triple Display Support
The rear & front I/O panels include USB Type-C and HDMI 2.1, which support triple monitor setups for improved workflow efficiency or previewing e-commerce content.
USB Type-C supports the power delivery output of 15W.
Dual LAN
Network connectivity includes WiFi, Bluetooth, and dual Ethernet LAN (1G & 2.5G).
fTPM technology provides security for storing sensitive data & passwords.
Kensington Lock slot included.
Cable Organizer Design
Cable Organizer keeps cables neat, secure, and protected. The built-in cable organizer prevents accidental disconnections and ensures stable connections even in tight or vibration-prone environments.
MSI Power Link, VESA Mountable Design, Sustainable Design, MSI AI Engine
MSI Power Link
The MSI Power Link allows the power button of MSI-selected monitors to turn on/off the Cubi TWG Series.
External Power Switch (Optional)
VESA Mountable Design
The chassis is VESA-mountable (standard 100x100 & 75x75), transforming a standard compact desktop layout into an ultra-minimalist, distraction-free environment.
Sustainable Design
Made with PCR (Post-consumer Recycled) plastic materials.
Reduce waste by using a recycled molded pulp tray packing design.
Manufactured with 99% of renewable energy in factory.
MSI AI Engine
MSI AI Engine offers multiple optimizations to reduce workload.
| Processor | |
| Processorfabrikant | Intel |
| Processorfamilie | Intel© N |
| Processormodel | N250 |
| Aantal processorkernen | 4 |
| Processor aantal threads | 4 |
| Maximale turbofrequentie van processor | 3,8 GHz |
| Frequentie van processor | 3,8 GHz |
| Type processor | Ja |
| Processor cache | 6 MB |
| Processor cache type | Smart Cache |
| Geheugen | |
| Interne geheugen ge‹nstalleerd | Nee |
| Geheugen slots type | SO-DIMM |
| Aantal geheugenslots | 1 |
| Maximum intern geheugen | 16 GB |
| Opslagmedia | |
| Opslagdrives ge‹nstalleerd | Nee |
| Ondersteunde types opslag-drives | SSD |
| Opslagschijf afmetingen ondersteund | M.2 |
| Grafisch | |
| Ingebouwde grafische adapter | Ja |
| On-board graphics adapter model | Intel Graphics |
| Discreet grafische adapter model | Niet beschikbaar |
| Prestatie | |
| Chipset moederbord | Intel SoC |
| Processor socket | BGA 1264 |
| Trusted Platform Module (TPM) | Ja |
| Audio | |
| Ingebouwde luidsprekers | Nee |
| Netwerk | |
| Wifi-standaard | Wi-Fi 5 (802.11ac) |
| Wi-Fi-standaarden | Wi-Fi 5 (802.11ac) |
| Ethernet LAN | Ja |
| Wifi | Ja |
| Bluetooth | Ja |
| Bluetooth-versie | 5.0 |
| Poorten & interfaces | |
| Aantal USB 2.0-poorten | 4 |
| Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A | 2 |
| Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type A | 2 |
| Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type C | 1 |
| Aantal HDMI-poorten | 2 |
| HDMI versie | 2.1 |
| Combo koptelefoon/microfoon port | Ja |
| Aantal Ethernet LAN (RJ-45)-poorten | 2 |
| Design | |
| Type behuizing | USFF |
| Kleur van het product | Zwart |
| Type koeling | Actief |
| Bevestigingsmogelijkheid voor kabelslot | Ja |
| Kabelslot sleuf type | Kensington |
| Type product | Mini PC barebone |
| Software | |
| Inclusief besturingssysteem | Nee |
| Energie | |
| Soort voeding | Externe AC-adapter |
| Netvoeding | 65 W |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 0 - 35 øC |
| Temperatuur bij opslag | -20 - 60 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 0 - 85 procent |
| Luchtvochtigheid bij opslag | 0 - 90 procent |
| Gewicht en omvang | |
| Breedte | 112,6 mm |
| Diepte | 135,6 mm |
| Hoogte | 40,1 mm |
| Gewicht | 540 g |
| Gewicht verpakking | 1,29 kg |
| Inhoud van de verpakking | |
| Inclusief monitor | Nee |
| Overige specificaties | |
| Garantieperiode | 3 jaar |
| Warranty | |
| Base Warranty | Non Non |
