Product Informatie

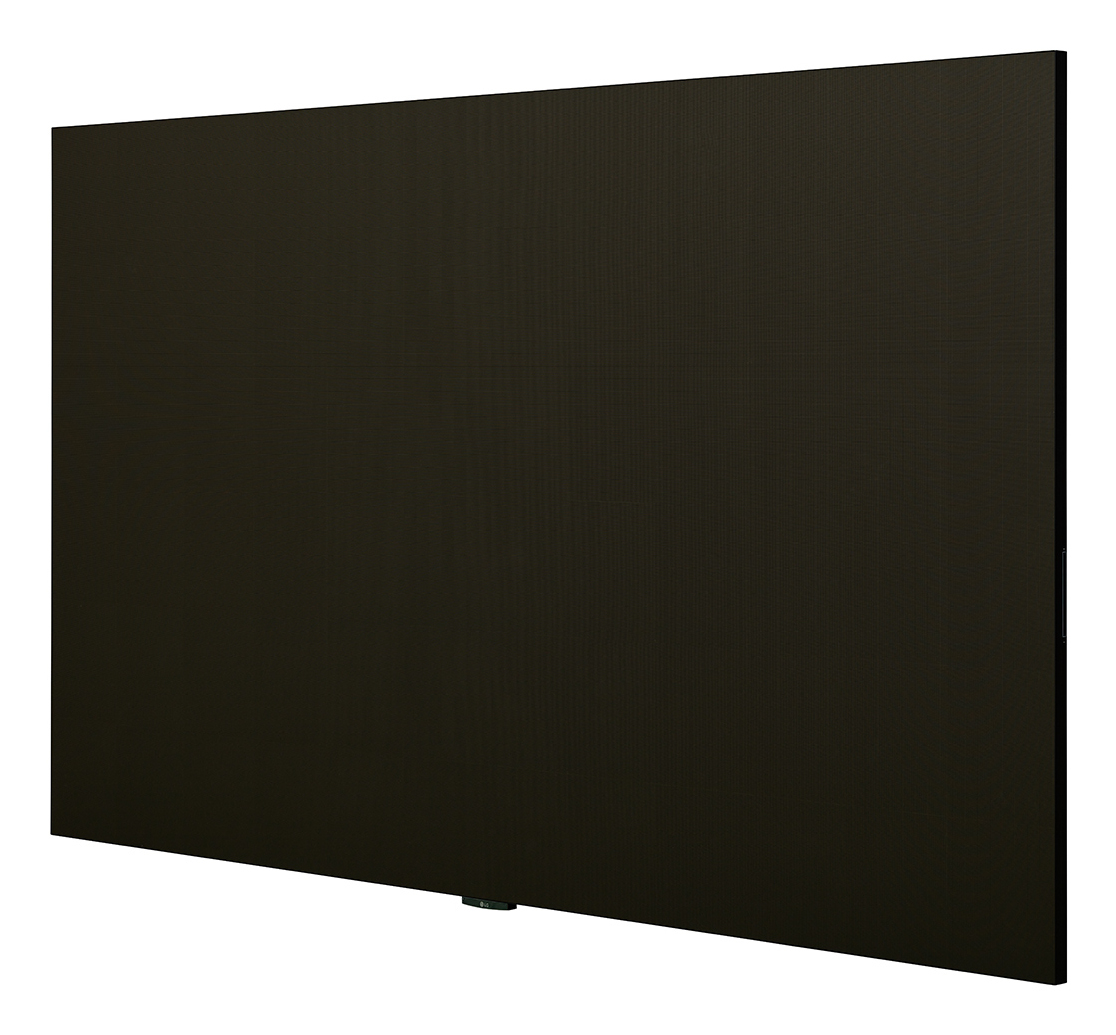

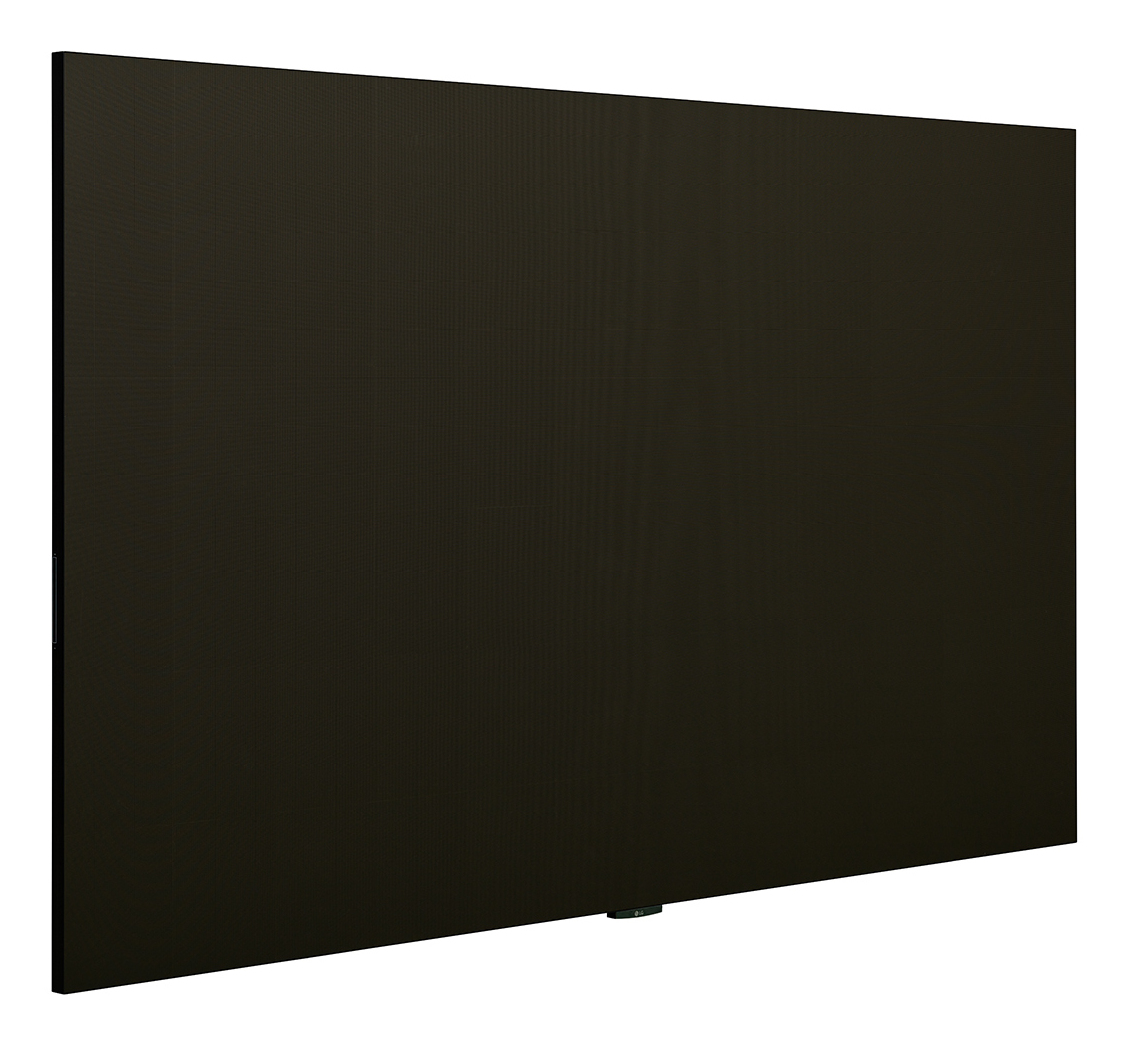

All-in-One LED Screen with Built-in Speaker
The LAEC series is a 136-inch large screen which is offered as an all-in-one package including an embedded controller and built-in speaker. Eliminating the prejudice that LED displays are difficult and complex to install, it doesn't require controller connections or module configuration. After a simple installation process, all you need to do is to turn on the screen with a remote control like home TV.
High Performance with webOS
Built-in Quad Core SoC (System on Chip) can execute several tasks at once for providing smooth content playback. Also, LG webOS Smart Platform enhances user convenience with intuitive GUI and provides to SI or/and developers simple app development tools* such as SDK (Software Development Kit), SCAP, sample applications.

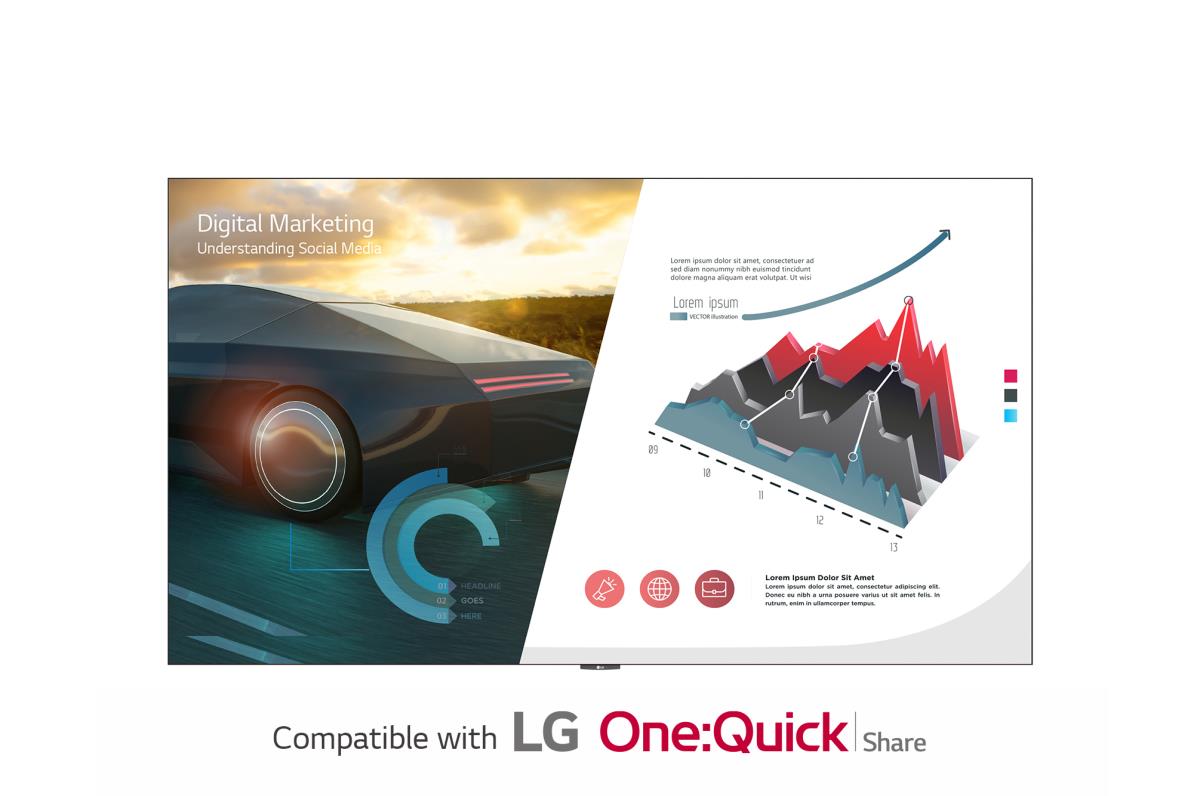

LG’s Wireless Screen Sharing Solution, LG One:Quick Share
LG One:Quick Share is a wireless screen sharing solution available through the LAEC series, USB transmission unit, and its app. You can simply share personal PC screen to the display with it's USB dongle button and embedded Wi-Fi and can adjust the basic setting values (volume, picture mode, auto bright, etc.) of the connected display without a remote control. Also, the Office Meeting Mode helps you to display the agenda, note before the meeting starts.
Easy Installation
The installation process of the All-in-One Smart series is very simple. After securing two cabinets which are included in the flight kit, attach each LED display module to them. Lastly, plug in the power cable. This simple installation saves time and labor, thereby making users handle the LED screen with ease.
Quick Maintenance
In case of failure related to the LED module or the system board, it can be serviced from the front. The LED module can be simply detached by the provided magnetic tool and replaced quickly without cabling.
Dedicated Installation Accessories
The product is offered with the flight case which includes every necessary component including the landscape wall mount and tools for installation. The motorized stand is provided as an option, so that you can easily place it depending on your installation sites. With this stand, you can adjust a height of the screen including stand from 2.0 m to 2.5 m.
Compatible with AV Control Systems
The LAEC series supports Crestron Connected for high compatibility with professional AV controls to achieve seamless integration and automated control, boosting business management efficiency.
Real-Time LG ConnectedCare
Maintenance is easy and fast with the optional LG ConnectedCare* service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, enabling the stable operation of clients' businesses.
Magic Remote for Easy of Use
With the LG Magic Remote, you can select and run the menu of the signage just like using a mouse and its cursor can be used as a laser pointer. In addition, through the newly added 'FREEZE' button on the remote control, users can temporarily freeze the screen while switching contents on the PC, so that users are able to have uninterrupted meetings without exposing its switching process.
| Beeldscherm | |
| Beeldschermdiagonaal | 3,45 m (136") |
| Display technologie | LED |
| Resolutie | 1920 x 1080 Pixels |
| Helderheid | 500 cd/mý |
| HD type | Full HD |
| Typische contrastverhouding | 3000:1 |
| Kijkhoek, horizontaal | 160ø |
| Kijkhoek, verticaal | 160ø |
| Pixel pitch | 1,56 x 1,56 mm |
| Gemiddelde levensduur | 100000 uur |
| Systeemeigen vernieuwingsfrequentie | 2880 Hz |
| Poorten & interfaces | |
| Aantal HDMI-poorten | 3 |
| Aantal DisplayPorts | 1 |
| DisplayPorts in | 1 |
| USB-poort | Ja |
| Aantal USB-aansluitingen | 1 |
| USB-versie | 2.0 |
| USB-connectortype | USB Type-A |
| Ethernet LAN | Ja |
| Aantal Ethernet LAN (RJ-45)-poorten | 1 |
| Wifi | Ja |
| RS-232C | Ja |
| Remote (IR) ingang | 1 |
| Audio | |
| Ingebouwde luidsprekers | Ja |
| Aantal ingebouwde luidsprekers | 2 |
| Gemiddeld vermogen | 18 W |
| Design | |
| Productontwerp | Digitale signage flatscreen |
| Ondersteuning voor plaatsing | Binnen |
| Model | Horizontaal |
| Kleur van het product | Zwart |
| Montagewijze | Muur |
| Prestatie | |
| Bedoeld voor | Commercieel |
| Omgevingslichtsensor | Ja |
| Internationale veiligheidscode (IP) | IP20 |
| Energie | |
| Stroomverbruik (typisch) | 680 W |
| AC-ingangsspanning | 100 - 240 V |
| AC-ingangsfrequentie | 50 / 60 Hz |
| Warmtedissipatie | 5800 BTU/h |
| Computersysteem | |
| Computersysteem | Ja |
| Computersysteemtype | System-on-Chip (SoC) |
| Type processor | Ja |
| Aantal processorkernen | 4 |
| Inclusief besturingssysteem | WebOS |
| Gewicht en omvang | |
| Schermbreedte | 3004 mm |
| Display diepte | 36,5 mm |
| Display hoogte | 1692 mm |
| Display gewicht | 132 kg |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 0 - 40 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 10 - 80 procent |
| Certificaten | |
| Certificering | FCC, ETL, CB |
| Kenmerken | |
| Videomuuurcontroller inbegrepen | Ja |
| Technische details | |
| Naleving van duurzaamheid | Ja |
| Certificaten van naleving | CE, REACH, RoHS |
| Warranty | |
| Base Warranty | Non Non |
