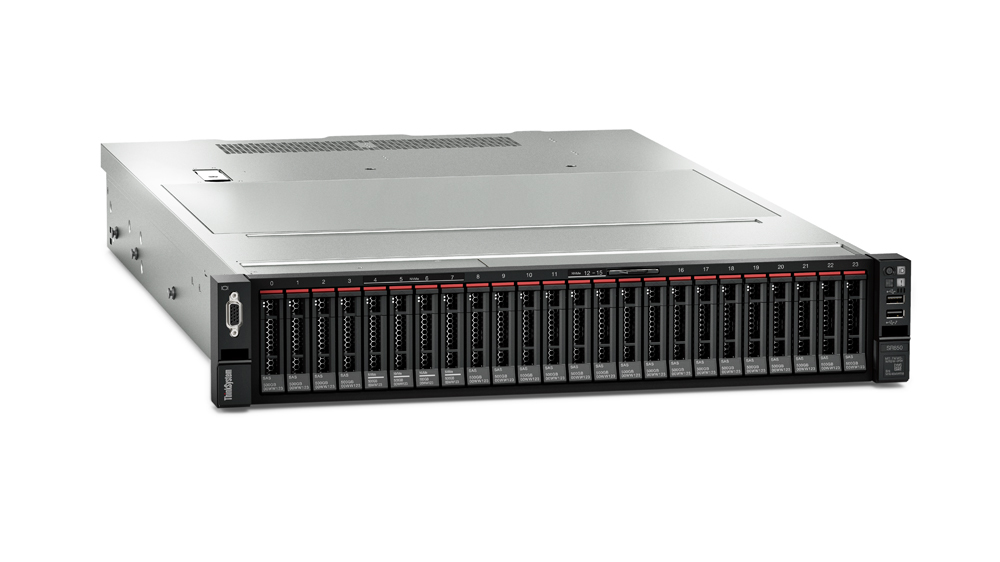

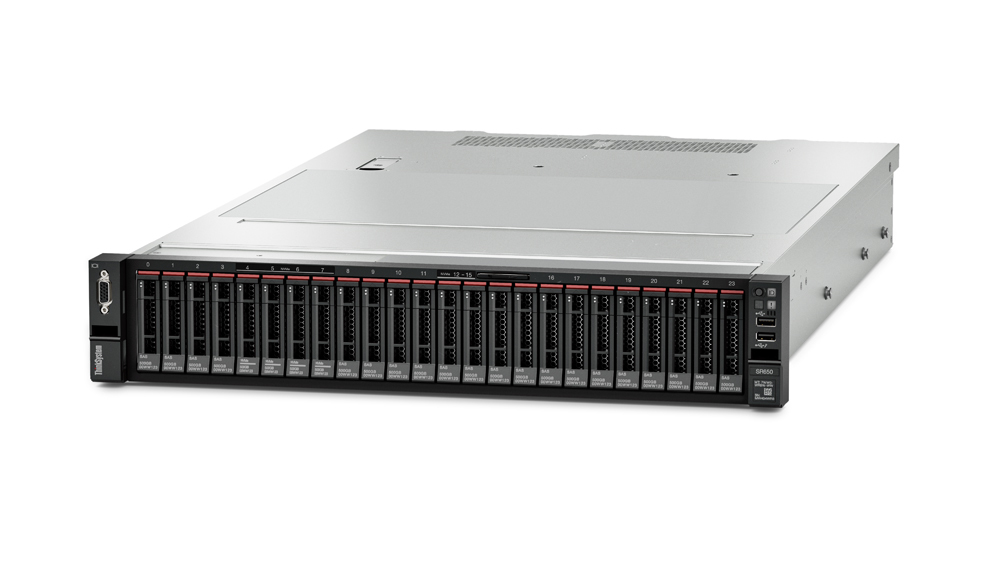

ThinkSystem SR650 - Xeon Gold 5218 - 16GB Ram - 1100W Platinum
ITCurry #: M852MP30 | Article #: 7X06A0BCEA-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
Top-performing server for data centers needing scalability
Future defined data center
Lenovo delivers cost-effective, reliable, and scalable solutions by combining industry-leading technology and the world’s best software-defined offerings with Lenovo ThinkShield, XClarity, and TruScale Infrastructure Services to manage the life cycle of your data center needs. ThinkSystem SR650 provides support for data analytics, hybrid cloud, hyperconverged infrastructure, video surveillance, high performance computing and much more.
Workload-optimized support
Intel® Optane™ DC Persistent Memory delivers a new, flexible tier of memory designed specifically for data center workloads that offer an unprecedented combination of high capacity, affordability, and persistence. This technology will have a significant impact on real-world data center operations: reduction of restart times from minutes down to seconds, 1.2x virtual machine density, dramatically improved data replication with 14x lower latency and 14x higher IOPS, and greater security for persistent data built into hardware.
Flexible storage
Lenovo AnyBay design features a choice of drive interface type in the same drive bay: SAS drives, SATA drives, or U.2 NVMe PCIe drives. Freedom to configure some of the bays with PCIe SSDs and still use the remaining bays for capacity SAS drives provides the ability to upgrade to more PCIe SSDs in the future as needed.
Empowering IT management
Lenovo XClarity Controller is the embedded management engine in all ThinkSystem servers that is designed to standardize, simplify, and automate foundation server management tasks. Lenovo XClarity Administrator is a virtualized application that centrally manages ThinkSystem servers, storage, and networking, which can reduce provisioning time up to 95% versus manual operation. Running XClarity Integrator helps you streamline IT management, speed provisioning, and contain costs by seamlessly integrating XClarity into an existing IT environment.
| Processor | |
| Processorfabrikant | Intel |
| Processorfamilie | Intel© Xeon© Gold |
| Processorgeneratie | 2e generatie Intel© Xeon© schaalbaar |
| Processormodel | 5218 |
| Frequentie van processor | 2,3 GHz |
| Maximale turbofrequentie van processor | 3,9 GHz |
| Aantal processorkernen | 16 |
| Processor cache | 22 MB |
| Aantal ge‹nstalleerde processoren | 1 |
| Thermal Design Power (TDP) | 125 W |
| Processor socket | LGA 3647 (Socket P) |
| Processor lithografie | 14 nm |
| Processor aantal threads | 32 |
| Processor operating modes | 64-bit |
| Codenaam processor | Cascade Lake |
| Tcase | 87 øC |
| Maximaal intern geheugen ondersteund door processor | 1,02 TB |
| Geheugentypen ondersteund door processor | DDR4-SDRAM |
| Klokgeheugen-snelheden ondersteund door processor | 2667 MHz |
| Execute Disable Bit | Ja |
| Maximaal aantal PCI Express-lijnen | 48 |
| Verpakkingsgrootte processor | 76.0 x 56.5 mm |
| Ondersteunde instructie sets | AVX-512 |
| Schaalbaarheid | 4S |
| Ingebouwde opties beschikbaar | Nee |
| Geheugen | |
| Intern geheugen | 16 GB |
| Intern geheugentype | DDR4-SDRAM |
| Geheugenslots | 24 |
| ECC | Ja |
| Kloksnelheid geheugen | 2666 MHz |
| Geheugenlayout | 1 x 16 GB |
| Maximum intern geheugen | 3 TB |
| Opslagmedia | |
| Maximale opslagcapaciteit | 396 TB |
| Maximum aantal HDD's per behuizing | 24 |
| Ondersteunde HDD-groottes | 2.5" |
| RAID support | Ja |
| Soorten RAID | 0, 1, 5, 6, 10, 50, 60, JBOD |
| Soort optische drive | Nee |
| Ondersteunde opslagstationinterfaces | SAS, SATA III |
| Ge‹ntegreerde geheugenkaartlezer | Nee |
| Grafisch | |
| Aparte grafische adapter | Nee |
| Ingebouwde grafische adapter | Ja |
| On-board graphics adapter model | Niet beschikbaar |
| Netwerk | |
| Wifi | Nee |
| Bluetooth | Nee |
| Ethernet LAN | Ja |
| Bekabelingstechnologie | 10/100/1000Base-T(X) |
| Poorten & interfaces | |
| Aantal Ethernet LAN (RJ-45)-poorten | 1 |
| Aantal USB 2.0-poorten | 1 |
| Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A | 3 |
| VGA (D-Sub)poort(en) | 1 |
| Uitbreidingsmodules | |
| PCI Express x8 slots | 2 |
| PCI Express slots versie | 3.0 |
| Design | |
| Type behuizing | Rack (2U) |
| Kleur van het product | Zwart |
| Rack-montage | Ja |
| Overtollige fans ondersteuning | Ja |
| Rekrails | Ja |
| Prestatie | |
| Prestatiebeheer | XClarity Enterprise |
| Trusted Platform Module (TPM) | Ja |
| Trusted Platform Module (TPM) version | 2.0 |
| Software | |
| Compatibele besturingssystemen | Microsoft Windows Server 2012 R2, 2016, and 2019; Red Hat Enterprise Linux 6 (x64), 7, and 8; SUSELinux Enterprise Server 11 (x64), 12, and 15; VMware vSphere (ESXi) 6.0, 6.5, and 6.7 |
| Processor speciale functies | |
| Enhanced Intel SpeedStep Technology | Ja |
| Intel© Virtualization Technology for Directed I/O (VT-d) | Ja |
| Intel© Hyper Threading Technology (Intel© HT Technology) | Ja |
| Intel© Turbo Boost Technology | 2.0 |
| Intel© AES New Instructions (Intel© AES-NI) | Ja |
| Intel© Trusted Execution Technology | Ja |
| Intel© VT-x with Extended Page Tables (EPT) | Ja |
| Intel© TSX-NI | Ja |
| Intel© 64 | Ja |
| Intel© Virtualization Technology (VT-x) | Ja |
| ARK ID processor | 192444 |
| Energie | |
| Redundante voeding | Ja |
| Netvoeding | 1100 W |
| Aantal ondersteunde redundante voedingen | 2 |
| Aantal ge‹nstalleerde redundante voedingen | 1 |
| Ingangsfrequentie voeding | 50 - 60 Hz |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 5 - 45 øC |
| Temperatuur bij opslag | -40 - 60 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 8 - 90 procent |
| Luchtvochtigheid bij opslag | 8 - 90 procent |
| Hoogte, in bedrijf | 0 - 3050 m |
| Logistieke gegevens | |
| Code geharmoniseerd systeem (HS) | 84714100 |
| Warranty | |
| Base Warranty | Non Non |
| Gewicht en omvang | |
| Breedte | 445 mm |
| Diepte | 720 mm |
| Hoogte | 87 mm |
| Technische details | |
| Duurzaamheidscertificaten | ENERGY STAR |
