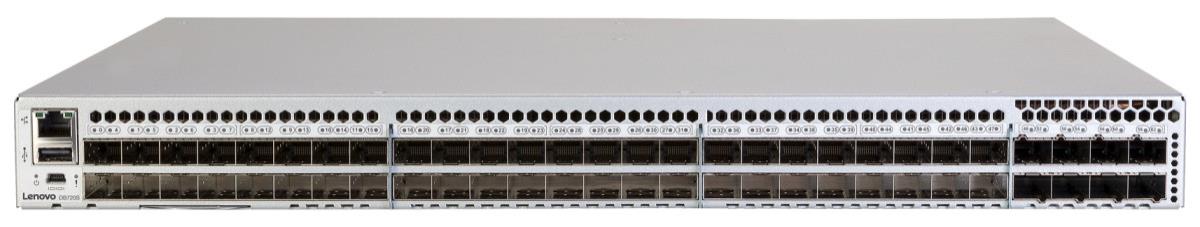

ThinkSystem DB720S, 24 ports active with 32GB SWL SFPs, 2 power supplies (Port side exhaust), rail kit
ITCurry #: M852RF95 | Article #: 7D5JA000WW-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
The Lenovo ThinkSystem DB720S Gen 7 FC SAN Switch, with its unmatched 64Gbps performance and industry-leading port density, provides a building block that supports data growth, demanding workloads, and data-center consolidation. With a 50% latency reduction compared to the previous generation, the DB720S Switch enables the maximum performance of NVMe storage.
This product guide provides essential pre-sales information to understand the ThinkSystem DB720S FC SAN Switch, its key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the switch and consider its use in IT solutions.
| Beheerfuncties | |
| Switch type | Managed |
| Web-gebaseerd management | Ja |
| Poorten & interfaces | |
| Aantal basis-switching RJ-45 Ethernet-poorten | 1 |
| Type basis-switching RJ-45 Ethernet-poorten | Gigabit Ethernet (10/100/1000) |
| Aantal moduleslots SPF+ | 24 |
| Aantal USB Type-A-poorten | 1 |
| Vezel-optische connector | SFP+ |
| Console port | RJ-45/Mini-USB |
| Netstekker | AC-in-aansluiting |
| Netwerk | |
| 10G support | Ja |
| Port mirroring | Ja |
| Full duplex | Ja |
| Auto-negotiation | Ja |
| Active Link-detectie | Ja |
| Data-uitwisseling | |
| Switchingcapaciteit | 32 Gbit/s |
| Beveiliging | |
| Ondersteunde beveiligingsalgoritmen | SSL/TLS, 802.1x RADIUS, SSH, TACACS+ |
| SSH/SSL support | Ja |
| Protocollen | |
| Beheerprotocollen | SSH, HTTPS, SNMP |
| Design | |
| Rack-montage | Ja |
| Vormfactor | 1U |
| Kleur van het product | Zilver |
| Prestatie | |
| Geluidsniveau | 65 dB |
| Energie | |
| Stroombron | AC |
| Vermogenstoevoer inclusief | Ja |
| Redundante voeding | Ja |
| AC-ingangsspanning | 90 - 264 V |
| AC-ingangsfrequentie | 50/60 Hz |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 0 - 40 øC |
| Temperatuur bij opslag | -25 - 70 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 8 - 90 procent |
| Luchtvochtigheid bij opslag | 8 - 90 procent |
| Hoogte, in bedrijf | 0 - 3000 m |
| Hoogte bij opslag | 0 - 12000 m |
| Gewicht en omvang | |
| Breedte | 440 mm |
| Diepte | 356 mm |
| Hoogte | 44 mm |
| Gewicht | 7,17 kg |
| Warranty | |
| Base Warranty | Non Non |
