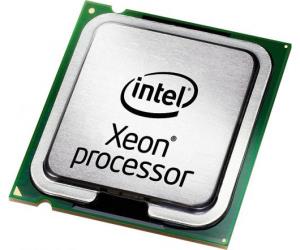

Processor Intel Xeon E5-2630 V2 For ThinkServer Rd330/rd430 In
ITCurry #: M852T089 | Article #: 0C19556
slide 1 of 1
Prijs:
827,00
Excl. btw
Levering in Benelux:
GRATIS Levering.
Nu niet op voorraad. Bel ons!
Verwante producten
slide 7 to 11 of 14
Product Informatie
Increased performance Higher frequency and higher core count SKUs available Up to 12 cores/24 threads Higher memory speed support : up to 1866 MHz (depending on system design) Increased virtualization performance : APIC Virtualization Increased energy efficiency through 22nm tri-gate process technology Increased security through new processor technologies Intel Platform Protection Technology with OS Guard Intel Data Protection Technology with Secure Key
| Processor | |
| Processormodel | E5-2630V2 |
| Basisfrequentie processor | 2,6 GHz |
| Processorfamilie | Intel© Xeon© E5 v2 familie |
| Aantal processorkernen | 6 |
| Processor socket | LGA 2011 (Socket R) |
| Component voor | Server/werkplaats |
| Processor lithografie | 22 nm |
| Processor aantal threads | 12 |
| Systeembus | 7,2 GT/s |
| Processor operating modes | 32-bit, 64-bit |
| Maximale turbofrequentie van processor | 3,1 GHz |
| Processor cache | 15 MB |
| Processor cache type | L2 |
| Thermal Design Power (TDP) | 80 W |
| VID Voltage Range | 0,65 - 1,30 V |
| Bus type | QPI |
| aantal QPI links | 2 |
| Geheugenbandbreedte ondersteund door de processor ( max) | 51,2 GB/s |
| Geheugen | |
| Maximaal intern geheugen ondersteund door processor | 768 GB |
| Geheugentypen ondersteund door processor | DDR3-SDRAM |
| Klokgeheugen-snelheden ondersteund door processor | 800,1066,1333,1600 MHz |
| Geheugen kanaal | Vierkanaals |
| ECC | Ja |
| Grafisch | |
| Ingebouwde grafische adapter | Nee |
| Kenmerken | |
| Execute Disable Bit | Ja |
| Idle States | Ja |
| Thermal Monitoring Technologies | Ja |
| Marktsegment | Server |
| PCI Express slots versie | 3.0 |
| PCI Express configuraties | 1x4, 1x8, 1x16 |
| Schaalbaarheid | 2S |
| Ingebouwde opties beschikbaar | Ja |
| Processor speciale functies | |
| Intel© Hyper Threading Technology (Intel© HT Technology) | Ja |
| Intel© Identity Protection Technology (Intel© IPT) | Nee |
| Intel© Turbo Boost Technology | 2.0 |
| Intel© Flex Memory Access | Nee |
| Intel© AES New Instructions (Intel© AES-NI) | Ja |
| Enhanced Intel SpeedStep Technology | Ja |
| Intel© Trusted Execution Technology | Ja |
| AMD Cool'n'Quiet Technology | Nee |
| AMD HD Internet Technology | Nee |
| AMD HyperTransport Technology | Nee |
| AMD Optimization for Cloud Computing | Nee |
| AMD Virtualization Technology | Nee |
| AMD VISION FX Technology | Nee |
| AMD Turbo CORE technology | Nee |
| Intel© VT-x with Extended Page Tables (EPT) | Ja |
| Intel© Demand Based Switching | Ja |
| Intel© Secure Key | Ja |
| Intel© Virtualization Technology (VT-x) | Ja |
| Intel© Virtualization Technology for Directed I/O (VT-d) | Ja |
| Intel© vProT Platform Eligibility | Ja |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 0 - 70 øC |
| Relatieve vochtigheid in bedrijf (V-V) | 10 - 90 procent |
| Tcase | 77 øC |
| Logistieke gegevens | |
| Code geharmoniseerd systeem (HS) | 85423119 |
| Gewicht en omvang | |
| Breedte | 45 mm |
| Diepte | 52,5 mm |
| Hoogte | 4,56 mm |
| Gewicht | 100 g |
| Overige specificaties | |
| Intel© Virtualization Technology (Intel© VT) | VT-d, VT-x |
| Warranty | |
| Base Warranty | Non Non |
