UPS Keor Pdu 800va Gr/it Input 8 Gr/it Output

ITCurry #: T4452225 | Article #: 310332
Prijs:
308,11 Excl. btw
Levering in Benelux:
GRATIS Levering.
Nu niet op voorraad. Bel ons!

Verwante producten

Product Informatie

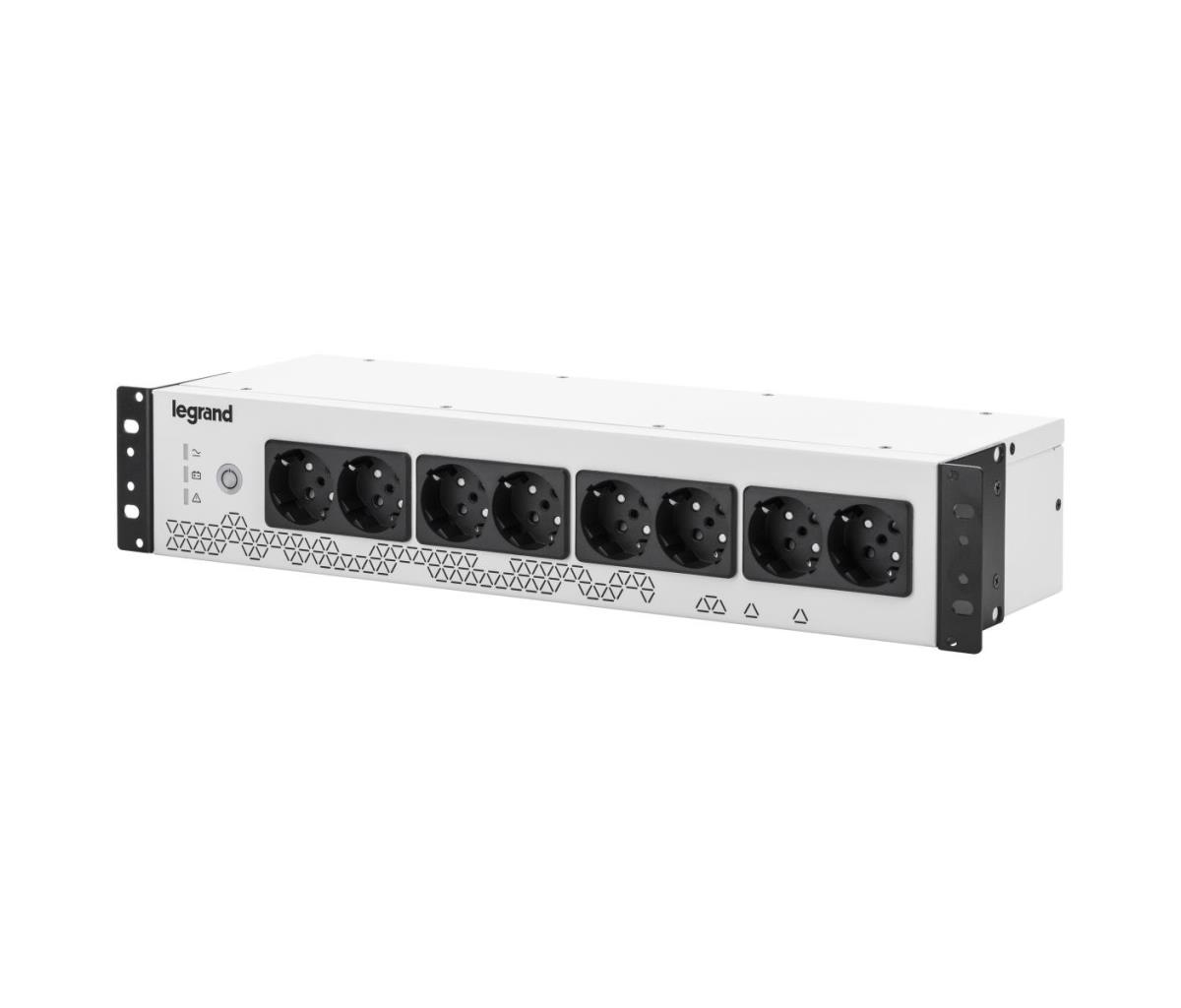

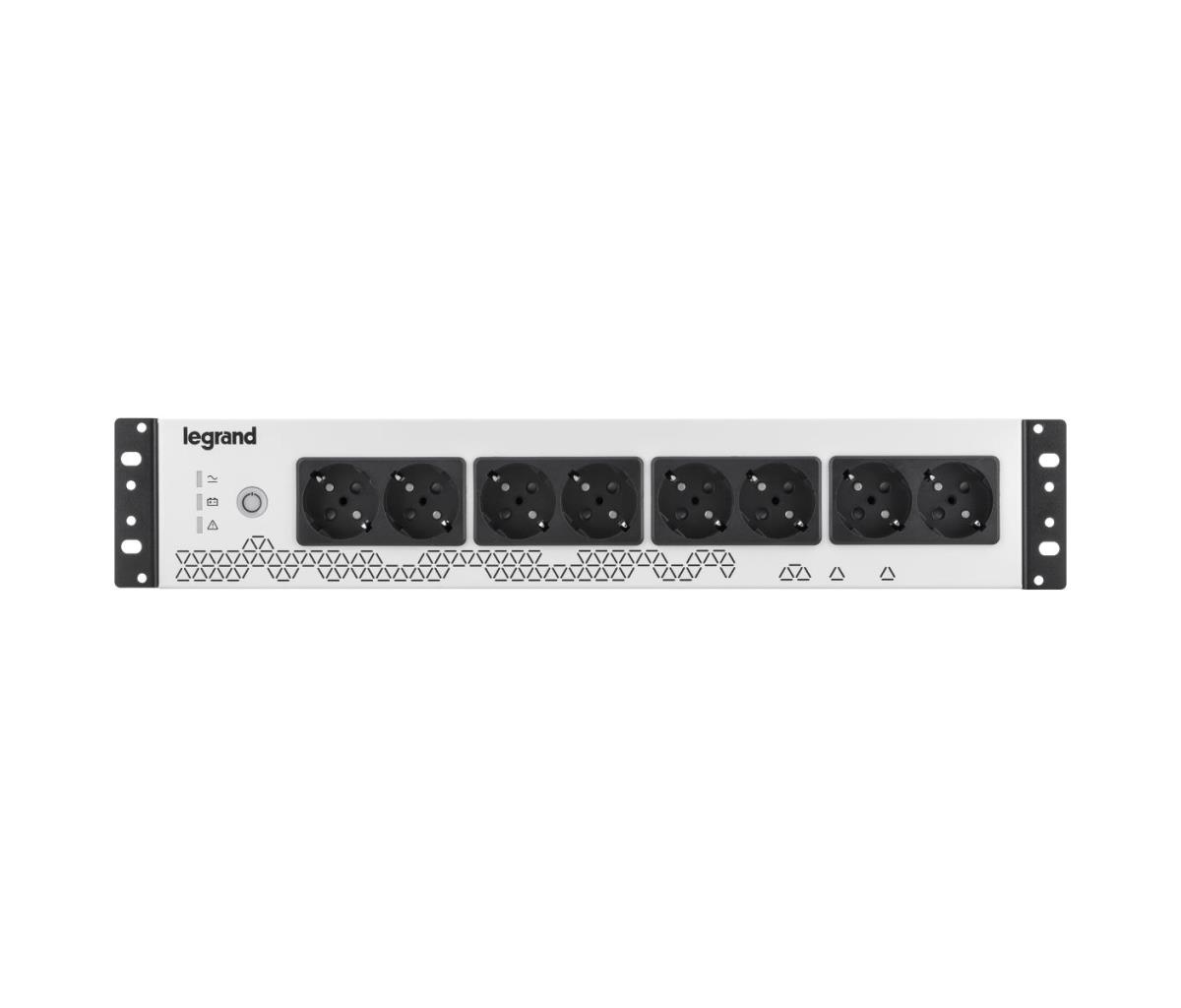

Keor PDU is a new UPS specifically designed for installation in 19-inch panels and racks.
Its PDU style design with ultra compact dimensions provides 8 sockets with up to 15 minute autonomy in just 2 rack units.

Warranty
Base Warranty Non Non
Kenmerken
UPS-topologie Stand-by (Offline)
Output power capacity 0,8 kVA
Uitgangsvermogen 480 W
Golfvorm Sinus
Ingang operation voltage (min) 160 V
Ingang operation voltage (max) 290 V
Frequentie 45/65 Hz
Uitgang operation voltage (min) 207 V
Uitgang operation voltage (max) 253 V
Output frequentie 50/60 Hz
Uitgangsfrequentieregeling 1 Hz
Uitgangsspanningsregeling 10 procent
Stroom (max.) 10 A
Aantal input fases 1
Aantal output fases 1
Efficientie 98 procent
Output vermogensfactor 0,6
Geluidsniveau 40 dB
Stroomspanning bescherming Overontlading, Overbelasting, Kortsluiting
Potentiaalvrije uitgang Nee
Automatische uitschakeling Nee
Type stroombron AC
Poorten & interfaces
Stopcontacttypes C13 stekker
Stekker C14 stekker
Aantal AC uitgangen 16 AC-uitgang(en)
Aantal type F-uitgangen 8
USB-poort Ja
USB-poorttype USB Type-B
Accu/Batterij
Batterijtechnologie Sealed Lead Acid (VRLA)
Batterij capaciteit 9 Ah
Ondersteund aantal accu's/batterijen 1
Typische backup tijd op halve lading 10 min
Design
Vormfactor Rackmontage
Rackcapaciteit 2U
Kleur van het product Zwart, Wit
LED-indicatoren Ja
Certificering EN 62040-1, EN 62040-2
Eisen aan de omgeving
Bedrijfstemperatuur (T-T) 0 - 40 øC
Relatieve vochtigheid in bedrijf (V-V) 0 - 95 procent
Technische details
Naleving van duurzaamheid Ja
Pallet nettohoogte 102 cm
Pallet nettodiepte 100 cm
Pallet nettobreedte 120 cm
Nettogewicht pallet 306,6 kg
Certificaten van naleving CE
Gewicht en omvang
Breedte 88 mm
Diepte 150 mm
Hoogte 440 mm
Gewicht 5,5 kg
Breedte verpakking 88 mm
Diepte verpakking 5,81 mm
Hoogte verpakking 440 mm
Gewicht verpakking 6,07 kg
Logistieke gegevens
Producten per pallet 48 stuk(s)
Code geharmoniseerd systeem (HS) 85078000
(Buitenste) hoofdverpakking breedte 159 mm
(Buitenste) hoofdverpakking lengte 528 mm
(Buitenste) hoofdverpakking hoogte 255 mm
(Buitenste) hoofdverpakking brutogewicht 6,39 kg
Hoeveelheid per (buitenste) hoofdverpakking 1 stuk(s)
