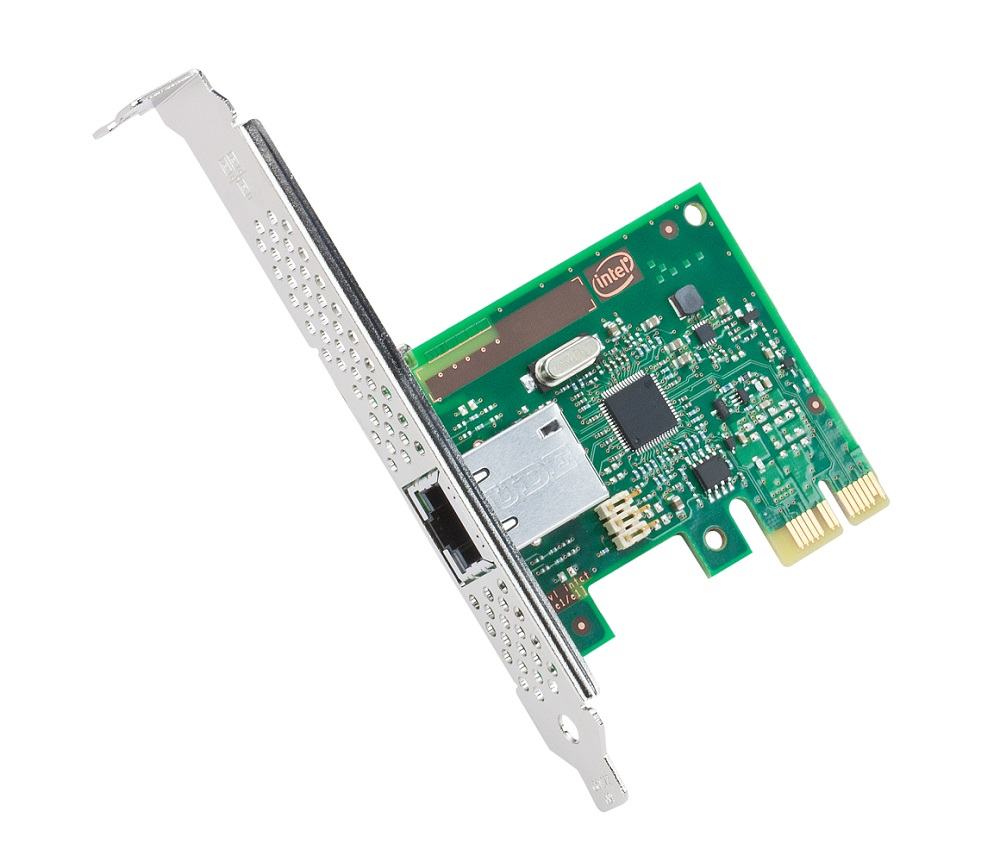

Ethernet Server Adapter I210 Pci-e
ITCurry #: 27307681 | Article #: I210T1-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
iWARP/RDMA
iWARP delivers converged, low-latency fabric services to data centers through Remote Direct Memory Access (RDMA) over Ethernet. The key iWARP components that deliver low-latency are Kernel Bypass, Direct Data Placement, and Transport Acceleration.
Intel® Data Direct I/O Technology
Intel® Data Direct I/O Technology is a platform technology that improves I/O data processing efficiency for data delivery and data consumption from I/O devices. With Intel DDIO, Intel® Server Adapters and controllers talk directly to the processor cache without a detour via system memory, reducing latency, increasing system I/O bandwidth, and reducing power consumption.
PCI-SIG* SR-IOV Capable
Single-Root I/O Virtualization (SR-IOV) involves natively (directly) sharing a single I/O resource between multiple virtual machines. SR-IOV provides a mechanism by which a Single Root Function (for example a single Ethernet Port) can appear to be multiple separate physical devices.
Intel® Ethernet Power Management
Intel® Ethernet Power Management Technology provides solutions to common power management approaches by reducing idle power, reducing capacity and power as a function of demand, operating at maximum energy efficiency whenever possible, and enabling functionality only when needed.
Flexible Port Partitioning
Flexible Port Partitioning (FPP) technology utilizes industry standard PCI SIG SR-IOV to efficiently divide your physical Ethernet device into multiple virtual devices, providing Quality of Service by ensuring each process is assigned to a Virtual Function and is provided a fair share of the bandwidth.
Virtual Machine Device Queues (VMDq)
Virtual Machine Device Queues (VMDq) is a technology designed to offload some of the switching done in the VMM (Virtual Machine Monitor) to networking hardware specifically designed for this function. VMDq drastically reduces overhead associated with I/O switching in the VMM which greatly improves throughput and overall system performance
| Poorten & interfaces | |
| Connectiviteitstechnologie | Bedraad |
| Hostinterface | PCI Express |
| Interface | Ethernet |
| Aantal Ethernet LAN (RJ-45)-poorten | 1 |
| PCI versie | 2.1 |
| Netwerk | |
| Netwerkstandaard | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Ethernet LAN | Ja |
| Ethernet LAN, data-overdrachtsnelheden | 10,100,1000 Mbit/s |
| Bekabelingstechnologie | 10/100/1000BaseT(X) |
| Maximale afstand | 100 m |
| LAN controller | Intel I210 |
| Design | |
| Intern | Ja |
| Compatibele producten | Intel Workstation System P4304CR2LFKN, P4304CR2LFJN, P4304CR2LFGN, P4304CR2LFJNL Intel Server System P4224IP4LHKC, P4216IP4LHJC, P4208IP4LHGC, P4308IP4LHKC, P4308IP4LHJC, P4308IP4LHGC , P4308IP4LHJCL |
| Gewicht en omvang | |
| Breedte | 65 mm |
| Diepte | 20 mm |
| Hoogte | 55 mm |
| Logistieke gegevens | |
| Code geharmoniseerd systeem (HS) | 85176990 |
| Overige specificaties | |
| Soort kabel | RJ45 Category 5, up to 100 m |
| Marktsegment | Server |
| Thermisch vermogen | 1 W |
| Intel© Virtual Machine Device Queues (VMDq) | Nee |
| PCI-SIG* SR-IOV Capable | Nee |
| On-chip QoS and Traffic Management | Nee |
| Intel© Flexible Port Partitioning | Nee |
| Snelheid en sleuf breedte | 2.5 GT/s, x1 Lane |
| Lage halogeen opties beschikbaar | Nee |
| Intelligent Offloads | Ja |
| iWARP/RDMA | Nee |
| Fiber Channel over Ethernet | Nee |
| Intel© Ethernet Power Management | Ja |
| Intel© Data Direct I/O Technology | Nee |
| Soort aansluiting | PCIe v2.1 (2.5 GT/s) |
| Conflict Free | Ja |
| Introductiedatum | Q1'13 |
| Lanceringsdatum | Q1'13 |
| Kaartkabeldrager netwerkinterface | Copper |
| Kaarttype netwerkinterface | Server |
| URL productsamenvatting | http://www.intel.com/content/www/us/en/network-adapters/gigabit-network-adapters/ethernet-server-adapter-i210-brief.html |
| Productnaam | Intel Ethernet Server Adapter I210-T1 |
| Type product | Network Interface Card |
| Status | Launched |
| Thermal Design Power (TDP) | 1 W |
| aantal QPI links | Single |
| Laatste wijziging | 63903513 |
| Processorfamilie | Gigabit Ethernet Adapters (up to 2.5GbE)-Gigabit Ethernet Adapters (up to 2.5GbE) |
| Ethernet-adapter ARK ID | 68668 |
| Export Control Classification Number (ECCN) | 5A991 |
| Commodity Classification Automated Tracking System (CCATS) | NA |
| Optische drivecontroller | Intel I210 |
| Bekabelingstype | RJ45 Category 5, up to 100 m |
| Brackethoogte | Low-Profile (LP) / Full-Height (FH) |
| Productfamilie | Intel Gigabit server adapter |
| Productserie | Intel I210 |
| Warranty | |
| Base Warranty | Non Non |
