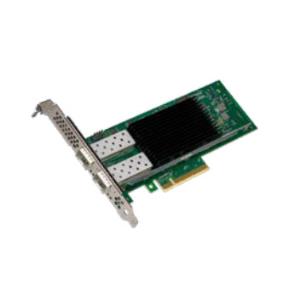

Ethernet Network Adapter Pci-e E810-xxvda2
ITCurry #: 2730C758 | Article #: E810XXVDA2-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
iWARP/RDMA
iWARP delivers converged, low-latency fabric services to data centers through Remote Direct Memory Access (RDMA) over Ethernet. The key iWARP components that deliver low-latency are Kernel Bypass, Direct Data Placement, and Transport Acceleration.
Intel® Data Direct I/O Technology
Intel® Data Direct I/O Technology is a platform technology that improves I/O data processing efficiency for data delivery and data consumption from I/O devices. With Intel DDIO, Intel® Server Adapters and controllers talk directly to the processor cache without a detour via system memory, reducing latency, increasing system I/O bandwidth, and reducing power consumption.
PCI-SIG* SR-IOV Capable
Single-Root I/O Virtualization (SR-IOV) involves natively (directly) sharing a single I/O resource between multiple virtual machines. SR-IOV provides a mechanism by which a Single Root Function (for example a single Ethernet Port) can appear to be multiple separate physical devices.
Flexible Port Partitioning
Flexible Port Partitioning (FPP) technology utilizes industry standard PCI SIG SR-IOV to efficiently divide your physical Ethernet device into multiple virtual devices, providing Quality of Service by ensuring each process is assigned to a Virtual Function and is provided a fair share of the bandwidth.
Virtual Machine Device Queues (VMDq)
Virtual Machine Device Queues (VMDq) is a technology designed to offload some of the switching done in the VMM (Virtual Machine Monitor) to networking hardware specifically designed for this function. VMDq drastically reduces overhead associated with I/O switching in the VMM which greatly improves throughput and overall system performance
| Poorten & interfaces | |
| Connectiviteitstechnologie | Bedraad |
| Hostinterface | PCI Express |
| Interface | Fiber |
| Fibre channel-poorten | 2 |
| Vezel-optische connector | SFP28 |
| PCI versie | 4.0 |
| Netwerk | |
| Netwerkstandaard | IEEE 1588, IEEE 1588v2, IEEE 802.1p |
| Ethernet interface type | 10 Gigabit Ethernet, 25 Gigabit Ethernet, Gigabit Ethernet |
| Ethernet LAN, data-overdrachtsnelheden | 1000,10000,25000 Mbit/s |
| Quality of Service (QoS) | Ja |
| LAN controller | Intel E810 |
| Design | |
| Component voor | Server |
| Kleur van het product | Zwart, Groen, Zilver |
| Intern | Ja |
| LED-indicatoren | Activiteit, Link |
| Certificering | FCC B, UL, CE, VCCI, BSMI, RCM, KCC |
| Minimale systeemeisen | |
| Compatibele besturingssystemen | https://www.intel.com/content/www/us/en/support/articles/000025890/ethernet-products.html |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 0 - 55 øC |
| Temperatuur bij opslag | -40 - 70 øC |
| Gewicht en omvang | |
| Breedte | 167 mm |
| Diepte | 68 mm |
| Logistieke gegevens | |
| Code geharmoniseerd systeem (HS) | 85176990 |
| Overige specificaties | |
| Soort kabel | SFP28 ports - DAC, Optics, and AOC's |
| Intel© Virtual Machine Device Queues (VMDq) | Ja |
| PCI-SIG* SR-IOV Capable | Ja |
| On-chip QoS and Traffic Management | Ja |
| Intel© Flexible Port Partitioning | Ja |
| Snelheid en sleuf breedte | 16.0 GT/s, x8 Lane |
| Intelligent Offloads | Ja |
| iWARP/RDMA | Ja |
| Intel© Data Direct I/O Technology | Ja |
| Intel© Virtualization Technology for Connectivity (VT-c) | Ja |
| Opslag via ethernet | iSCSI, NFS |
| Lanceringsdatum | Q3'20 |
| Kaartkabeldrager netwerkinterface | Copper, Fiber |
| Kaarttype netwerkinterface | Server |
| Status | Launched |
| Processorfamilie | 800 Network Adapters (up to 100GbE)-800 Network Adapters (up to 100GbE) |
| Ethernet-adapter ARK ID | 189760 |
| Export Control Classification Number (ECCN) | 5A991 |
| Commodity Classification Automated Tracking System (CCATS) | NA |
| Brackethoogte | Low-Profile (LP) / Full-Height (FH) |
| Productserie | 800 Series Network Adapters (up to 100GbE) |
| Warranty | |
| Base Warranty | Non Non |
