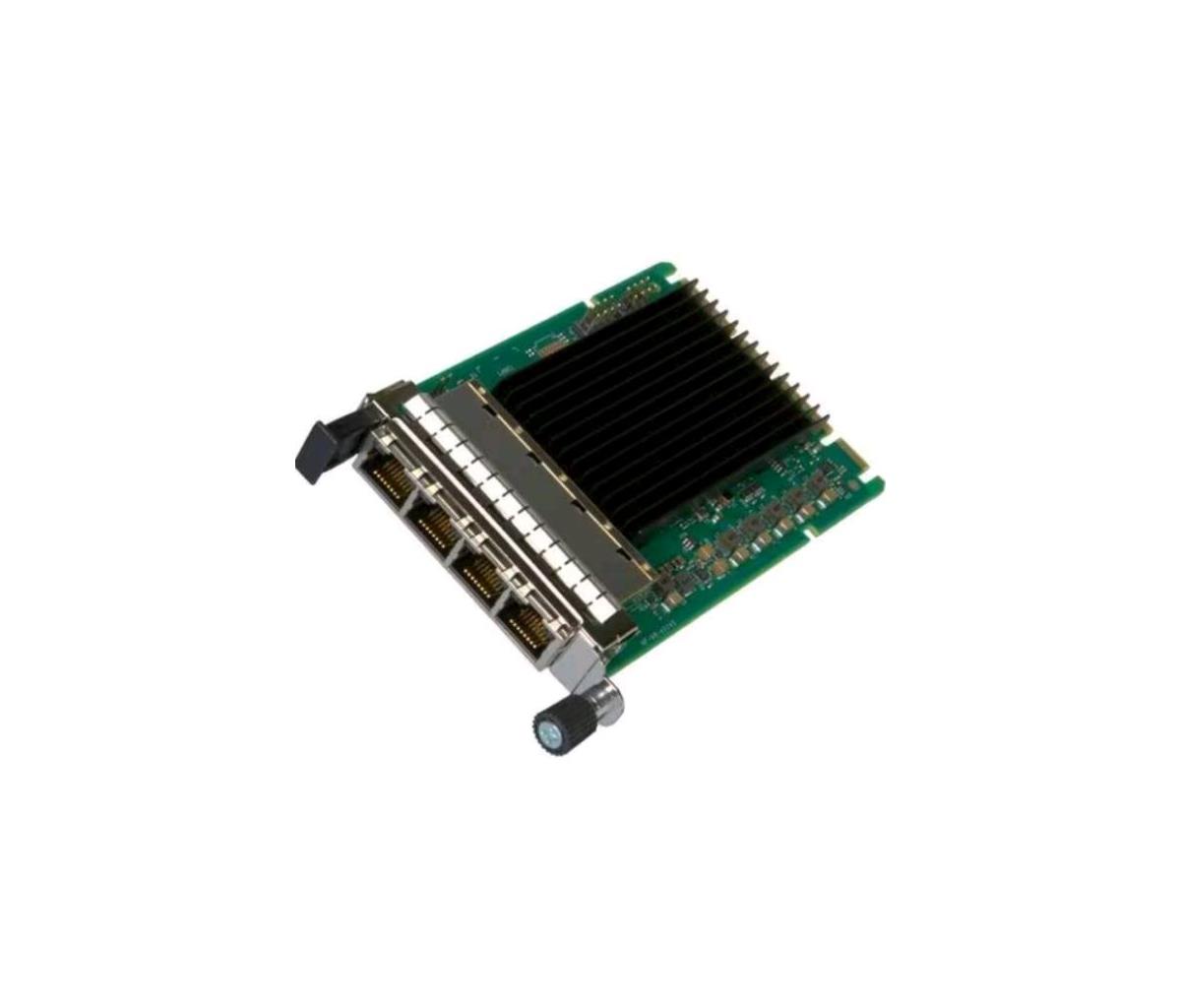

Ethernet Network Adapter Ocp 3.0 E610-it4 Multi
ITCurry #: 2730E110 | Article #: E610IT4OCP3M5-
SchermGeheugenGewichtProcessorHard DiskSSDSchermResolutieConnectiviteitGeheugenDesktopOSSchermTypeSnelheid ZwartSnelheid KleurenModelSnelheidVorm factorInterne / ExterneAantal poortenUplink / mediaMontage
- Alles bekijken
Bundles
Verwante producten
Product Informatie
iWARP/RDMA
iWARP delivers converged, low-latency fabric services to data centers through Remote Direct Memory Access (RDMA) over Ethernet. The key iWARP components that deliver low-latency are Kernel Bypass, Direct Data Placement, and Transport Acceleration.
Intel® Data Direct I/O Technology
Intel® Data Direct I/O Technology is a platform technology that improves I/O data processing efficiency for data delivery and data consumption from I/O devices. With Intel DDIO, Intel® Server Adapters and controllers talk directly to the processor cache without a detour via system memory, reducing latency, increasing system I/O bandwidth, and reducing power consumption.
PCI-SIG* SR-IOV Capable
Single-Root I/O Virtualization (SR-IOV) involves natively (directly) sharing a single I/O resource between multiple virtual machines. SR-IOV provides a mechanism by which a Single Root Function (for example a single Ethernet Port) can appear to be multiple separate physical devices.
Flexible Port Partitioning
Flexible Port Partitioning (FPP) technology utilizes industry standard PCI SIG SR-IOV to efficiently divide your physical Ethernet device into multiple virtual devices, providing Quality of Service by ensuring each process is assigned to a Virtual Function and is provided a fair share of the bandwidth.
Virtual Machine Device Queues (VMDq)
Virtual Machine Device Queues (VMDq) is a technology designed to offload some of the switching done in the VMM (Virtual Machine Monitor) to networking hardware specifically designed for this function. VMDq drastically reduces overhead associated with I/O switching in the VMM which greatly improves throughput and overall system performance
| Poorten & interfaces | |
| Connectiviteitstechnologie | Bedraad |
| Hostinterface | PCI Express |
| Interface | Ethernet |
| Aantal Ethernet LAN (RJ-45)-poorten | 4 |
| PCI versie | 4.0 |
| Netwerk | |
| Maximale overdrachtssnelheid van gegevens | 2500 Mbit/s |
| Ethernet LAN | Ja |
| Ethernet interface type | 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN, data-overdrachtsnelheden | 100,1000,2500 Mbit/s |
| Bekabelingstechnologie | 2.5GBase-T |
| LAN controller | Intel E610-IAT2 |
| Design | |
| Component voor | Server |
| Kleur van het product | Zwart, Groen, Zilver |
| Intern | Ja |
| LED-indicatoren | Activiteit, Link |
| Energie | |
| Stroomverbruik (typisch) | 7,2 W |
| Eisen aan de omgeving | |
| Bedrijfstemperatuur (T-T) | 0 - 65 øC |
| Temperatuur bij opslag | -40 - 70 øC |
| Technische details | |
| Certificaten van naleving | BSMI, CE, Federal Communications Commission (FCC), KCC, RCM, RoHS, VCCI |
| Logistieke gegevens | |
| Code geharmoniseerd systeem (HS) | 8517620090 |
| Overige specificaties | |
| Marktsegment | Server |
| Intel© Virtual Machine Device Queues (VMDq) | Ja |
| PCI-SIG* SR-IOV Capable | Ja |
| On-chip QoS and Traffic Management | Ja |
| Intel© Flexible Port Partitioning | Ja |
| Intelligent Offloads | Ja |
| iWARP/RDMA | Nee |
| Intel© Data Direct I/O Technology | Ja |
| Intel© Virtualization Technology for Connectivity (VT-c) | Ja |
| Opslag via ethernet | iSCSI, NFS |
| Lanceringsdatum | Q2'25 |
| Export Control Classification Number (ECCN) | 5A992.C |
| Commodity Classification Automated Tracking System (CCATS) | G157815L2 |
| Bekabelingstype | RJ45 Category 6, Category 6A, Category 5e up to 100m |
| Brackethoogte | OCP 3.0 |
| Kaartkabeldrager netwerkinterface | Copper |
| Status | Launched |
| Ethernet-adapter ARK ID | 230171 |
| Warranty | |
| Base Warranty | Non Non |
